Ethylene Oxide Sterilizer LEOS-B10

Ethylene Oxide Sterilizer LEOS-B10

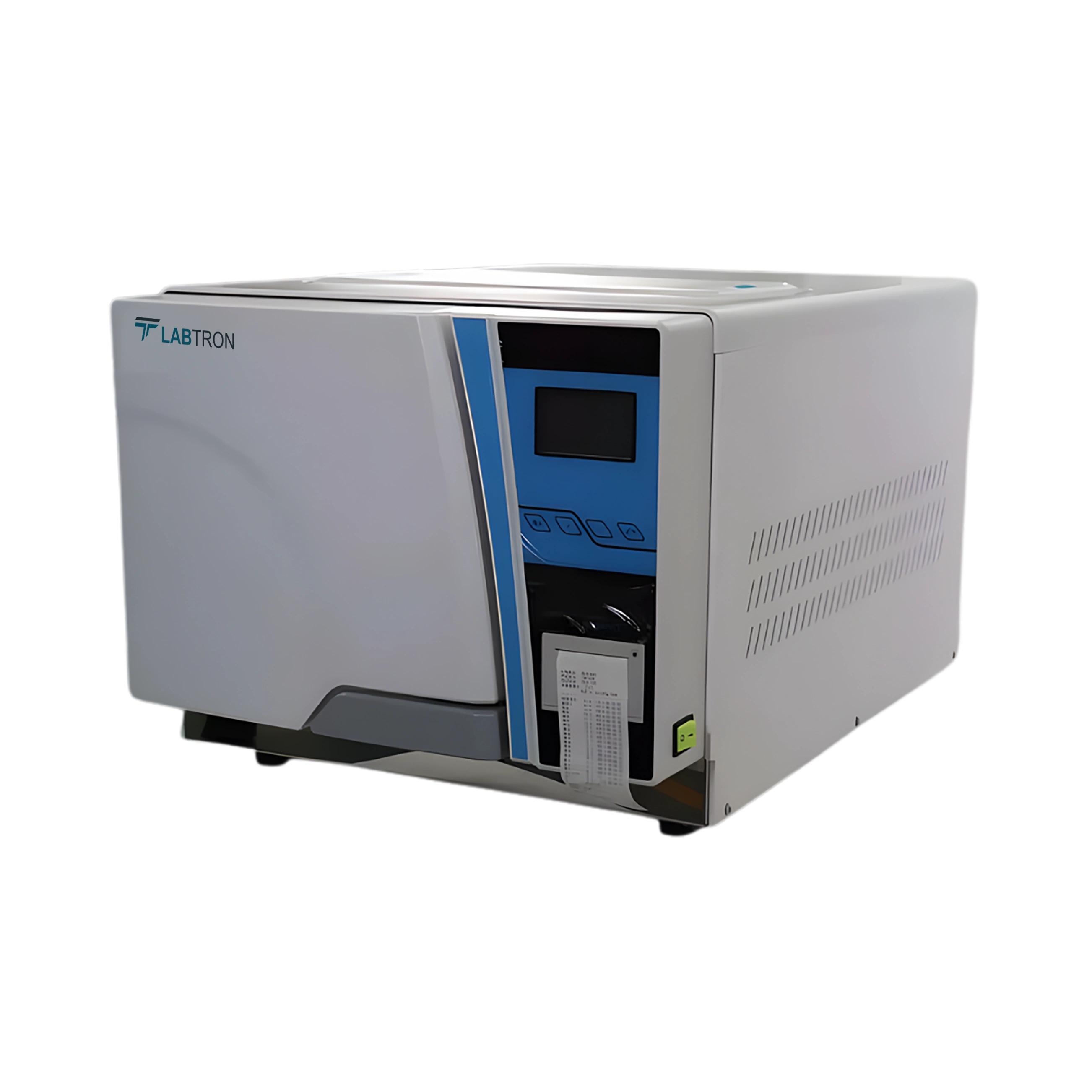

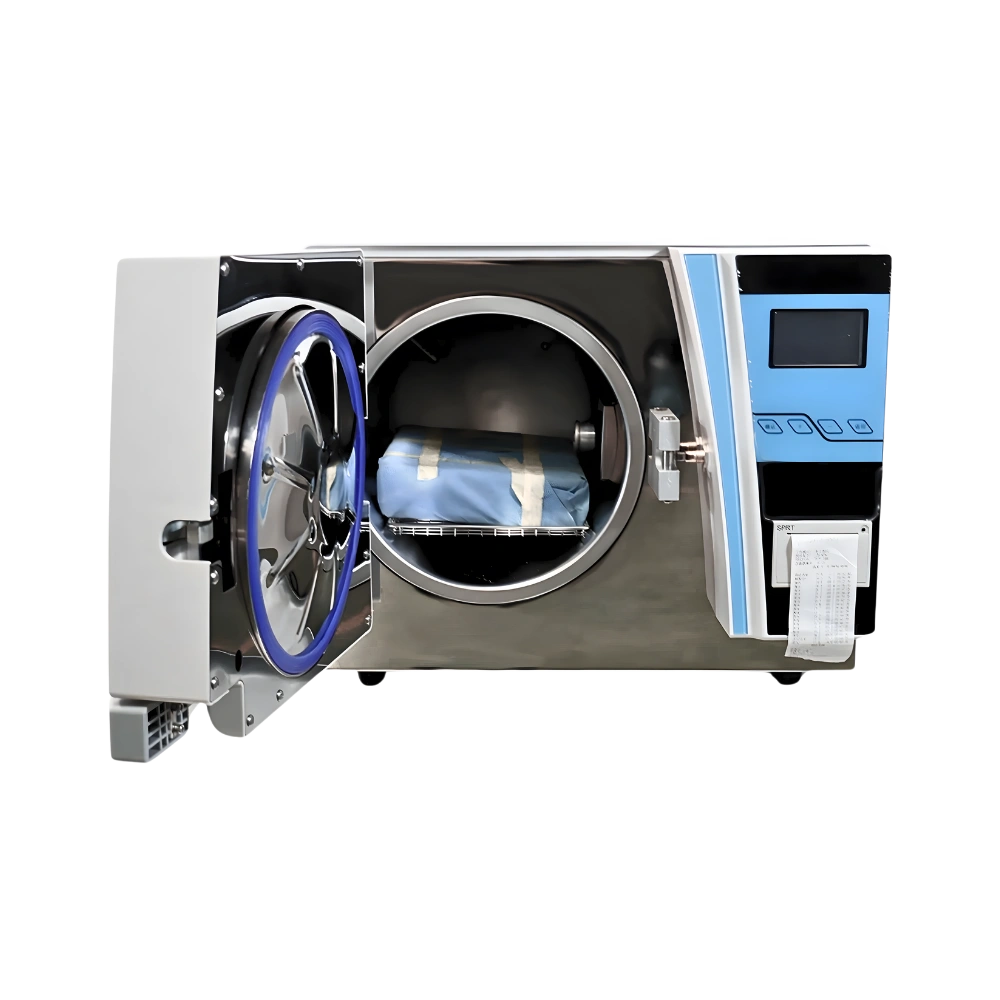

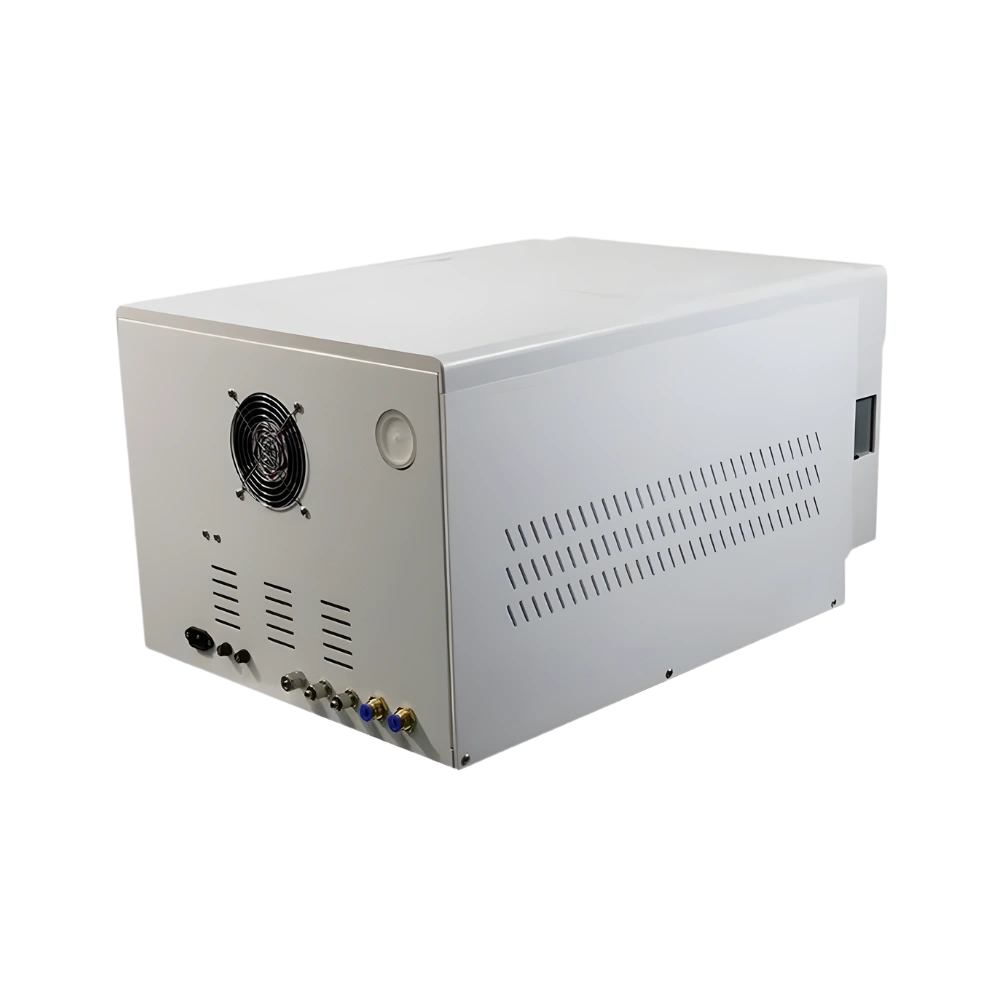

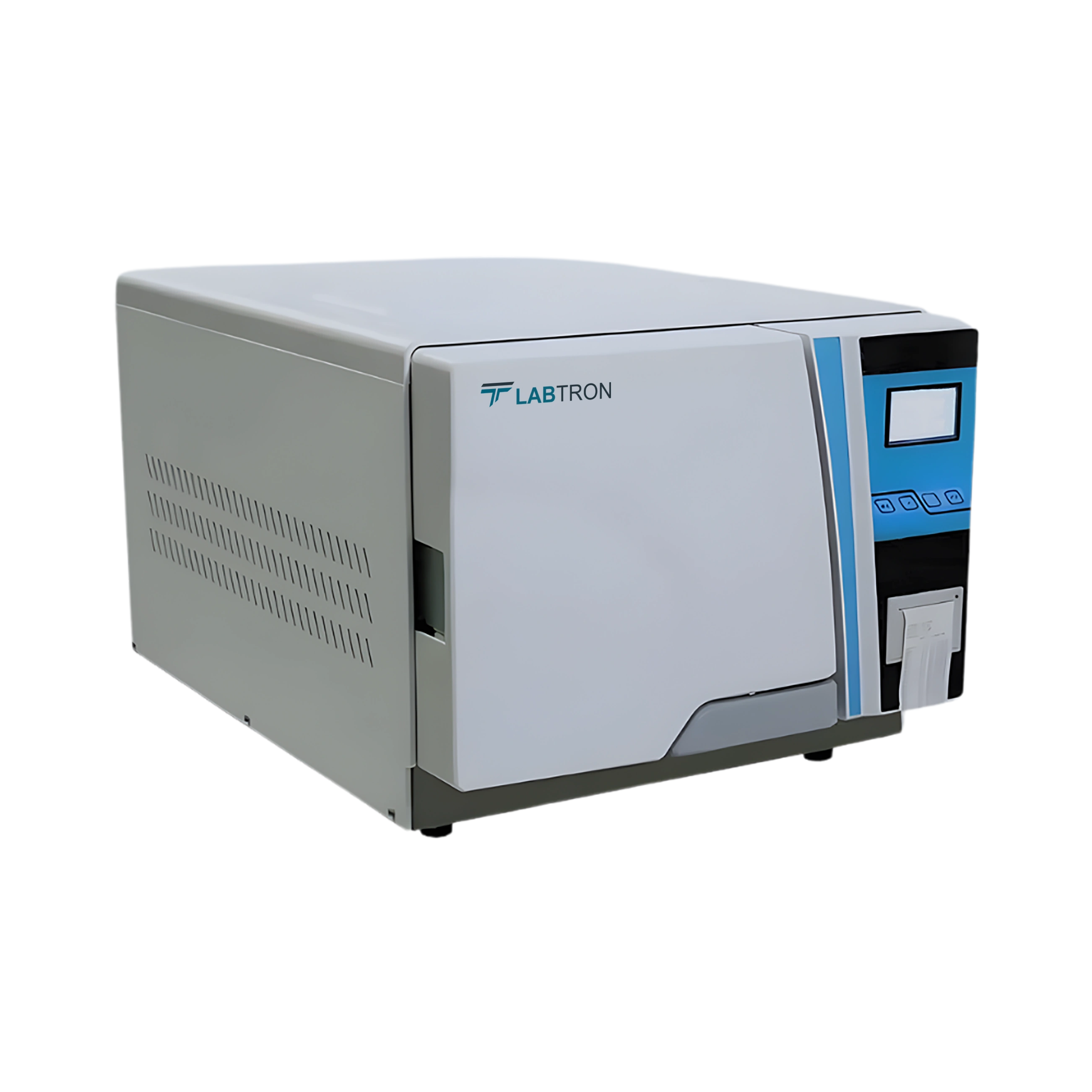

Ethylene Oxide Sterilizer LEOS-B10 has a generous capacity of 23 L for sterilization. It operates within a sterilization temperature range of 36℃ to 55℃ and uses 100% pure EO gas cartridges. This sterilizer is equipped with an oil-free vacuum pump, offering high performance with minimal noise. Its chamber is made of corrosion-resistant SS304 stainless steel, and the system maintains uniform humidity using saturated steam. Our sterilizer is used for the sterilization of various medical and laboratory instruments.

Ethylene Oxide Sterilizer LEOS-B10
Ethylene Oxide Sterilizer LEOS-B10
Ethylene Oxide Sterilizer LEOS-B10
Ethylene Oxide Sterilizer LEOS-B10
Ethylene Oxide Sterilizer LEOS-B10
Ethylene Oxide Sterilizer LEOS-B10
Request Quote
Type Tabletop
Capacity 23 L
Sterilization Temperature 36℃ to 55℃
Humidity System Saturated steam
Sterilization Method Low temperature, gas sterilization
Sterilizing Gas 100% Pure EO gas cartridge
Sterilization Time 8 to 10 hours, depend on materials
Control System PLC
Operation Mode Soft touch keys
Display LCD
Printer Thermal mini printer
Vacuum system Oil-free vacuum pump
Protection features Temperature and pressure protection
Sterilization Chamber Material SS304 stainless steel

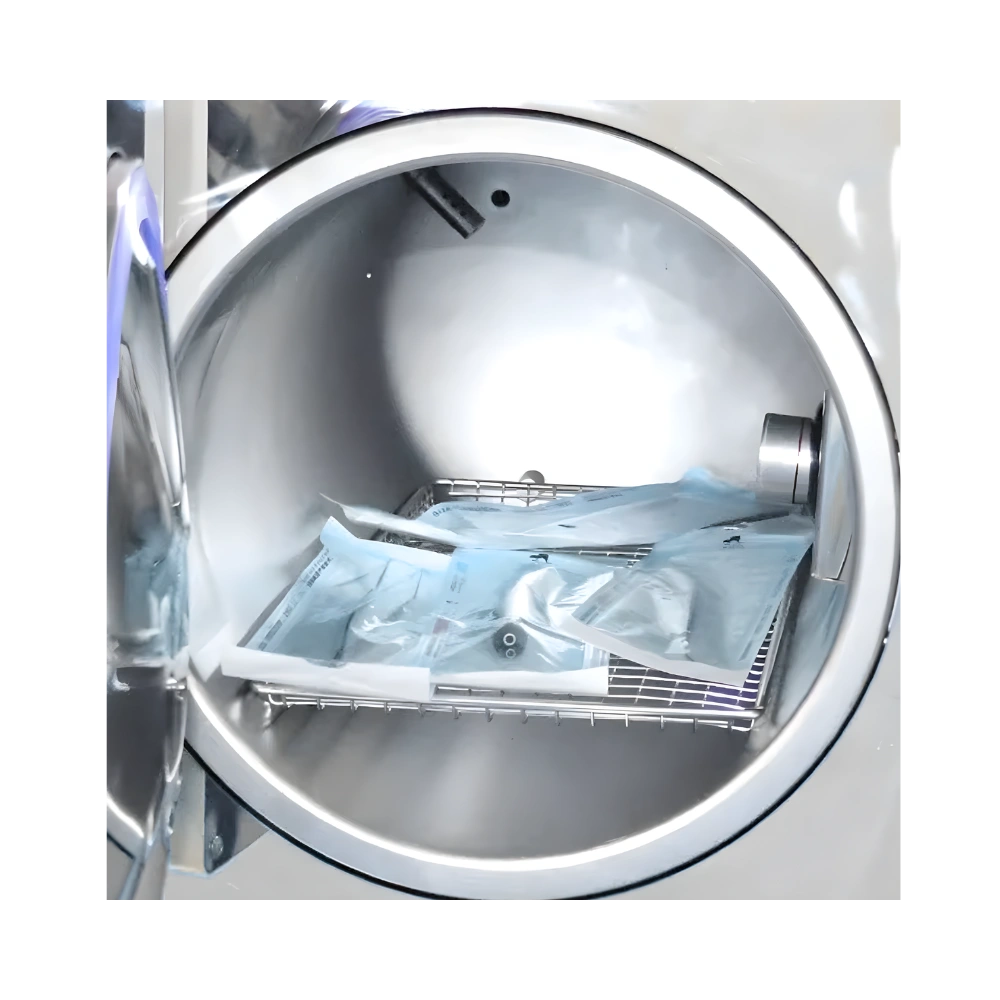

Tray 1 Stainless steel net tray
Power 1.3 kW
Power Supply 220 V 50 Hz
Chamber Dimension Փ 240 × 270 mm
Overall Dimension 670 × 450 × 400 mm
Weight 56 kg
  • Safety alerts

  • Touchscreen operation

  • Preset programs

  • Uniform humidity in chamber

  • Durable construction

Our Ethylene Oxide Sterilizer LEOS-B10 is used to sterilize heat- and moisture-sensitive items such as rubber, plastic products, and medical instruments. It is ideal for sterilizing hard and soft endoscopes, surgical tools, and other delicate healthcare equipment.

Ethylene Oxide Sterilizer LEOS-B10 | Type Tabletop | Capacity 23 L

Models of Ethylene Oxide Sterilizer

Labtron Ethylene Oxide Sterilizer is specialized for disinfection of heat-sensitive and complex materials. They offer effective microbial eradication by using ethylene oxide (EO) gas. Their insulation function minimizes energy loss, making them environment-friendly and cost-effective. They feature automated cycles and an efficient aeration system to improve the decontamination process thoroughly. Our Ethylene Oxide Sterilizer is applicable in hospitals, labs, and industries for decontaminating implants and instruments.

Ethylene Oxide Sterilizer LEOS-D12

Ethylene Oxide Sterilizer LEOS-D12

  • Chamber Capacity : 168 Liters
  • Door Type : Vertical Sliding Door
  • Heating Method : Electric Uniform Heating
  • Sterilization Temperature : 50 °C ± 5 °C
Ethylene Oxide Sterilizer LEOS-C21

Ethylene Oxide Sterilizer LEOS-C21

  • Type : Vertical
  • Capacity : 192 L
  • Sterilization Temperature : 36℃ to 55℃
  • Humidity System : Saturated steam
Ethylene Oxide Sterilizer LEOS-A11

Ethylene Oxide Sterilizer LEOS-A11

  • Type : Vertical; constant temperature heating box type
  • Door opening : Manual
  • Capacity : 120 L
  • Sterilization temperature : 50℃ ± 3℃
Ethylene Oxide Sterilizer LEOS-D10
Ethylene Oxide Sterilizer LEOS-D10
  • Chamber Capacity : 50 Liters
  • Door Type : Vertical Sliding Door
  • Heating Method : Electric Uniform Heating
  • Sterilization Temperature : 50 °C ± 5 °C
Ethylene Oxide Sterilizer LEOS-C10
Ethylene Oxide Sterilizer LEOS-C10
  • Type : Vertical
  • Capacity : 67 L
  • Sterilization Temperature : 36℃ to 55℃
  • Humidity System : Saturated steam
Ethylene Oxide Sterilizer LEOS-D14

Ethylene Oxide Sterilizer LEOS-D14

  • Chamber Capacity : 300 Liters
  • Door Type : Vertical Sliding Door
  • Heating Method : Electric Uniform Heating
  • Sterilization Temperature : 50 °C ± 5 °C
Ethylene Oxide Sterilizer LEOS-A13

Ethylene Oxide Sterilizer LEOS-A13

  • Type : Vertical; constant temperature heating box type
  • Door opening : Manual
  • Capacity : 360 L
  • Sterilization temperature : 50℃ ± 3℃
Ethylene Oxide Sterilizer LEOS-D13

Ethylene Oxide Sterilizer LEOS-D13

  • Chamber Capacity : 200 Liters
  • Door Type : Vertical Sliding Door
  • Heating Method : Electric Uniform Heating
  • Sterilization Temperature : 50 °C ± 5 °C

Ethylene Oxide Sterilizer LEOS-B10 FAQ's
  • . Labtron’s Ethylene Oxide Sterilizer is specifically designed to sterilize heat- and moisture-sensitive items. This includes delicate medical and laboratory instruments such as rubber components, plastic devices, surgical tools, and both hard and flexible endoscopes. It is ideal for materials that cannot withstand the high temperatures of steam sterilization.

  • The sterilization process in this sterilizer uses 100% pure ethylene oxide (EO) gas in a low-temperature environment ranging from 36? to 55?. The chamber is first vacuumed using an oil-free pump, followed by the injection of EO gas. The process includes gas diffusion, sterilization holding time, and aeration to remove EO residues, all managed by a PLC-controlled system.

  • Yes, our sterilizer is designed with multiple safety features including temperature and pressure protection systems. It also provides safety alerts and operates with a sealed, corrosion-resistant stainless steel chamber. These features ensure it meets safety standards for use in clinical, research, and hospital settings.

  • Our Ethylene Oxide Sterilizer uses a saturated steam system to maintain uniform humidity within the chamber, which is essential for effective EO sterilization. The consistent humidity level helps ensure even gas penetration and successful sterilization of all items, regardless of their shape or material.

  • This sterilizer includes a touchscreen LCD display for intuitive control, preset sterilization and washing programs for convenience, and a built-in thermal mini printer for cycle documentation. These features make it easy to operate and monitor the sterilization process without requiring specialized training.
