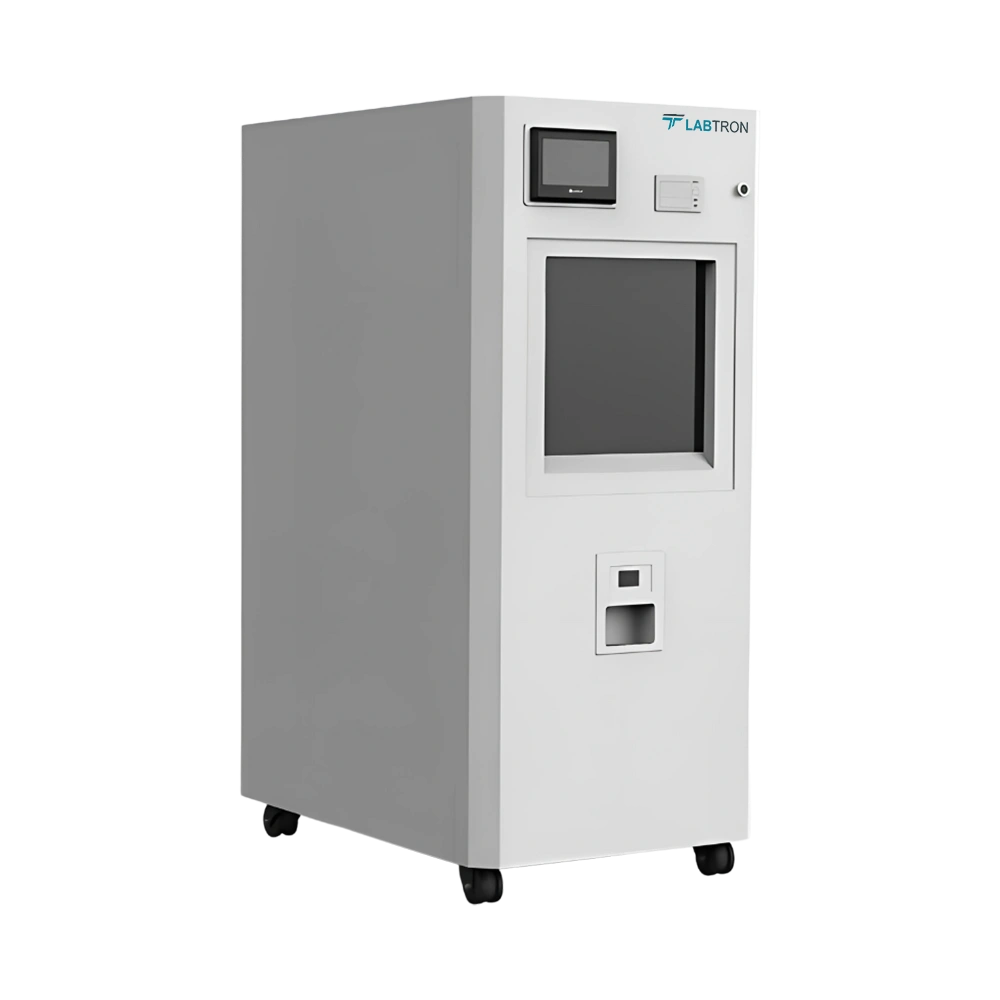

Ethylene Oxide Sterilizer LEOS-D11

The Ethylene Oxide Sterilizer LEOS-D11 is specifically designed for sterilizing heat- and moisture-sensitive instruments, including medical devices, plastic materials, electronics, and surgical equipment. EO (Ethylene Oxide) gas is preferred in this model due to its exceptional ability to penetrate packaging and complex device surfaces, ensuring thorough sterilization without damaging sensitive materials. The LEOS-D11 creates a controlled environment with optimal temperature, pressure, and humidity levels, enabling effective sterilization even for instruments that cannot withstand high heat or steam.

The LEOS-D11 utilizes a uniform electric heating system that evenly distributes heat throughout the chamber, maintaining a stable sterilization temperature of 50°C ± 5°C. Combined with a working pressure of -60 kPa and humidity control between 45% to 75%, this ensures that EO gas effectively reaches all surfaces of the items being sterilized. Additionally, the integrated PLC (Programmable Logic Controller) system automates and regulates the entire sterilization cycle, ensuring repeatable and reliable results every time.

The LEOS-D11 is engineered with both performance and durability in mind. It features a 100-liter sterilization chamber made of stainless steel or aluminium, providing corrosion resistance and structural integrity. The outer shell is constructed from steel plate with a high-quality baking varnish finish, enhancing longevity. The vertical sliding door offers space-saving convenience and user-friendly access, while the 7-inch touch screen provides an intuitive interface for monitoring and controlling operations.

Yes, the LEOS-D11 is designed for ease of use in clinical and laboratory settings. The 7-inch touch screen interface simplifies operation by displaying real-time parameters and offering easy navigation through sterilization programs. The PLC control system automates critical processes such as heating, gas injection, ventilation, and cycle monitoring. This significantly reduces the need for manual intervention and ensures operator safety during EO gas handling.

Safety is a top priority in the LEOS-D11. It incorporates automated ventilation and pressure regulation to safely exhaust residual EO gas. The integrated constant temperature incubator maintains consistent post-sterilization conditions to ensure the integrity of sterilized items. Its sealed design minimizes operator exposure to EO gas, and the unit complies with industry standards for safe and effective gas sterilization. Moreover, the compact and robust design helps in installation within limited space environments while maintaining high performance.
