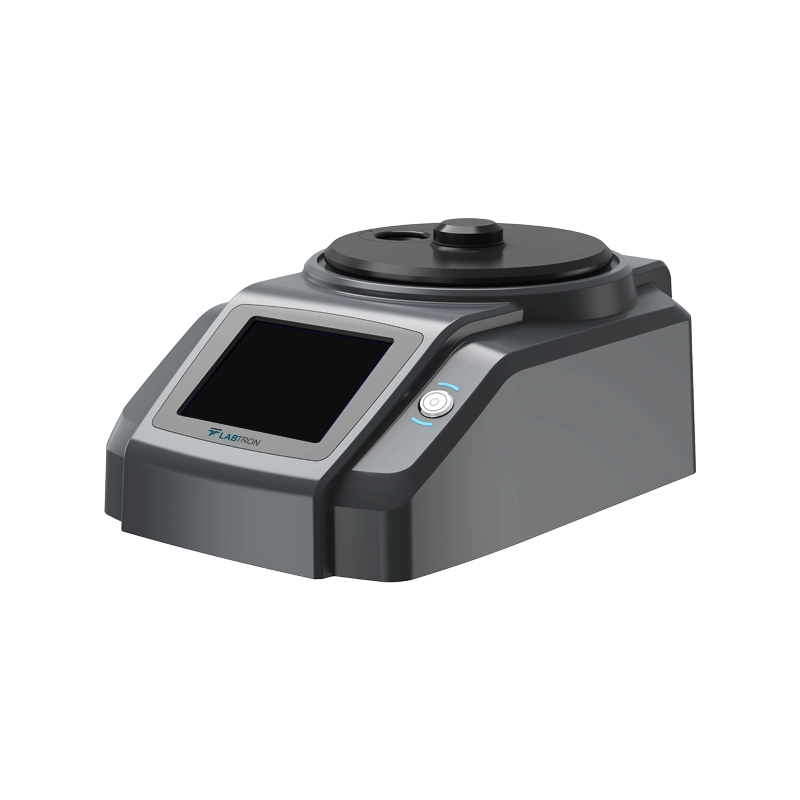

Ferrous Debris Monitor LFDM-A10

Name: Ferrous Debris Monitor LFDM-A10
Brand: Labtron
SKU: LFDM-A10
Rating: 4.8 (754 reviews)

Ferrous Debris Monitor LFDM-A10 offers a wide detection range of 0 to 15000 PQ and the ability to capture ferromagnetic particles larger than 1 μm. It operates within an ambient temperature of 15℃ to 30℃, making it suitable for diverse working environments. It features LCD display with a capacitive touch screen, providing a user-friendly interface for smooth operation. Its data handling is supported through a USB and an RS232 serial communication port for efficient data transfer. Additionally, it is a vital tool for predictive maintenance and industrial wear monitoring.

Request Quote

Detection range	0 to 15000 PQ
Capture ferromagnetic wear particle range	> 1 μm
Ambient temperature	15 ℃ to 30 ℃
Working environment humidity	30% to 80%
Power connection	IEC 6A 3PIN power cord
USB connection	Type-A2.0 (only for connecting USB flash disk)
Data communication	RS232 serial communication port
Operation input method	Capacitive touch screen on display
Measurement resolution	1PQ (average resolution 0.1PQ)
Repeatability	±0.5% or ±3PQ.
Turntable speed	11 S / turn
Display	5.6 inches TFT color LCD display
Power supply	AC 100V to 240V 50Hz /60Hz
Power consumption	< 15 W
Dimensions	402 × 266 × 186 mm
Weight	< 5 kg

Real-Time Feedback
PQ Index Measurement
Fault Detection
Customizable Settings
Quick Detection
Self-Calibration
High Sensitivity
Fast Results

Our Ferrous Debris Monitor LFDM-A10 is widely used across various industries, including oil analysis laboratories, wind energy, power generation, aerospace, and military applications.

Download catalog for
Ferrous Debris Monitor LFDM-A10 Catalog

Download manual for
Ferrous Debris Monitor LFDM-A10 Manual
