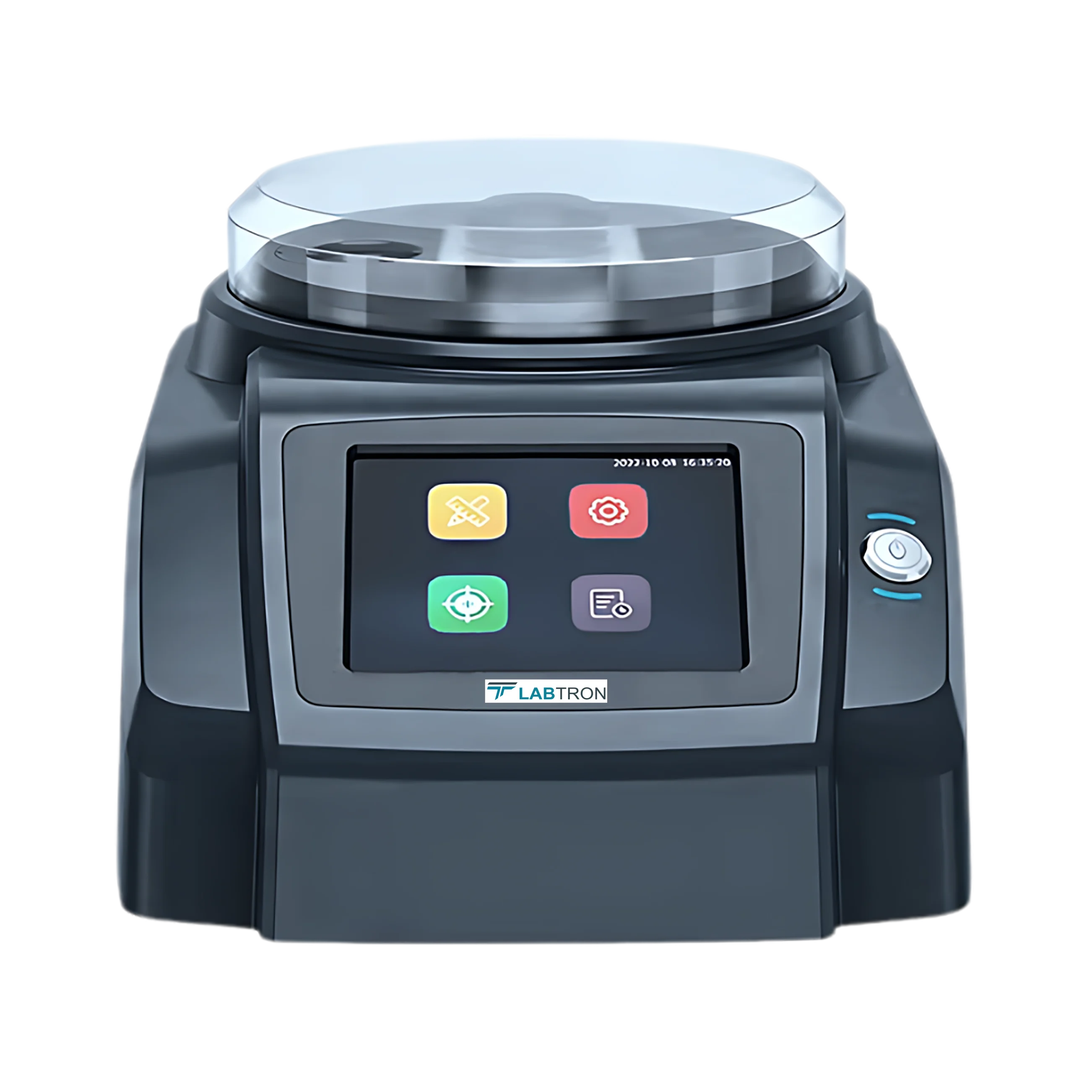

Ferrous Debris Monitor LFDM-A10 offers a wide detection range of 0 to 15000 PQ and the ability to capture ferromagnetic particles larger than 1 μm. It operates within an ambient temperature of 15℃ to 30℃, making it suitable for diverse working environments. It features LCD display with a capacitive touch screen, providing a user-friendly interface for smooth operation. Its data handling is supported through a USB and an RS232 serial communication port for efficient data transfer. Additionally, it is a vital tool for predictive maintenance and industrial wear monitoring.
| Detection range | 0 to 15000 PQ |
| Capture ferromagnetic wear particle range | > 1 μm |
| Ambient temperature | 15 ℃ to 30 ℃ |
| Working environment humidity | 30% to 80% |
| Power connection | IEC 6A 3PIN power cord |
| USB connection | Type-A2.0 (only for connecting USB flash disk) |
| Data communication | RS232 serial communication port |
| Operation input method | Capacitive touch screen on display |
| Measurement resolution | 1PQ (average resolution 0.1PQ) |
| Repeatability | ±0.5% or ±3PQ. |
| Turntable speed | 11 S / turn |
| Display | 5.6 inches TFT color LCD display |
| Power supply | AC 100V to 240V 50Hz /60Hz |
| Power consumption | < 15 W |
| Dimensions | 402 × 266 × 186 mm |
| Weight | < 5 kg |
Our Ferrous Debris Monitor LFDM-A10 is widely used across various industries, including oil analysis laboratories, wind energy, power generation, aerospace, and military applications.
