What is the spectral range and accuracy of Labtron’s FTIR Spectrometer?

The LIR-B13 FTIR Spectrometer operates within a spectral range of 7800 to 375 cm?¹ with a spectral accuracy of 0.01 cm?¹, ensuring highly precise measurements.

What type of detector is used in the FTIR spectrometer?

It features a high-resolution DLATGS detector with a moisture-proof coating, providing reliable and accurate signal detection.

Does the FTIR spectrometer support real-time data monitoring?

Yes, it includes a unique preview mode that allows real-time monitoring of spectral data acquisition for efficient analysis.

What are the power requirements and dimensions of the FTIR spectrometer?

The device operates on 110 to 220V AC, 50 to 60Hz power supply and has compact dimensions of 450 × 350 × 235 mm, making it suitable for laboratory use.

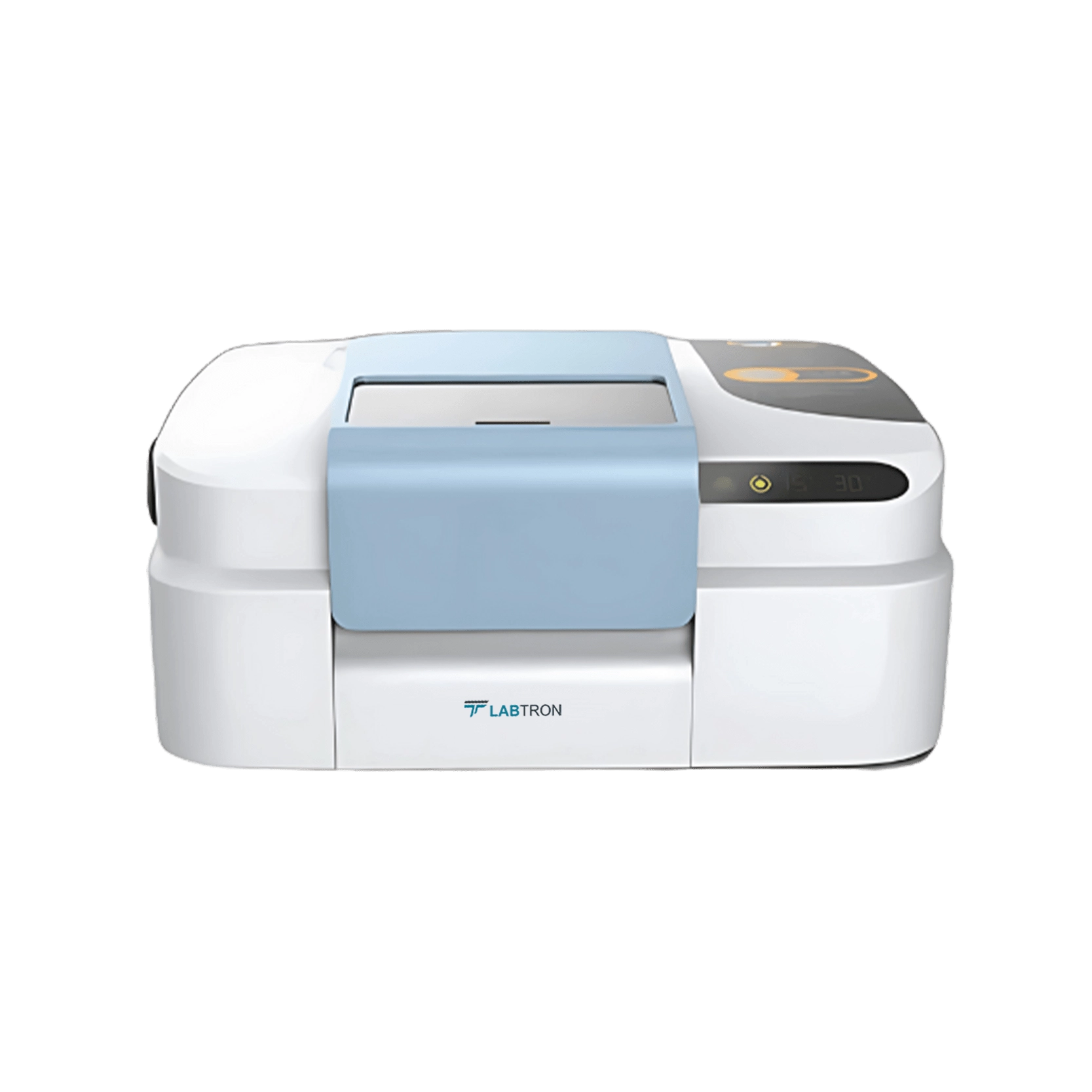

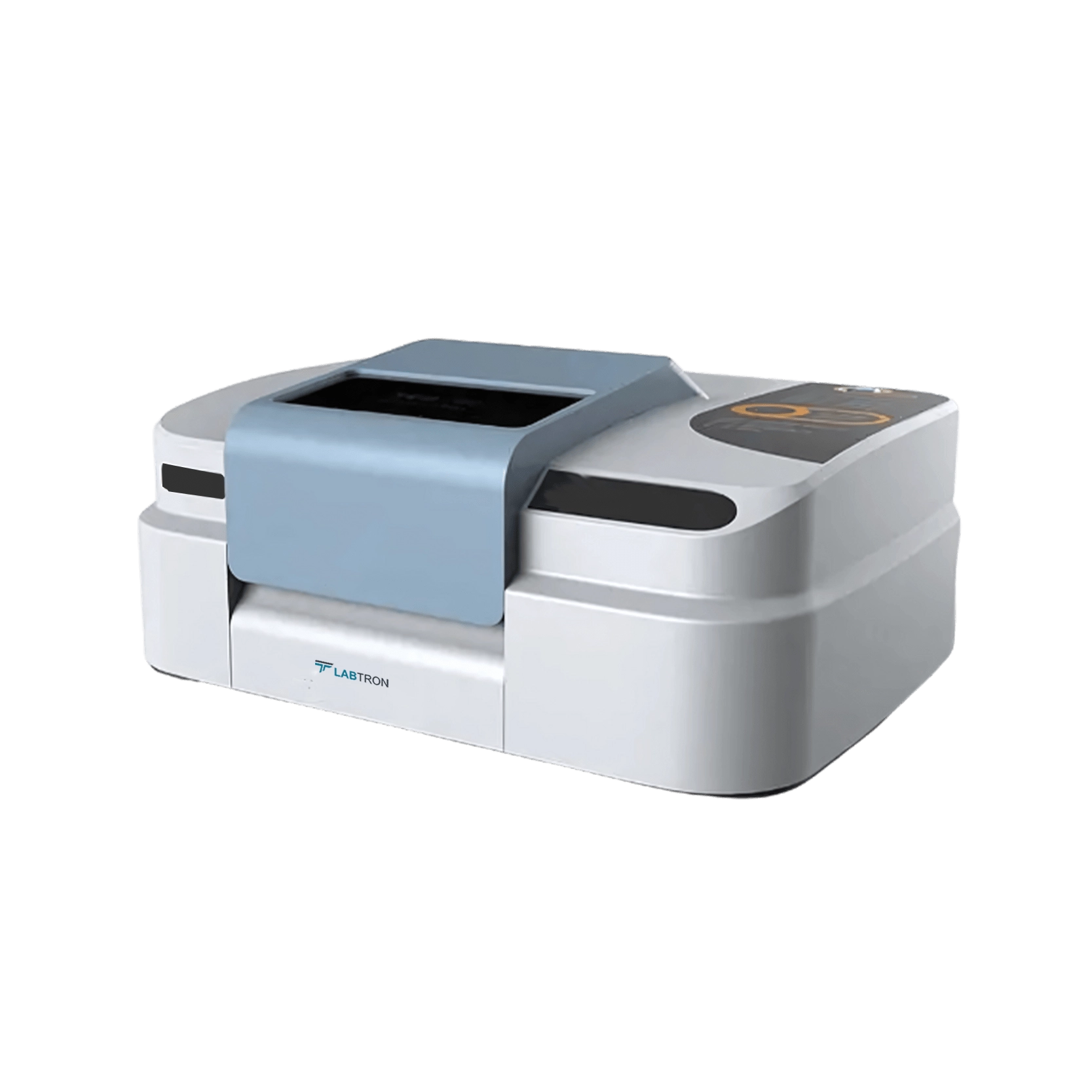

FTIR Spectrometer LIR-B13

Name: FTIR Spectrometer LIR-B13
Brand: Labtron
SKU: LIR-B13
Rating: 4.8 (970 reviews)

FTIR Spectrometer LIR-B13 operates within a spectral range of 7800 to 375 cm⁻¹ with an accuracy of 0.01 cm⁻¹. It is equipped with a highly sensitive DLATGS detector for precise signal detection. Our FTIR spectrometer features a durable, air-cooled infrared (IR) light source, ensuring stable and efficient performance. A unique preview mode allows real-time monitoring of spectral data acquisition. This device is widely used in industries and research fields such as material science, biopharmaceuticals, petrochemicals, and food safety.

Request Quote

Spectral Range	7800 to 375 cm-1
Spectral Accuracy	0.01 cm-1
Signal Noise Ratio	30000:1
100%τline tilt range	Better than 0.5τ%（2200 to 1900cm-1 ）
Resolution	1 cm-1
Spectral Repeatability	1 cm-1
Detector	High resolution DLATGS detector with Moisture-proof coating
Beamsplitter	KBr coated with Ge
Light Source	Long-life, air-cooled IR light source
Electronic System	A/D converter of 24 bits at 500MHz, USB 2.0
Power	110 to 220V AC, 50 to 60Hz
Dimension	450 × 350 × 235 mm
Packaging Dimension	630 × 600 × 510 mm
Weight	14 Kg
Gross Weight	34 Kg

Reliable Optical System
Supports calibration
High-Stability Components
Digital display window
Moisture proof cabinet

FTIR Spectrometer LIR-B13 is widely used in industry and academia for material science, biopharmaceuticals, petrochemicals, and food safety research.

Security Dongle
Software U Disk
Spare Desiccant
Polystyrene Film
Allen Wrench
Power Cable
USB Cable
Power Adapter

Accessory Name

Solid Press

Sheet Mold

Agate mortar

KBr(100g)

Demountable liquid cell

Fixed Liquid Cell

Gas cell

ATR（ZnSe crystal）

ATR(Diamond crystal)

Intelligent Electronic moisture-proof cabinet

ATR（Germanium crystal）

Reflection Diffuser

Magnetic film holder

Download catalog for
FTIR Spectrometer LIR-B13 Catalog

Available Range :

FTIR Spectrometer LIR-B11 : 375 to 8,000 cm⁻¹ FTIR Spectrometer LIR-B10 : 7800 cm⁻¹ to 350 cm⁻¹ FTIR Spectrometer LIR-B12 : 7800 cm⁻¹ to 375 cm⁻¹ FTIR Spectrometer LIR-B13 : 7800 to 375 cm-1

FTIR Spectrometer LIR-B13 | Spectral Range: 7800 to 375 cm-1 | Spectral Accuracy: 0.01 cm-1

FTIR Spectrometer LIR-B13 | Reliable Optical System | Supports calibration

Models of FTIR Spectrometer

Labtron FTIR Spectrometer uses gold-coated reflecting mirrors and a multi-layer beam splitter to maximize the light captured. They have a high-intensity, long-lasting air-cooled infrared source for consistent performance. These are equipped with Michelson interferometer for high optical sensitivity. The user-friendly software enables scanning, data manipulation, quantitation, and reporting with ease. Our FTIR Spectrometer comes with DLATGS software detector for stable response and high sensitivity in spectroscopic analysis.

FTIR Spectrometer LIR-B11

Spectral Range : 375 to 8,000 cm⁻¹
Resolution :
Sample Hight : 20 mm
Housing : Robust metal

Compare Remove

FTIR Spectrometer LIR-A10

Spectral Range : 7800 cm⁻¹ to 350 cm⁻¹
Spectral Accuracy : ±0.01 cm⁻¹
Resolution : 0.85 cm⁻¹
Temperature : 10°C to 30°C

Compare Remove

FTIR Spectrometer LIR-B12

Spectral Range : 7800 cm⁻¹ to 375 cm⁻¹
Spectral Range Accuracy : 0.01 cm⁻¹
Signal to Noise Ratio : 45000:1
Signal to Noise Ratio Resolution : 4 cm⁻¹

Compare Remove

FTIR Spectrometer LIR-C11

Wavenumber Range : 7800 ~ 375 cm-1
Resolution : 1 cm-1
Signal Noise Ratio : 30000:1 (DTGS, resolution@4cm-1; sample and background scan for 1 min@2100cm-1)
Detector : High resolution DTGS detector

Compare Remove

FTIR Spectrometer LIR-B10

Spectral Range : 7800 cm⁻¹ to 350 cm⁻¹
Spectral Range Accuracy : ±0.01 cm⁻¹
Resolution : 0.85 cm⁻¹
Temperature : 10°C 30°C

Compare Remove

FTIR Spectrometer LIR-B13 FAQ's

The LIR-B13 FTIR Spectrometer operates within a spectral range of 7800 to 375 cm?¹ with a spectral accuracy of 0.01 cm?¹, ensuring highly precise measurements.
It features a high-resolution DLATGS detector with a moisture-proof coating, providing reliable and accurate signal detection.
Yes, it includes a unique preview mode that allows real-time monitoring of spectral data acquisition for efficient analysis.
It is widely used in material science, biopharmaceuticals, petrochemicals, and food safety for qualitative and quantitative analysis.
The device operates on 110 to 220V AC, 50 to 60Hz power supply and has compact dimensions of 450 × 350 × 235 mm, making it suitable for laboratory use.
