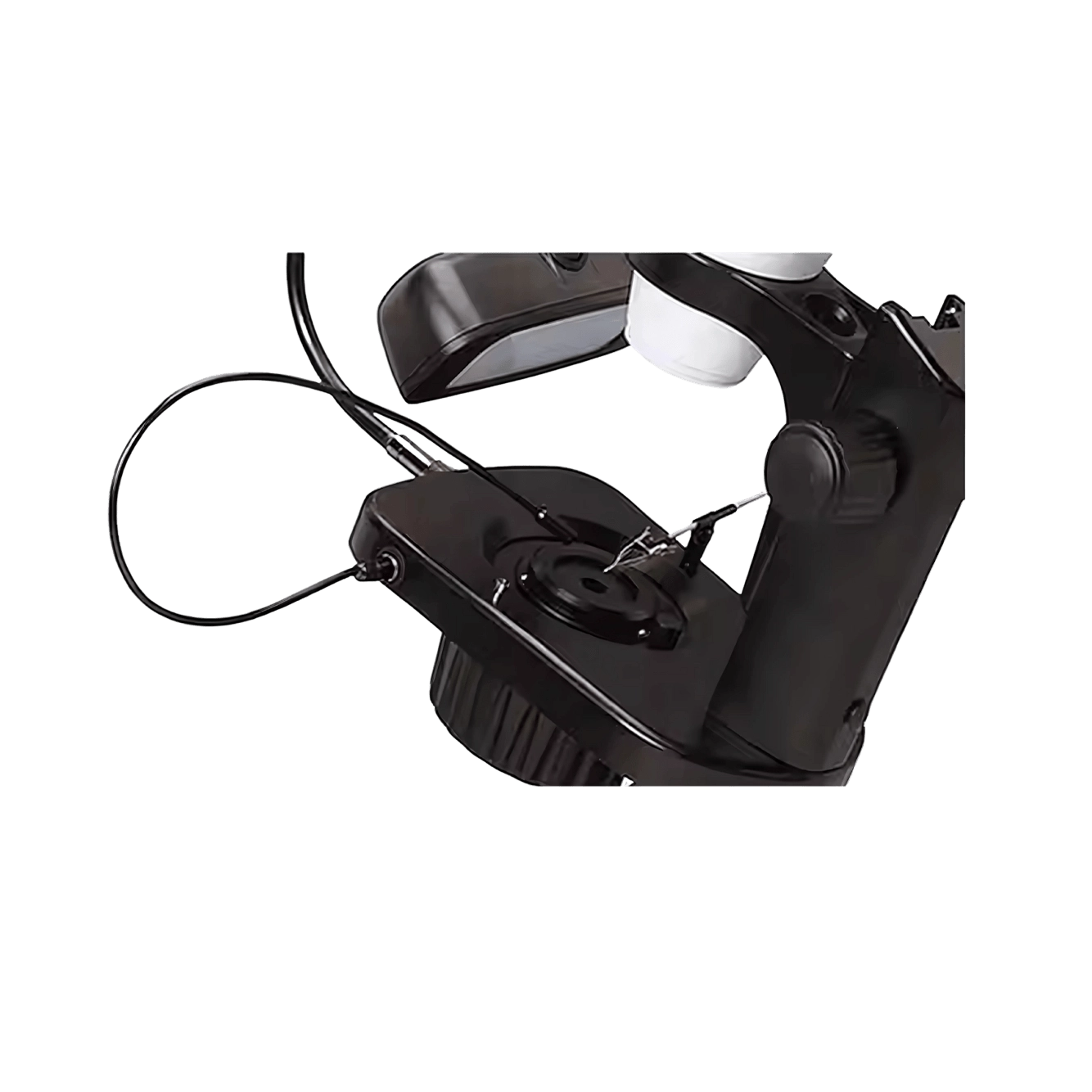

Gemological Microscope LGOM-A11 has a zoom range of 0.8x to 5x with a 1:6.3 zoom ratio for high magnification. The focusing range is adjustable up to 110mm for detailed gemstone viewing. The ergonomically designed binocular viewing head enhances comfort and reduces strain during long observation sessions. The iris diaphragm adjusts for bright and dark field illumination. Perfect for in-depth examination of gemstones, diamonds, and jewellery in professional gemology and quality control.
| Viewing Head | Binocular, 45° inclined, interpupillary 52 to 76 mm |
| Magnification | 12x to 75x |
| Objective | 0.8x to 5x |
| Working Distance | 115mm |
| Eyepiece | WF15×/16mm with diopter adjustment |
| Zoom Ratio | 1:6.3 |
| Auxiliary Objective | 0.75× (W.D.:177 mm), 1.5× (W.D.:47 mm), 2× (W.D.:26 mm) (Optional) |
| Bright & Dark Field Illumination | Iris diaphragm 2mm-41mm, adjustable |
| Illumination | 6V/20W Halogen illumination, lamp can be changed |
| Focusing | Range: 110 mm, adjustable torque |
| Gem Clamp | Steel clamp |
| Stage | Gem clamp fixing holes on both sides |
| Stand | 0 to 38° inclined |
| Base | 0° to 325° rotatable |
| Power Supply | 110V to 220V |
| Dimension | 590 × 550 × 810 mm |
| Net Weight | 14 kg |
| Gross weight | 16 kg |
Multiple illumination systems
Customizable viewing head
325° rotatable base
Inclined Adjustable Stand
High-Quality Steel Clamp
Dual gem clamp fixing holes
Adjustable Focus Mechanism
Our Gemological Microscope LGOM-A11 is designed for gemological labs and jewellery workshops, offering versatile magnification and illumination for inspecting diamonds and gemstones.
Download catalog for
Gemological Microscope LGOM-A11 Catalog
Available Range :
Digital Gemological Microscope LGOM-A20 : Binocular Digital Viewing Head, Inclined at 45°, Interpupillary Distance: 55-75mm Gemological Microscope LGOM-A10 : Binocular, 45° inclined, interpupillary 52 to 76 mm Gemological Microscope LGOM-B10 : Trinocular Viewing Head, Inclined at 45°, Interpupillary Distance 52 to 76mmmodels of Gemological Microscope
