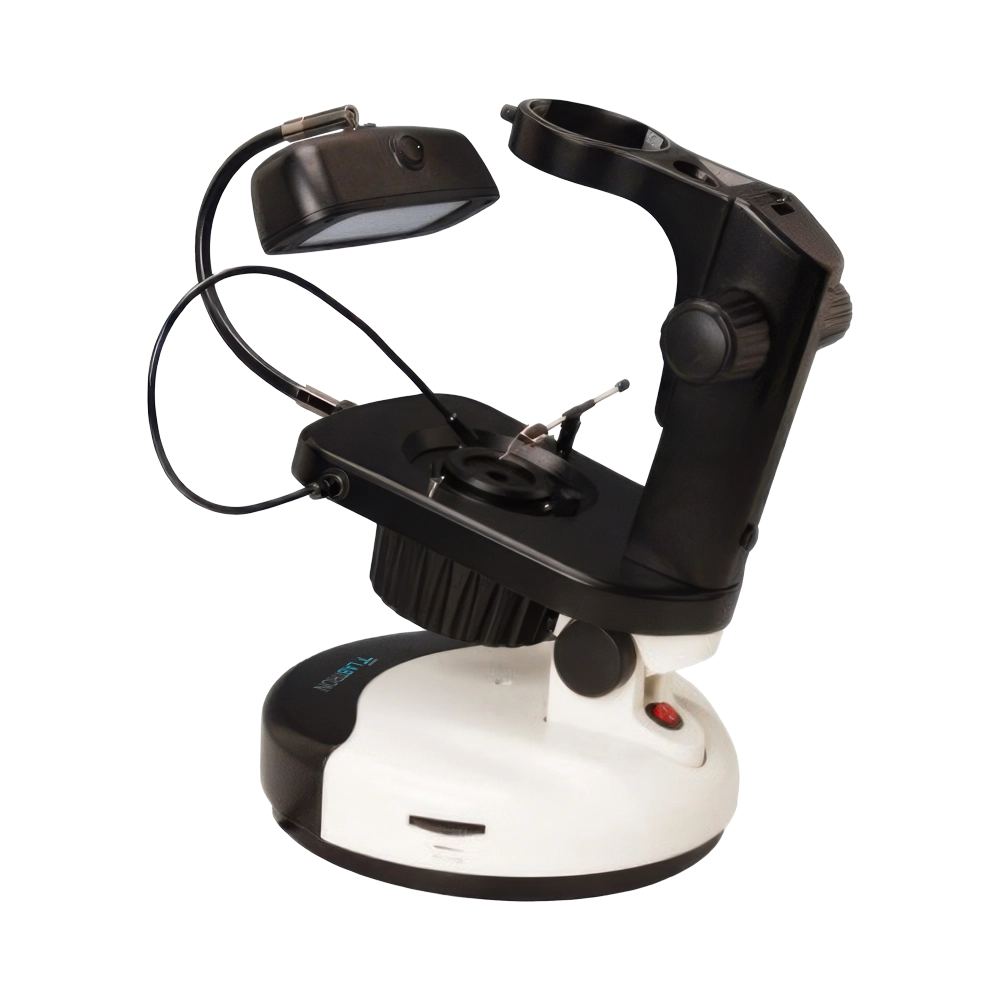

Digital Gemological Microscope LGOM-A20 is equipped with a 3.2MP digital camera for capturing high-resolution images. With a magnification range of 12x to 75x, it ensures detailed gemstone inspection and analysis. The microscope offers a 0° to 325° rotatable base, allowing for flexible and adjustable positioning. Its stand allows easy adjustment of both the height and angle of the eyepiece for comfort. Featuring bright and dark field illumination, it is perfect for versatile gemological applications.
| Viewing Head | Binocular Digital Viewing Head, Inclined at 45°, Interpupillary Distance: 55-75mm |
| Magnification | 12x to 75x |
| Objective | 0.8x to 5x |
| Working Distance | 115mm |
| Eyepiece | WF15×/16mm with diopter adjustment |
| Zoom Ratio | 1:6.3 |
| Camera | 3.2MP (2048×1536) |
| Auxiliary Objective | 0.75× (W.D.:177 mm), 1.5× (W.D.:47 mm), 2× (W.D.:26 mm) |
| Bright & Dark Field Illumination | Iris diaphragm 2mm-41mm, adjustable |
| Illumination | 6V/20W Halogen illumination, lamp can be changed 9W Fluorescent lamp, LED Point Light |
| Focusing | Range: 110 mm, adjustable torque |
| Gem Clamp | Steel clamp |
| Stage | Gem clamp fixing holes on both sides |
| Stand | 0 to 38° inclined |
| Base | 0° to 325° rotatable |
| Dimension | 590 × 550 × 810 mm |
| Net Weight | 14 kg |
| Gross weight | 16 kg |
High-resolution image capturing
Adjustable height and angle
Contrast-enhancing lighting systems
Secure Gem Holding Clamp
Dual Eyepiece Configuration
Sturdy Base Design
Our Binocular Digital Gemological Microscope LGOM-A20 is perfect for digital imaging and detailed analysis in professional gemology, ideal for inspecting diamonds, gemstones, and other precious materials.
Download catalog for
Digital Gemological Microscope LGOM-A20 Catalog
Available Range :
Digital Gemological Microscope LGOM-A20 : Binocular Digital Viewing Head, Inclined at 45°, Interpupillary Distance: 55-75mm Gemological Microscope LGOM-A10 : Binocular, 45° inclined, interpupillary 52 to 76 mm Gemological Microscope LGOM-B10 : Trinocular Viewing Head, Inclined at 45°, Interpupillary Distance 52 to 76mmmodels of Gemological Microscope
