| Nominal Tank Volumes | 2L, 3L, 5L, 7L, 10L |
| Material | Borosilicate Glass Vessel, 316L SS Lid |
| Aspect Ratio | 1:2 to 3 (Height:Diameter) Liquid coefficient: 70% |
| Stirring Speed | 50 to 1000 rpm (±1 rpm) Low noise motor |
| Temperature Control | PID Control, ±0.05°C precision Water jacketed heating/cooling |
| pH Control | Range: 2 to 12; Accuracy: ±0.02 pH Automatic via peristaltic pump |
| DO Control | Range: 0 to 100%; Accuracy: ±3% Linked to feeding and agitation |
| Foam Control | Auto detection and defoaming agent addition via peristaltic pump |
| Ventilation | Rotor flowmeter with manual regulation |
| Pressure Monitoring | Manual control, Range: 0–0.20 MPa |

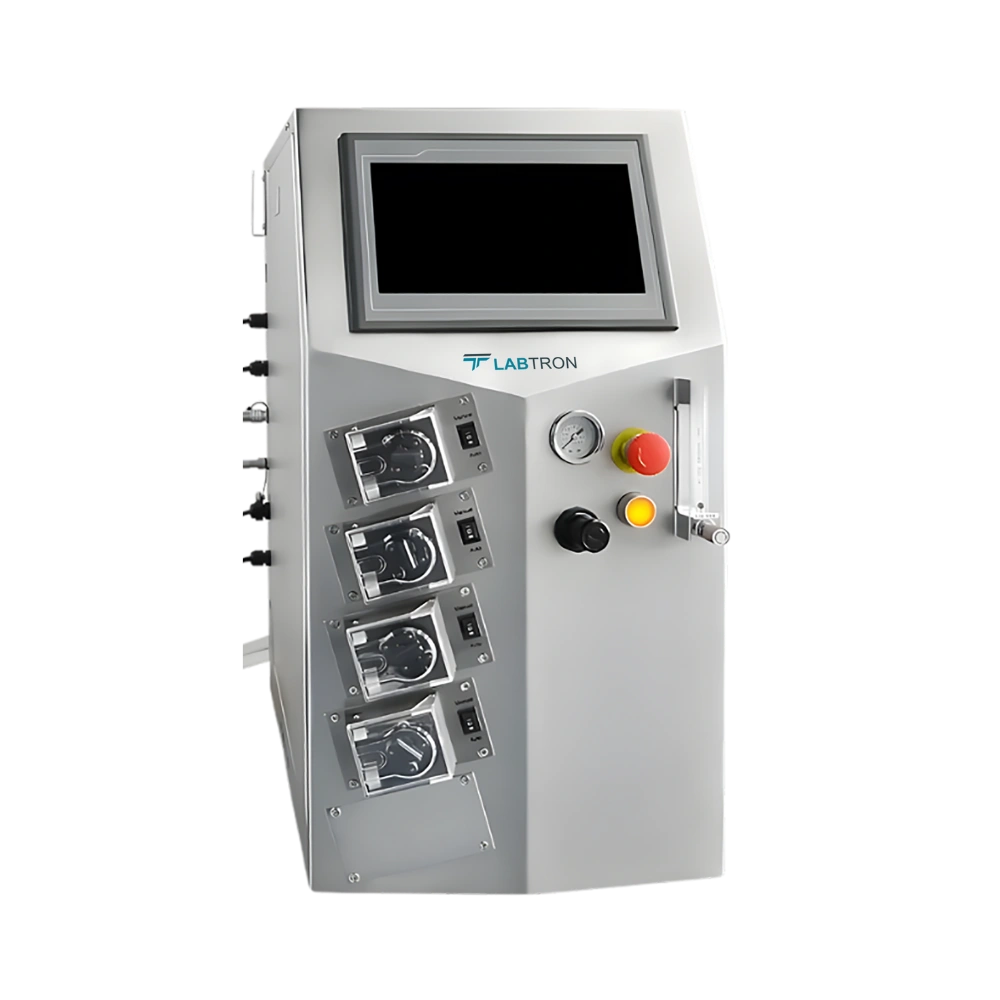

| Controller | Siemens S7-200 PLC + 10-inch colour Touchscreen Display |
| Sterilization | External sterilization pot |
| Data Transfer | USB flash drive and external computer connectivity |
High-precision, low-noise motor
PID-based pH control
DO control via Mettler electrode
Automatic foam control

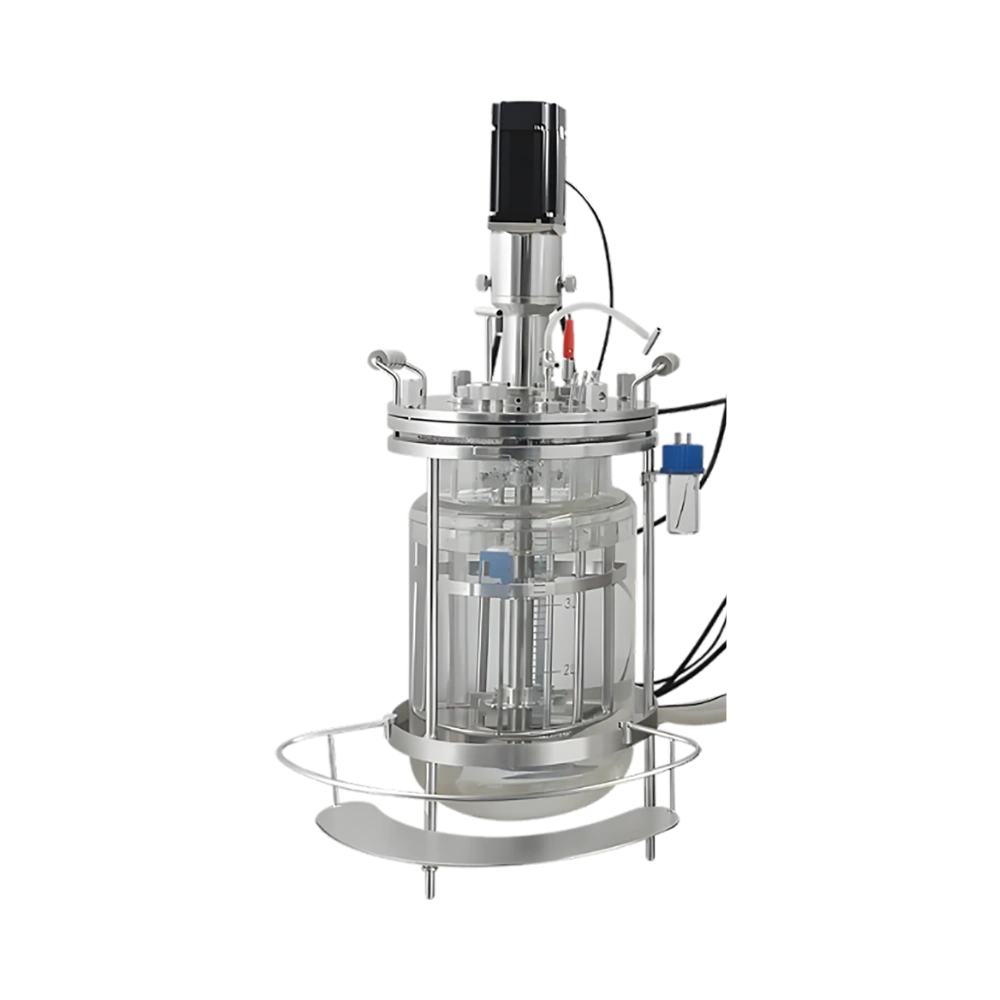

Our Glass Fermenter LGF-A12 is ideal for microbial and cell culture processes. It is commonly used in biotechnology research labs, academic training, pharmaceutical development, and pilot-scale fermentation experiments.
Download catalog for
Glass Fermenter LGF-A12 Catalog
Labtron’s Glass Fermenters are designed for precise microbial and cell culture processes in research and pilot-scale applications. Made from durable borosilicate glass, they offer excellent chemical resistance, visibility, and temperature stability. These fermenters feature advanced control systems for pH, temperature, DO, agitation, and aeration. Their modular, user-friendly design supports easy cleaning, sterilization, and customization across various volumes. Ideal for academic, biopharma, and food industries, they enable real-time monitoring and consistent bioprocess performance.
The Glass Fermenter LGF-A12 supports multiple working volumes, typically ranging from 2L to 10L, making it ideal for various scales of microbial and cell culture applications.
Yes, the LGF-A12 is equipped with intelligent PID control for both pH and DO, ensuring precise monitoring and adjustment during fermentation.
Absolutely. The LGF-A12 supports batch and fed-batch modes and comes with built-in peristaltic pumps for controlled feeding of acid, base, defoamer, and media.
Yes, the LGF-A12 is widely used in academic labs, training facilities, and pilot-scale research projects due to its modular design and high operational flexibility.
The LGF-A12 integrates a Siemens PLC with a 10-inch touchscreen display, offering real-time control, data monitoring, and user-friendly operation.
Glass fermenters provide excellent visibility, making them ideal for observing microbial or cell culture processes in real time. They are chemically resistant, easy to sterilize, and perfect for research, teaching, and small-scale fermentation experiments.
Yes, Labtron’s glass fermenters are made from high-grade borosilicate glass and are fully autoclavable. This ensures contamination-free operation and easy sterilization between experiments.
Labtron offers glass fermenters in a variety of working volumes, ranging from small benchtop models for lab-scale research to larger pilot-scale systems. Custom volume configurations are also available based on user requirements.
Absolutely. Labtron’s glass fermenters support integration with advanced sensors for pH, dissolved oxygen (DO), temperature, and agitation control. They are compatible with digital control systems for automated and real-time bioprocess monitoring.
Glass fermenters are widely used in academic research, biotechnology, pharmaceuticals, and food industries. Their precision, transparency, and scalability make them ideal for experimental setups, product development, and training environments.
