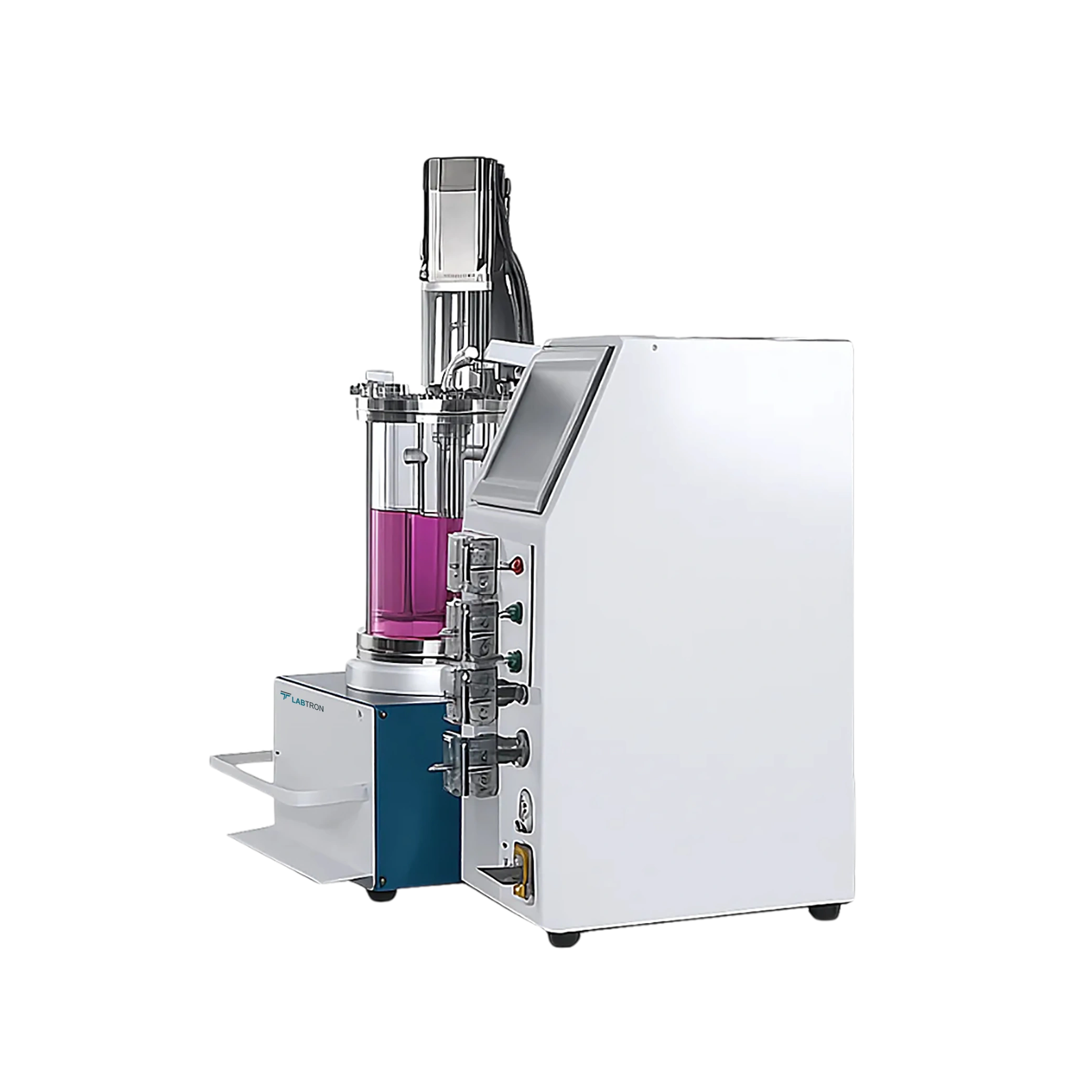

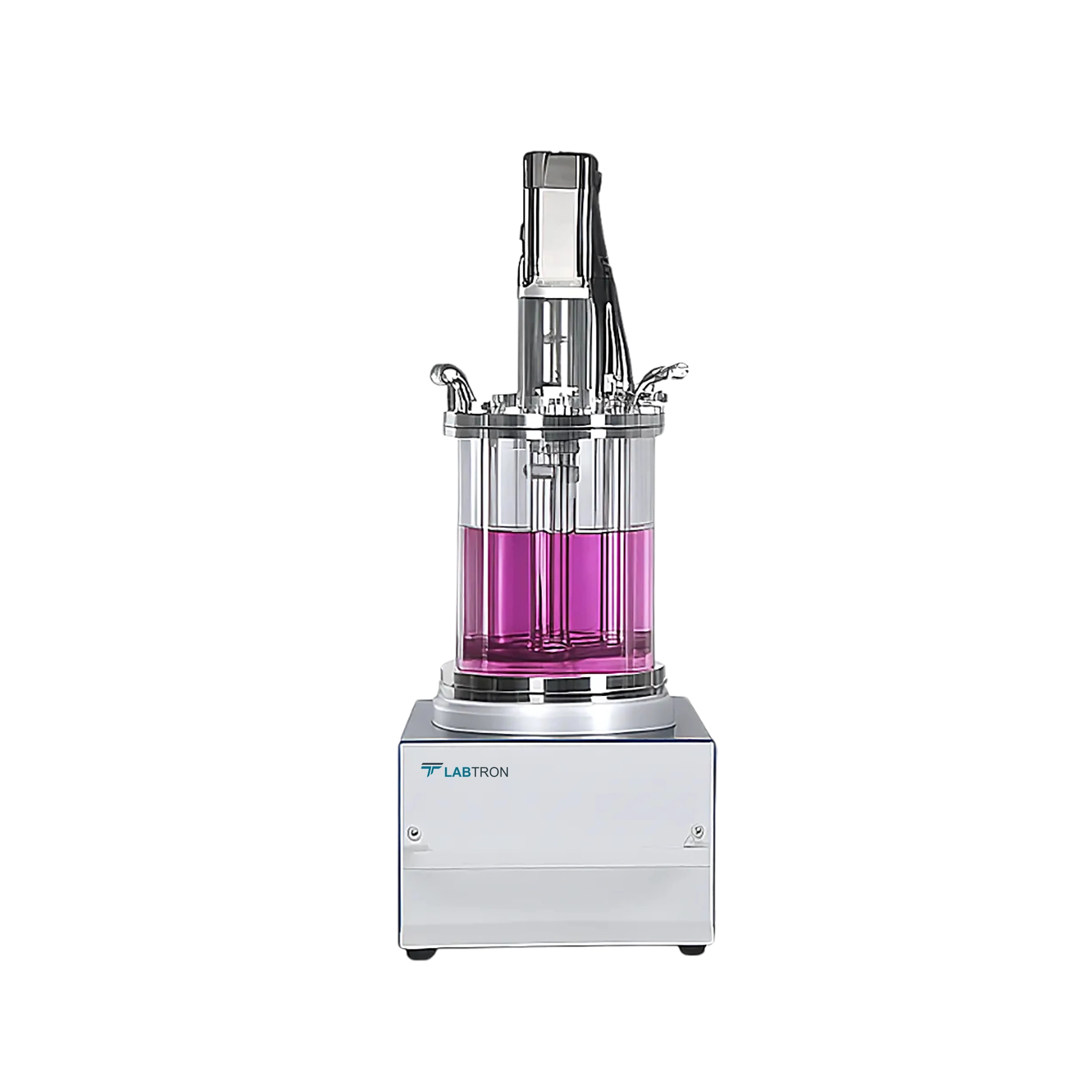

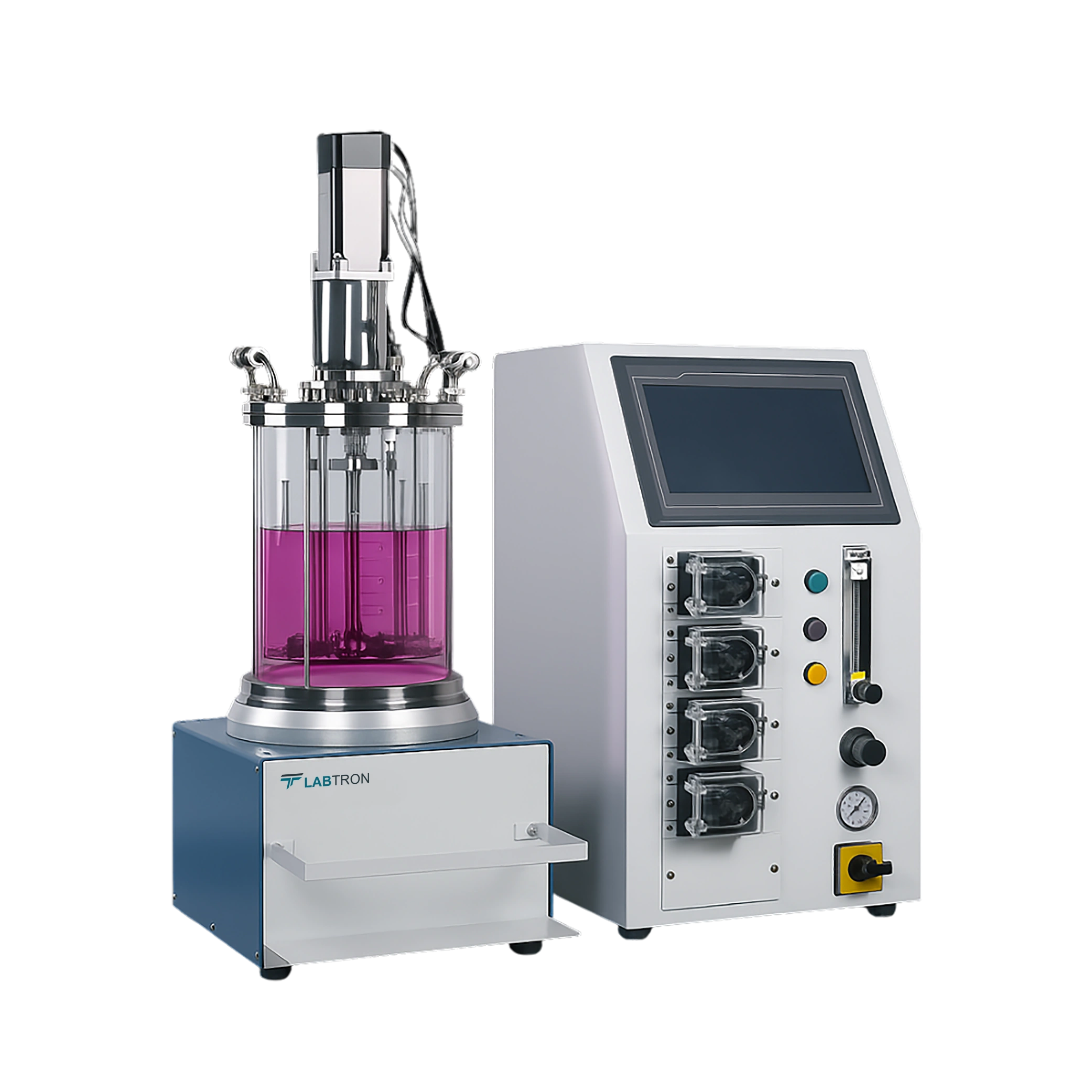

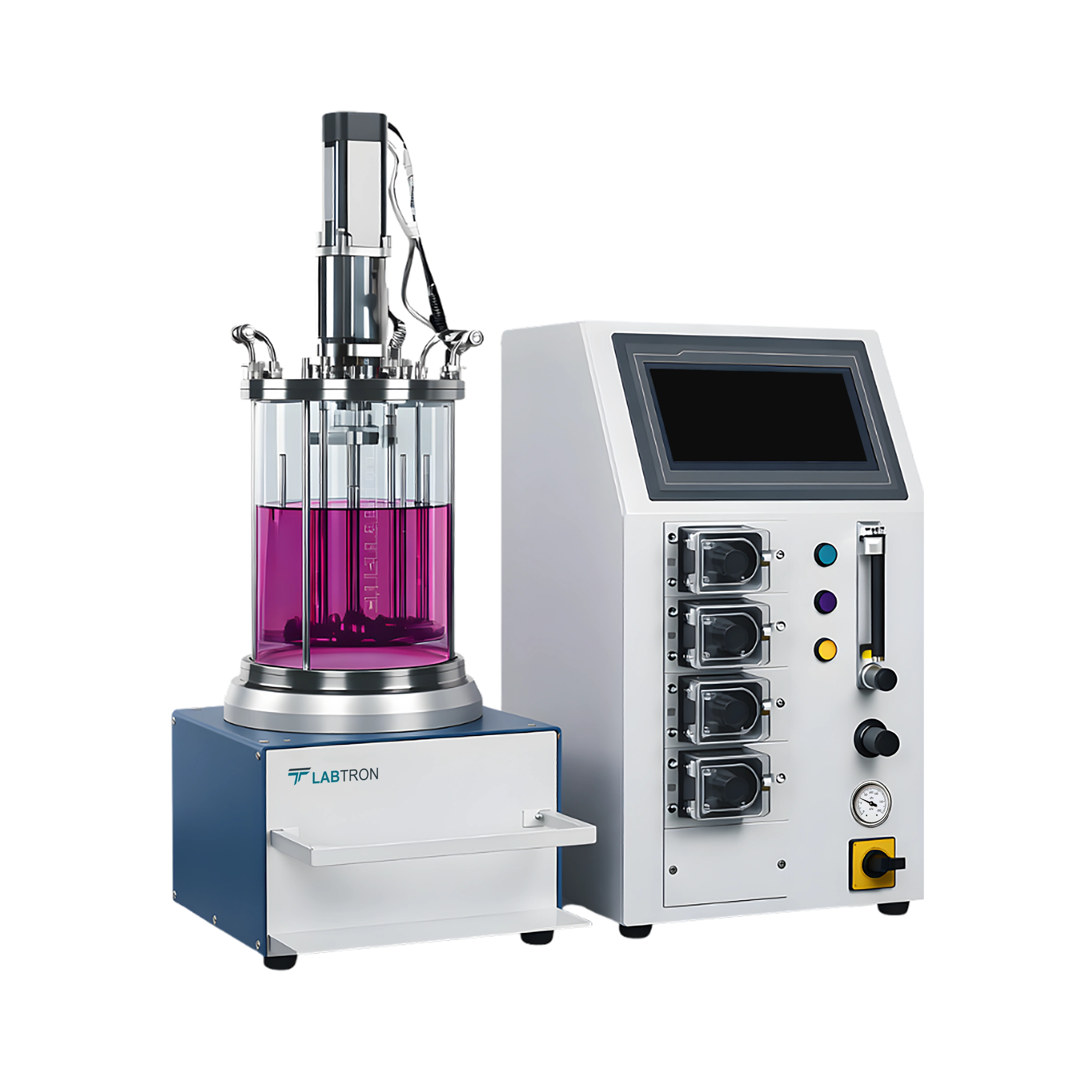

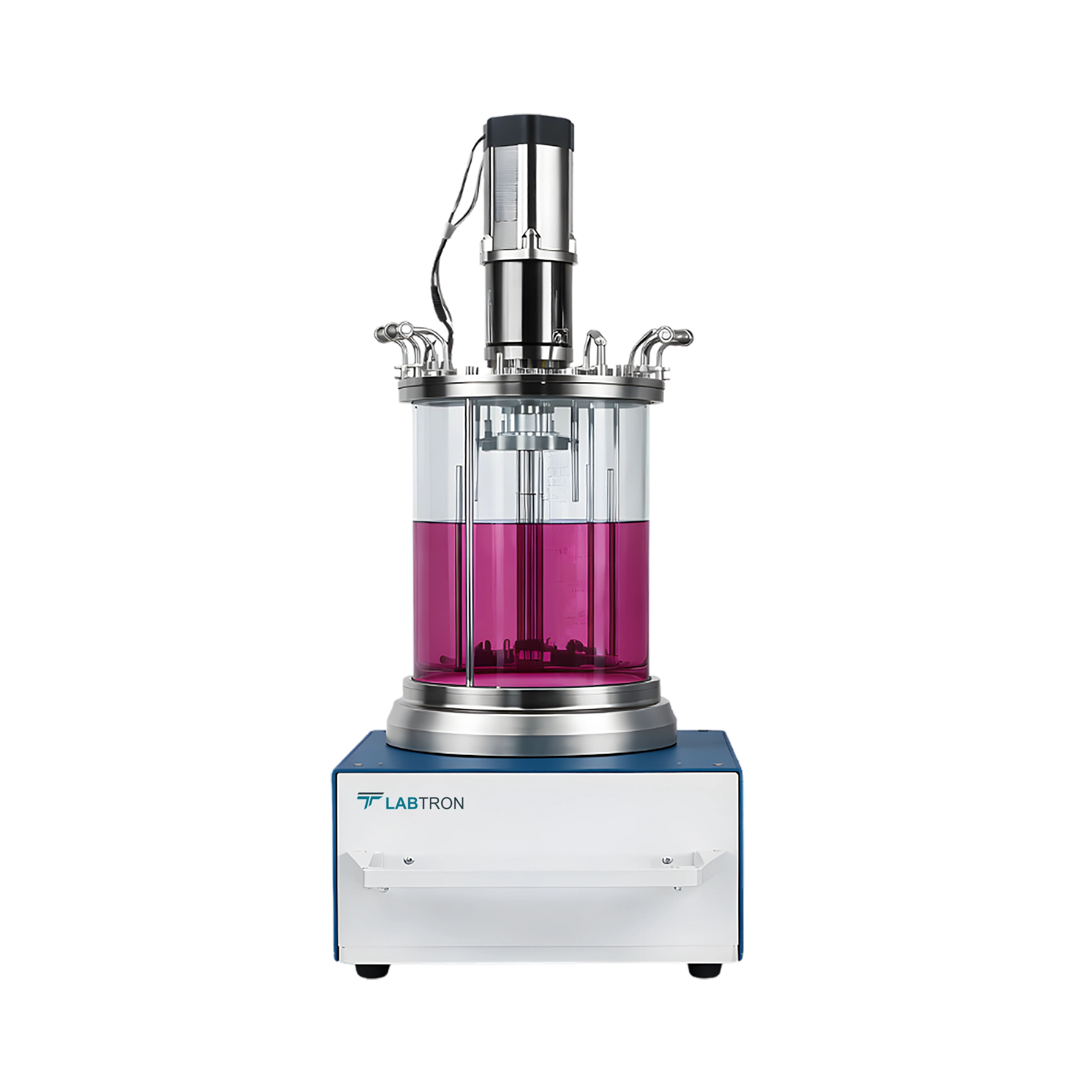

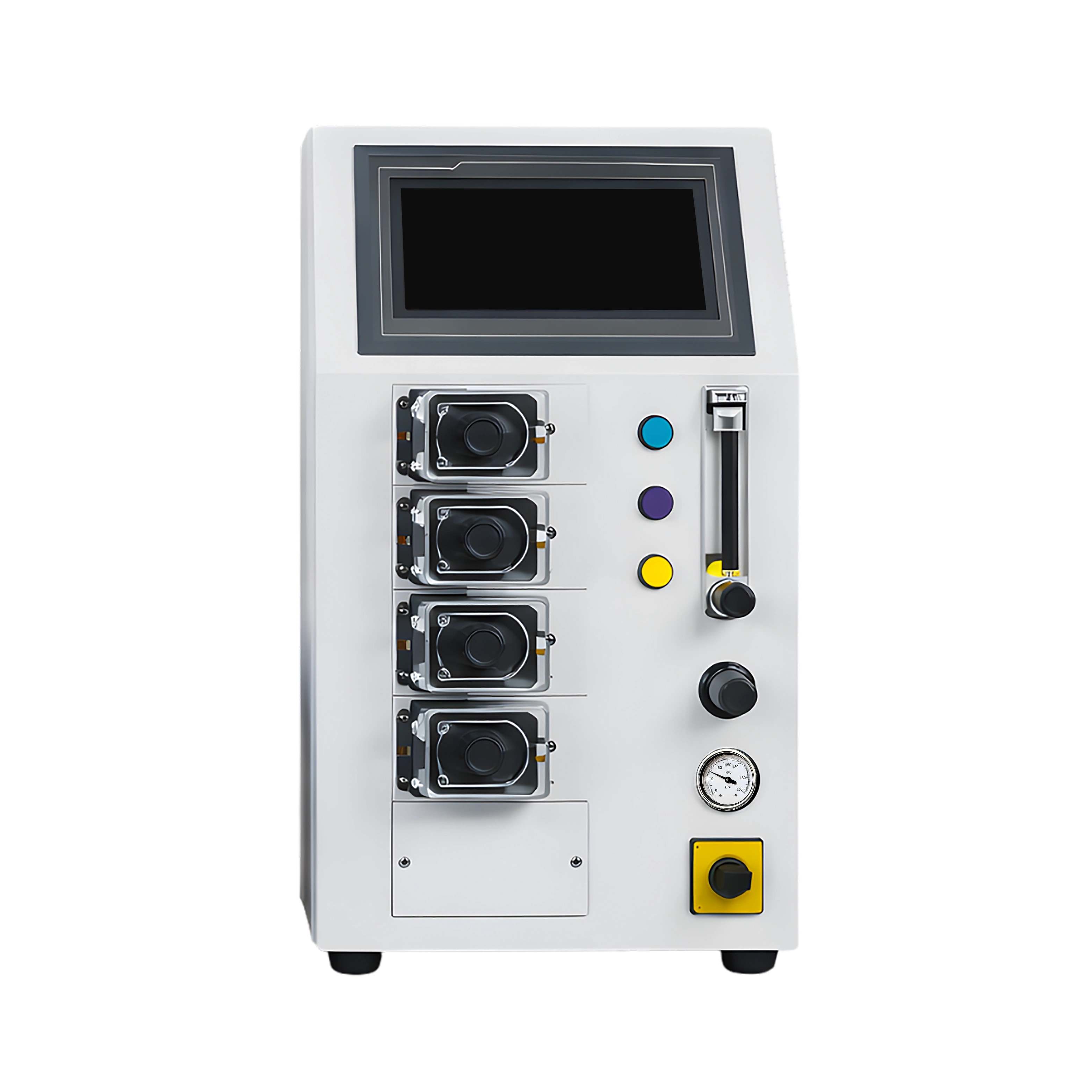

Glass Tank Bioreactor LGTB-A10

Name: Glass Tank Bioreactor LGTB-A10
Brand: Labtron
SKU: LGTB-A10
Rating: 4.7 (932 reviews)

Glass Tank Bioreactor LGTB-A10 offers a 5-liter capacity and operates with a sterilization temperature of 121°C. It features an upper mechanical stirrer with a stainless-steel shaft for stable and precise mixing. Our unit includes an exhaust system with a tail gas discharge condenser and hose connection for efficient operation. The tank is constructed with SUS316L stainless steel and borosilicate glass ensuring durability. It includes an intuitive touch interface for easy operation and control.

Request Quote

Capacity	5 L
Maximum Working Volume	70%
Sterilization temperature range	100 to 130℃
Sterilization temperature	121°C
Maximum Sterilization temperature	131℃
Working Pressure	0.15 Mpa
Design Pressure	0.2 Mpa
Sterilization time	30 minutes at 121°C
Tank Material	Stainless steel SUS316 combined with borosilicate glass
Diameter-to-height ratio of the tank	About 1:2
Surface Treatment	Internal and external mirror polishing
Internal Surface Accuracy	˂ 0.4 µm to reduce contamination
External Surface Accuracy	˂ 0.6 µm
Maximum Ventilation Rate	Up to 2 VVM (Volume of Gas per Volume of Culture per Minute).
Air Filter Element Accuracy	0.2 µm
Flow control	Rotameter manual control
Flow meter range	0 to 8L/min
Mixing Control Type	PID Automatic Control
Mixing Speed Regulation	Stepless Speed Regulation
Mixing Speed Range	50 to 1000 RPM
Mixing Control Accuracy	±0.5%
Temperature Sensor	German Pt100 electrode
Tank Interface Cover	1 flame ring inoculation port 1 pH sensor interface 1 DO sensor interface 1 temperature sensor interface 2 spare ports (for feeding, adding defoamer, and adding acid and alkali) Integrated foam sensor Exhaust port with a condensing device
Cooling Water Temperature	+5°C to 65°C, ±0.2°C
Display Temperature	0°C to 150°C, ±0.1°C
pH Display Range	0.00 to 14.00, ±0.01
pH Automatic Control Range	2.00 to 12.00, ±0.01
pH Control System	PID intelligent control
DO control	DO Electrode: Swiss imported electrode with shielded wire detection DO Control Range: 0% to 150%, ±3% DO Control Resolution: 0.1%
Foam control	Peristaltic pump automatically adds defoamer based on foam detection, with time ratio adjustment
Foam Control Accuracy	10 to100,000 Ω
Power	220V/50Hz
Dimension	850 × 700 × 980 mm
Net weight	88 Kg
Gross Weight	97 kg

High-temperature resistant PTFE filter element
316L stainless steel gas distributor
Data recording and analysis function
Peristaltic pump with switch control
Defoaming blade
Stores large data
Alarm function for limits
Biological process controller

Glass Tank Bioreactor is used for precise control of biological and chemical processes, ensuring optimal conditions. It is employed in laboratories, research facilities, and industries.

Four serum supplement bottles

Air filter

Breathing filter

20meters high quality silicone tube

SUS316L feed needle

Rubber stoppers

O-rings

Fuses

Download catalog for
Glass Tank Bioreactor LGTB-A10 Catalog

Download manual for
Glass Tank Bioreactor LGTB-A10 Manual
