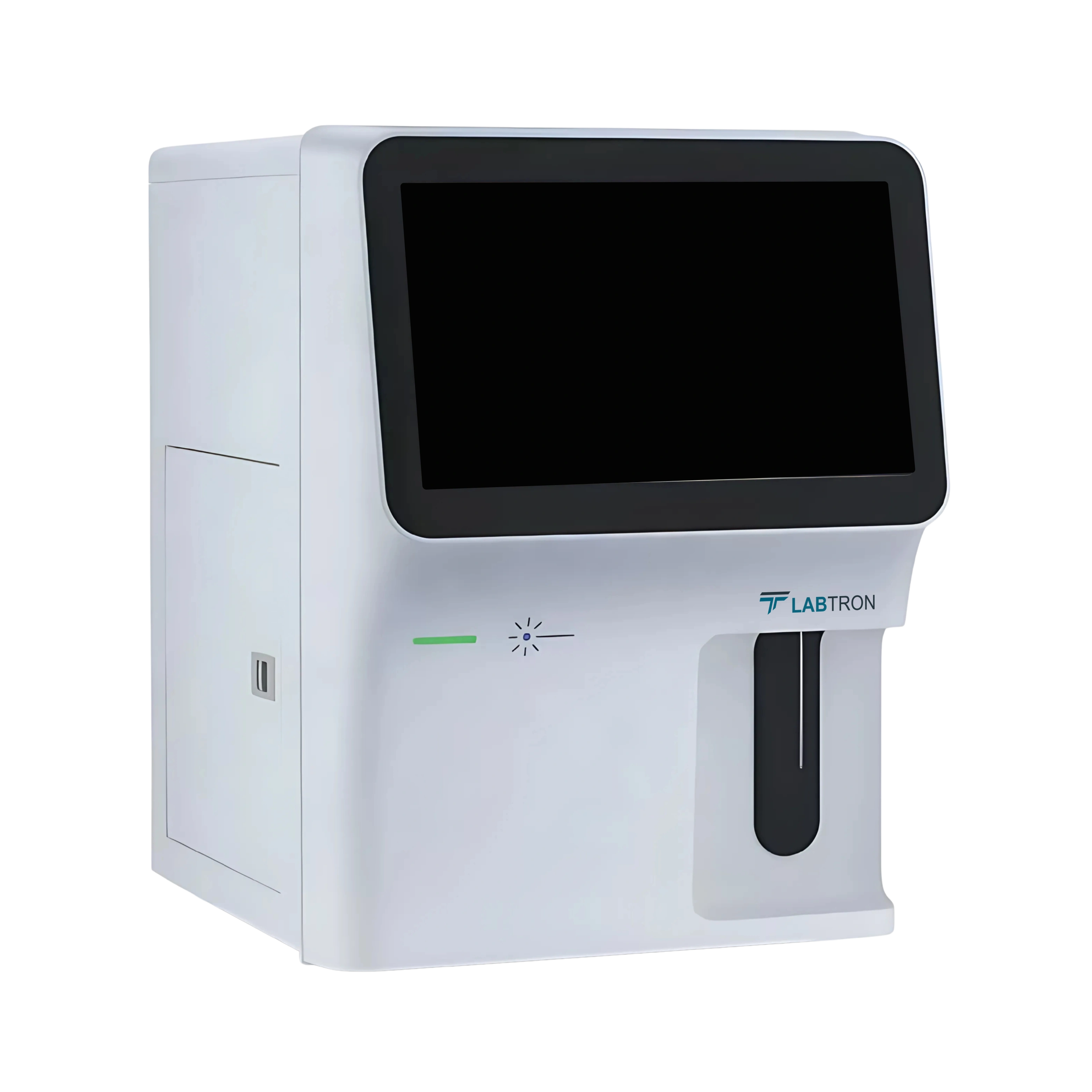

Hematology Analyzer LHTA-A10 offers reports 25 clinical parameters with 3 histograms and 3D scattergram, and 4 additional research parameters. With a throughput of 60 tests per hour and minimal sample volume requirements, it enhances laboratory productivity. Its performance ensures excellent linearity, low carry-over, and superior precision for WBC, RBC, HGB, and PLT measurements. It is equipped with multiple connectivity options, integrating seamlessly into modern laboratory workflows. This analyzer operates efficiently under standard laboratory environmental conditions.
| Measuring principle | Tri-angle laser scatter Flow cytometry method Impedance method for RBC and PLT counting Cyanide-free method for HGB test 3D Scattergram analysis |
| Parameters | 25 Reportable parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 1 3D Scattergram 3 Histograms (WBC/BASO, RBC, PLT) 4 Research parameter: ALY%, ALY#, IG%, IG# |
| Test Mode | CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted |
| Throughput | 60 tests/hour |
| Sample volumes | CBC+DIFF mode: ≤ 20 μl CBC mode: ≤ 10 μl |
| Display | 14-inch touch screen |
| Resolution | 1366 × 768 |
| Storage | 100,000 sample results (including histograms, scattergrams and patient information) |
| WBC Performance | Linearity range: 0 to 300 × 109/L Carry Over: ≤ 0.5% CV: ≤ 2.0 % |
| RBC Performance | Linearity range: 0 to 8 ×1012/L Carry Over: ≤ 0.5% CV: ≤ 1.5 % |
| HGB Performance | Linearity range: 0 to 250 g/L Carry Over: ≤ 0.5% CV: ≤ 1.5 % |
| PLT Performance | Linearity range: 0 to 3000 × 109/L Carry Over: ≤ 1.0% CV: ≤ 4.0 % |
| Interface | 4 USB ports, 1 LAN port |
| Printout | Support various external USB printers, printout formats user definable |
| Communication | Bi-direction LIS, support HL7 protocol Internal RFID reader |
| Working Temperature | 10 to 30 ℃ |
| Working Humidity | 20% to 85% |
| Working Air Pressure | 70 to 106 kPa |
| Working Latitude | ≤ 3500 m |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Dimension (L × W × H) | 480 × 375 × 517mm |
| Net Weight | 36 kg |
| Gross Weight | 53 kg |
Our Hematology Analyzer LHTA-A10 is widely used in clinical laboratories, hospitals, diagnostic centers, and research institutions for routine blood analysis and differential counts.
| Accessories Name | Quantity |
| Power cable | 1 pc |
| Grounding wire | 1 pc |
| Fuse (10A) | 2 pcs |
| Waste bottle lid assembly | 1 pc |
| Diluent bottle lid assembly | 1 pc |
| P Tube | 200 cm |
| PU Tube | 50 cm |
| X Tube | 60 cm |
| Y Tube | 9 cm |
| CZ Tube | 2 Sets |
| XZ Tube | 2 Sets |
| E Tube | 50 cm |
| Plastic Screw | 4 pcs |
Download catalog for
Hematology Analyzer LHTA-A10 Catalog
Download manual for
Hematology Analyzer LHTA-A10 Manual
Labtron Hematology analyzers are capable of assessing a wide range of blood parameters, including RBC count, WBC count, platelet count, hemoglobin concentration, and more. These analyzers can process a large number of blood samples quickly and accurately, with their automation capability. Our hematology analyzer utilizes both the impedance method and a Cyanide-free technique for cell counting and hemoglobin measurement. They offer triple counting modes, including venous, capillary, and prediluted options. These analyzers adapt to diverse sample types and enhance flexibility in diagnostic procedures.
