| Working Temperature Range | -40 to 200°C |
| Ambient Temperature | 5 to 35°C |
| Relative Humidity | Less than or equal to 70% |
| Temperature Control Accuracy | ±1° |
| Temperature Sensor | PT100 |
| Circulating Pump Pressure | Less than or equal to 0.4 MPa |
| Circulating Pump Lift | 4 to 6 m |
| Max. Reactor Volume Can Be Matched | 10 L |
| External Input | External Sensor Port |
| Cooling Capacity | 4648 W |
| Heating Power | 3000 W |
| Compressor Power | 1470 W |
| Circulating Pump Power | 100 W |
| Power Consumption | 4600 W |
| Power Supply | Single Phase 220V / 50Hz |
| Dimensions (W × D × H) | 640 × 640 × 890 mm |
| Net Weight | 105 kg |
Chemical compatible fluid route
Low power consumption mode
Overload protected power circuit
Broad voltage handling range
Fast-lock hose connections

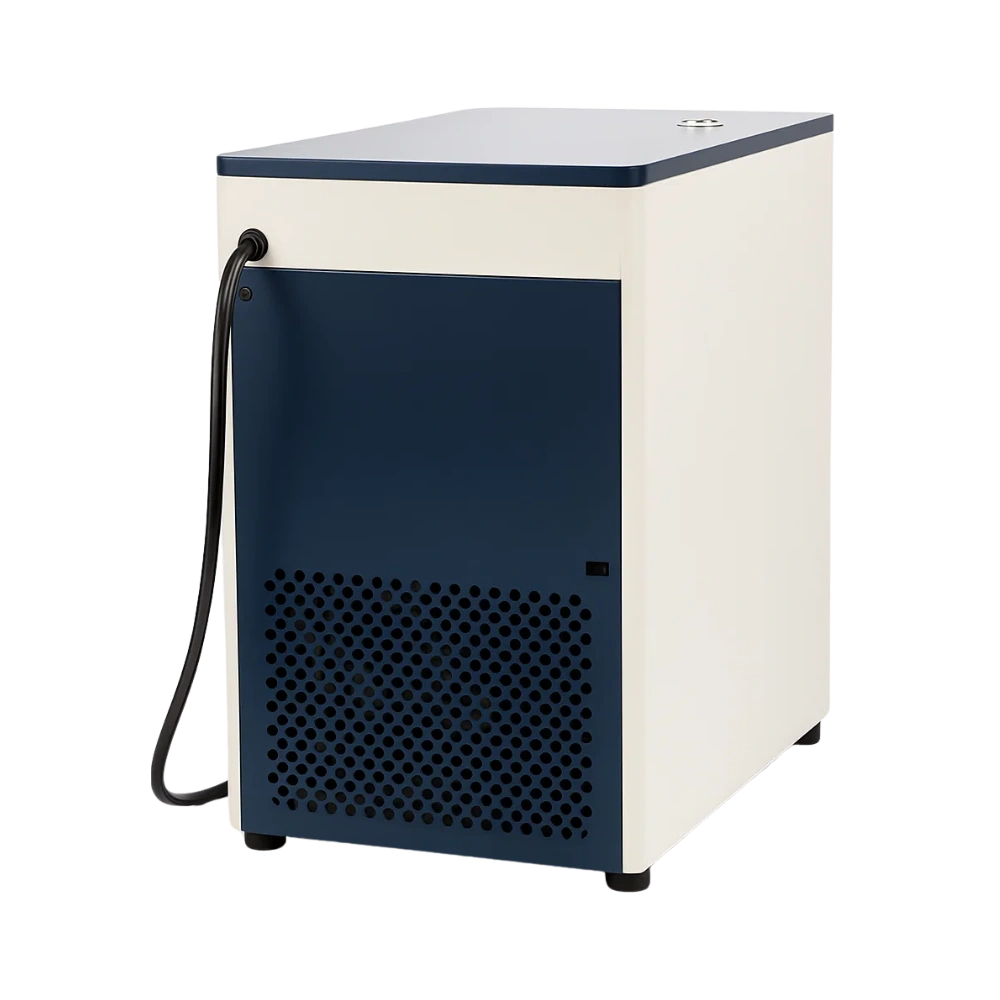

High and Low Temperature Circulator LHLTC-A15 provides external hot and cold fluid circulation for controlled thermal conditions in diverse processing systems. That allows reliable temperature regulation in bioreactors, extraction setups, and pilot-scale operations across pharmaceutical and food industries.
Download catalog for
High And Low Temperature Circulator LHLTC-A15 Catalog
Labtron High and Low Temperature Circulator operates across a wide temperature range suitable for controlled heating and cooling tasks. They feature a control system that ensures stable performance under thermal variations. Their circulation system delivers uniform fluid flow for consistent temperature. These units use optimized compressor power with protections like over-temperature cut-off and delay. Our High and Low Temperature Circulator supports bio-fermentation tanks extraction units beverage lines and semiconductor cooling setups.








Our High and Low Temperature Circulator LHLTC-A15 is highly suitable for batch applications where heating and cooling are both required in alternating phases. It eliminates the need to transfer materials between separate devices, allowing direct cycling between thermal stages. This helps streamline complex workflows in oral liquid preparation or extract testing. The unit maintains temperature transitions without compromising fluid consistency. This reduces the risk of product contamination during handling. Operators can control the thermal flow across stages from a single point. Its compatibility with multi-step processing makes it ideal for pilot-stage development. It brings workflow simplicity without compromising thermal performance.
The High and Low Temperature Circulator LHLTC-A15 is engineered to maintain control during thermally reactive experiments where abrupt shifts in heat flow occur. It quickly balances temperature levels without requiring operator intervention, which is essential during fast-reacting processes. The unit supports smooth thermal transitions that protect sensitive materials from overheating or shock. For labs performing chemical synthesis, this quick adaptation helps maintain process integrity. Its design accommodates both rapid cooling and heating needs in real time. This responsiveness reduces downtime between cycles. The system promotes safety and reproducibility in reaction-driven environments. It offers the thermal agility necessary for critical lab-scale reactions.
High and Low Temperature Circulator LHLTC-A15 is designed with internal protections that maintain operational stability even during continuous, high-demand usage. It includes response mechanisms that prevent overwork or internal overheating during intensive thermal cycles. These safeguards are particularly useful in systems involving constant fluid circulation, such as bio-reaction or beverage pilot lines. Built-in limits help the system handle back-to-back cycles without decline in performance. Operators benefit from fewer maintenance interruptions. Its internal components are engineered for consistent thermal flow across long durations. These features make the unit dependable for both short bursts and prolonged lab routines.
Labtron’s High and Low Temperature Circulator LHLTC-A15 provides consistent thermal conditions for fermentation systems, where biological activity depends on tightly maintained temperature zones. Its steady circulation prevents temperature layering or thermal lag within bioreactors. The unit supports prolonged incubation or culture growth periods with reliable control. Whether working with protein production or yeast fermentation, it compensates for metabolic heat without destabilizing the environment. Its smooth fluid transfer allows even distribution of heat across vessels. By minimizing thermal disruption, it helps increase batch reproducibility. It’s an ideal fit for fermentation lines requiring predictable thermal performance. The unit promotes uniform growth conditions throughout processing cycles.
High and Low Temperature Circulator LHLTC-A15 can be incorporated into research environments that rely on thermal feedback systems and real-time data collection. Its external sensor interface supports adaptive control based on current operating conditions. This becomes especially valuable when working with calorimeters or reactors where temperature must be finely adjusted mid-process. The system can align with external displays or data loggers to improve traceability. It supports consistency across repeated trials through responsive temperature adjustments. Researchers gain more control over thermal outcomes during each phase. It’s a dependable choice for automated or analysis-driven applications. The design enhances traceable process management.
Our High and Low Temperature Circulator LHLTC-A15 is built to support setups where multiple laboratory tools operate simultaneously under varying thermal needs. Its circulation system can be linked with a range of devices such as reactors, mixers, and fermenters without requiring multiple circulators. This makes it ideal for compact spaces where equipment must be consolidated. Its front-access design reduces obstruction around other units. The circulator provides stable output across all connected tools without shifting focus. In multi-stage pilot lines, this allows thermal control to remain uninterrupted. Researchers benefit from reduced reconfiguration time between tools. It adapts smoothly to busy lab environments.
