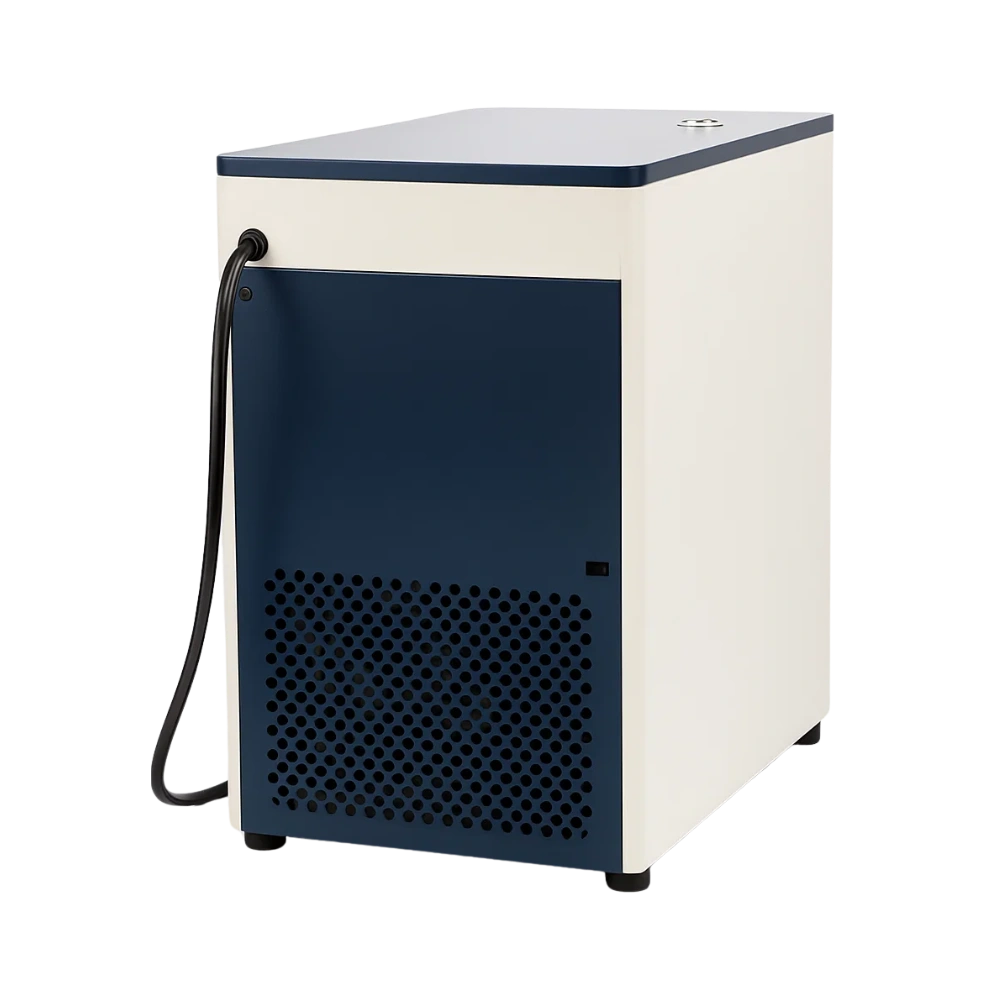

High And Low Temperature Circulator LHLTC-A16

High And Low Temperature Circulator LHLTC-A16

High and Low Temperature Circulator LHLTC-A16 operates from -80 to 200°C making it suitable for processes that demand both heating and cooling. Its pumping lift supports stable circulation across varied system layouts. The unit handles medium reactor volumes fitting well into pilot and research environments. Our High and Low Temperature Circulator is used in reactors fermentation setups and extraction lines requiring consistent thermal control.

High and Low Temperature Circulator LHLTC-A16
High and Low Temperature Circulator LHLTC-A16
Request Quote
Working Temperature Range -80 to 200°C
Ambient Temperature 5 to 35°C
Relative Humidity Less than or equal to 70%
Temperature Control Accuracy ±1°
Temperature Sensor PT100
Circulating Pump Pressure Less than or equal to 0.4 MPa
Circulating Pump Lift 4 to 6 m
Max. Reactor Volume Can Be Matched 10 L
External Input External Sensor Port
Cooling Capacity 6972 W
Heating Power 3000 W
Compressor Power 2205 W
Circulating Pump Power 100 W
Power Consumption 7510 W
Power Supply Single Phase 220V / 50Hz
Dimensions (W × D × H) 804 × 703 × 900 mm
Net Weight 170 kg
  • Adaptive load balancing control

  • Flow disturbance suppression design

  • Vertical chamber cooling path

  • Multi-device hookup readiness

  • Cycle-interrupt prevention mechanism

High and Low Temperature Circulator LHLTC-A16 is used to deliver both heating and cooling functions for systems requiring controlled thermal environments. This makes it suitable for regulating temperature in reactors, fermentation vessels, and extraction setups during lab-scale or pilot-stage processes.

Models of High and Low Temperature Circulator

Labtron High and Low Temperature Circulator operates across a wide temperature range suitable for controlled heating and cooling tasks. They feature a control system that ensures stable performance under thermal variations. Their circulation system delivers uniform fluid flow for consistent temperature. These units use optimized compressor power with protections like over-temperature cut-off and delay. Our High and Low Temperature Circulator supports bio-fermentation tanks extraction units beverage lines and semiconductor cooling setups.

High And Low Temperature Circulator LHLTC-A15

High And Low Temperature Circulator LHLTC-A15

  • Working Temperature Range : -40 to 200°C
  • Ambient Temperature : 5 to 35°C
  • Relative Humidity : Less than or equal to 70%
  • Temperature Control Accuracy : ±1°
High And Low Temperature Circulator LHLTC-A11

High And Low Temperature Circulator LHLTC-A11

  • Working Temperature Range : -20 to 200°C
  • Ambient Temperature : 5 to 35°C
  • Relative Humidity : Less than or equal to 70%
  • Temperature Control Accuracy : ±1°
High And Low Temperature Circulator LHLTC-A13

High And Low Temperature Circulator LHLTC-A13

  • Working Temperature Range : -30 to 200°C
  • Ambient Temperature : 5 to 35°C
  • Relative Humidity : Less than or equal to 70%
  • Temperature Control Accuracy : ±1°
High And Low Temperature Circulator LHLTC-A22
High And Low Temperature Circulator LHLTC-A22
  • Working Temperature Range : -80 to 200°C
  • Ambient Temperature : 5 to 35°C
  • Relative Humidity : Less than or equal to 70%
  • Temperature Control Accuracy : ±1°
High And Low Temperature Circulator LHLTC-A14
High And Low Temperature Circulator LHLTC-A14
  • Working Temperature Range : -40 to 200°C
  • Ambient Temperature : 5 to 35°C
  • Relative Humidity : Less than or equal to 70%
  • Temperature Control Accuracy : ±1°
High And Low Temperature Circulator LHLTC-A17

High And Low Temperature Circulator LHLTC-A17

  • Working Temperature Range : -80 to 200°C
  • Ambient Temperature : 5 to 35°C
  • Relative Humidity : Less than or equal to 70%
  • Temperature Control Accuracy : ±1°
High And Low Temperature Circulator LHLTC-A20

High And Low Temperature Circulator LHLTC-A20

  • Working Temperature Range : -40 to 200°C
  • Ambient Temperature : 5 to 35°C
  • Relative Humidity : Less than or equal to 70%
  • Temperature Control Accuracy : ±1°
High And Low Temperature Circulator LHLTC-A21

High And Low Temperature Circulator LHLTC-A21

  • Working Temperature Range : -40 to 200°C
  • Ambient Temperature : 5 to 35°C
  • Relative Humidity : Less than or equal to 70%
  • Temperature Control Accuracy : ±1°
High And Low Temperature Circulator LHLTC-A16 FAQ's
  • The High and Low Temperature Circulator LHLTC-A16 eliminates the need for two systems by managing both heating and cooling within a single unit. There’s no switching of hardware or manual change in piping required during operation. Internal systems handle transitions automatically based on temperature demands. This setup reduces equipment clutter and simplifies lab organization. It is especially useful for alternating tasks that demand both heat and cold within the same session. Researchers can avoid setup delays when switching between phases. The unit supports continuous operation through both functions. It’s ideal for labs with time-sensitive workflows.

  • Labtron’s High and Low Temperature Circulator LHLTC-A16 is designed to operate without radiating unwanted thermal energy into its surroundings. Its structure directs heating and cooling flow only through connected lines. Other devices in close proximity remain unaffected during its operation. This makes it suitable for labs where multiple temperature-based systems run simultaneously. Thermal insulation reduces the chance of hot or cold zones forming externally. It supports safe placement near sensitive instrumentation. The unit allows efficient use of tight workspace. Researchers can integrate it into packed environments without concern.

  • The High and Low Temperature Circulator LHLTC-A16 includes mobility features for flexible placement but is not meant to be moved while running. Its operation depends on stable positioning and uninterrupted fluid connections. Repositioning during active cycles may disrupt flow or pressure balance. It is better suited for project-based movement between tasks rather than dynamic relocation. Once installed, it performs consistently in one position. Labs benefit from its ability to relocate between trials. However, continuous shifting is not part of its intended function. It supports modular lab planning, not mobile operation.

  • High and Low Temperature Circulator LHLTC-A16 switches between heating and cooling without requiring reset time or idle periods. This internal transition occurs seamlessly within the system’s flow management logic. It’s well-suited for experiments involving sudden thermal changes or rapid phase transitions. Researchers can progress through cycles without interruption. This helps maintain reaction timing and data accuracy. It avoids performance lags between temperature shifts. Process continuity remains intact throughout alternating phases. Labs can rely on it for uninterrupted multi-stage testing.

  • Labtron’s High and Low Temperature Circulator LHLTC-A16 maintains a steady circulation pattern that avoids thermal surges during dispensing. This is important for systems where consistent product flow is essential, such as dosing or filling units. Its thermal control supports ingredient stability throughout the line. Temperature does not spike during slow-downs or pauses in dispensing. This results in better batch uniformity. The unit is ideal for pharmaceutical or liquid food testing lines. It supports continuous operation across variable speeds. It keeps process flow thermally balanced across the entire run.

  • Our High and Low Temperature Circulator LHLTC-A16 provides smooth thermal transitions that are critical when working with sensitive plant-based materials. It avoids overheating or rapid cooling that might alter extract integrity. This control supports consistent outcomes in supplement development or herbal beverage testing. Flow stays stable across extended runs. It keeps bioactive components from degrading due to unstable temperature shifts. The unit helps preserve formulation quality throughout production. It fits well into natural product research settings. Labs benefit from its ability to support delicate thermal applications.
