High Shear Homogenizer LHSH-B10

Name: High Shear Homogenizer LHSH-B10
Brand: Labtron
SKU: LHSH-B10
Rating: 5 (868 reviews)

High Shear Homogenizer LHSH-B10 operates at a speed range from 10,000 to 30,000 rpm. It supports working volumes between 10 to 4,000 mL for versatile sample processing. The homogenizer handles samples with a viscosity up to 10,000 mPa·s effectively. The motor includes an automatic overload protection mechanism to extend its lifespan. Ideal for sample preparation, emulsification, and dispersion in laboratory environments.

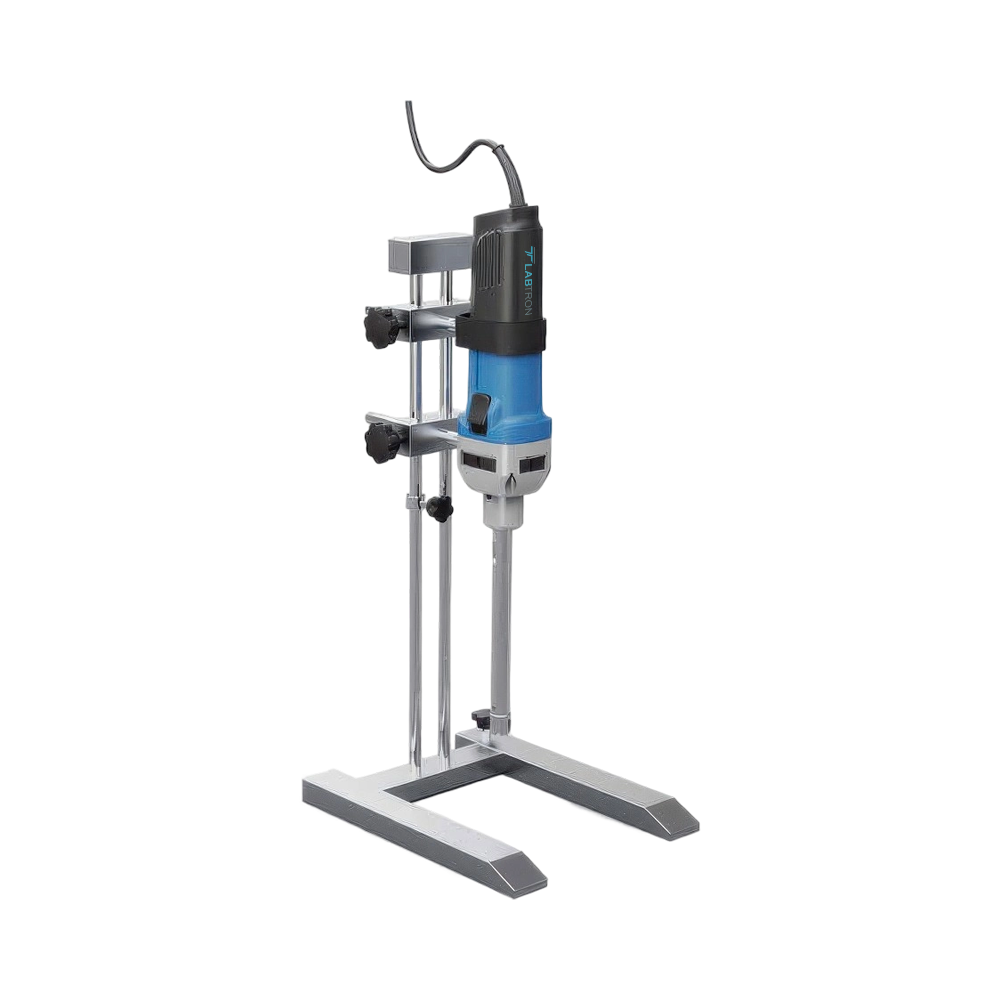

High Shear Homogenizer LHSH-B10_ Side View

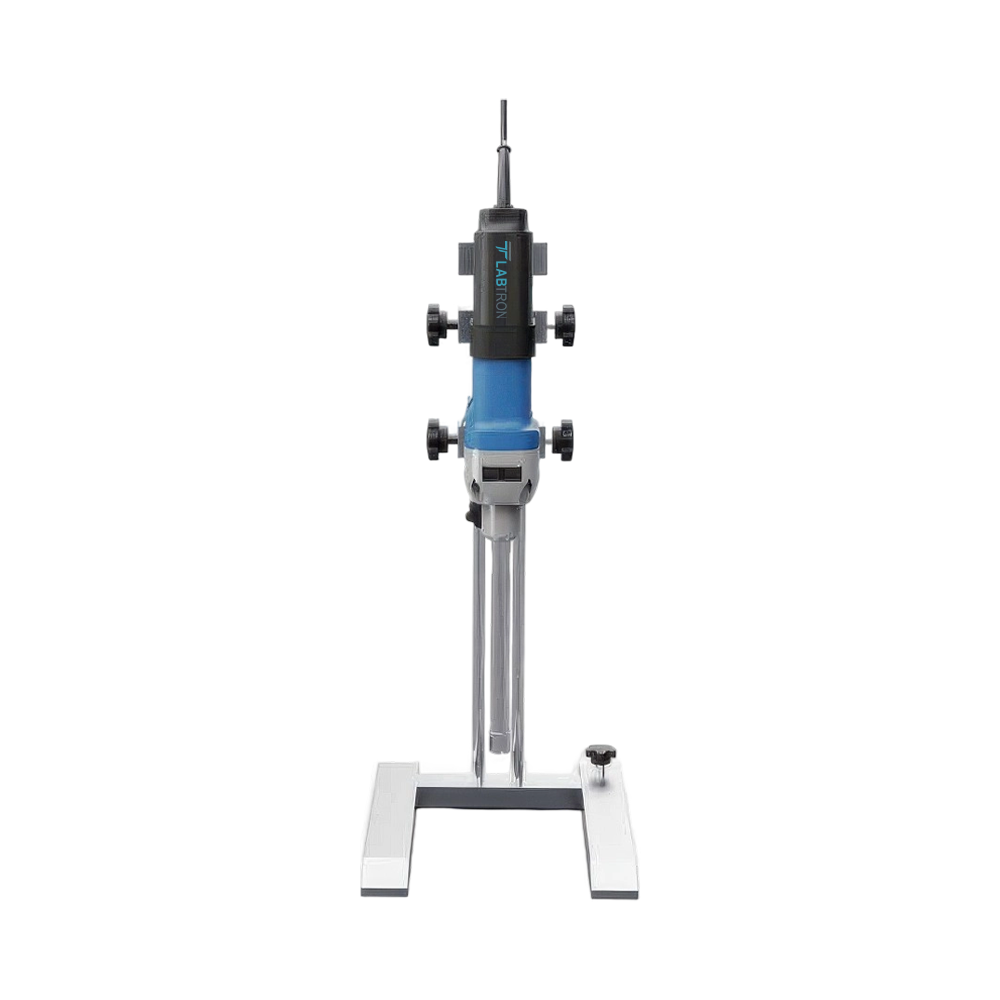

High Shear Homogenizer LHSH-B10_ Front View

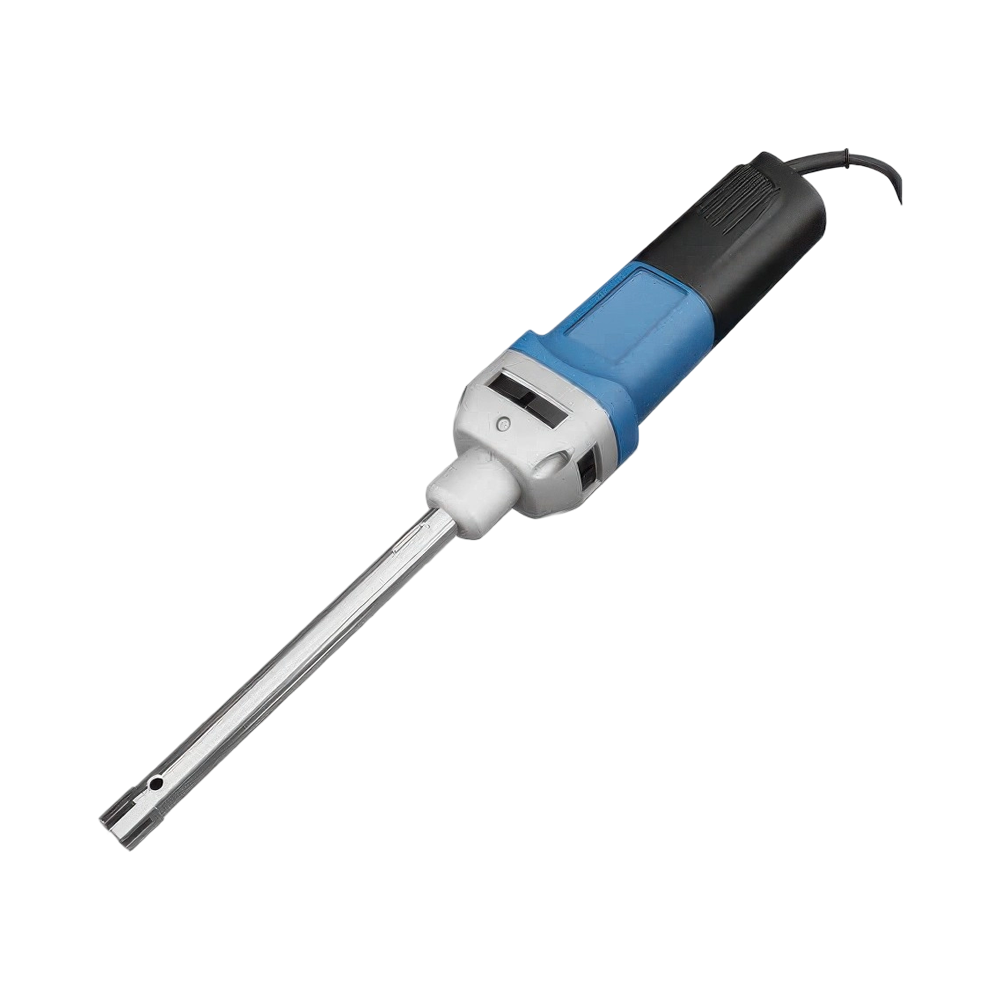

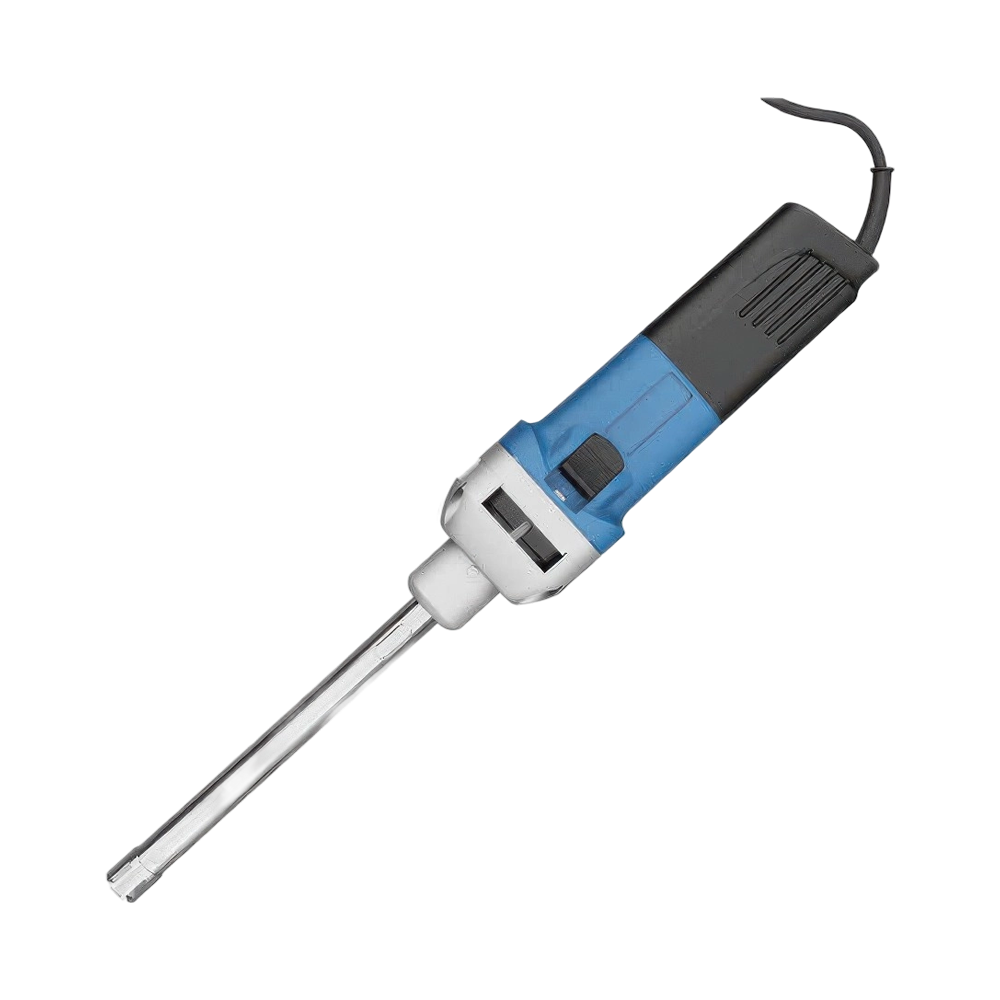

High Shear Homogenizer LHSH-B10_ Dispersion Shaft

Request Quote

Speed range	10,000 to 30,000 rpm
Processing Capacity	10 to 4,000 mL
Max viscosity	10,000 mPa·s
Max linear velocity	22.7 to 36 m/sec
Speed level	6 stages
Noise level	79 dB(A)
Protection class	IP20
Motor type	AC carbon brush motor
Ambient temperature & humidity	0 to 40 °C, 85% RH
Power	500 W
Voltage, frequency	110-120 V/60 Hz, 220-240 V/50-60 Hz
Dimension [WxDxH]	75 × 75 × 280 mm
Weight	1.7 kg

Corrosion-resistant shaft
Easy rotor removal
Six adjustable speed settings
Compatible with replaceable rotors
Smooth motor start
Stable acceleration control
Low noise operation

Our High Shear Homogenizer LHSH-B10 suits emulsification, dispersion, and cell lysis in biological and pharmaceutical labs. It’s ideal for sample preparation in cosmetics and food quality control.

Accessory Name	Quantity
Drive Unit	1
Stand	1
Integrated Shaft Type 1 (Solid-Liquid Mixing, 10–5000 mL)	1

Accessory Name	Quantity
Integrated Shaft Type 2 (Emulsification, 10–5000 mL)	1 pc
Integrated Shaft Type 5 (Solid-Liquid Mixing, 1–50 mL)	1 pc
Coarse Stator 20 mm	1 pc
Fine Stator 20 mm	1 pc
Coarse Stator 30 mm	1 pc
Fine Stator 30 mm	1 pc
Coarse Stator 40 mm	1 pc
Standard Rotor 20 mm	1 pc
Standard Rotor 30 mm	1 pc
Homogeneous Rotor 20 mm	1 pc
Homogeneous Rotor 30 mm	1 pc
Homogeneous Rotor 40 mm	1 pc
Hybrid Rotor 20 mm	1 pc
Hybrid Rotor 30 mm	1 pc
Emulsified Rotor 20 mm	1 pc
Emulsified Rotor 30 mm	1 pc

Download catalog for
High Shear Homogenizer LHSH-B10 Catalog

Available Range :

High Shear Homogenizer LHSH-B10 : 10,000 to 30,000 rpm High Shear Homogenizer LHSH-A11 : 200 to 11000 r/min High Shear Homogenizer LHSH-A12 : 200 to 11000 rpm

High Shear Homogenizer LHSH-B10 | Processing Capacity 10 to 4,000 mL | Max viscosity 10,000 mPa·s

High Shear Homogenizer LHSH-B10 | Corrosion-resistant shaft | Easy rotor removal

Models of High Shear Homogenizer

Labtron High Shear Homogenizer is specialized to create fine emulsions, suspensions, and dispersions by applying intense mechanical forces. Their stainless steel construction ensures durability and resistance to corrosion during extended use. They utilize variety of rotor geometries to optimize shear rates for specific needs. Their stator allows for effective mixing of various liquid materials and particles. Our High Shear Homogenizer is suitable in emulsifying oils in creams, homogenizing milk, and distributing pigments in paints.
