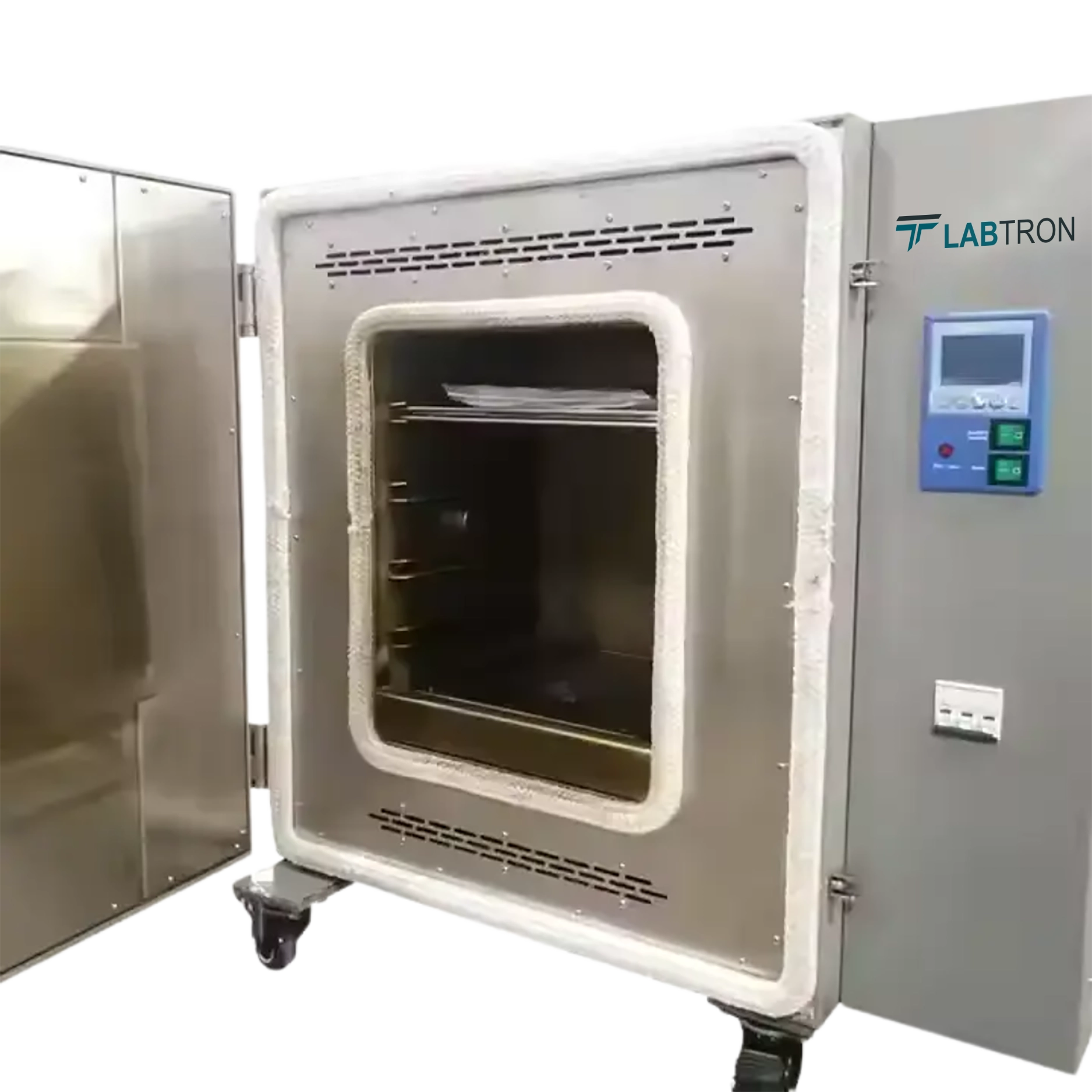

High Temperature Drying Oven LHDO-A10

High Temperature Drying Oven LHDO-A10

High Temperature Drying Oven LHDO-A10 is a device specially designed for drying, baking and pre-heating numerous materials or specimen. The process is done with the aid of a hot air circulation technique that is capable of evenly distributing temperature ranges from RT +20°C to 400°C. Equipped with LCD programmable controller with timing function and its chamber volume is 50 L with the space between the shelves in the chamber is adjustable.

Request Quote
Chamber Volume 50 L
Shelves 2
Temperature sensor PT 100
Timing Range 1 to 5999 min
Temperature Range RT +20°C to 400°C
Material 304 stainless steel
Display Resolution 0.1°C
Temperature stability ±0.5°C
Ambient Temperature +5 to 40°C
Dimension 101 × 82 × 115 cm
Power consumption 3250 W
Power supply AC 380V 50 Hz
Net Weight 62 kg
Gross Weight 105 kg
  • Material used 304 stainless steel
  • Liquid Crystal Display and adjustable 2 shelves
  • Designed with mirror polishing processing and semi-circular arcs at corners
  • PID controller with over temperature alarm and timing function ensures precise and reliable control
  • Equipped with Ceramic fiber door seal, which can run at high temperature for a long time and has a long service life
  • Programmable controller to 7 periods 63 steps and timing ranges from 0 to 5999 min for each period

High Temperature Drying Oven is used for desiccation, Torre faction, wax-melting and sterilization in mining enterprises, laboratories and scientific research institutes.

Micro printer
RS485 connector

Compare Models

Model Chamber Volume Shelves Temperature sensor Timing Range Temperature Range Material Display Resolution Temperature stability Ambient Temperature Dimension Power consumption Power supply Net Weight Gross Weight
LHDO-A10 50 L 2 PT 100 1 to 5999 min RT +20°C to 400°C 304 stainless steel 0.1°C ±0.5°C +5 to 40°C 101 × 82 × 115 cm 3250 W AC 380V 50 Hz 62 kg 105 kg
LHDO-A11 100 L 2 PT 100 1 to 5999 min RT +20°C to 400°C 304 stainless steel 0.1°C ±0.5°C +5 to 40°C 110 × 92 × 121 cm 4050 W AC 380V 50 Hz 152 kg 193 kg
LHDO-A12 220 L 2 PT 100 1 to 5999 min RT +20°C to 400°C Material used 304 stainless steel 0.1°C ±0.5°C +5 to 40°C 126 × 108 × 139 cm 4900 W AC 380V 50 Hz 245 kg 450 kg
LHDO-A13 760 L 2 PT 100 1 to 5999 min RT +20°C to 400°C Material used 304 stainless steel 0.1°C ±0.5°C +5 to 40°C 147 × 157 × 202 cm 12750 W AC 380V 50 Hz 315 kg 700 kg
LHDO-A20 50 L 2 PT100 1 to 5999 min RT +20°C to 500°C 304 stainless steel 0.1°C ±0.5°C +5 to 40°C 101 × 82 × 115 cm 3250 W AC 380V 50 Hz - -
LHDO-A21 100 L 2 PT100 1 to 5999 min RT +20°C to 500°C 304 stainless steel 0.1°C ±0.5°C +5 to 40°C 110 × 92 × 121 cm 4050 W AC 380V 50 Hz - -
LHDO-A22 220 L 2 PT100 1 to 5999 min RT +20°C to 500°C 304 stainless steel 0.1°C ±0.5°C +5 to 40°C 126 × 108 × 139 cm 4900 W AC 380V 50 Hz - -
LHDO-A23 760 L 2 PT100 1 to 5999 min RT +20°C to 500°C 304 stainless steel 0.1°C ±0.5°C +5 to 40°C 147 × 157 × 202 cm 12750 W AC 380V 50 Hz - -
