Hot Plate Magnetic Stirrer LHMS-A17

Hot Plate Magnetic Stirrer LHMS-A17

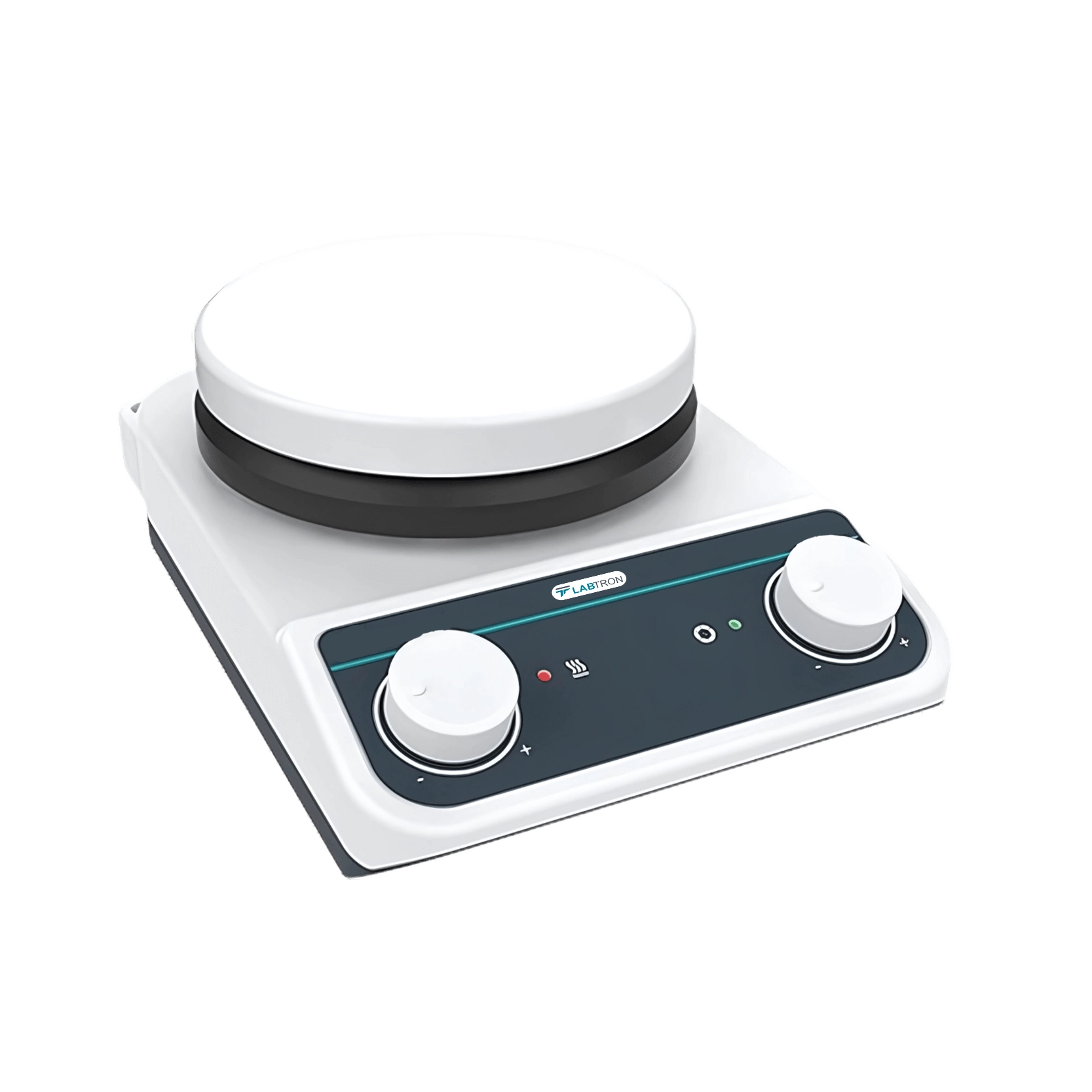

Hot Plate Magnetic Stirrer LHMS-A17 offers a maximum stirring capacity of 2 L and operates with in a speed range of 200 to 1500 rpm. It is controlled using a rotary knob, providing simple and effective speed and temperature adjustments. The hot plate can reach a maximum temperature of 260℃, making it ideal for heating various solutions. Our stirrer operates at a rated power of 200 W, making it an energy-efficient choice for routine lab use.

Hot Plate Magnetic Stirrer LHMS-A17
Hot Plate Magnetic Stirrer LHMS-A17
Hot Plate Magnetic Stirrer LHMS-A17
Request Quote
Maximum Stirring Capacity 2 L (H2O)
Speed 200 rpm to 1500 rpm
Maximum Temperature of Hot Plate 260℃
Plate Diameter Ф 135 mm
Plate Material Stainless steel coated
Magnetic Stirring Bar Size 30 mm
Magnetic Stirring Bar Shape Linear shape
Control Mode Knob
Motor Brushless
Direction Anti-clockwise
Power Consumption 200 W
Power Supply AC 110V/ 220V
Dimension 225 ×155 × 90 mm
  • Brushless motor

  • Silent operation

  • Anti-clockwise stirring direction

  • Compact and durable

Hot Plate Magnetic Stirrer LHMS-A17 is ideal for general laboratory heating and stirring, such as dissolving reagents or preparing chemical solutions. It is suitable for educational and research laboratories that require reliable mixing and heating.

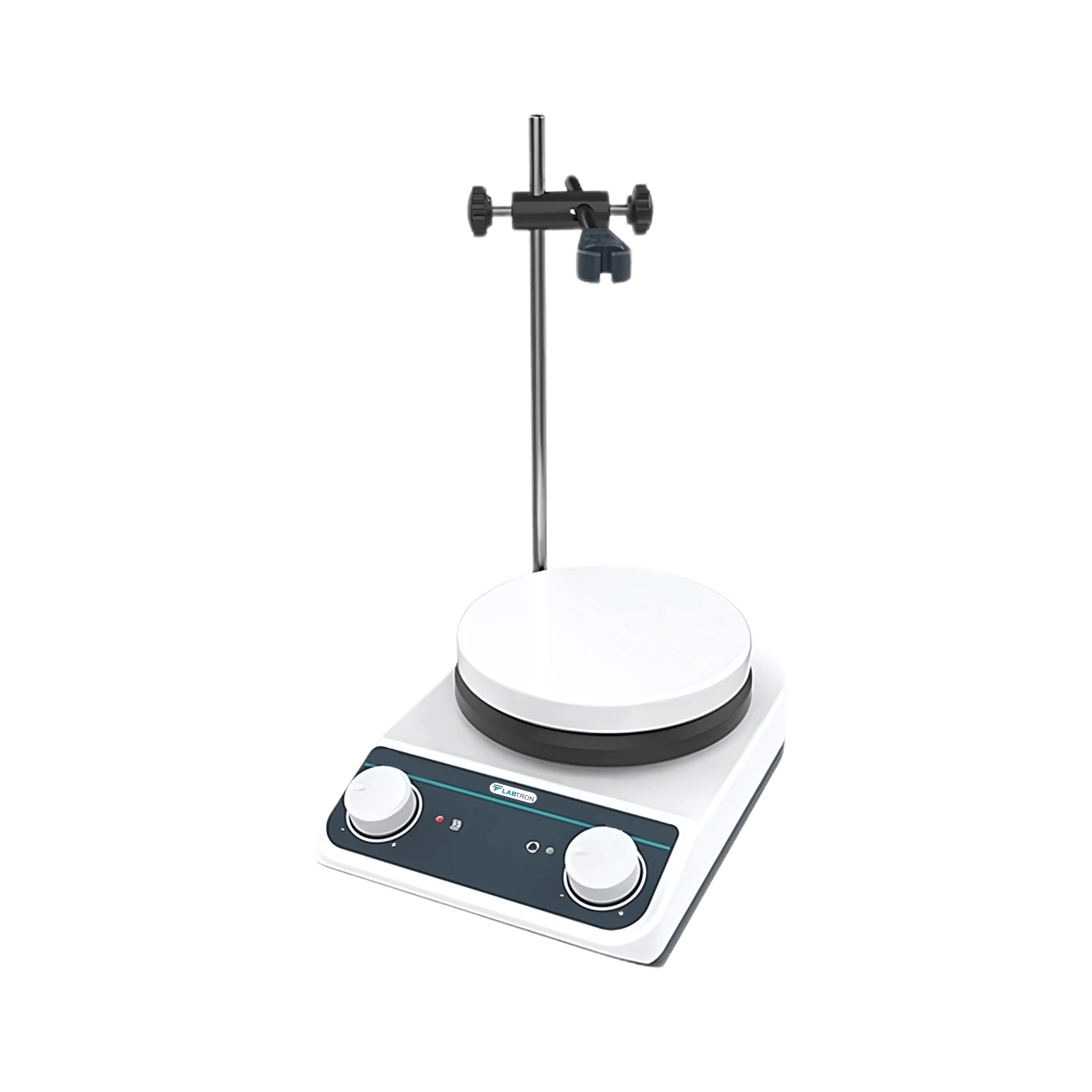

Magnetic stirring bar × 1

Power cord × 1

Support × 1

Probe clamp × 1

Cross clip × 1

Hot Plate Magnetic Stirrer LHMS-A17 banner
Hot Plate Magnetic Stirrer LHMS-A17 features

Models of Hotplate Magnetic Stirrer

Labtron Hotplate Magnetic Stirrer provide uniform heating and stirring of 5000 ml to 20 L samples volume. They offer stirring speeds ranging from 50 rpm to 2000 rpm accommodating different viscosities and mixing requirements. Their built-in cooling fan prevents overheating and maintains optimal operational temperature. They include durable ceramic plate for efficient heat transfer and easy cleaning. Our Hotplate Magnetic Stirrer agitates chemical reactions for environmental testing, cosmetic manufacturing, clinical laboratories and catalyst reactions.

Hot Plate Magnetic Stirrer LHMS-C11

Hot Plate Magnetic Stirrer LHMS-C11

  • Maximum Volume : 2000 ml
  • Speed : 100 to 2000 rpm
  • Minimum Revolution : 100 rpm
  • Maximum Temperature : 380°C
Hot Plate Magnetic Stirrer LHMS-A19

Hot Plate Magnetic Stirrer LHMS-A19

  • Maximum Stirring Capacity : 2 L (H2O)
  • Speed : 50 rpm to 1500 rpm
  • RPM Increment : 10 rpm
  • Maximum Temperature of Hot Plate : 310℃
Hot Plate Magnetic Stirrer LHMS-C13

Hot Plate Magnetic Stirrer LHMS-C13

  • Maximum Volume : 3 L
  • Speed : 0 to 1600 rpm
  • Temperature Range : Room temperature to 380℃
  • Plate Material : Aluminium panel
Hot Plate Magnetic Stirrer LHMS-A21
Hot Plate Magnetic Stirrer LHMS-A21
  • Maximum Stirring Capacity : 20 L (H2O)
  • Speed : 50 rpm to 1500 rpm
  • RPM Increment : 10 rpm
  • Maximum Temperature of Hot Plate : 550℃
Hotplate Magnetic Stirrer LHMS-A16
Hotplate Magnetic Stirrer LHMS-A16
  • Maximum Volume : 0 to 2000 mL
  • Speed : 0 to 1250 rpm
  • Temperature Range : 0℃ to 300℃
  • Timer : 0 to 999 minutes
Hot Plate Magnetic Stirrer LHMS-C22

Hot Plate Magnetic Stirrer LHMS-C22

  • Work plate Dimension : 184 × 184 mm (7 inch)
  • Work plate material : Glass ceramic coating
  • Motor type : Brushless DC motor
  • Motor rating input : 18 W
Hot Plate Magnetic Stirrer LHMS-C12

Hot Plate Magnetic Stirrer LHMS-C12

  • Maximum Volume : 1 L
  • Speed : 0 to 1600 rpm
  • Temperature Range : Room temperature to 320℃
  • Plate Material : Aluminium panel
Hot Plate Magnetic Stirrer LHMS-C10

Hot Plate Magnetic Stirrer LHMS-C10

  • Maximum Volume : 5000 mL
  • Speed : 100 to 2000 rpm
  • Minimum Revolution : 100 rpm
  • Maximum Temperature : 380°C
Hot Plate Magnetic Stirrer LHMS-A17 FAQ's
  • The Hot Plate Magnetic Stirrer LHMS-A17 is designed for efficient laboratory mixing with a maximum stirring capacity of 2 liters of water. It operates within a wide speed range of 200 to 1500 rpm, which allows users to perform both gentle mixing and vigorous stirring depending on their application. The linear-shaped magnetic stirring bar ensures consistent motion throughout the solution, improving accuracy in experiments. Controlled with a simple rotary knob, speed adjustments are quick and precise. These features make the Hot Plate Magnetic Stirrer LHMS-A17 a reliable tool for everyday laboratory use.

  • The hot plate of the Hot Plate Magnetic Stirrer LHMS-A17 is capable of reaching a maximum temperature of 260?, making it suitable for a variety of heating applications in laboratories. The plate itself is made of stainless steel with a special coating, which ensures excellent durability and resistance against corrosion and chemicals. This high-quality material also provides even heat distribution across the surface, ensuring consistent results. Whether used for dissolving reagents or preparing chemical solutions, the heating performance is both dependable and efficient. The Hot Plate Magnetic Stirrer LHMS-A17combines strength with functionality in its hot plate design.

  • The Hot Plate Magnetic Stirrer LHMS-A17 operates with a brushless motor, which is one of its key advantages over conventional models. Brushless motors are known for their long lifespan, low maintenance, and stable operation. They also produce significantly less noise, ensuring silent and smooth stirring during laboratory work. This makes it ideal for environments where continuous operation is required without disruption. The reliable performance of its motor ensures that the Hot Plate Magnetic Stirrer LHMS-A17 remains energy-efficient while maintaining consistent stirring results.

  • The Hot Plate Magnetic Stirrer LHMS-A17 is built with user-friendly safety and control features. Its operation is managed using a rotary knob, which provides simple and precise adjustments for both speed and temperature. The stirrer uses an anti-clockwise stirring direction for efficient mixing of samples and solutions. The compact, durable design minimizes risks of overheating or mechanical failure during long-term use. Additionally, with its rated power consumption of just 200 W, it operates as an energy-efficient and safe device for routine laboratory tasks. Overall, the Hot Plate Magnetic Stirrer LHMS-A17 ensures a balance of safety, durability, and ease of control.

  • The Hot Plate Magnetic Stirrer LHMS-A17 is widely used in laboratories for heating and stirring tasks such as dissolving reagents, preparing chemical solutions, and carrying out general sample preparation. It is particularly useful in both research and educational laboratories that require reliable and efficient equipment. To support these applications, the unit comes with a complete set of standard accessories, including a magnetic stirring bar, power cord, support, probe clamp, and cross clip. These accessories make the instrument ready to use straight out of the box. With its versatility and included tools, the Hot Plate Magnetic Stirrer LHMS-A17 is a practical choice for a wide range of laboratory tasks.
