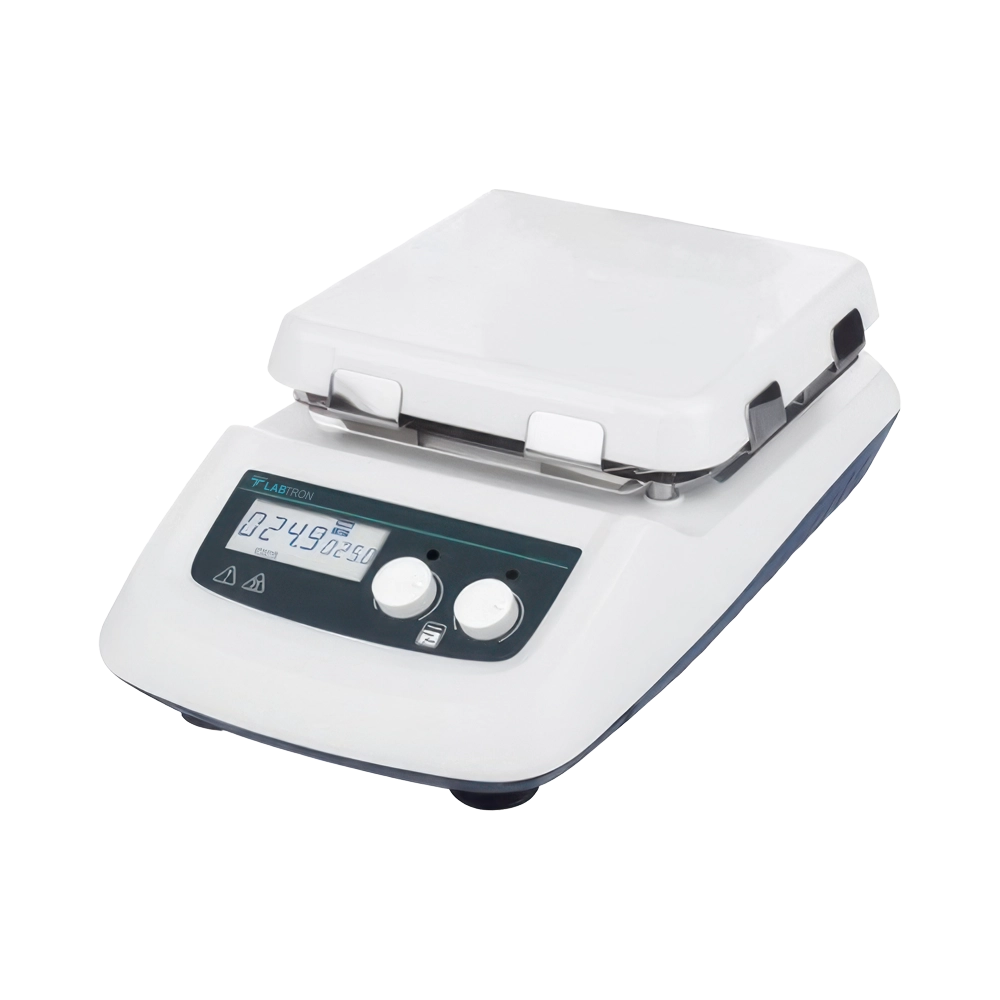

Hot Plate Magnetic Stirrer LHMS-A21

Name: Hot Plate Magnetic Stirrer LHMS-A21
Brand: Labtron
SKU: LHMS-A21
Rating: 4.8 (617 reviews)

Hot Plate Magnetic Stirrer LHMS-A21 offers a maximum stirring capacity of 20 L and operates with in a speed range of 50 to 1500 rpm. It accommodates a 50 mm linear shaped magnetic stirring bar and comes with a PT1000 sensor. The stirrer is equipped with a digital display system and knob control system for accurate settings. Its high capacity and high temperature range makes it suitable for versatile laboratory applications.

Request Quote

Maximum Stirring Capacity	20 L (H2O)
Speed	50 rpm to 1500 rpm
RPM Increment	10 rpm
Maximum Temperature of Hot Plate	550℃
Temperature Display Accuracy	0.1℃
Temperature Increment	1℃
Plate Temperature Control Accuracy	± 1℃
Plate Size	184 × 184 mm
Plate Material	Aluminium alloy-ceramic coated
Magnetic Stirring Bar Size	50 mm
Magnetic Stirring Bar Shape	Linear shape
Control Mode	Digital screen + knob
Temperature Sensor	PT1000
Motor	Brushless
Direction	Anti-clockwise
Power Consumption	1000 W
Power Supply	AC 110V/ 220V
Dimension (W x D x H )	215 × 360 × 112mm
Packaging Dimension	440 × 285 ×195mm
Gross Weight	6 Kg

Two temperature control mode
Over temperature protection function
Fast heating, anticorrosion plate
Compact and durable
Wide speed range

Hot Plate Magnetic Stirrer LHMS-A21 is ideal for industrial-scale chemical synthesis, material research, and high-temperature heating applications. It is suitable for laboratories that require large volume stirring with precise temperature control.

Magnetic stirring bar × 1

Power cord × 1

Support × 1

Temperature Probe × 1

Probe clamp × 1

Cross clip × 1

Download catalog for
Hot Plate Magnetic Stirrer LHMS-A21 Catalog

Download manual for
Hot Plate Magnetic Stirrer LHMS-A21 Manual

Available Range :

Hot Plate Magnetic Stirrer LHMS-A17 : 2 L (H2O) Hot Plate Magnetic Stirrer LHMS-A21 : 20 L (H2O) Hot Plate Magnetic Stirrer LHMS-A20 : 5 L (H2O)

Hot Plate Magnetic Stirrer LHMS-A21 features

Models of Hotplate Magnetic Stirrer

Labtron Hotplate Magnetic Stirrer provide uniform heating and stirring of 5000 ml to 20 L samples volume. They offer stirring speeds ranging from 50 rpm to 2000 rpm accommodating different viscosities and mixing requirements. Their built-in cooling fan prevents overheating and maintains optimal operational temperature. They include durable ceramic plate for efficient heat transfer and easy cleaning. Our Hotplate Magnetic Stirrer agitates chemical reactions for environmental testing, cosmetic manufacturing, clinical laboratories and catalyst reactions.
