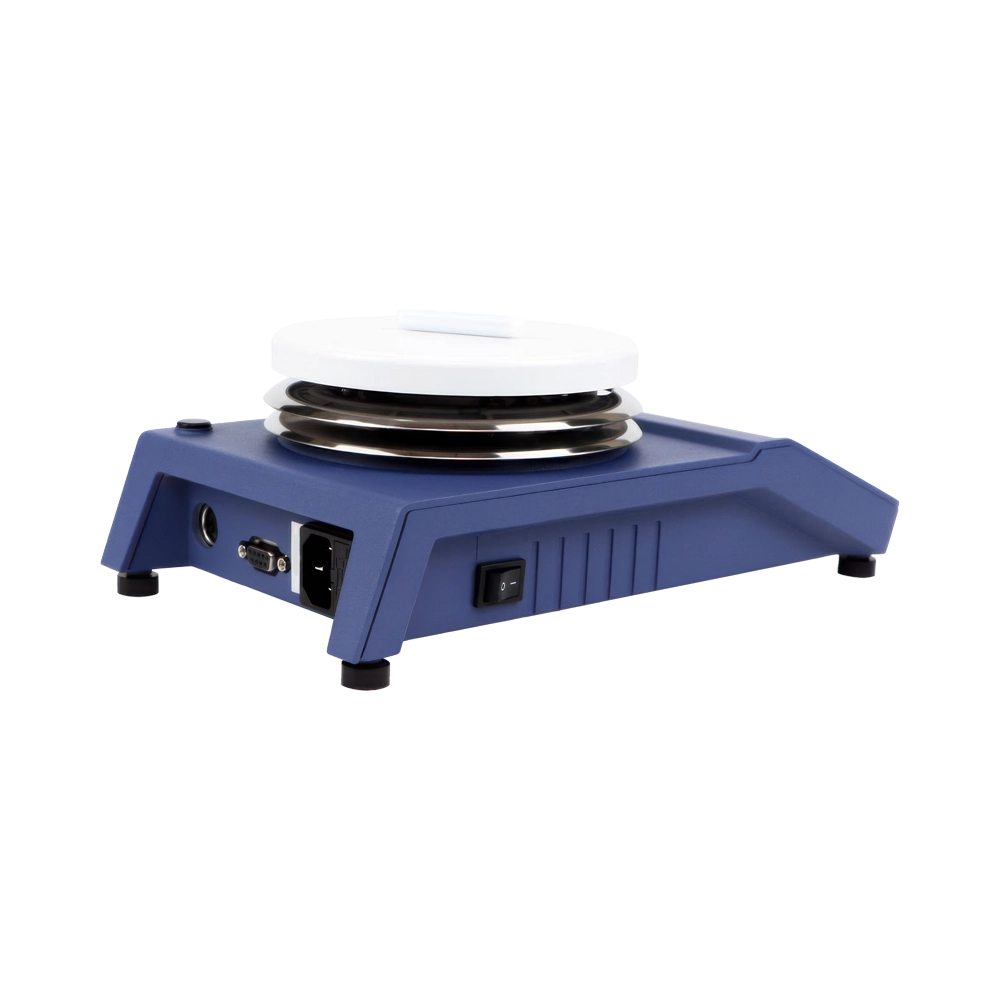

Hot Plate Magnetic Stirrer LHMS-C20

Name: Hot Plate Magnetic Stirrer LHMS-C20
Brand: Labtron
SKU: LHMS-C20
Rating: 4.9 (602 reviews)

Hot Plate Magnetic Stirrer LHMS-C20 handles stirring volume of up to 20 L with speed range of 100rpm to1500 rpm. Its uniform heat distribution optimizes reaction processes and reduces thermal inconsistencies. Equipped with magnetic stir bar for smooth and consistent mixing results. Feature user-friendly control panel that allows intuitive operation for quick setup and adjustments. Integrated temperature sensor ensures accurate monitoring and control of sample heating. Offers programmable memory settings for frequently used temperature and speed combinations

Request Quote

Stirring Volume	20 L
Speed Range	100 to 1500 rpm
Speed Control Accuracy	±10 rpm
Max Temperature	Room Temperature to 340℃
Temperature Control Accuracy	± 1℃
Working Plate Diameter	135 mm (5 inch)
Motor Type	DC brushless motor
Display mode	Liquid Crystal Display
Working Plate Material	Nano-Ceramics and Acrylic Acid
Power Consumption	650 W
Output Power Consumption	600 W
Product Dimension	280mm × 160mm × 100mm
Package Dimensions	350mm × 250mm × 200mm
Weight	3.5 kg

Variable speed control knob
High-temperature resistant surface
Precise digital temperature display
Corrosion-resistant ceramic top
Adjustable magnetic stirring speed
Safety overheating protection mechanism

Our Hot Plate Magnetic Stirrer LHMS-C20 are used for organic synthesis, extraction, analysis of oil products, pH-measurements, dialysis, soil suspending, preparing buffer solutions etc. across the field of chemical engineering, microbiology, pharmaceuticals, geology, scientific research, biotechnology, biochemistry etc.

Support stand
Temperature probe
Bracket
Magnetic stirrer

Teflon-Coated Magnets	Diameter × Length (mm)
Magnet 1	3 × 6
Magnet 2	4 × 8
Magnet 3	4 × 10
Magnet 4	5 × 10
Magnet 5	6 × 10
Magnet 6	5 × 15

Download catalog for
Hot Plate Magnetic Stirrer LHMS-C20 Catalog

Hot Plate Magnetic Stirrer LHMS-C20 banner

Hot Plate Magnetic Stirrer LHMS-C20 features

Models of Hotplate Magnetic Stirrer

Labtron Hotplate Magnetic Stirrer provide uniform heating and stirring of 5000 ml to 20 L samples volume. They offer stirring speeds ranging from 50 rpm to 2000 rpm accommodating different viscosities and mixing requirements. Their built-in cooling fan prevents overheating and maintains optimal operational temperature. They include durable ceramic plate for efficient heat transfer and easy cleaning. Our Hotplate Magnetic Stirrer agitates chemical reactions for environmental testing, cosmetic manufacturing, clinical laboratories and catalyst reactions.
