| Capacity | 225 L |
| Temperature Range | -20°C/-40°C/-70°C to +150°C |
| Temperature Fluctuation | ±0.5°C |
| Temperature Uniformity | ±2.0°C |
| Temperature Deviation | ±2.0°C |
| Fast Temperature Change Range | -20°C/-40°C/-55°C to +85°C |
| Fast Temperature Change Rate | 5°C/min, 10°C/min, 15°C/min (Average change) |
| Humidity Range | 20 %RH to 98 %RH |
| Humidity Fluctuation | ±2.0 %RH |
| Humidity Uniformity | ±3.0 %RH |
| Humidity Deviation | ±3.0 %RH (>75%RH), ±5.0 %RH (≤75%RH) |
| Noise Level | ≤78 dB |
| Voltage Fluctuation | ≦±10 % |
| Power Supply | AC 3 ψ 4 W 380 V 50 Hz |
| Internal Dimensions (W × H × D) | 600 × 750 × 500 mm |
| External Dimensions (W × H × D) | 1200 × 1780 × 2020 mm |
Rapid humidity recovery
Energy-efficient operation
High-performance insulation
Digital touch screen interface
Uniform environmental distribution

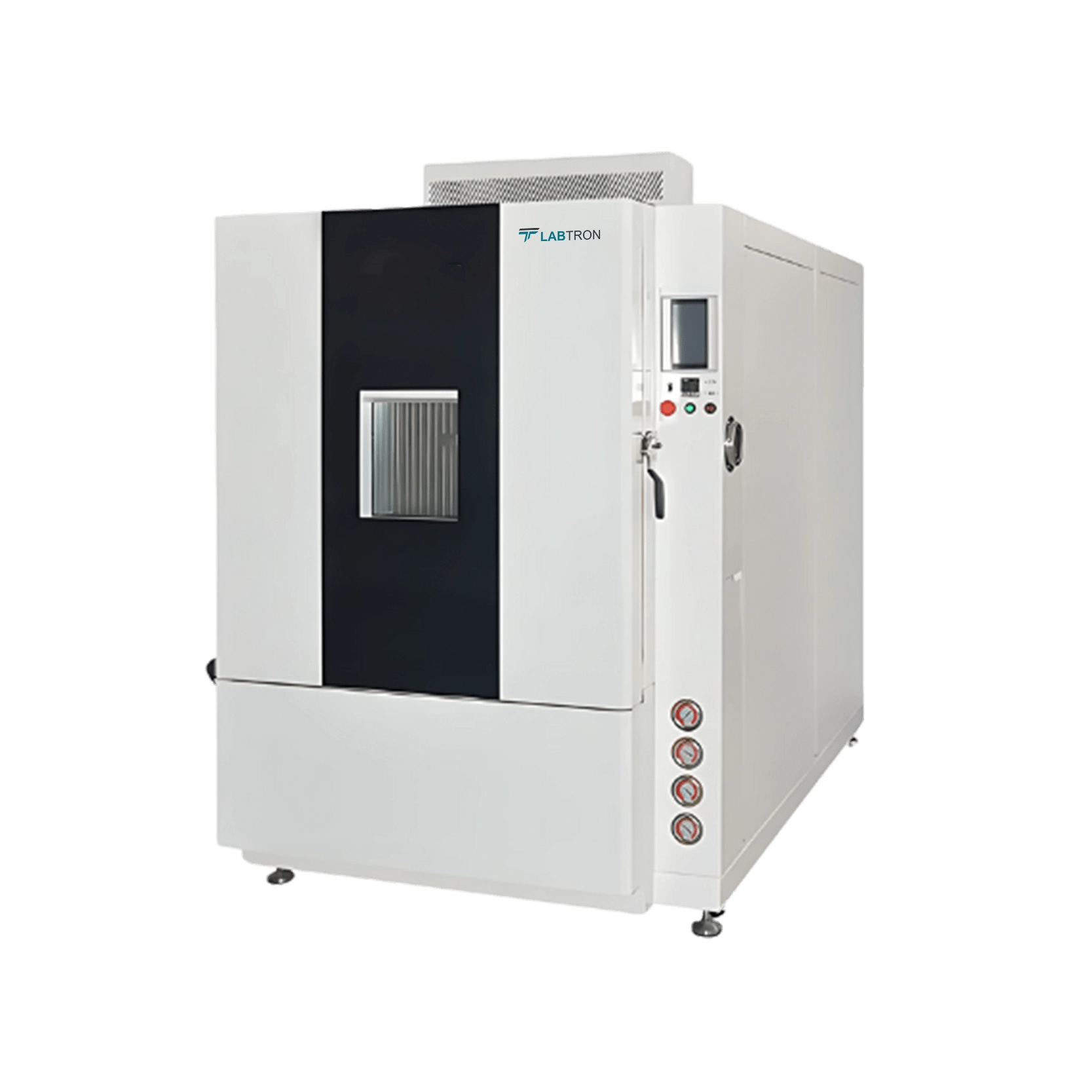

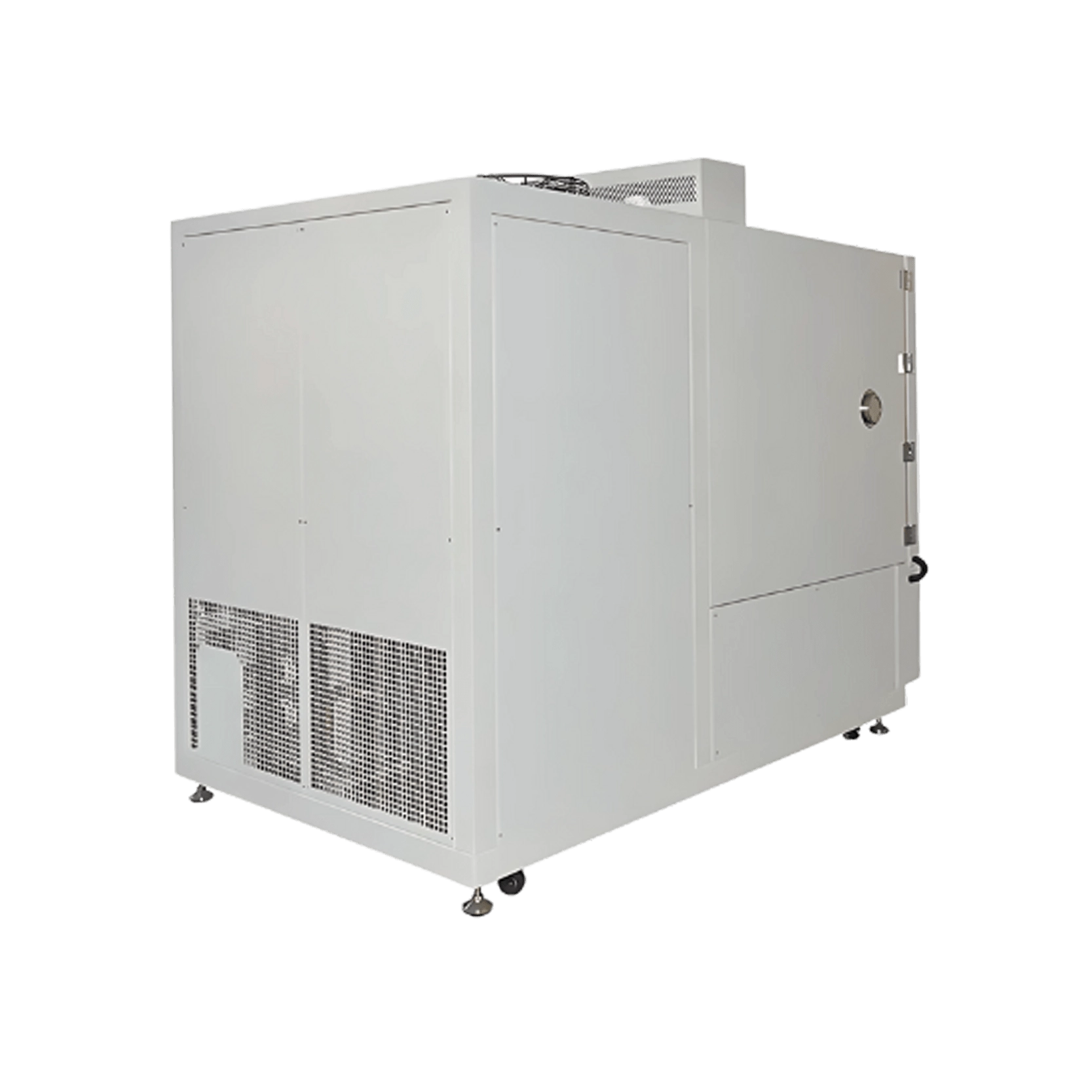

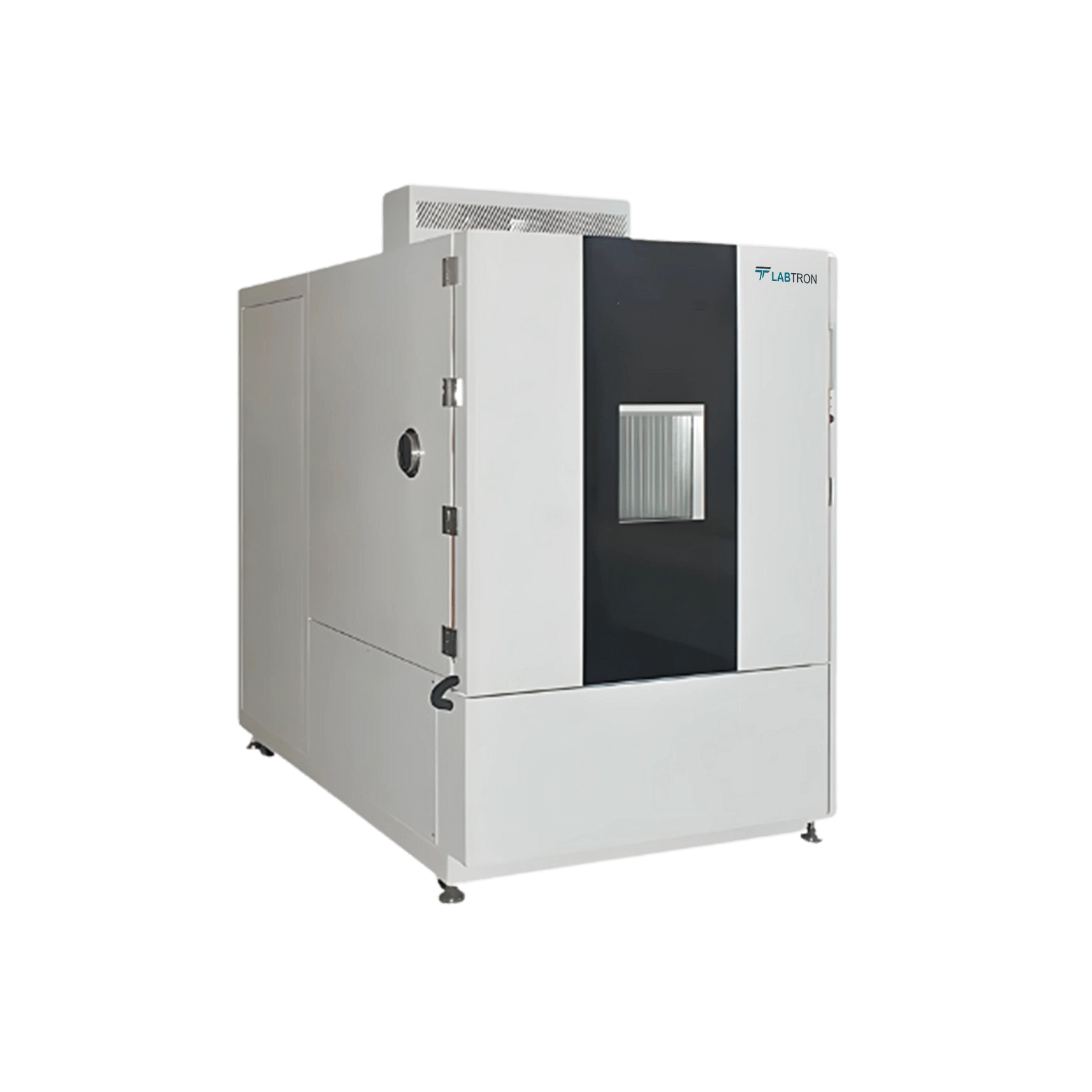

Humidity Test Chamber LHMTC-A12 is a testing device that simulates varying humidity and temperature conditions to assess material performance and durability. It is used in electronics, automotive, pharmaceuticals, and aerospace industries to test corrosion resistance.
Accessories Name | Quantity |
Transparent Electrothermal Film Double Layer Glass Observation Window | 1 |
Lead Holes | 2 |
Lighting Lamp | 1 |
Casters | 4 |
Stainless Steel Sample Trays | 2 |
Cable | 1 |
Download catalog for
Humidity Test Chamber LHMTC-A12 Catalog
Labtron Humidity Test Chamber has an adjustable temperature range, allows precise control, making it suitable for different testing and environmental conditions. These reliable long-term performances ensure stable and efficient operation, even during extended use. Their advanced humidity sensors continuously monitor and regulate moisture levels for accurate and consistent results. They feature uniform airflow circulation that maintains even temperature and humidity throughout the chamber, preventing fluctuations. Our humidity test chamber has a high-capacity water tank that supports continuous operation with fewer refills, reducing the need for frequent maintenance.






Labtron’s Humidity Test Chambers are equipped with high-efficiency airflow systems and precision control mechanisms to ensure uniform distribution of humidity and temperature throughout the chamber. The chambers use PID controllers and dynamic airflow circulation to maintain consistent conditions, preventing hot or cold spots that could affect test results. It incorporates multi-point sensing technology to monitor and adjust environmental parameters in real time, ensuring accurate and repeatable test conditions.
Yes, Labtron’s Humidity Test Chambers are ideal for accelerated aging and environmental stress testing by simulating high humidity and temperature conditions to predict a product’s long-term performance. These tests are commonly used in pharmaceutical stability studies, electronic component reliability testing, and polymer material degradation assessments. It provides customizable test profiles to meet specific industry standards, ensuring compliance with ICH, ASTM, and MIL-STD protocols.
Yes, Labtron’s Humidity Test Chambers are ideal for accelerated aging and environmental stress testing by simulating high humidity and temperature conditions to predict a product’s long-term performance. These tests are commonly used in pharmaceutical stability studies, electronic component reliability testing, and polymer material degradation assessments.
Labtron offers advanced models with built-in data logging, remote monitoring, and alarm systems to enhance operational efficiency. These chambers are equipped with Ethernet, Wi-Fi, or USB connectivity, allowing real-time tracking of temperature, humidity levels, and system alerts. Its remote monitoring feature ensures that critical data can be accessed and managed from any location, enabling users to maintain strict compliance and process validation.
Labtron’s Humidity Test Chambers are designed with condensation management systems that prevent moisture buildup inside the chamber. These systems include anti-condensation heaters, moisture extraction units, and insulated chamber walls to minimize condensation and protect test samples. It prevents cross-contamination, ensuring that test results remain accurate and reproducible even during extended humidity testing.
Labtron recommends regular maintenance and calibration to ensure optimal performance and accuracy of its Humidity Test Chambers. Routine maintenance includes cleaning of air filters, checking water supply quality, inspecting heating and cooling systems, and recalibrating sensors. It also suggests annual servicing to detect and resolve potential issues, ensuring that the chamber maintains consistent humidity and temperature control for critical applications.
Yes, Labtron’s Humidity Test Chambers are equipped with multi-environment testing capabilities that allow simultaneous control of temperature, humidity, and airflow conditions. These chambers are ideal for conducting cyclic tests, thermal cycling, and high-humidity endurance tests where multiple environmental factors need to be evaluated. Its advanced control systems enable users to program complex test profiles and monitor the effects of combined environmental stresses on test samples.
Labtron’s Humidity Test Chambers feature programmable control systems that allow users to create and store custom test cycles. The chambers are equipped with intuitive touchscreen interfaces and advanced PLC (Programmable Logic Controller) systems that enable precise control over temperature, humidity, and test durations. Its programmable functionality makes it easy to automate test sequences, schedule cyclic tests, and simulate diverse environmental conditions with minimal user intervention.
