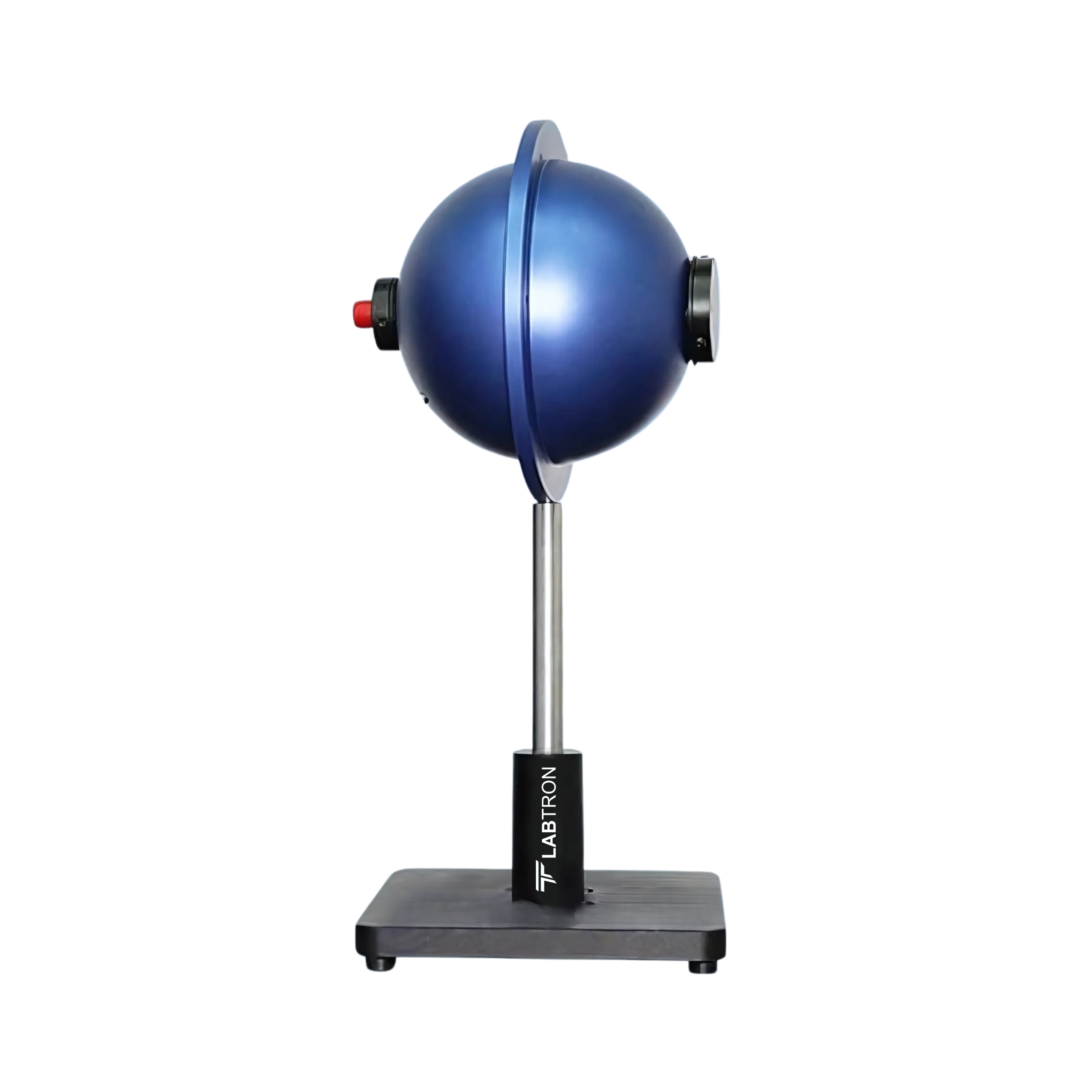

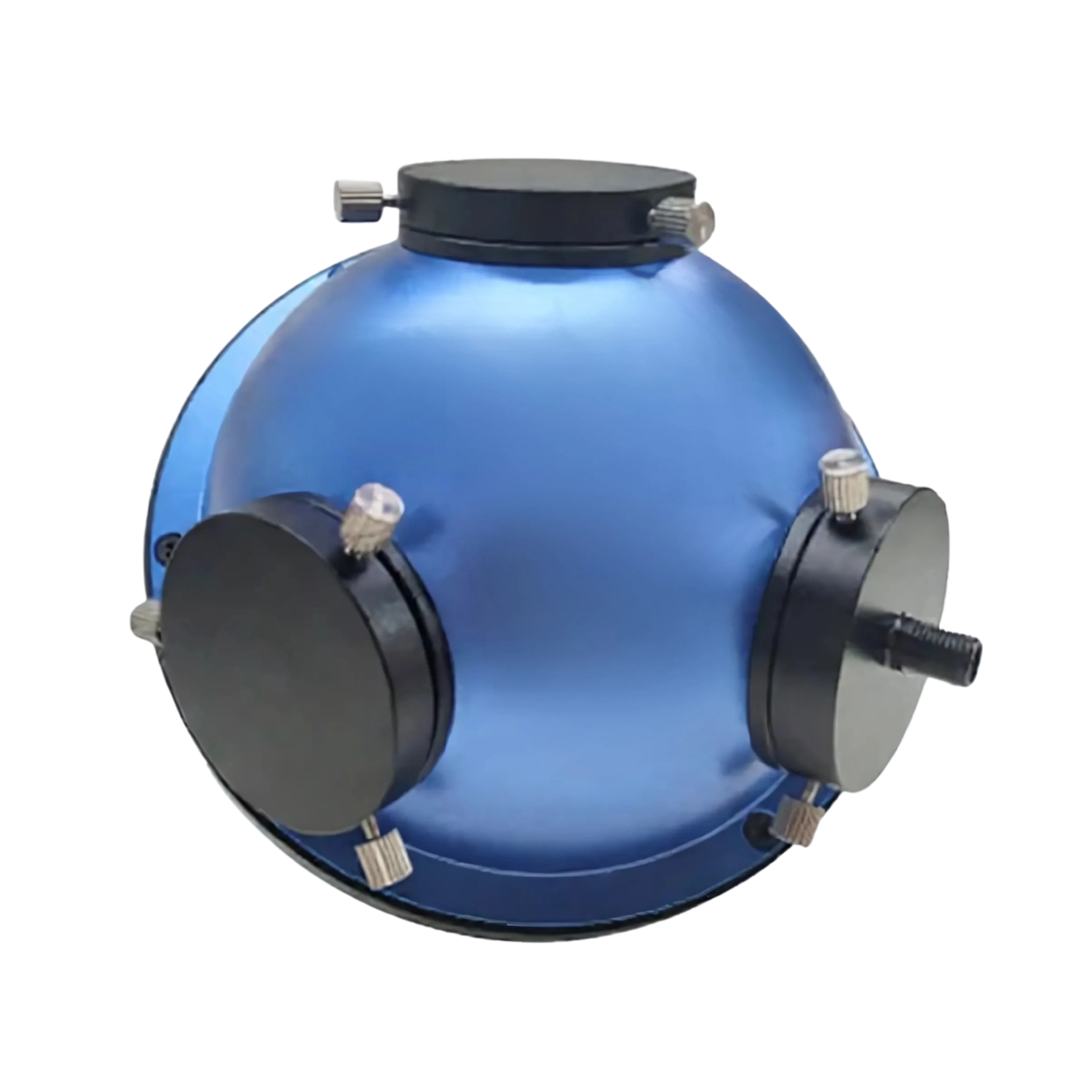

Integrating Sphere LIGS-A11

Name: Integrating Sphere LIGS-A11
Brand: Labtron
SKU: LIGS-A11
Rating: 4.8 (882 reviews)

Integrating Sphere LIGS-A11 is designed for a wide range of spectral measurements with a wavelength range of 200 to 2500 nm. It has complementary 3 openings, and users can add openings according to the requirement. The coating is resistant to yellowing and flaking, providing consistent and reliable measurement results. Its universal opening allows easy installation of multiple accessories for flexible configurations. Our Integrating Sphere is widely used in diverse optical measurement tasks, including uniform light source evaluation, laser power monitoring, and spectral efficiency testing.

Request Quote

Diameter	100 mm
Spectral Range	200 to 2500 nm
Coating Material	BaSO₄ or PTFE
Coating Reflectivity	95% or 97%
Number Of Openings	3 (customizable)
Opening Position	0°, Arctic (North Pole), 90°
Opening Size	1.5 inch (0°), 1 inch (North Pole), 1 inch (90°)
Bracket	Pedestal

High-performance diffuse reflection layer
Multi-purpose setups
Cost-effective design
Compact design

Our Integrating Sphere LIGS-A11 is well-suited for diverse optical measurement applications, such as evaluating light source uniformity, laser power analysis, and spectral efficiency assessments. It supports accurate transmittance and reflectance measurements across a wide range of sample types. Its flexible design allows integration with accessories such as collimating lenses, cuvette holders, and power probes, enhancing experimental capabilities.

Download catalog for
Integrating Sphere LIGS-A11 Catalog

Available Range :

Integrating Sphere LIGS-A11 : 100 mm Integrating Sphere LIGS-A12 : 125 mm Integrating Sphere LIGS-A13 : 150 mm Integrating Sphere LIGS-A10 : 84 mm

Models of Integrating Sphere

Labtron is a supplier of a wide range of Integrating Spheres with a broad wavelength for precision spectral measurements. Their inner surface is coated with BaSO₄ or PTFE to deliver high diffuse reflectivity and long-term durability. They feature three customizable openings allowing flexible experimental configurations. Their varying diameter supports high-precision measurements and provides stability across broader spectral regions. Our Integrating Spheres are widely used in optical measurement applications, such as light source uniformity, laser power analysis, and spectral efficiency assessments
