Water Quality Testing Integrating Sphere LIGS-E10

Name: Water Quality Testing Integrating Sphere LIGS-E10
Brand: Labtron
SKU: LIGS-E10
Rating: 4.9 (900 reviews)

Water Quality Testing Integrating Sphere LIGS-E10 offers a wide spectral range of 200 to 2500 nm. It is equipped with high-quality PTFE material, and the sphere achieves up to 99% reflectivity, enhancing optical efficiency. The integrating sphere connects one end to the light source and the other to the detector for efficient optical measurement. Its customizable interface ports and cavity diameter offer flexibility for different applications and accessory integrations. Our Integrating Sphere is widely used for evaluating the absorbance of natural water bodies like rivers, seas, and groundwater.

Water Quality Testing Integrating Sphere LIGS-E10_over view

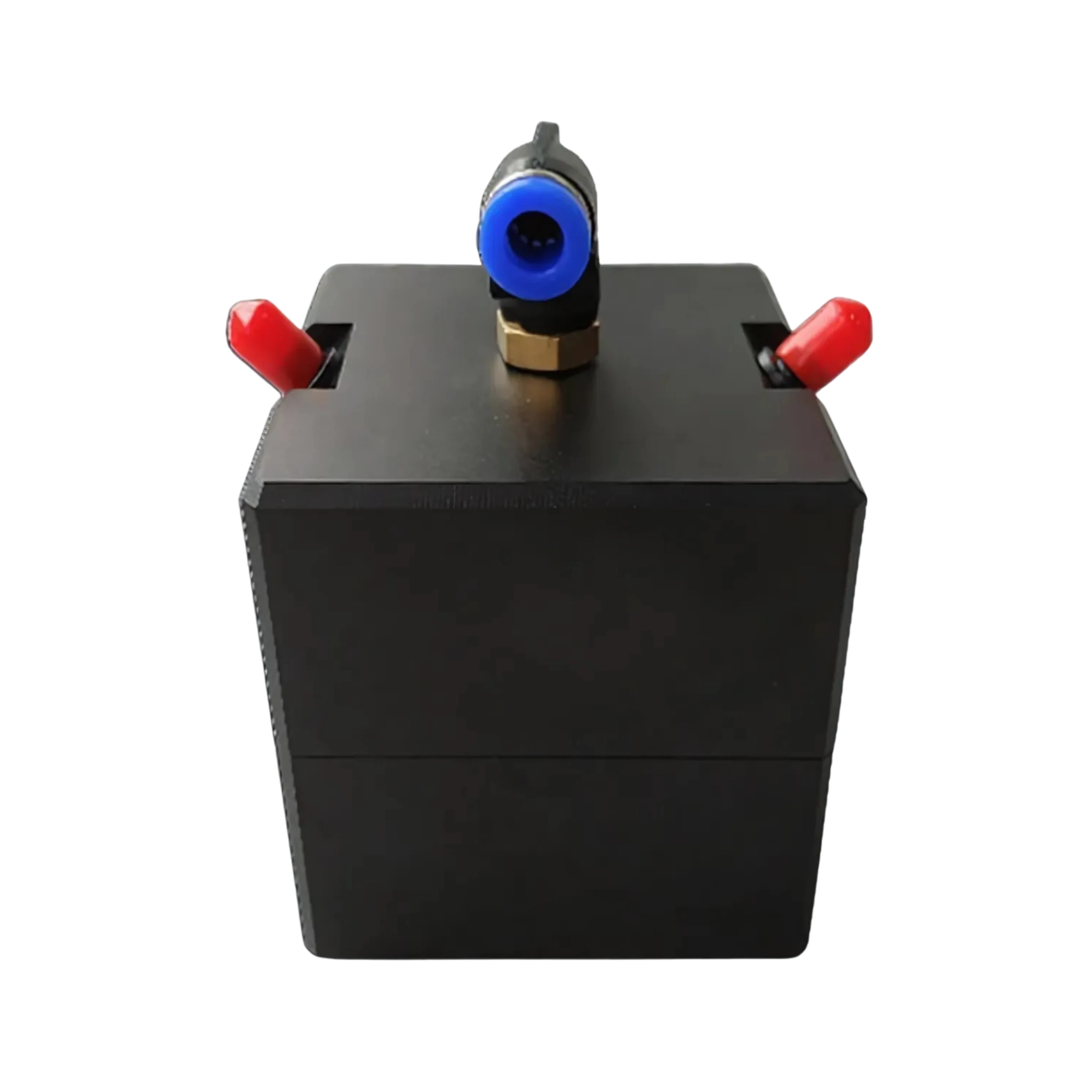

Water Quality Testing Integrating Sphere LIGS-E10_backside

Request Quote

Spectral range	200 to 2500 nm
Measuring temperature	0 to 50℃
Incident light interface	SMA905
Outbound optical interface	SMA905
Water inlet interface	PL8-02
Water outlet interface	PL8-02
Integral sphere inner cavity diameter	Diameter 50 mm
Inner liner material	PTFE
Inner wall reflectivity	99%
Housing material	Blackening of alumina

Ultra-long optical path
Corrosion resistant
Enhanced optical stability
Flow-through measurement design

Our Water Quality Testing Integrating Sphere LIGS-E10 is widely used for the precise optical measurement of liquid samples, especially for evaluating the absorbance of natural water bodies like rivers, seas, and groundwater.

Download catalog for
Water Quality Testing Integrating Sphere LIGS-E10 Catalog

Available Range :

Integrating Sphere LIGS-A10 : 200 to 2500 nm Integrating Sphere LIGS-B10 : 200 to 2500 rpm

Water Quality Testing Integrating Sphere LIGS-E10 | Spectral range 200 to 2500 nm | Inner liner material PTFE

Water Quality Testing Integrating Sphere LIGS-E10 | Ultra-long optical path | Corrosion resistant | Enhanced optical stability | Flow-through measurement design

Models of Integrating Sphere

Labtron is a supplier of a wide range of Integrating Spheres with a broad wavelength for precision spectral measurements. Their inner surface is coated with BaSO₄ or PTFE to deliver high diffuse reflectivity and long-term durability. They feature three customizable openings allowing flexible experimental configurations. Their varying diameter supports high-precision measurements and provides stability across broader spectral regions. Our Integrating Spheres are widely used in optical measurement applications, such as light source uniformity, laser power analysis, and spectral efficiency assessments
