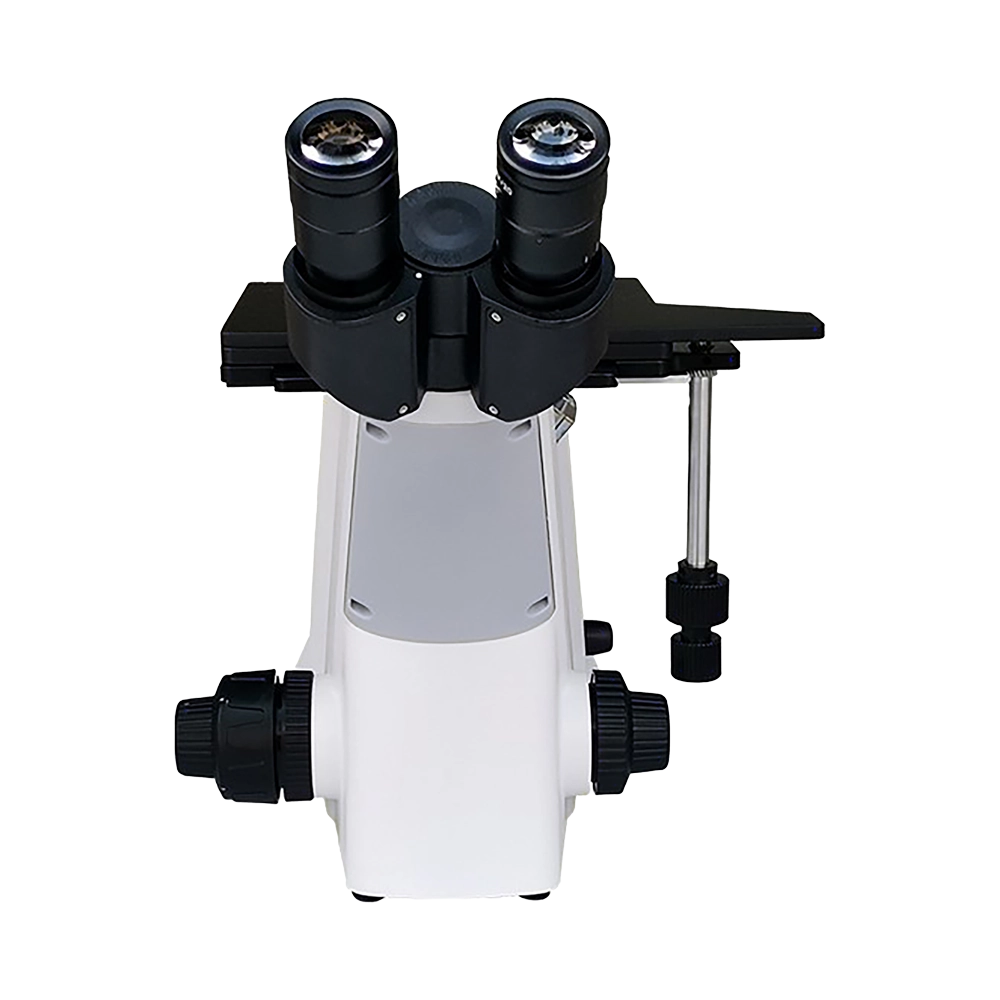

Inverted Metallurgical Microscope LIMM-A10 has an infinite optical system and a three-eyepiece head with 45° tilt and 360° rotation. The sturdy metal body is anti-corrosive and wear-resistant, ensuring longevity and stability. It features a built-in magnification sensor for real-time magnification display. Our inverted metallurgical microscope offers bright field, dark field, polarization, and interference modes.
| Optical System | Infinite chromatic aberration correction optical system |
| Viewing Head | Trinocular Viewing Head with 45° Inclination, Hinged Assembly Rotatable |
| Eye Piece | High eye point, large field of view, flat field eyepiece PL10X/22mm, adjustable visual acuity. |
| Objective Lenses | Multiple options including 5X, 10X, 20X, and 50X magnifications. |
| Nosepiece | Internal positioning 5-hole converter (with DIC slot) |
| Focus System | Reflective bright and dark field gold camera holder, coarse adjustment stroke 9mm, focal plane up6.5mm, downward 2.5mm, fine adjustment accuracy 0.002mm, with elastic adjustment hand-wheel to prevent slipping |
| Stage | Three-layer mechanical platform, 240 × 250 mm size, 50 × 50 mm movement range. |
| Polarized Attachment | Polarizing mirrors insert board, fixed analyzer insert board, 360 ° rotating analyzer insert |
| Filter | LBD color filter (diameter 32mm) |
| Power Input | 100 to 240V |
| Power Output | 15V13.4A,12V100W |
| Microscope Cover Dimensions (L × W × H) | 749.6 × 361 × 406.1mm |
| Packing Dimensions | 950 × 560 × 750mm |
| Net Weight | 23 Kg |
ECO infrared sensing system
Low-hand operation
Adjustable brightness
Built-in storage space
Three-layer mechanical platform
Our Inverted Metallurgical Microscope LIMM-A10 is widely used in metallurgical research, material analysis, and industrial inspections. It is ideal for analyzing castings, smelting processes, heat treatment, raw materials, and more, ensuring precision and reliability for advanced research tasks.
Observing Tube × 1 piece
Ocular × 1 piece
Objective × 4 pieces
Converter × 1 pieces
Rack × 1 piece
Stage × 1 piece
Lighting System × 1 piece
Polarized Attachment × 1 piece
Filter × 1 piece
Ocular (High eye point, large field of view, flat field eyepiece) × 1 piece
Achromatic Objective × 1 piece
DIC Differential Interference Component × 1 piece
Metallographic Analysis Software and Micrometer × 1 piece
Sony Chip Camera Devices (12 MP and 20 MP) × 2 pieces
Adapter Lens Interface (0.5X, 1X) × 2 pieces
Image Measurement Software × 1 piece
Metallographic Analysis Software × 1 piece
Weld Penetration Software × 1 piece
Porosity Software × 1 piece
Granular Software × 1 piece
Download catalog for
Inverted Metallurgical Microscope LIMM-A10 Catalog
Download manual for
Inverted Metallurgical Microscope LIMM-A10 Manual
Labtron Inverted Metallurgical Microscope provide examination of material microstructures from below orientation, enabling unobstructed analysis of larger samples. They are equipped with transmitted and polarized light, that examine surface characteristics, and grain boundaries. Their digital cameras and image analysis software, facilitates documentation and further analysis of findings. They feature high-resolution objectives and elevated-contrast imaging techniques, to enhance visibility of fine details. Our Inverted Metallurgical Microscope is suitable for metallography, corrosion, thin film analysis and Coating Inspection.
