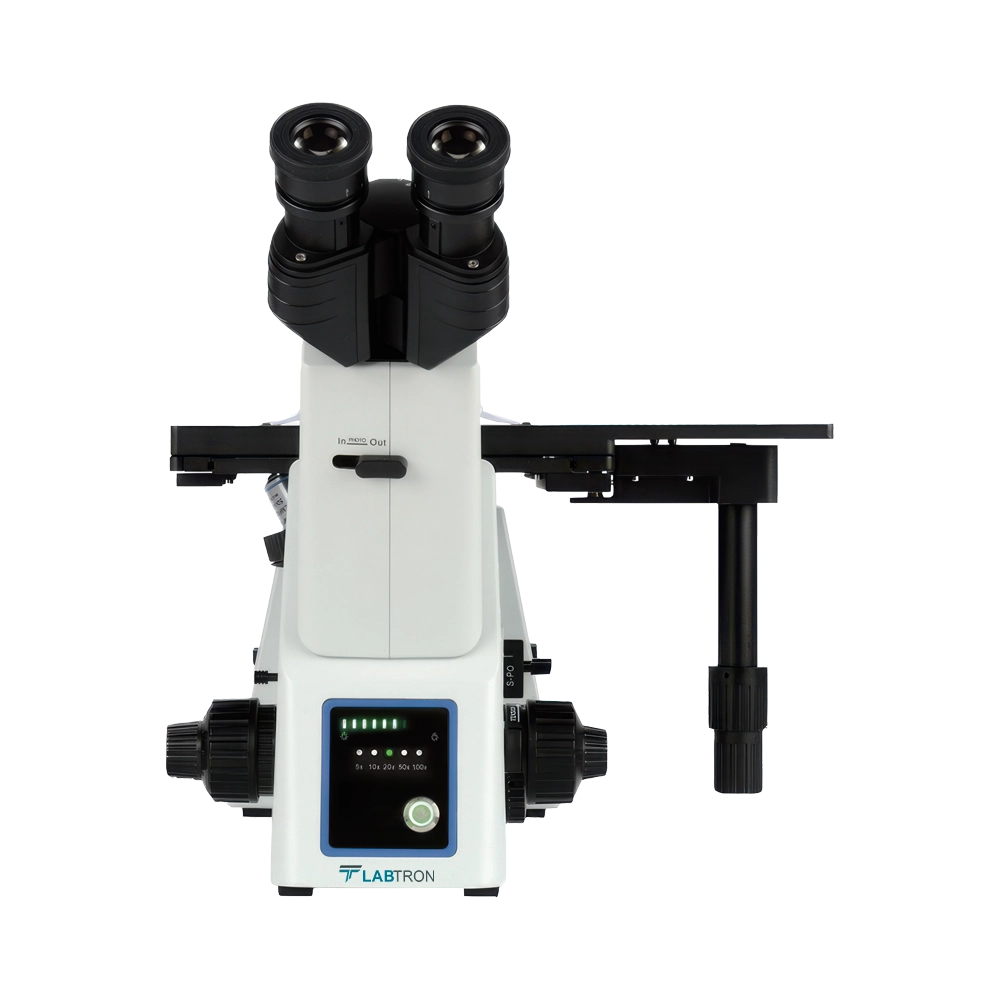

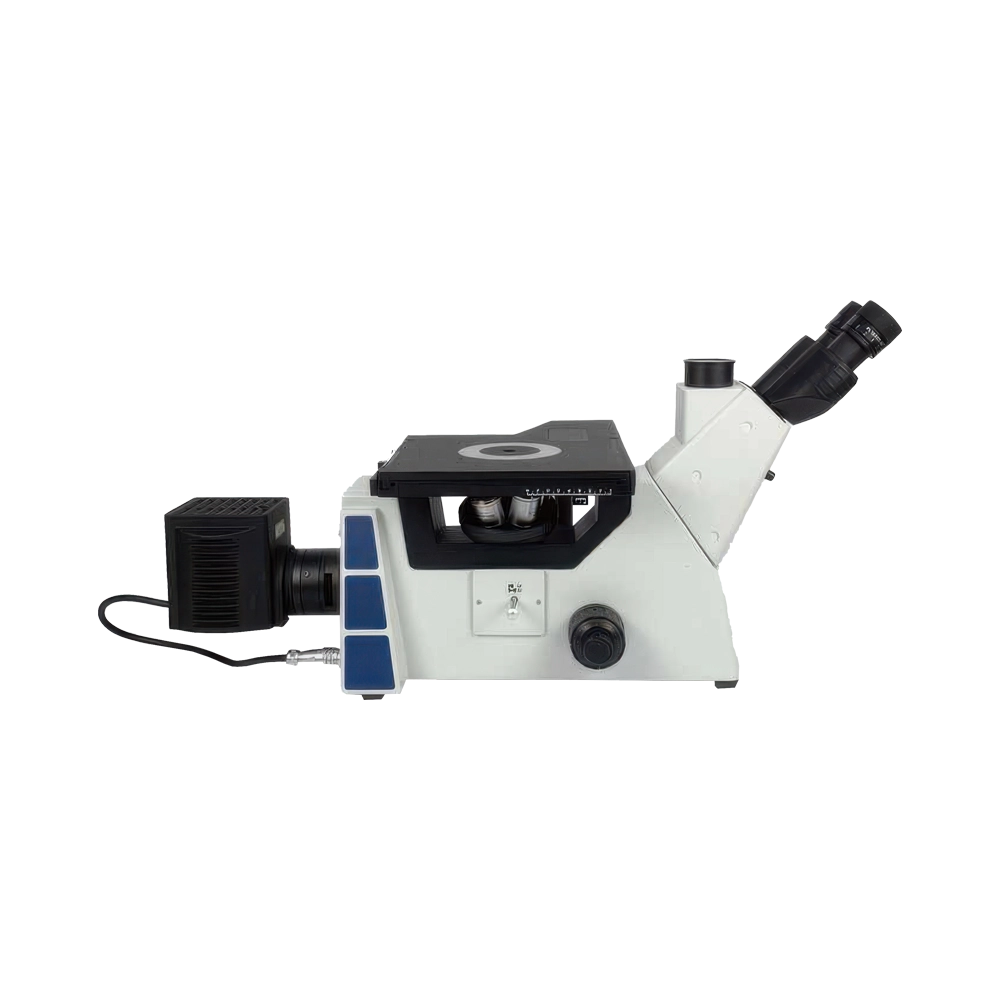

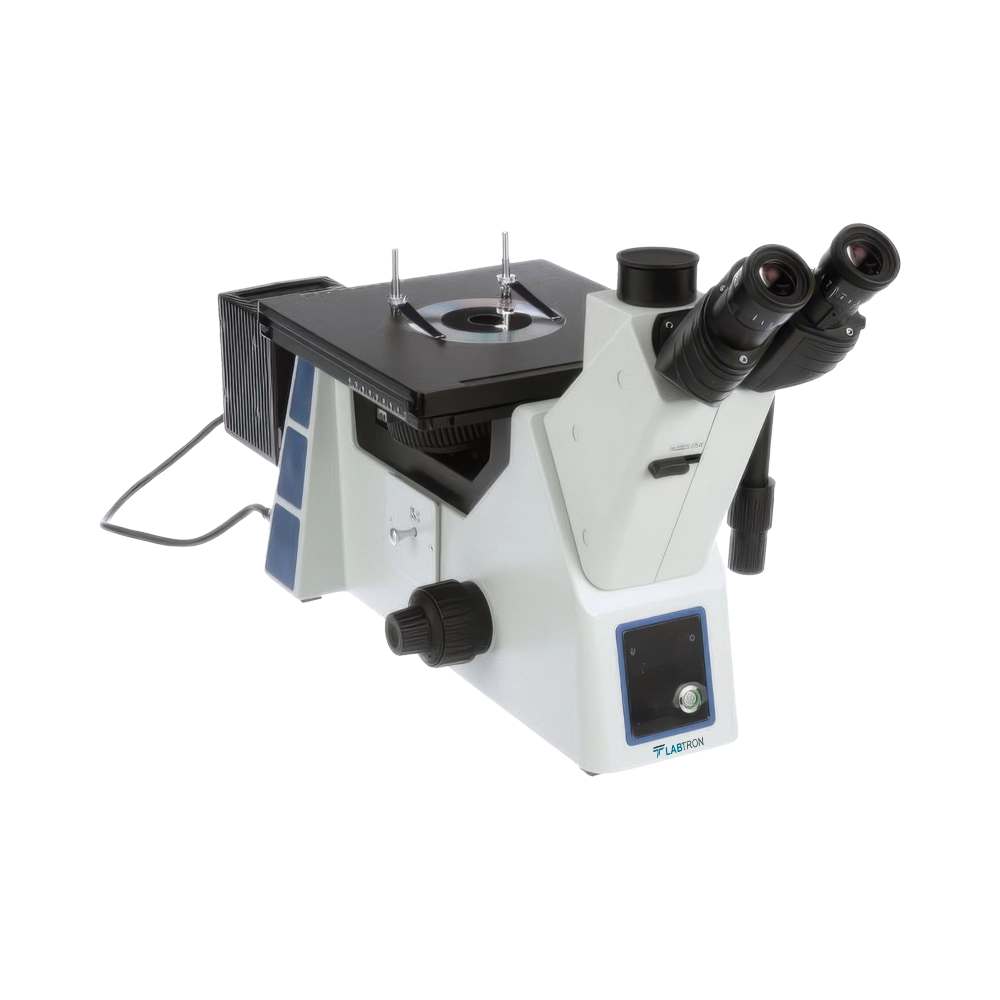

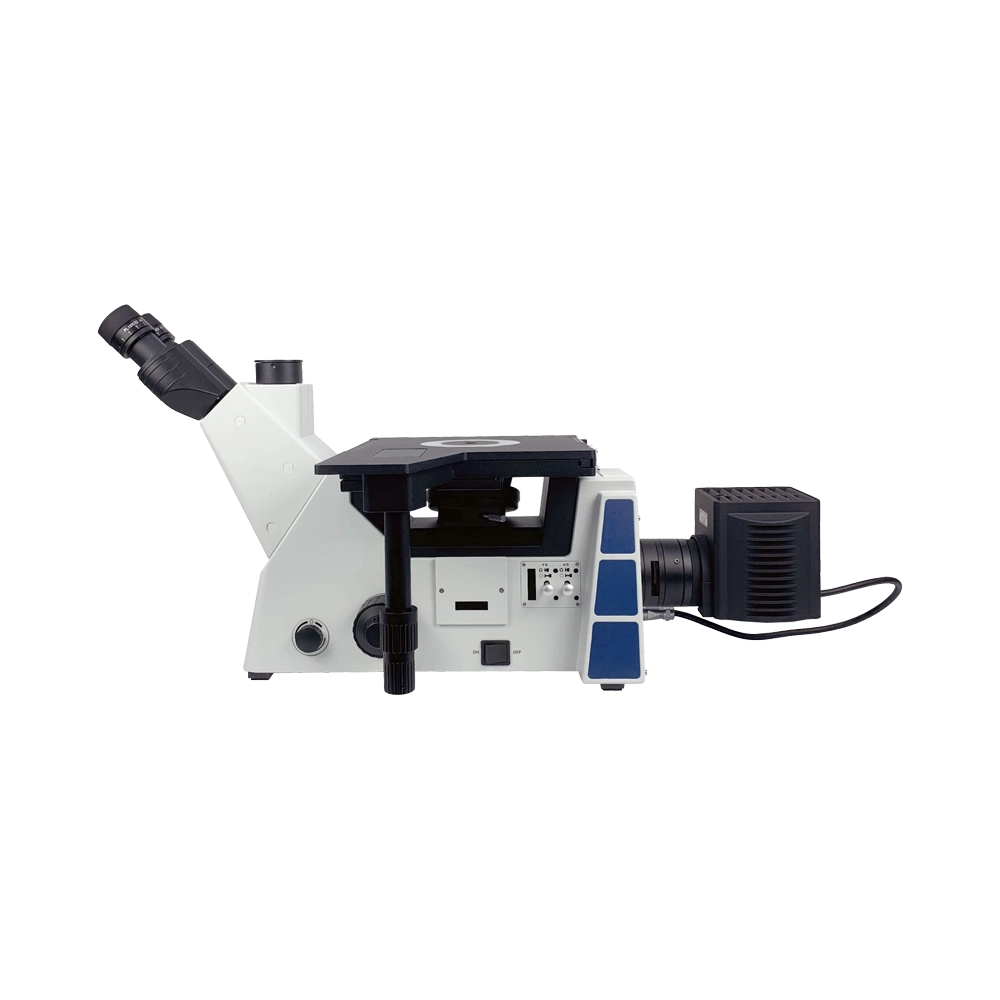

Inverted Metallurgical Microscope LIMM-C10 provides 5x to 50x magnification with long working distance objectives. It includes wide field plan eyepieces (PL10x/22mm) with adjustable diopter. The trinocular viewing head is 360° rotatable, and the stage offers a 50mm × 50mm moving range. The microscope also features a backward nosepiece with a built-in magnification sensor and coaxial focusing. It is perfect for material analysis, quality control, and metallurgical inspections in laboratory environments.
| Optical System | Infinite Color Corrected Optical System |
| Viewing Head | 45° gemel trinocular tube, 360° rotatable |
| Eyepiece | PL10X/22mm, adjustable diopter |
| Objective Lenses | 5X/NA=0.15, 10X/NA=0.3, 20X/NA=0.45, 50X/NA=0.55 |
| Nosepiece | Inward quintuple, with DIC slot |
| Focusing System | Coaxial focusing, 9mm coarse, 0.002mm fine |
| Stage | 240mm × 250mm, 50mm × 50mm moving range |
| Polarizer & Analyzer | 360° rotatable analyzer, with polarizer |
| Filters | LBD color filter |
| Illumination | Halogen light box, 12V/100W |
| Power Adapter | 100V-240V input, 15V/13.4A output |
| C-Mount Adapter | Focus adjustable |
| Power Supply | 100V-240V |
| Dimensions | 660 × 590 × 325 mm |
| Net Weight | 17kg |
Front magnification display for clarity
Intelligent ECO energy-saving system
Wide field eyepiece with high eye-point
Infinite long working distance objective
Inward quintuple bright field nosepiece.
Low-position coaxial focusing mechanis
Halogen light box illumination
Our Inverted Metallurgical Microscope LIMM-C10 is ideal for material science labs, metallurgical investigations, and industrial applications, perfect for examining metal structures and microstructures.
Labtron Inverted Metallurgical Microscope provide examination of material microstructures from below orientation, enabling unobstructed analysis of larger samples. They are equipped with transmitted and polarized light, that examine surface characteristics, and grain boundaries. Their digital cameras and image analysis software, facilitates documentation and further analysis of findings. They feature high-resolution objectives and elevated-contrast imaging techniques, to enhance visibility of fine details. Our Inverted Metallurgical Microscope is suitable for metallography, corrosion, thin film analysis and Coating Inspection.
