| Maximum Sample Feed | 3000 ml/hr |
| Minimum Sample Volume | 50 ml |
| Body Material | SUS-304 Stainless steel |
| Maximum Inlet Temperature | RT to 300°C |
| Compressed Air | 108 L/min |
| Rated Airflow | 100m³/h |
| Nozzle Type | Two fluid nozzles |
| Nozzle Jet | 1.5mm standard/ (0.5/0.8/1.0/2.0mm available) |
| Possible Particle Size Range | 1 to 80 µm |
| Mean Residence Time | 1.0 to 1.5 sec |
| Heater Power | 5000W |
| Power Consumption | 5500W |
| Power Supply | 220V; single-phase 50/60 Hz |
| Dimensions (L×W×H) | 1050 × 1000 × 1770 mm |
| Packaging Dimension | 1160 × 1120 × 2000mm |
| Net Weight | 195kg |
| Gross Weight | 291kg |
Lab Spray Dryers are used in various industries, including chemical, food, new energy, medicine, ceramics, and textile, which may require extremely consistent, fine particle size.
| Accessories | Quantity |
| Nozzle - 0.5 mm | 1 pc |
| Nozzle - 0.8 mm | 1 pc |
| Nozzle - 1.0 mm | 1 pc |
| Nozzle - 1.5 mm | 1 pc |
| Nozzle - 2.0 mm | 1 pc |
| Bag Filter | 1 pc |
| Inert Loop | 1 pc |
| Stainless Steel Construction for cyclone separator, collection bottle, collection tube and drying chamber |
Download catalog for
Lab Spray Dryer LLSD-A11 Catalog

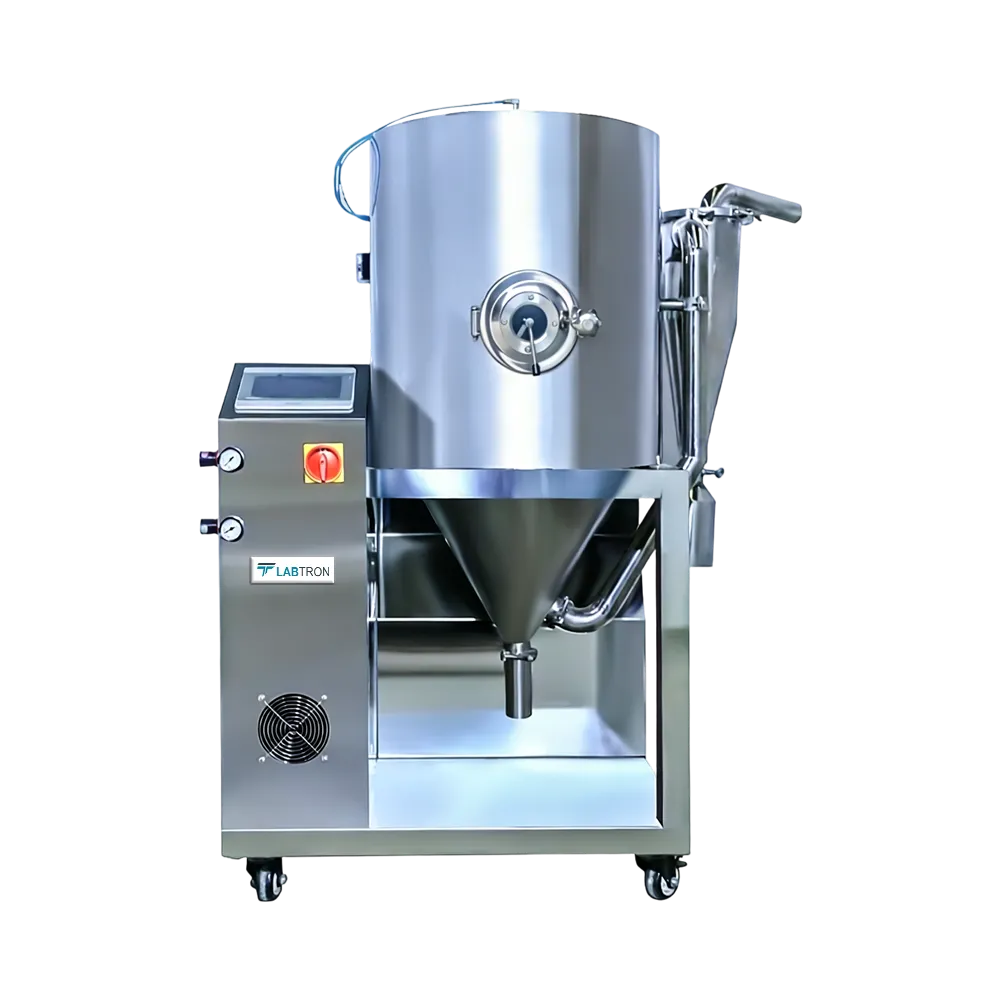

Labtron Lab Spray Dryer offers 30ml to 100ml capacity to convert liquid solution into dry powder. They utilize pump to deliver liquid feed consistently into spray drying chamber. Their atomizer generates fine droplets, ensuring uniform particle size and efficient desiccating processes occur. Their inlet air heater maintains optimal temperature for efficient evaporation of moisture. Our Lab Spray Dryer is essential for pharmaceuticals, food science, nutraceuticals, biotechnology, cosmetics and material science.
