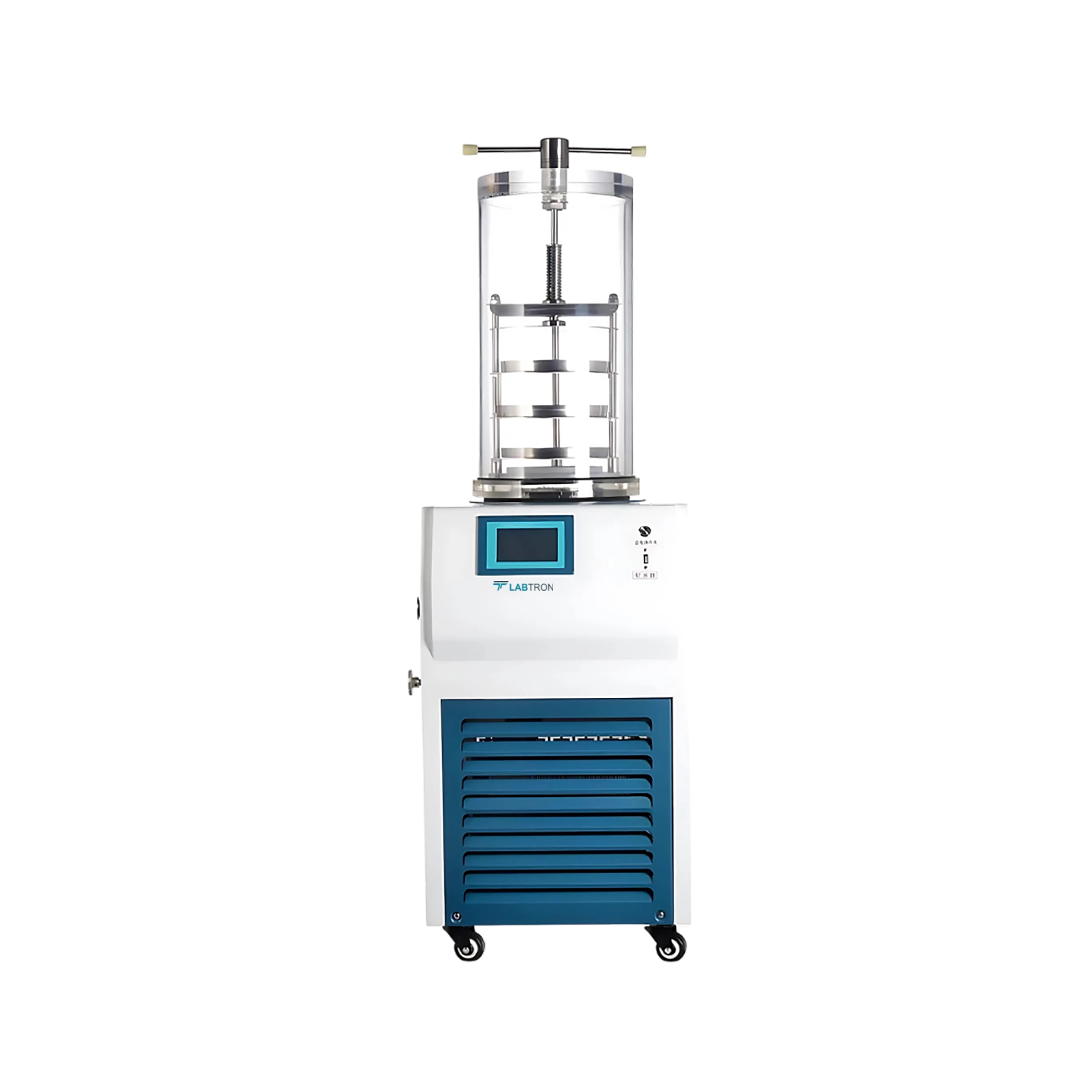

Standard Freeze Dryer LFFD-A12 is a compressed unit with 3 kg condenser capacity and condenser temperature of ≤ -56°C for sampling’s holding diluents. Equipped with 4 to 6 shelves allowing any shape or size of sample to be freeze dried and LCD touchable screen and fabricated in oil mist filtration system and vacuum pump oil return device. Excellent cooling and defrosting mode. It is used in laboratory and small amount production.
Cold Trap Temperature | ≤ -56°C |
Condenser Capacity | 6 kg/24 h |
Freeze Drying Area | 0.27 m2 |
Bulk Capacity | 2.7 L |
Display | LCD Touch screen |
Shelves | 4 to 6 pcs |
Shelves Dimension | Φ 240 mm |
Shelves spacing | 47 mm |
Final Vacuum | ≤ 5 pa |
Voltage | 220 V / 50 Hz |
Pumping Speed | 4 L/s |
Cooling Mode | Wind cooled |
Defrosting Mode | Air cooled |
Cold Trap depth | 400 mm |
Cold Trap diameter | Φ 270 mm |
Power | 1400 W |
Internal Dimension | 630 × 580 × 970 mm |
External Dimension | 820 × 580 × 950 mm |
Weight | 155 kg |
Standard Freeze Dryer has tremendous applications in different field such as medicine, pharmacy, biology research, chemical industry and food production.
Accessories Number | Accessories Name |
1 | Cold trap temperature -80°C |
2 | Vacuum pump anti- returned oil device |
3 | Cold trap electrical heat defrosting |
4 | Oil mist filter system |
Model | Cold Trap Temperature | Condenser Capacity | Freeze Drying Area | Bulk Capacity | Display | Shelves | Shelves Dimension | Shelves spacing | Final Vacuum | Voltage | Pumping Speed | Cooling Mode | Defrosting Mode | Cold Trap depth | Cold Trap diameter | Power | Internal Dimension | External Dimension | Weight |
LFFD-D10 | - | - | - | - | LCD touch screen | 4 shelves | - | - | < 10 Pa | 220 V / 50 Hz | - | - | - | - | - | - | - | - | 110 kg |
LFFD-D11 | - | - | - | - | LCD touch screen | 6 shelves | - | - | < 10 Pa | 220 V / 50 Hz | - | - | - | - | - | - | - | - | 185 kg |
LFFD-E10 | - | - | - | - | LCD touch screen | 4 shelves | - | - | < 10 Pa | 220 V / 50 Hz | - | - | - | - | - | - | - | - | 115 kg |
LFFD-E11 | - | - | - | - | LCD touch screen | 4 shelves | - | - | < 10 Pa | 220 V / 50 Hz | - | - | - | - | - | - | - | - | 190 kg |
LFFD-C10 | - | - | - | - | LCD touch screen | 4 shelves | - | - | < 10 Pa | 220 V / 50 Hz | - | - | - | - | - | - | - | - | 125 kg |
LFFD-C11 | - | - | - | - | LCD touch screen | 4 shelves | - | - | < 10 Pa | 220 V / 50 Hz | - | - | - | - | - | - | - | - | 160 kg |
LFFD-A10 | - | - | - | - | LCD touch screen | 4 - 6 shelves | - | - | < 10 Pa | 220 V / 50 Hz | - | - | - | - | - | - | - | - | 105 kg |
LFFD-A11 | - | - | - | - | LCD touch screen | 4 - 6 shelves | - | - | < 10 Pa | 220 V / 50 Hz | - | - | - | - | - | - | - | - | 190 kg |
LFFD-A12 | ≤ -56°C | 6 kg/24 h | 0.27 m2 | 2.7 L | LCD Touch screen | 4 to 6 pcs | Φ 240 mm | 47 mm | ≤ 5 pa | 220 V / 50 Hz | 4 L/s | Wind cooled | Air cooled | 400 mm | Φ 270 mm | 1400 W | 630 × 580 × 970 mm | 820 × 580 × 950 mm | 155 kg |
LFFD-B10 | - | - | - | - | LCD touch screen | - | - | - | < 5 Pa | 220 V / 50 Hz | - | - | - | - | - | - | - | - | 100 kg |
LFFD-B11 | - | - | - | - | LCD touch screen | - | - | - | < 10 Pa | 220 V / 50 Hz | - | - | - | - | - | - | - | - | 155 kg |
