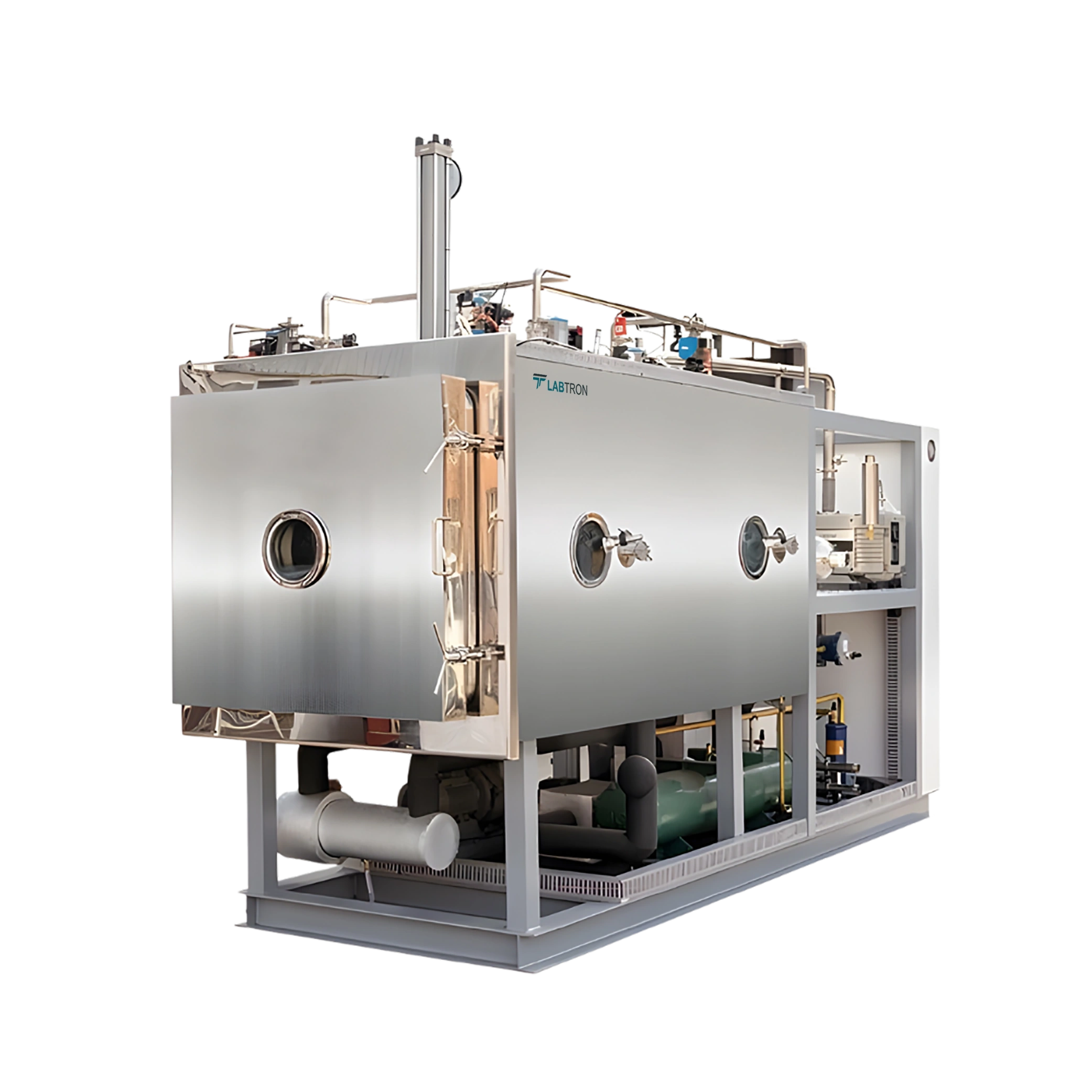

Large Scale Freeze Dryer LLFD-A12

Name: Large Scale Freeze Dryer LLFD-A12
Brand: Labtron
SKU: LLFD-A12
Rating: 4.9 (790 reviews)

Large Scale Freeze Dryer LLFD-A12 is designed to handle lyophilization requirements for large scale production. Equipped with 200 kg condenser capacity and a temperature of -70 °C it increases the shelf life of the product without destroying the original structure. The temperature controllable shelves are designed for complete moisture removal and storage facilities of various biological materials. Precise vacuum control enables faster freeze drying and reproducible results.

Request Quote

Condenser temperature	- 70 °C
Condenser capacity	200Kg
Freeze drying area	10.5m2
Bulk capacity	＞200Kg
Vial capacity Φ 12 mm	≥58980 Vials
Vial capacity Φ 16 mm	≥45360 Vials
Vial capacity Φ 22 mm	≥23751 Vials
Shelves	7+1
Shelves dimension	325mm500mm25mm
Shelf temperature	-50 °C to 70 °C
Final Vacuum	≤ 5.0 Pa
Voltage	3 phases, 380V/50Hz
Power	18 W
Dimensions	5500×1670×3470mm
Weight	7500Kg

Ice condenser capacity is 200 kg / 24 h
Condenser temperature ( - 70 °C )
Freeze and drying process both made on the shelf
Built in nitrogen inflation valve
Vacuum pump oil return
Oil mist filtration system
Easy to clean and anti-corrosion cold trap
Display of sample temperature , vacuum curve degree , cold trap temperature curve
High vial capacities for more number of samples
External USB port to view data in excel
Alarm indication for high condenser and shelf temperature
Beep indication for completion of process

Labtron Large Scale Freeze Dryer LLFD-A12 is designed for high-capacity lyophilization of pharmaceutical, biological, and food products, ensuring efficient moisture removal and product stability.
