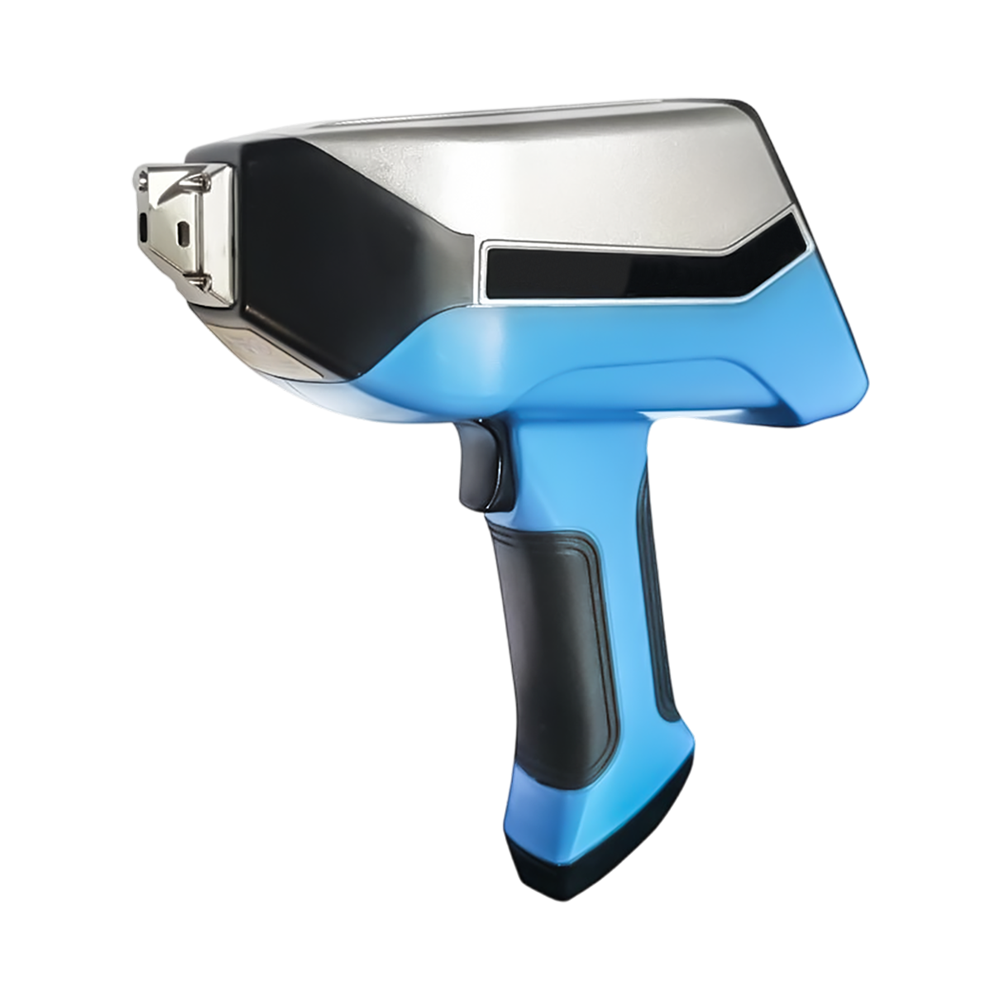

Handheld LIBS Spectrometer LHLS-A10

Name: Handheld LIBS Spectrometer LHLS-A10
Brand: Labtron
SKU: LHLS-A10
Rating: 5 (987 reviews)

Handheld LIBS Spectrometer LHLS-A10 delivers stable operation within an operating temperature range of 0 to 40 °C. It features a spectral resolution of <0.2 nm across a wavelength range of 250 to 415 nm. It provides analysis of 1 to 8 series aluminum alloys, 2 to 4 series stainless steel, alloy steel, brass, titanium alloys, and zinc alloys. Our Handheld LIBS Spectrometer features a 4.0-inch resistive touch screen with a 320 × 480 resolution for clear and convenient operation.

Request Quote

Operating Temperature	0 to 40 °C
Spectral Resolution	<0.2 nm
Wavelength	250 to 415 nm
Elements	Al Be Bi Cu Cr Fe Mg Mn Ni Si Ti Zn
Grades	1 to 8 series aluminum alloy,2 to 4 series stainless steel, alloy steel, brass, titanium alloy, zinc alloy
LOD	0.01 to 0.1%
Sample type	Blocky, Sheet (0.1mm), Arc-shaped
Single test time	Single test time
Laser safety	Class 3B,1064 nm
Waterproof level	Tested by IP54 dustproof and waterproof
Connection	WIFI, Bluetooth 4.0
Battery capacity	14.8 V,3250 mAH (48W), 6 hours
Display	4.0 inch, 320 × 480 resolution
Memory	8GB
Dimension	227 × 86 × 234 mm,
Net Weight	1.25 kg (Including battery）
Gross Weight	2 kg

Simple To Use
Compact & Lightweight
Cloud & Bluetooth Connectivity
Fast Analysis
Ip54 Dust & Splash Protection
Rapid Alloy Grade Identification

Our LIBS Spectrometer is widely used in fabrication and positive material identification (PMI), recycling and metal sorting, and metal trading markets for rapid identification and verification of stainless steel, aluminum, copper, and other alloy compositions with accurate on-site elemental analysis.
