| Flow Range | 1 to 4,000 µL/min |
| Accuracy Of Flow Rate | ≤1% |
| Precision Of Flow Rate | ≤ 0.075% RSD |
| Maximum Pressure | ≥ 18,850 psi |
| Working Temperature | 18℃ to 25℃ |
| Humidity Range | 20 to 60 % RH |
| Flowing Phase Selection | Two solutions (A and B, or C and D) can be selected using solvent selection valve |
| Injection Mode | Full loop injection, partial loop injection, microliter pickup |
| Injection Repeatability | Full loop <0.3% RSD; partial loop <0.3% RSD; microliter pickup <1.0% RSD |
| Cross Contamination | <0.05% |
| Maximum Sample Capacity | 384 bits (96 bits for standard liquid injection) |
| Column Oven Temperature Range | RT +5 ℃ to 90 ℃ |
| Temperature Control Mode | Preheating of flowing phase + forced air circulation |
| Column Capacity | Six 250mm long chromatographic columns |
| Ion Source Gas Supply | 1 loop of nitrogen for atomizing and 2 loops for desolvation (0 to 2 L/min atomizing, 0-15 L/min desolvation) |
| Maximum Spray Voltage | 6 kV |
| Blowback Gas Design | Nitrogen (0-5 L/min) for solvent removal and reducing neutral molecules |
| Heating of Vacuum Interface | Can be heated to 110 ℃ |
| Ion Transmission System | 4-stage differential vacuum design with quadrupole transmission |
| Mass Analyzer | Triple quadrupole mass analyzer |
| Quadrupole Material | High-precision pure Mo material for mass axis stability |
| Collision Cell | Axial acceleration design with nitrogen collision gas (purity ≥99.999%) |
| Resolution | 0.4 to 2 amu |
| Mass Stability | Better than 0.1 amu per 24 hours |
| Scanning Speed | ≥ 20,000 amu per sec |
| Number Of MRM Channels | 100 channels per sec |
| Mass Range | 5 to 1,000 amu |
| Dynamic Range | 6 orders of magnitude |
| Sensitivity (ESI+) | 1pg reserpine, S/N ≥ 100,000:1 |
| Sensitivity (ESI-) | 1pg chloramphenicol, S/N ≥ 100,000:1 |
| Scanning Functions | Full scan, SIM, product ion scan, precursor ion scan, neutral loss scan, MRM, positive/negative ion switching scan |
| Detector Multiplier Technology | Long service life, ensuring long-term data stability |
| Pulse-Counting Detector | Ensures data reproducibility at low limit of detection |
| Polarity Switching Time | ≤ 50ms |
| Vacuum System | Mechanical pump and turbo molecular pump with differential pumping system |
| Operating System | Windows XP or above |
| Software Features | Controls LC-MS, automatic quantification, mass spectrometry data analysis, and spectral database retrieval |
| Computer System | Brand computer, 4GB memory, 1TB hard disk |
| AC Stabilized Power Supply | 15KVA, input voltage of 140V to 300V, output 220 V ± 1% |
| Laser Printer | 6018L, black and white laser printer |
| Nitrogen Generator flow | 24 L/min |
| Mechanical Pumping Speed | 65 m³/h |
| Mechanical Pump Power Supply | 220V |
| Power Consumption | 800W |
| Power Supply | Five sets of single-phase (220 ± 20) V AC, 10A, 50 Hz |
| Dimension (L×H×W) | 1000mm×700mm ×600mm |
| Weight | 120kg |

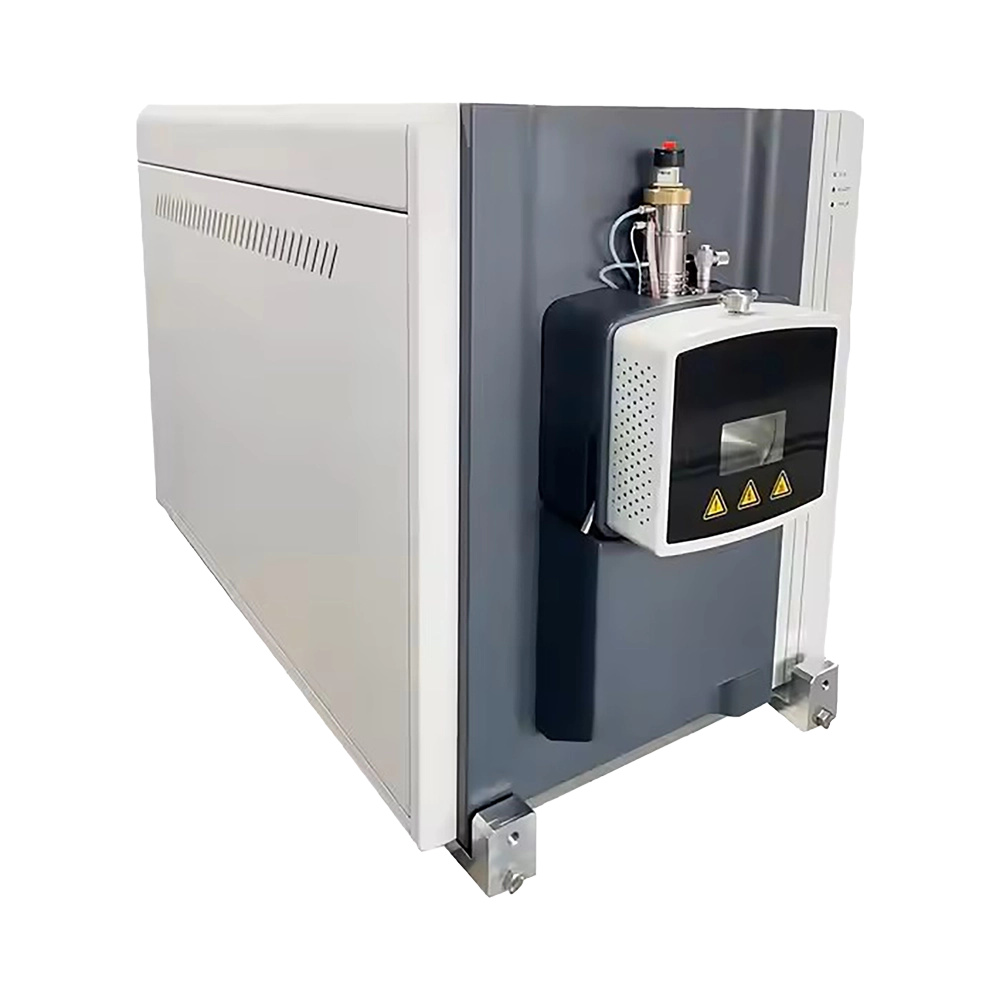

Our Liquid Chromatography Mass Spectrometry LCMS-A10 provides unparalleled molecular analysis in proteomics, pharmaceuticals, and environmental science. It enables high-precision separation, identification, and quantification of complex compounds, enhancing analytical efficiency.
| MS Accessory Kit (Overseas Version) | 1 set |
| LC Accessory Kit (Overseas Version) | 1 set |
| Vacuum Mechanical Pump | 1 set |
| Flow Injection Pump | 1 set |
| Liquid Phase Ultra-High Pressure Infusion Pump (Spark) | 1 set |
| Liquid Waste Module | 1 set |
| Solvent Tray | 1 set |
| Post-column Switching Valve | 1 Set |
| Nitrogen Generator | 1 Set |
| Nitrogen Generator Maintenance Kit | 1 Set |
| AC Parameter Voltage Stabilizer | 1 Set |
| APCI Ion/ESI Two-in-One Source Upgrade Package | 1 Set |
| Desktop High-Speed Refrigerated Centrifuge | 1 Set |
| Athena UHPLC LC Column | 1 Set |
| HPLC Column (2.1×150mm×5μm) | 1 Set |
| UHPLC Column (2.1mm×100mm×1.7μm) | 1 Set |
| CNW Shell Core-Shell Chromatographic Column (2.1×100mm×2.6μm) | 1 Set |
| Mechanical Pump Silent Cover | 1 Set |
| Waters ACQUITY UPLC HSS T3 Column (1.8μm, 2.1×100mm) | 1 Set |
| European Standard Adapter | 1 Set |
| European Standard Three-Core Power Cord (2m) | 1 Stick |
| LCMS Per fluorinated Upgrade Kit | 1 Set |
Labtron liquid chromatography mass spectrometry (LCMS) offer increased detection and quantification limits with improved repeatability, accuracy, and selectivity. They have powerful ion sources, cutting-edge ion transmission systems, and extensive technique libraries. They are designed to operate reliably thanks to safety interlocks, sophisticated batch processing, and automated tuning. These devices provide dual ion sources for flexible compound analysis. Our LCMS systems provide an intuitive workstation and pulse detection for efficient operation and best outcomes.
