| Max Speed | 5300 rpm |
| Speed Accuracy | ± 20 rpm |
| Max. RCF | 5010 × g |
| Rotor Type | Angle rotor, Swing rotor |
| Max. Capacity | 250 mL × 4 |
| Noise | Up to 65 dB (A) |
| Time Setting Range | 1 sec to 99 min 59 sec or 1 min to 99 h 59 min |
| Time Setting Mode | Start timing after reaching the desired speed Start timing when spinning Short spinning timing |
| Short Spinning Function | Yes |
| Acceleration Profile | 11 |
| Deceleration Profile | 12 |
| Program Memory | 5-step centrifugation |
| Power Consumption | 400W |
| Power Supply | 220 V 50 Hz, 110 V 60 Hz |
| Centrifuge Dimension | 436 × 560 × 380 mm |
| Centrifuge Packing Dimension | 800 × 800 × 560 mm |
| Accessories Packing Dimension | 750 × 530 × 440 mm |
| Net Weight | 42 kg |
| Gross Weight | 97 kg |
Automatic rotor recognition for safety
Automatic door interlock
Aerodynamic bucket reduces noise and energy use
Built-in safety protections and data logging
Supports multi-step centrifugation
Our Low Speed Centrifuge LLS-D14 is used in is ideal for chemistry, cytology, research laboratories, and industrial laboratories. This is suitable for tubes with caps, blood collection or urine tubes.
T-shape Spanner × 1 piece
Name | Max. Speed | Max. RCF | Capacity |
Bracket 01 | 5300 | 5010 | 4 × 100 mL |
Bracket 02 | 4000 | 2684 | 2 × 2 × 250 mL |
Oval Bucket | 4200 | 3450 | 4 × 250 mL |
Rectangular Bucket | 4200 | 3412 | 4 × 250 mL |
Name | Max. Speed | Max. RCF | Capacity |
Angle Rotor 01 | 5300 | 4113 | 30 × 15 mL |
Angle Rotor 02 | 4200 | 2860 | 40 × 15 mL |
Swing Rotor 01 | 5300 | 5010 | 4 × 100 mL |
Swing Rotor 02 | 4000 | 2684 | 2 × 2 × 250 mL |
Swing Rotor 03 | 4200 | 3450 | 4 × 250 mL |
Swing Rotor 04 | 4200 | 3412 | 4 × 250 mL |
Note: All the rotors are sold separately.
Name | Max. Speed | Max. RCF | Capacity |
| Adapter 01 | 5300 | 5010 | 4 × 50 mL (conical） |
| Adapter 02 | 4000 | 2684 | 2 × 8 × 50 mL (conical) |
| Adapter 03 | 4000 | 2684 | 2 × 18 × 15 mL (conical) |
| Adapter 04 | 4200 | 3450 | 4 × 9 × 15 mL (conical) |
| Adapter 05 | 4200 | 3450 | 4 × 4 × 50 mL (conical) |
| Adapter 06 | 4200 | 3412 | 4 × 9 × 15 mL (conical) |
| Adapter 07 | 4200 | 3412 | 4 × 4 × 50 mL (conical) |
| Adapter 08 | 4000 | 2684 | 2 × 2 × 250 mL |
| Adapter 09 | 4000 | 2684 | 2 × 28 × 10 mL |
| Adapter 10 | 4000 | 2684 | 2 × 40 × 5 mL |
| Adapter 11 | 4000 | 2684 | 2 × 2 × 96 well microplate |
| Adapter 12 | 4200 | 3450 | 4 × 26 × 1.5 mL |
| Adapter 13 | 4200 | 3450 | 4 × 10 × 5 mL |
| Adapter 14 | 4200 | 3450 | 4 × 14 × 5/7 mL |
| Adapter 15 | 4200 | 3450 | 4 × 14 × 10 mL |
| Adapter 16 | 4200 | 3450 | 4 × 9 × 15 mL |
| Adapter 17 | 4200 | 3450 | 4 × 6 × 20 mL |
| Adapter 18 | 4200 | 3450 | 4 × 4 × 50 mL |
| Adapter 19 | 4200 | 3450 | 4 × 2 × 100 mL |
| Adapter 20 | 4200 | 3450 | 4 × 1 × 250 mL |
| Adapter 21 | 4200 | 3412 | 4 × 16 × 1.5 mL |
| Adapter 22 | 4200 | 3412 | 4 × 17 × 5/7 mL |
| Adapter 23 | 4200 | 3412 | 4 × 12 × 10 mL |
| Adapter 24 | 4200 | 3412 | 4 × 1 × 100 mL |
| Adapter 25 | 4200 | 3412 | 4 × 1 × 250 mL |
Note: All the adapters are sold separately.
Download catalog for
Low Speed Centrifuge LLS-D14 Catalog
Available Range :
Low Speed Centrifuge LLS-A59 : 0 to 6000 rpm (adjustable) Low Speed Centrifuge LLS-A32 : 4000 rpm Low Speed Centrifuge LLS-A62 : 4200 rpm Low Speed Centrifuge LLS-B14 : 500 to 4000 rpm Low Speed Centrifuge LLS-A58 : 5000 rpm Low Speed Centrifuge LLS-A26 : 5000rpm Low Speed Centrifuge LLS-D14 : 5300 rpm Low Speed Centrifuge LLS-A21 : 5500rpm Low Speed Centrifuge LLS-A61 : 6000 rpm Low Speed Centrifuge LLS-A25 : 6000rpm Low Speed Centrifuge LLS-A12 : 6500 rpm Low Speed Centrifuge LLS-A22 : 6500rpm
Labtron Low Speed Centrifuge provide separation of substances of different densities within liquid upto 6000rpm. They are equipped with fixed-angle or swing-out rotors, which determine positioning of specimens and their effective segregation. Their components include motor that drives spindles at controlled, less velocity rotation for efficient partitioning. They include cooling mechanism to maintain integrity during prolonged processes. Our Low Speed Centrifuge isolates proteins from cell lysates, assists sedimentation of bacterial cells and medicine formulation.

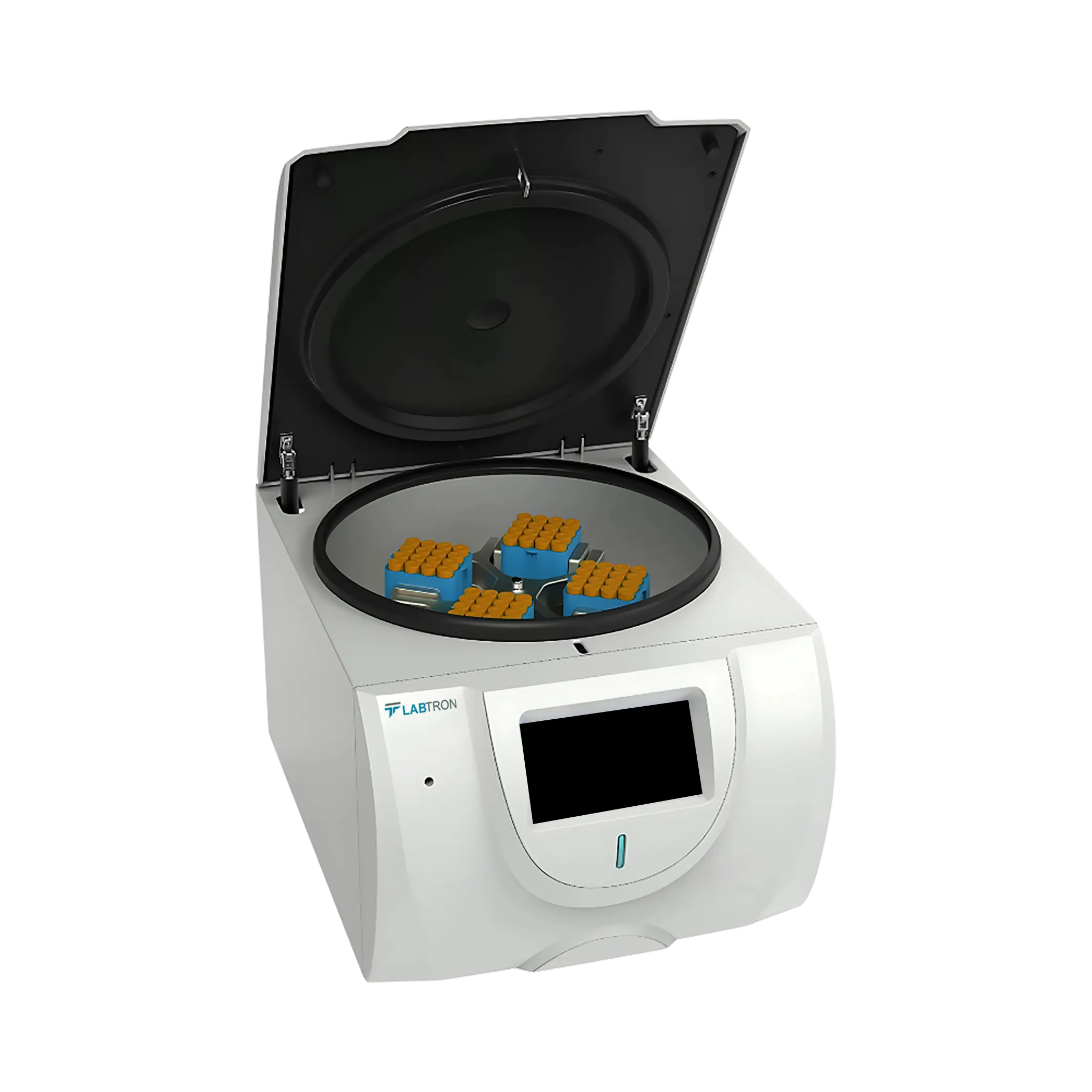

Labtron’s Low Speed Centrifuge LLS-D14 has a maximum speed of 5300 rpm and a maximum relative centrifugal force (RCF) of 5010 ×g. It can accommodate up to 4 × 250 mL tubes, making it highly suitable for separating larger volumes of biological fluids such as blood, urine, or cell suspensions. Its adaptability to various tube types with caps makes it ideal for clinical, chemical, cytology, and research laboratories.
Our Low Speed Centrifuge LLS-D14 features a 7-inch high-sensitivity touchscreen that allows direct input of parameters such as speed, time, RCF, and acceleration/deceleration profiles. This glove-compatible screen ensures a smooth user experience and helps reduce setup time, making the process faster and more accurate than traditional knob-based controls.
Low Speed Centrifuge LLS-D14 provides 11 acceleration and 12 deceleration profiles to protect sensitive samples from resuspension or disruption. The 10th profile is customizable based on specific experimental needs, offering flexibility to achieve optimal separation conditions for diverse applications. This customization ensures sample integrity and reproducibility.
This Low Speed Centrifuge LLS-D14 includes automatic rotor recognition, which prevents over-speed operation by adjusting the system to the rotor’s capacity. It also features a secure automatic door interlock, built-in safety protections for over-speed, overheating, and misoperation, and provides real-time data logging. These features ensure both operator safety and equipment reliability.
Low Speed Centrifuge LLS-D14 supports a wide range of rotors and adapters, including angle rotors and swing rotors with various tube capacities from 1.5 mL microtubes to 250 mL conical tubes, as well as 96-well microplates. With over 25 adapter options, it can be easily customized to suit diverse lab workflows, whether in research, diagnostics, or industrial testing.
