Upright Metallurgical Microscope LMM-B30

Name: Upright Metallurgical Microscope LMM-B30
Brand: Labtron
SKU: LMM-B30
Rating: 4.8 (720 reviews)

Upright Metallurgical Microscope LMM-B30 incorporates motorized auto-focusing with 0.1μm repeat positioning accuracy for sharp imaging. It provides a 50x to 1000x magnification range, ensuring detailed sample observation. The motorized X-Y stage enables precise control with 125mm travel on the X-axis and 75mm on the Y-axis. A joystick and touch screen controller simplify adjustments, enhancing user convenience. Designed for detailed metallurgical studies and industrial quality assessments.

Request Quote

Optical System	NIS45 Infinite Color Corrected Optical System (Tube length: 180mm)

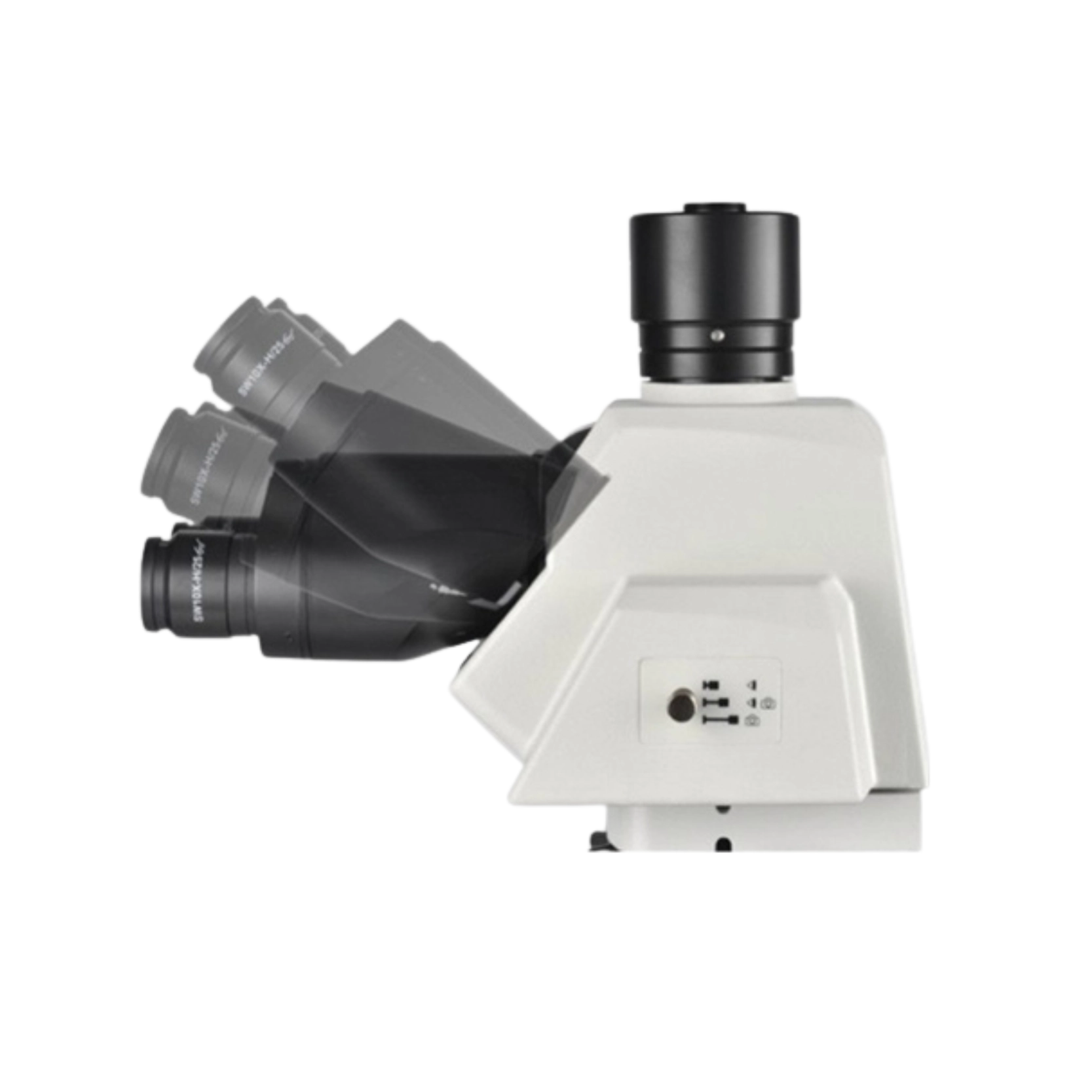

Viewing Head	Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100
Motorized Control	Nosepiece control panel with buttons Two most used objectives can be pre-set and switched Auto light intensity adjustment after objective change
Reflected Illumination	Reflected light 24W/100W halogen lamp, Koehler illumination, with 6-position turret; Built-in ND6, ND25 filter and color correction filter
Magnification Range	50x to 1000x
Eyepiece	Super wide field plan eyepiece SW10X/25mm, diopter adjustable
Objective	NIS45 Infinite LWD Plan Semi-APO Objective (BF & DF): 5X/NA=0.15, WD=20mm; 10X/NA=0.3, WD=11mm; 20X/NA=0.45, WD=3.0mm; 50X/NA=0.8, WD=1.0mm; 100X/NA=0.9, WD=1.0mm
Nosepiece	Backward Motorized Sextuple Nosepiece (with DIC slot)
Focusing	Low-hand Motorized auto focusing mechanism, independent operation of left and right-hand wheels, three-speed speed adjustment, focusing range 30mm, repeat positioning accuracy: 0.1μm, motorized escape and recovery mechanism
Max. Specimen Height	76mm
Stage Size	275 × 239 × 44.5mm
Stage Movement	X-axis: 125mm, Y-axis: 75mm, accuracy ±1.5μm, speed up to 20mm/s

Electric objective lens switching
Brightfield and darkfield observation
Low-hand auto-focusing mechanism
Differential interference contrast (DIC)
LED brightness adjustment
User-friendly Touch interface
Input control navigation system
Long working distance objectives

Our Upright Metallurgical Microscope LMM-B30 is designed for high-precision metallurgical structure analysis, semiconductor inspection, and material science research. It is widely used for detecting micro defects, surface irregularities, and optical characterization in industrial laboratories.

Dust Cover
Power Cord

Download catalog for
Upright Metallurgical Microscope LMM-B30 Catalog

Available Range :

Metallurgical Microscope LMM-A10 : Infinite optical system, tube length 180mm, parfocal 45mm Upright Metallurgical microscopes LMM-B11 : Infinity Optical System
(with Bright Field/ Dark Field, DIC, Polarizing units) Metallurgical Microscope LMM-C10 : Infinity Optical System F= 200 mm Upright Metallurgical Microscope LMM-B20 : NIS45 Infinite Color Corrected Optical System (Tube length: 180mm) Metallurgical Microscope LMM-C11 : UIS optical system

Upright Metallurgical Microscope LMM-B30 | Max. Specimen Height: 76 mm | Magnification Range: 50x to 1000x

Upright Metallurgical Microscope LMM-B30 | Electric objective lens switching | Brightfield and darkfield observation

Models of Metallurgical Microscope

Labtron Metallurgical Microscope is specialized to provide detailed analysis of microstructure of metals and other materials at high magnification. They are equipped with mechanical stage to securely hold and maneuver samples during analysis. Their eyepieces often include reticles for accurate measurement of features within unit. They utilize polarizing filters to analyze anisotropic components and observe optical phenomena in metals. Our Metallurgical Microscope is versatile for weld quality assessment, grain size measurement, and heat treatment evaluation.

Upright Metallurgical microscopes LMM-B12

Optical System : Infinity Optical System (with Bright Field/ Dark Field, DIC, Polarizing units)
Viewing Head : Seidentopf Trinocular Head Inclined at 30°, Interpupillary distance 48 to 75 mm
Reflected Illumination : 24 V, 100 W Halogen Light,Brightness Adjustable, Kohler Illumination With Aspherical CondenserPolarizer & Analyzer, Integrate Board For Polarizer & Analyzer Blue, Green, Yellow Filter, Ground Glass filters
Transmitted Illumination : Nil

Compare Remove

Upright Metallurgical Microscope LMM-B20

Optical System : NIS45 Infinite Color Corrected Optical System (Tube length: 180mm)
Viewing Head : Ergo Tilting Trinocular Head, adjustable 0-35° tilt, interpupillary distance 47mm-78mm
Reflected Illumination : Reflected light 24W/100W halogen lamp, Köhler illumination,6-position turret; Built-in ND6, ND25, and color correction filters
Magnification Range : 50x to 1000x

Compare Remove

Metallurgical Microscope LMM-A10

Optical System : Infinite optical system, tube length 180mm, parfocal 45mm
Viewing Head : Siedentopf trinocular, 30° inclination, 54mm to 75mm interpupillary distance
Eyepiece : PL10×/22mm wide field plan eyepiece
Objective Lenses : 5×, 10×, 20×, 50×, 100×, BF, WD ranging from 2.10mm to 10.80mm

Compare Remove

Metallurgical microscope LMM-B10

Viewing head : Siedentopf type trinocular head inclined at 30º, Rotable 360 ºinterpupilary distance: 48-76 mm
Eyepiece : WF10X/22 mmWF10X/22 mm (reticle 0.1 mm)
Focusing : Coarse and fine focusing adjustment: Coarse stroke: 25 mm Fine stroke per rotation: 0.2 mmFine division 2 µmTightness adjustment, upper distance limiter
Nosepiece : Quintuple nosepiece

Compare Remove

Upright Metallurgical Microscope LMM-B31

Optical System : NIS45 Infinite Color Corrected Optical System (Tube length: 180mm)
Viewing Head : Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100
Motorized Control : Nosepiece control panel with buttonsTwo most used objectives can be pre-set and switchedAuto light intensity adjustment after objective change
Reflected Illumination : Reflected light 24W/100W halogen lamp, Koehler illumination, with 6-position turret; Built-in ND6, ND25 filter and color correction filter

Compare Remove

Metallurgical Microscope LMM-A11

Optical System : Infinite optical system, tube length 180mm, parfocal 45mm
Viewing Head : Siedentopf trinocular, 30° inclination, 54mm to 75mm interpupillary distance
Eyepiece : PL10×/22mm wide field plan eyepiece
Objective Lenses : 5×, 10×, 20×, 50×, 100×, BF, WD ranging from 2.10mm to 10.80mm

Compare Remove

Metallurgical Microscope LMM-C11

Optical System : UIS optical system
Viewing Head : Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch)
Eyepiece : Wide field WF 10X /18 mm
Objective : Infinite Plan Achromatic Objectives with long working distance (no cover glass) PL 5X/0.12, PL L 10X/0.25, PL L 20X/0.40, PL L 40X/0.60, PL L 80X/0.80

Compare Remove

Metallurgical Microscope LMM-C10

Optical System : Infinity Optical System F= 200 mm
Viewing Head : Siedentopf trinocular head, inclined at 30°, Interpupillary 55-75 mm
Eyepiece : WF10X/25 mm
Objective : M Plan APO HL Objective 2X/0.055 WD= 34.56 mm Focus Length 95mm M Plan APO HL Objective 5X/0.14 WD= 44.50 mm Focus Length 95mm M Plan APO HL Objective 10X/0.28 WD= 34.00 mm Focus Length 95mm M Plan APO HL Objective 20X/0.29 WD= 31.00 mm Focus Length 95mm M Plan APO HL Objective 50X/0.42 WD= 20.50 mm Focus Length 95mm

Compare Remove

Metallurgical Microscope:
Upright Metallurgical microscopes LMM-B12, Upright Metallurgical Microscope LMM-B20, Metallurgical Microscope LMM-A10, Metallurgical microscope LMM-B10, Upright Metallurgical Microscope LMM-B31, Metallurgical Microscope LMM-A11, Metallurgical Microscope LMM-C11, Metallurgical Microscope LMM-C10, and more.
