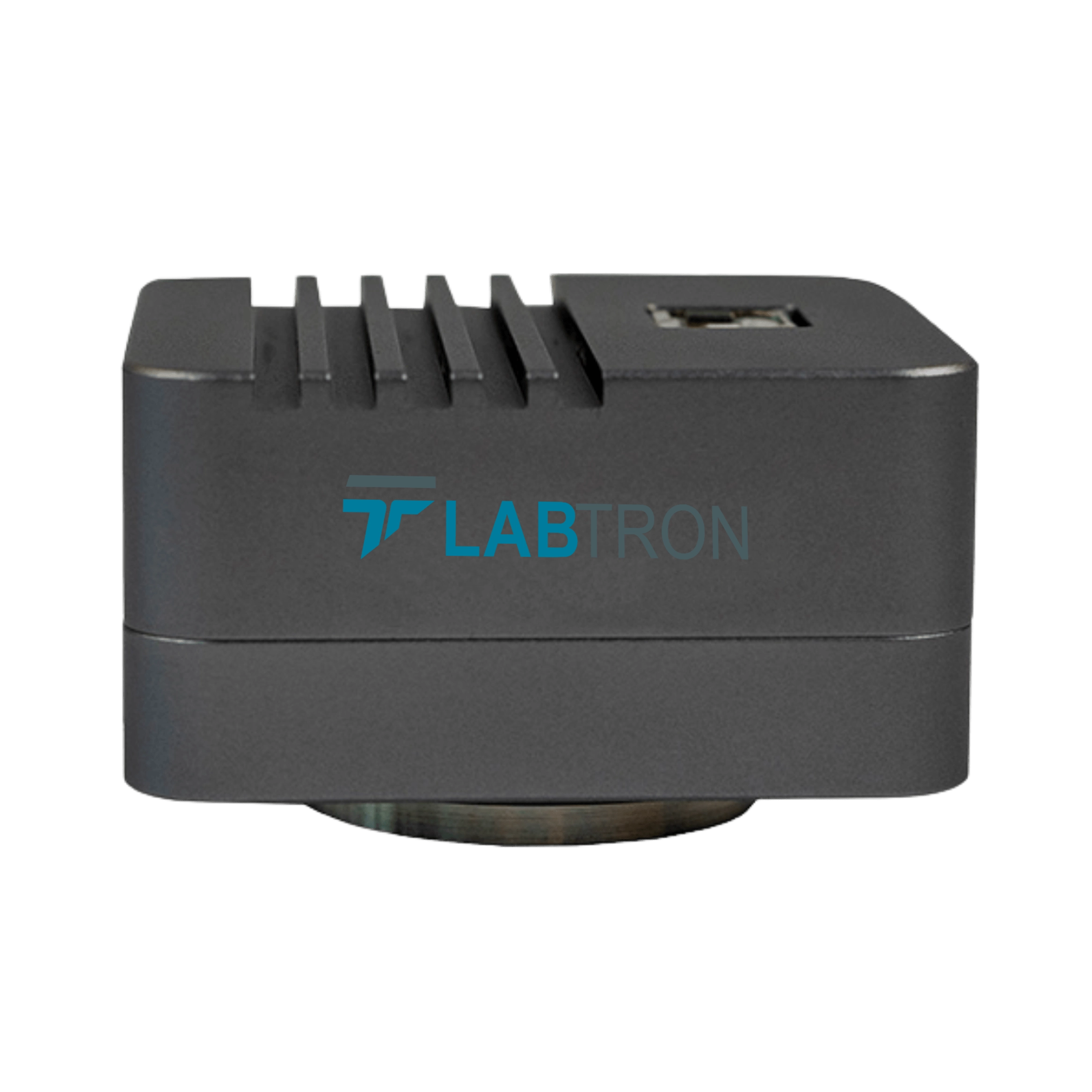

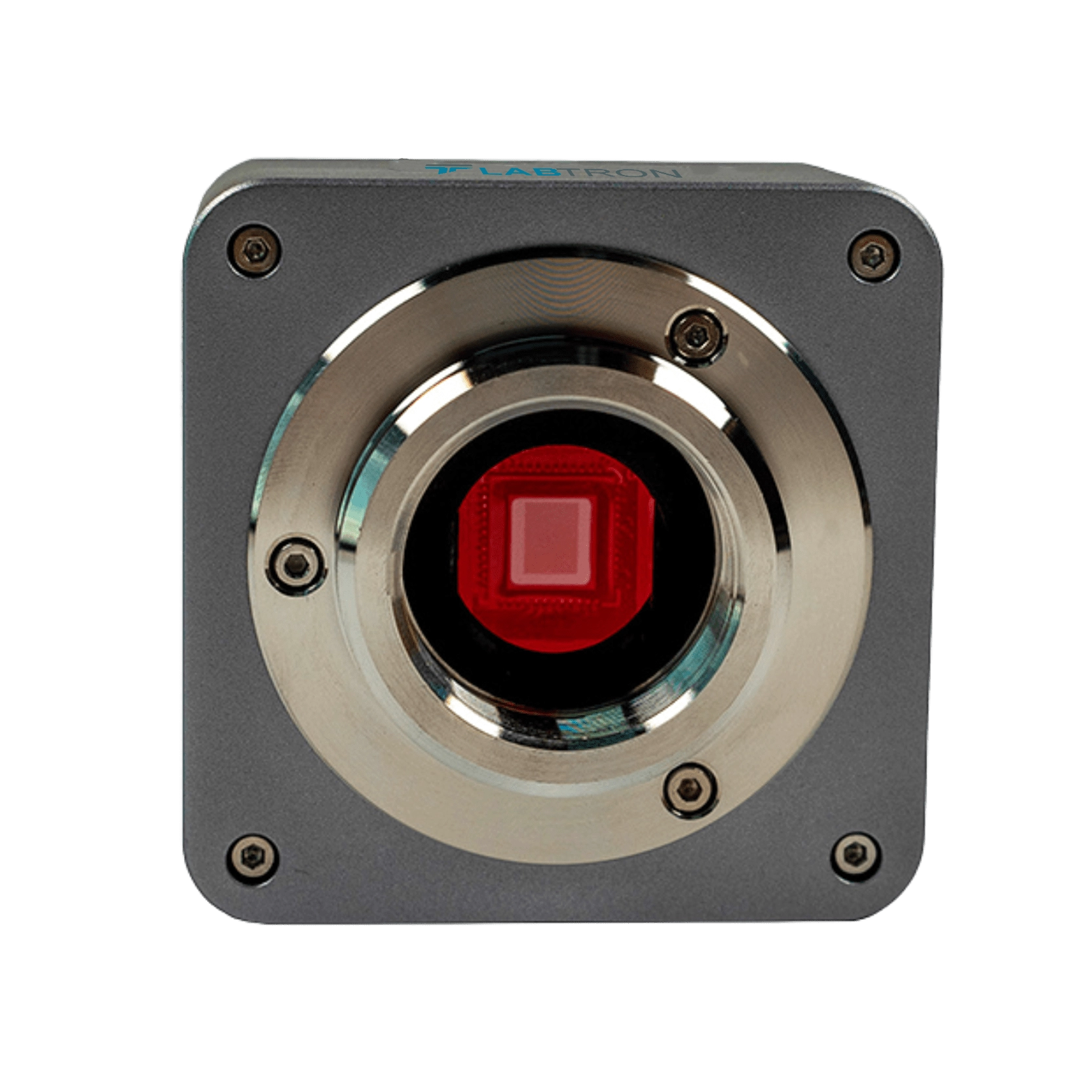

Microscopic Camera LUMC-A13 is designed with a 5.1 MP IMX335 CMOS sensor, offering excellent image clarity. It features an exposure range of 0.1 to 2000 ms, allowing precise light adjustments for various microscopy needs. The advanced MJPEG compression algorithm ensures high frame rates while maintaining image quality. The USB2.0 high-speed interface enables stable and efficient data transfer. This microscopic camera is ideal for bright-field microscopy, image analysis, and research applications.
| Sensor Type | CMOS Sony IMX335 Sensor |
| Camera Type | Colour Camera |
| Sensor Size | 1/2.8" (5.18 × 3.89 mm) |
| Resolution | 5.1 MP |
| Pixel Size | 2.0 × 2.0 µm |
| Exposure Range | 0.1 to 2000 ms |
| Frame Rate | 25 FPS @ 2592×1944, 25 FPS @ 1280×960, 25 FPS @ 640×480 |
| SNR | 43 dB |
| Data Interface | USB2.0 High-speed Port |
| Power | DC 5V over PC USB Port |
| White Balance | Automatic/Manual ROI White Balance |
| Auto Exposure Control | Automatic/Manual Exposure Switching |
| Working Temperature | -10°C to 50°C |
| Lens Mount | C-Mount |
| Supported OS | Windows, Linux, macOS |
| Dimension | 150 mm × 150 mm × 100 mm |
| Gross Weight | 0.55 kg |
High-Sensitivity Sensor
Real-Time Image Capture
Compact and Lightweight
Compatible with C-Mount
Supports Bright-Field Microscopy
Histogram and ROI Adjustments
Our Microscopic Camera LUMC-A13 is designed for microscopy imaging in research laboratories and medical institutions. It delivers high-resolution imaging with real-time data transmission, making it ideal for cell analysis, histology, and material research.
Download catalog for
Microscopic Camera LUMC-A13 Catalog
Available Range :
Microscopic Camera LUMC-A10 : CCD Sony ICX285 sensor Microscopic Camera LUMC-C13 : CMOS 1" Color Microscopic Camera LUMC-C14 : CMOS 2/3 Microscopic Camera LUMC-B13 : CMOS chip Microscopic camera LUMC-B12 : CMOS Sony IMX123 sensor Microscopic Camera LUMC-B20 : CMOS Sony IMX178 sensor Microscopic camera LUMC-B11 : CMOS Sony IMX185 sensor Microscopic camera LUMC-B10 : CMOS Sony IMX253 sensor Microscopic Camera LUMC-A13 : CMOS Sony IMX335 Sensor Microscopic Camera LUMC-A14 : CMOS Sony IMX577 Sensormodels of Microscopic Camera
