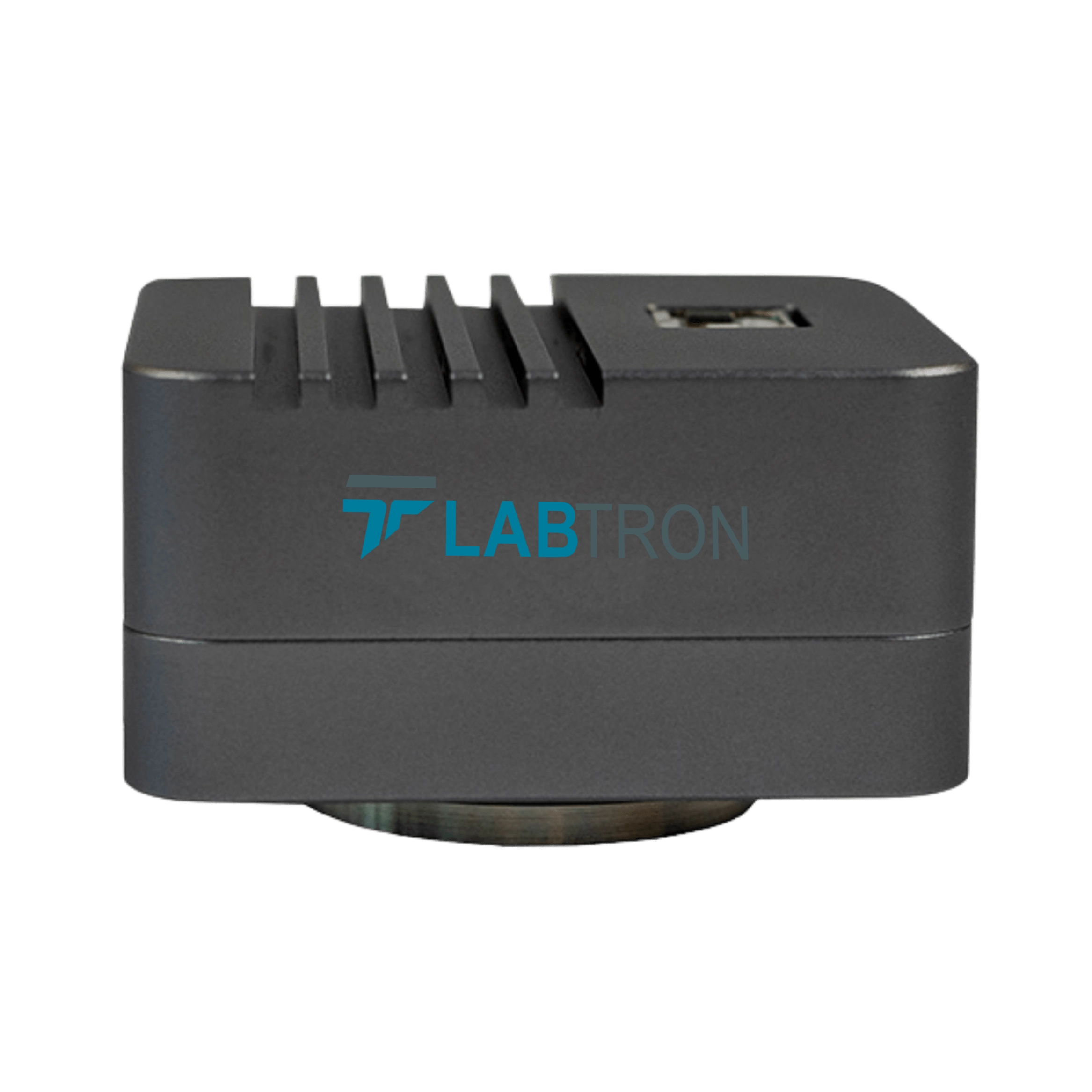

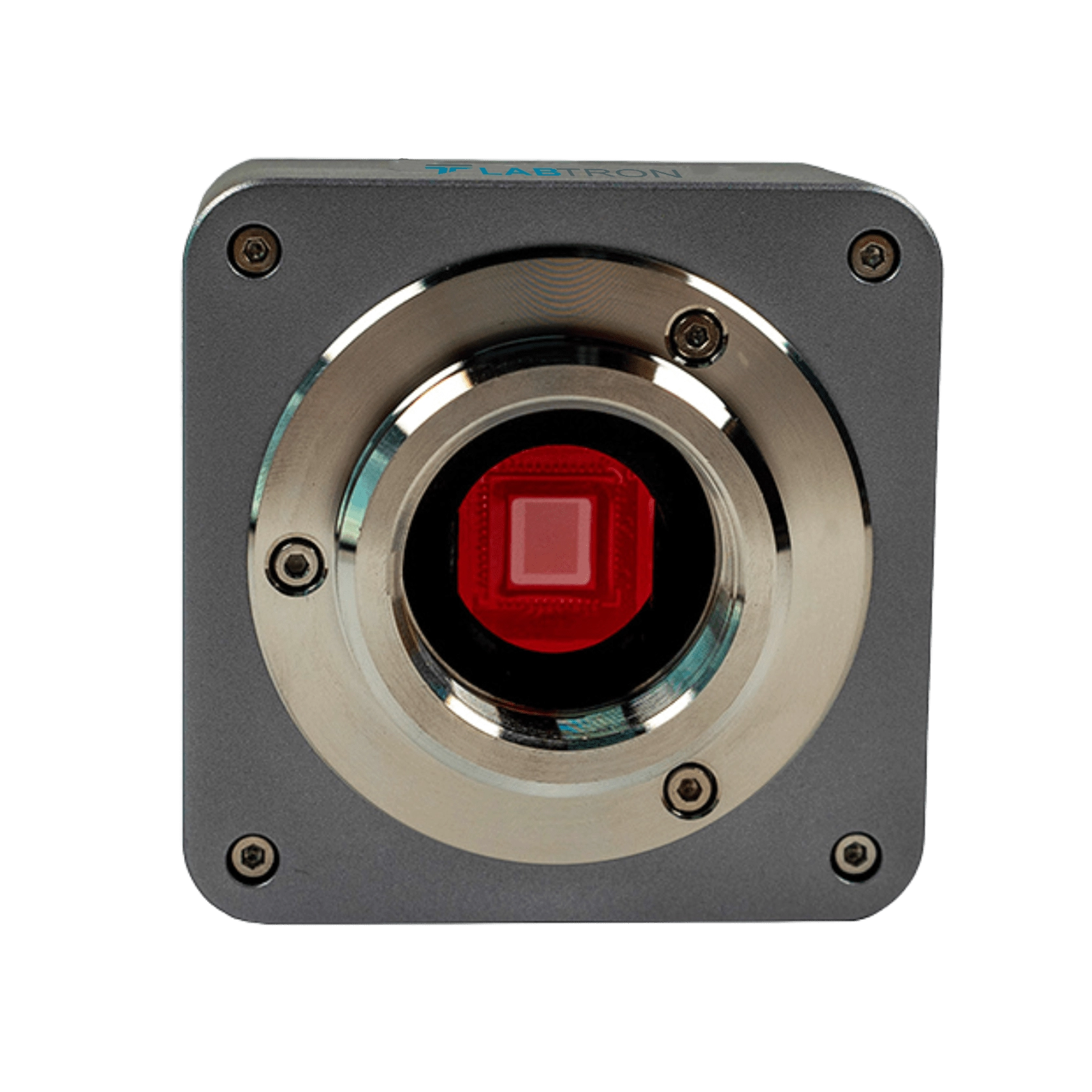

Microscopic Camera LUMC-A14

Name: Microscopic Camera LUMC-A14
Brand: Labtron
SKU: LUMC-A14
Rating: 4.9 (744 reviews)

Microscopic Camera LUMC-A14 features a 12 MP resolution with a CMOS Sony IMX577 sensor for high-quality imaging. Its 1/2.3" sensor size ensures detailed image capture with a pixel size of 1.55 × 1.55µm. It delivers a frame rate of 20 fps at multiple resolutions for smooth imaging performance. Equipped with automatic/manual ROI white balance and exposure switching, it ensures optimal image adjustments. Ideal for advanced microscopy applications in research, diagnostics, and material analysis.

Request Quote

Sensor Type	CMOS Sony IMX577 Sensor
Camera Type	Colour Camera
Sensor Size	1/2.3 (5.95×4.71mm)
Resolution	12 MP
Pixel Size	1.55 × 1.55µm
Exposure Range	0.1 to 2000 ms
Frame Rate	20@3840×3040 20@1920×1520 20@960×760
SNR	43 dB
Data Interface	USB2.0 High-speed Port
Power	DC 5V over PC USB Port
White Balance	Automatic/Manual ROI White Balance
Auto Exposure Control	Automatic/Manual Exposure Switching
Working Temperature	-10°C to 50°C
Lens Mount	C-Mount
Supported OS	Windows, Linux, macOS
Dimension	150 mm × 150 mm × 100 mm
Gross Weight	0.55 kg

Sturdy aluminium housing
Colour adjustment and image flipping
Histogram and field correction
High MJPEG compression algorithm
2.10MP to 12MP resolution
High-speed USB 2.0 interface
Large memory chip integration
Microsoft USB Video Class protocol
Ultra-fine hardware ISP engine

Our Microscopic Camera LUMC-A14 is ideal for high-resolution imaging in research laboratories and material science analysis. It also enhances microscopy studies in educational institutions.

Download catalog for
Microscopic Camera LUMC-A14 Catalog

Available Range :

Microscopic Camera LUMC-A10 : CCD Sony ICX285 sensor Microscopic Camera LUMC-C13 : CMOS 1" Color Microscopic Camera LUMC-C14 : CMOS 2/3 Microscopic Camera LUMC-B13 : CMOS chip Microscopic camera LUMC-B12 : CMOS Sony IMX123 sensor Microscopic Camera LUMC-B20 : CMOS Sony IMX178 sensor Microscopic camera LUMC-B11 : CMOS Sony IMX185 sensor Microscopic camera LUMC-B10 : CMOS Sony IMX253 sensor Microscopic Camera LUMC-A13 : CMOS Sony IMX335 Sensor Microscopic Camera LUMC-A14 : CMOS Sony IMX577 Sensor
