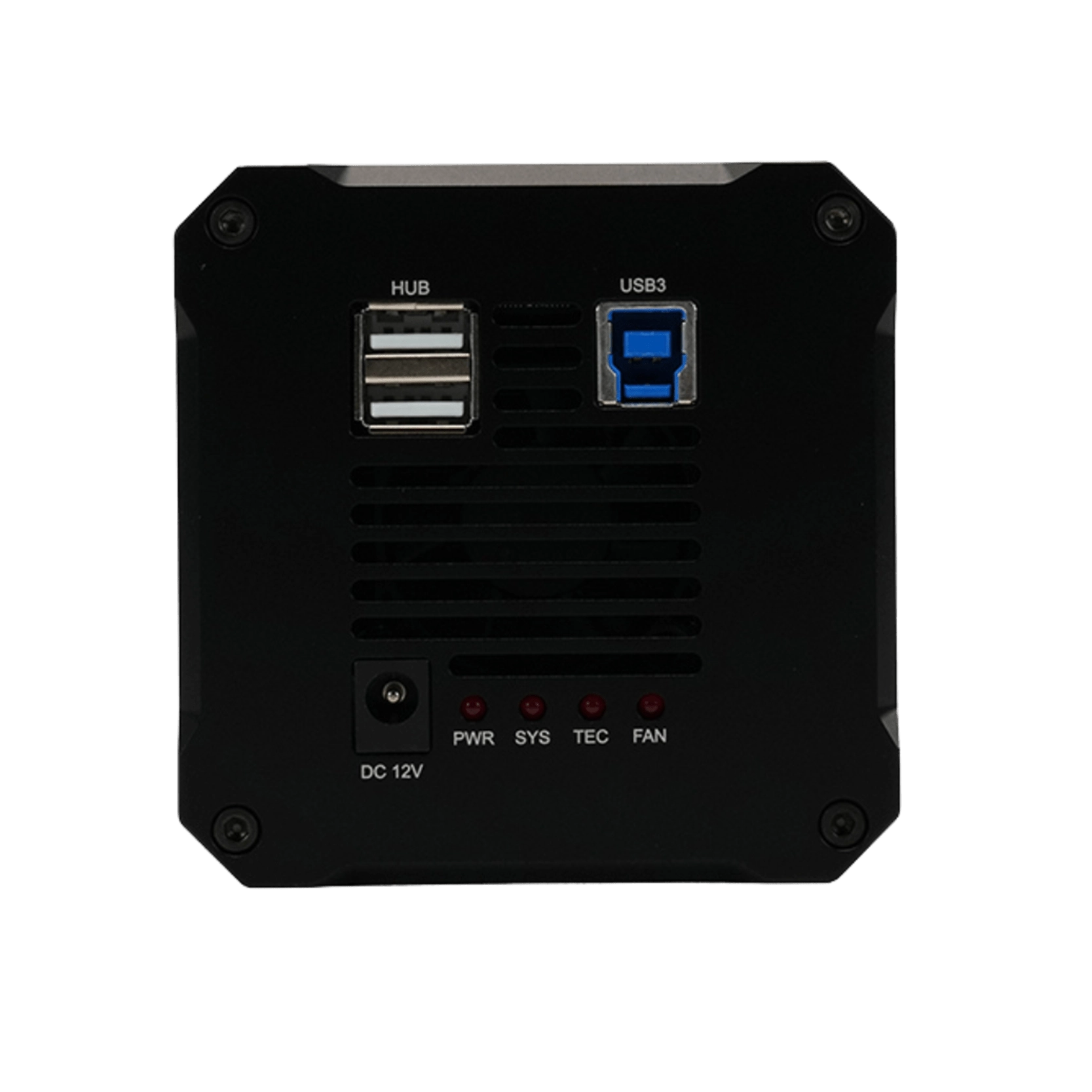

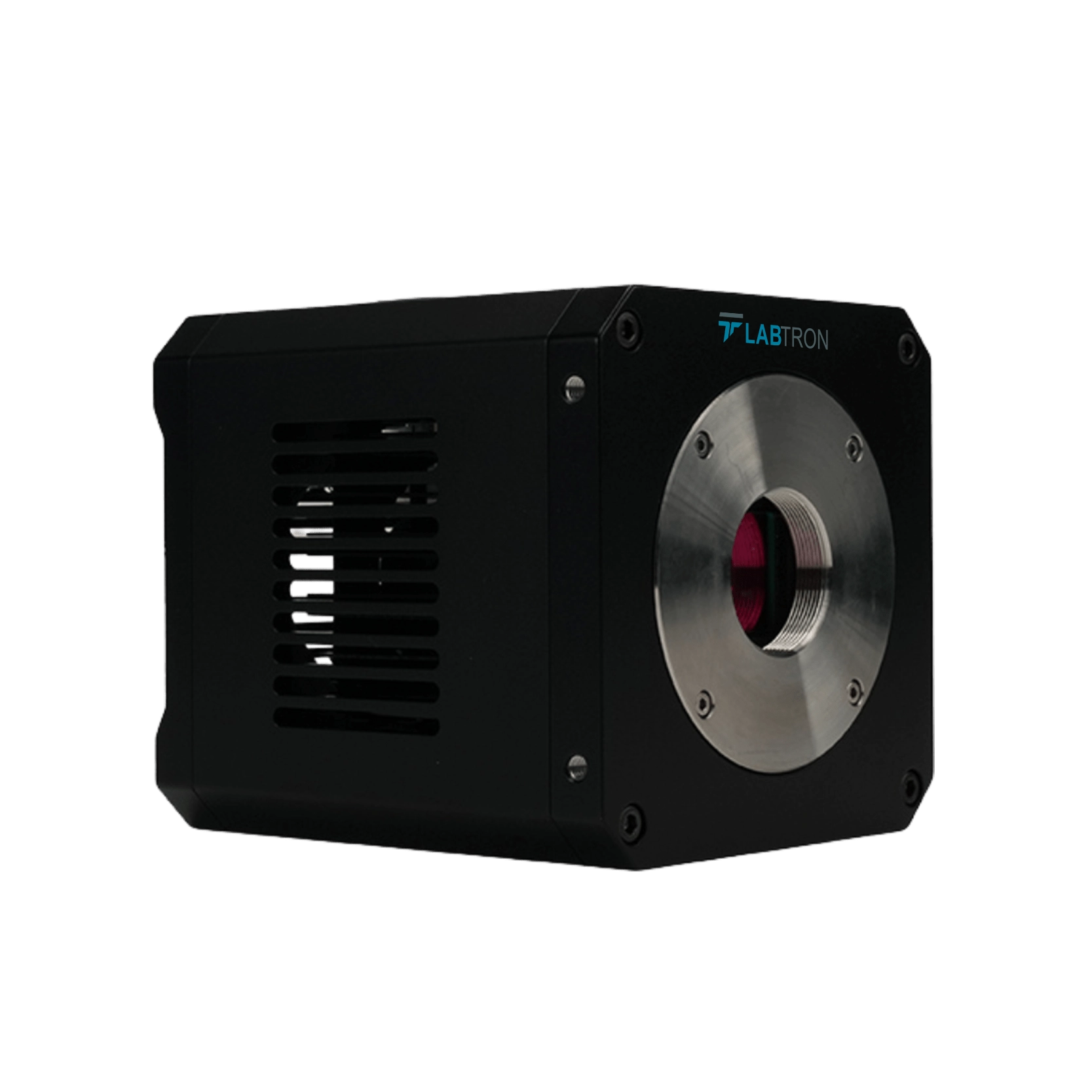

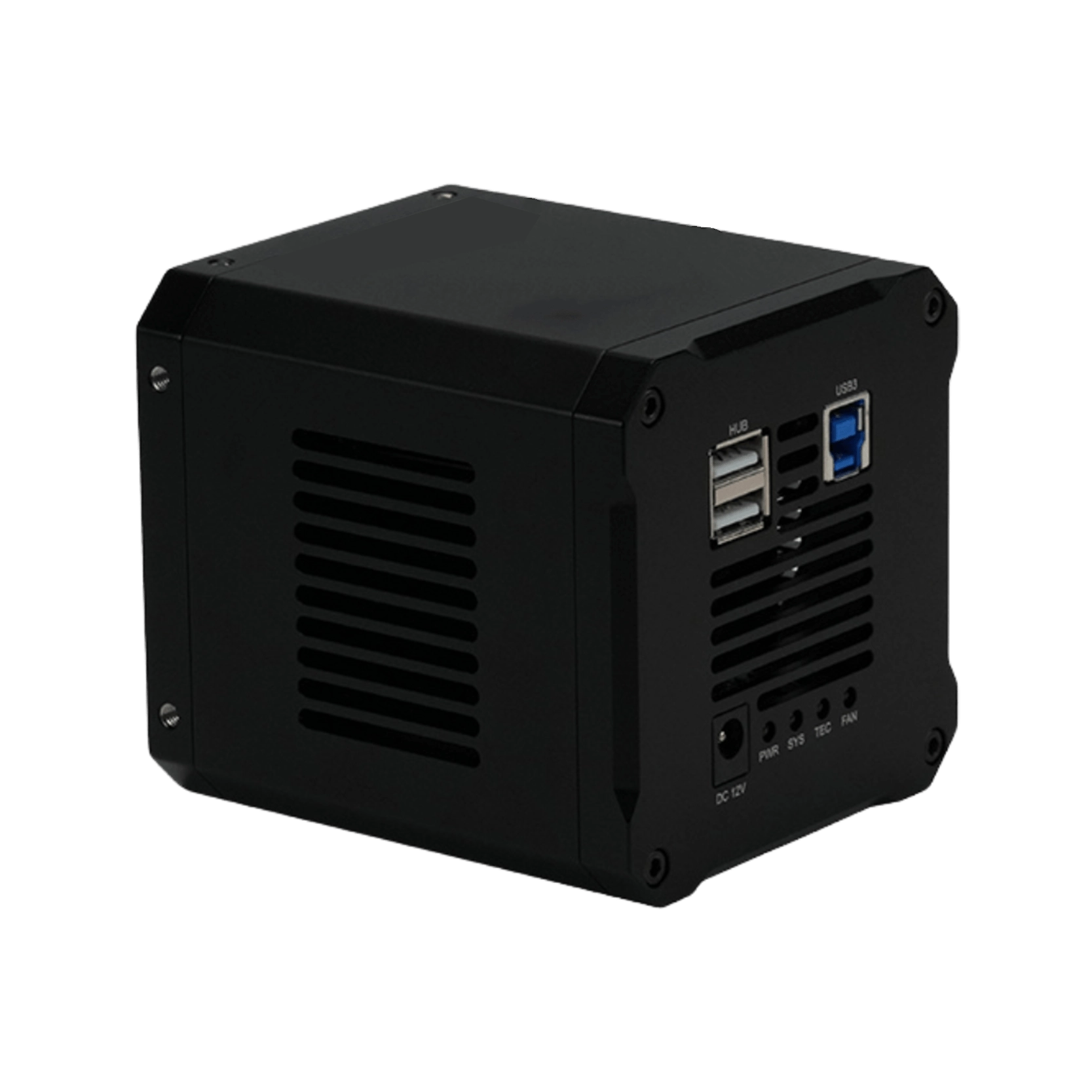

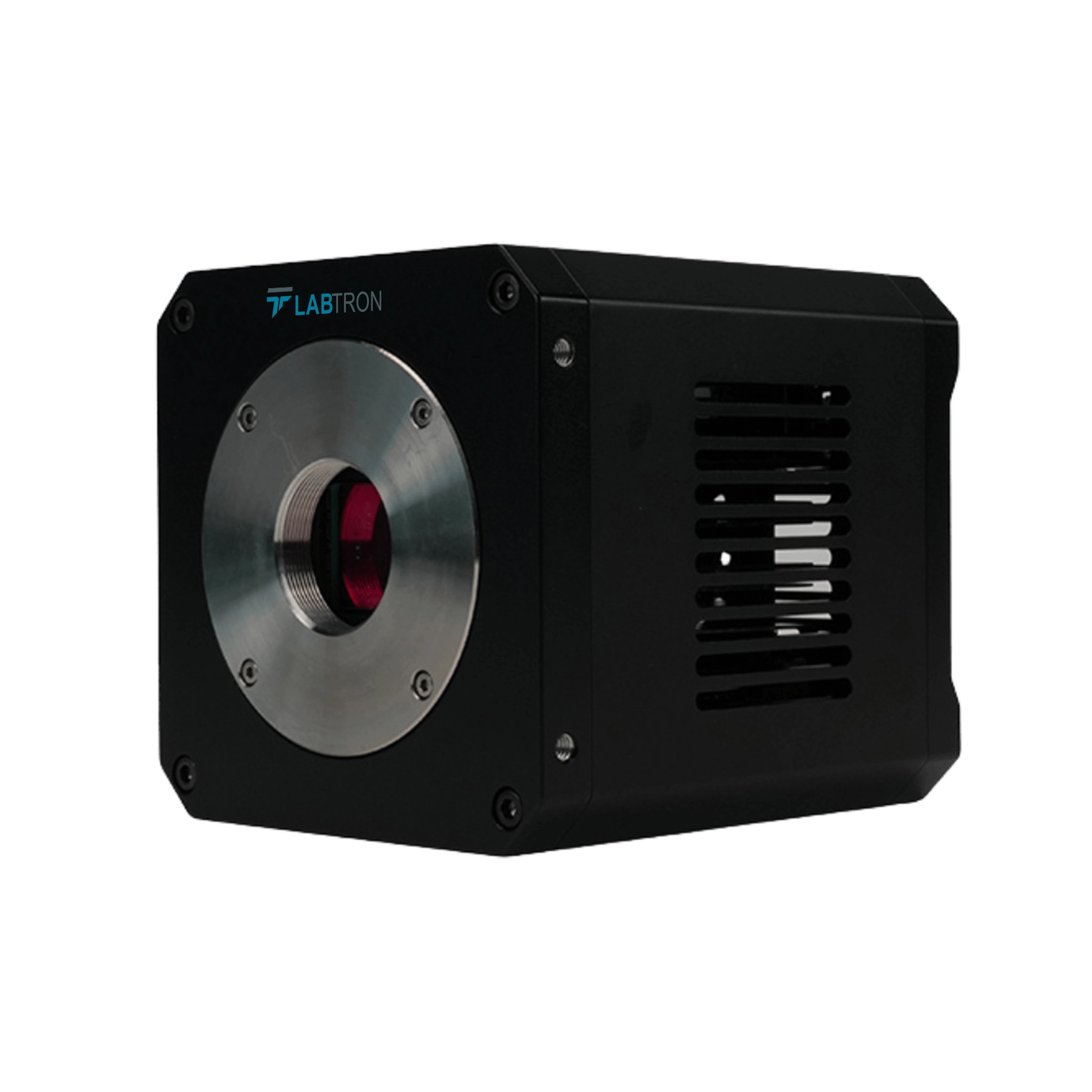

Microscopic Camera LUMC-C21

Name: Microscopic Camera LUMC-C21
Brand: Labtron
SKU: LUMC-C21
Rating: 4.8 (729 reviews)

Microscopic Camera LUMC-C21 integrates a 20MP IMX183 monochrome sensor, ensuring high-resolution imaging with clarity. A 2.4 µm pixel size enhances light sensitivity for accurate image capture. Long exposure capability of up to 3600s supports detailed low-light imaging in scientific research. IR-CUT/AR coated windows reduce reflections and improve contrast for precise imaging. Suitable for astrophotography, fluorescence microscopy, and research applications requiring high-sensitivity imaging with minimal noise.

Request Quote

Sensor	Sony IMX183 Sensor (Monochrome)
Resolution	20MP
Sensor Size	1“(13.056x8.755)
Pixel Size	2.4 × 2.4 µm
Frame Rate	17.8 FPS at 5440×3648, 41 FPS at 4096×2160, 51 FPS at 2736×1824, 64 FPS at 1824×1216
Binning	1×1, 2×2, 3×3
Exposure Time	0.1 ms to 3600 s
USB Port	USB 3.0 High-speed Port
Cooling System	Two-stage TE-cooling with electric fan
Cooling Temperature	Up to 42°C below ambient
Long Exposure Time	Up to 1 hour
Cooling Efficiency	Up to 42°C below ambient temperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Operating Humidity	30% to 80% RH
Storage Humidity	10% to 60% RH
SDK Support	Native C/C++, C#/VB.NET, DirectShow, Twain Control API
Operating System	Windows, Linux, macOS
Color Engine	Ultra-Fine color engine
Power Supply	DC 5V via PC USB Port, External Adapter (DC12V, 3A) for Cooling
Weight	2.8 kg

Wide exposure range
Advanced image processing
Multiple frame rate options
Rapid temperature regulation
Supports video and trigger modes
Efficient moisture control
Superior low-light performance
Adjustable cooling system

Our Microscopic Camera LUMC-C21 is ideal for astrophotography and fluorescence microscopy, ensuring high-resolution imaging with enhanced sensitivity. It is widely used in research laboratories for material analysis, biomedical studies, and industrial inspection.

Download catalog for
Microscopic Camera LUMC-C21 Catalog

Available Range :

Microscopic Camera LUMC-C21 : Sony IMX183 Sensor (Monochrome) Microscopic Camera LUMC-C20 : Sony IMX485 sensor

Models of Microscopic Camera

Labtron Microscopic Cameras deliver high-resolution imaging solutions for diverse microscopy applications. They feature progressive scanning technology for sharp, distortion-free image capture, enhancing research and inspection tasks. These cameras come in black-and-white and color options, with sensor sizes ranging from 1/2.3 inches to 1 inch. Their modular image analysis software supports manual and automatic white balance adjustments for optimized image quality. Our microscopic cameras are ideal for biological research, material analysis, and industrial quality control.

Microscopic Camera LUMC-C20

Sensor : Sony IMX485 sensor
Resolution : 8.3MP
Sensor Size : 1/1.2” (11.14×6.26 mm)
Pixel Size : 2.9 × 2.9 μm

Compare Remove

Microscopic Camera LUMC-A13

Sensor Type : CMOS Sony IMX335 Sensor
Camera Type : Colour Camera
Sensor Size : 1/2.8" (5.18 × 3.89 mm)
Resolution : 5.1 MP

Compare Remove

Microscopic Camera LUMC-C11

Sensor Model : 16M/MN34120(C), 1/2.33 inch (6.18×4.66) CMOS color sensor
Sensor Dimension : 1.335×1.335 µm pixels
Resolution : 16 MP
G Sensitivity Dynamic Range SN Ratio : R: 2453LSB Gr: 2444LSB Gb: 1054LSB B: 996LSB

Compare Remove

Microscopic Camera LUMC-A10

Sensor type : CCD Sony ICX285 sensor
Camera type : Black and white or color, Cool (to be fit for low temperature) camera
Sensor size : 2/3”
Resolution : 1.4 MP
