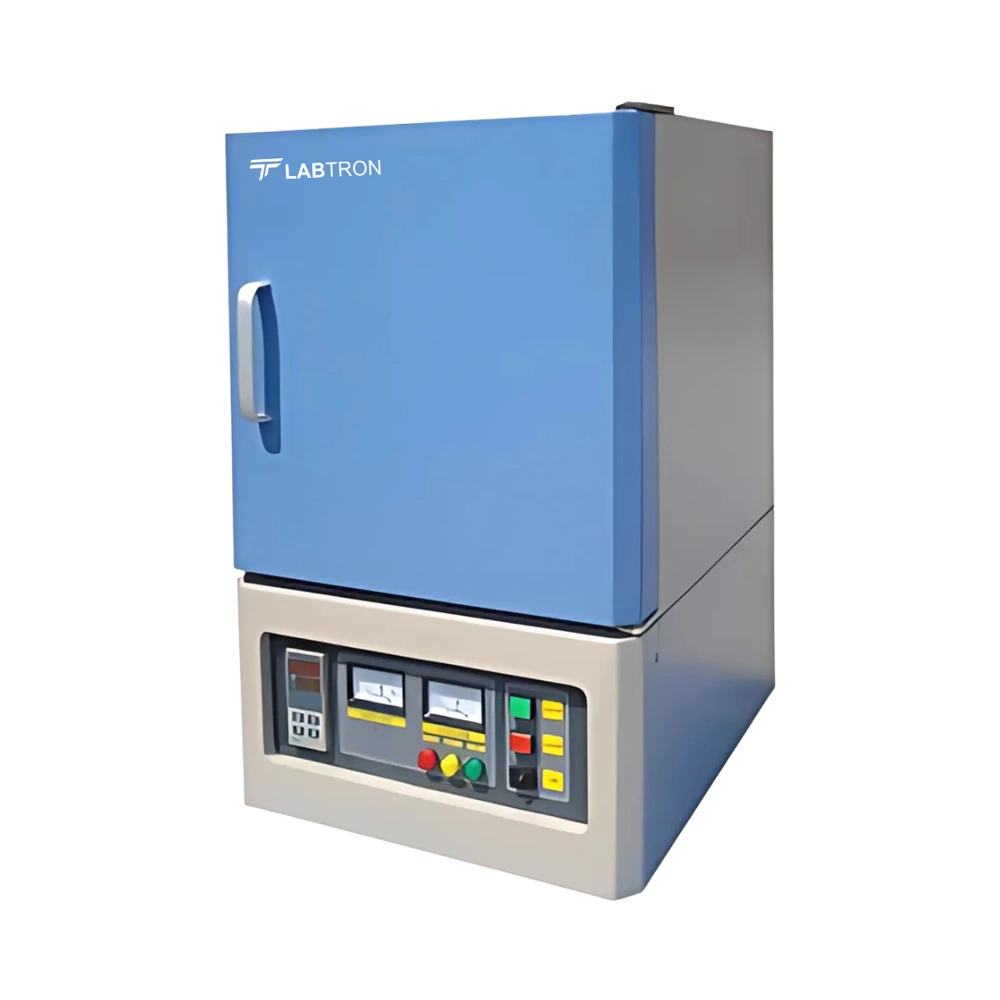

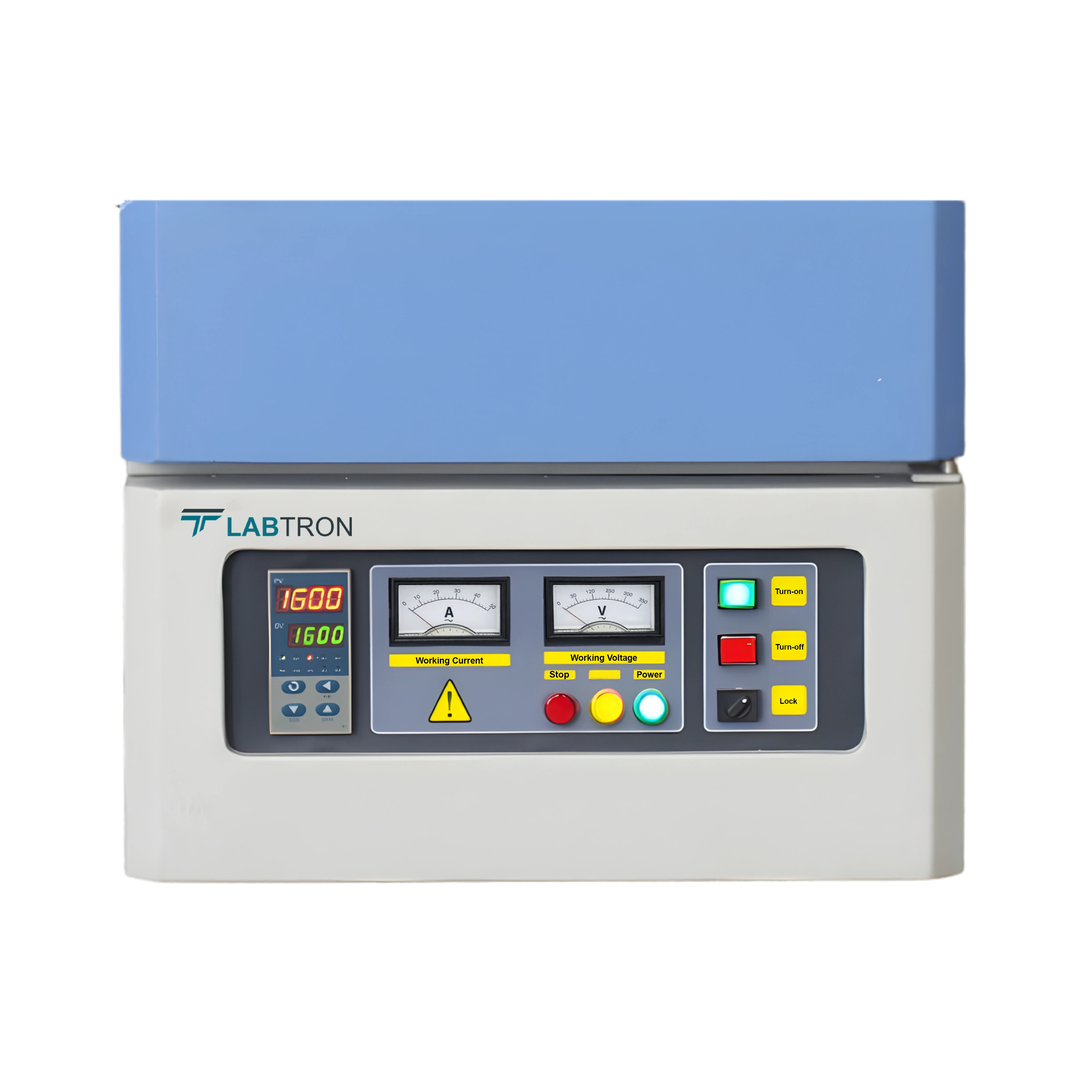

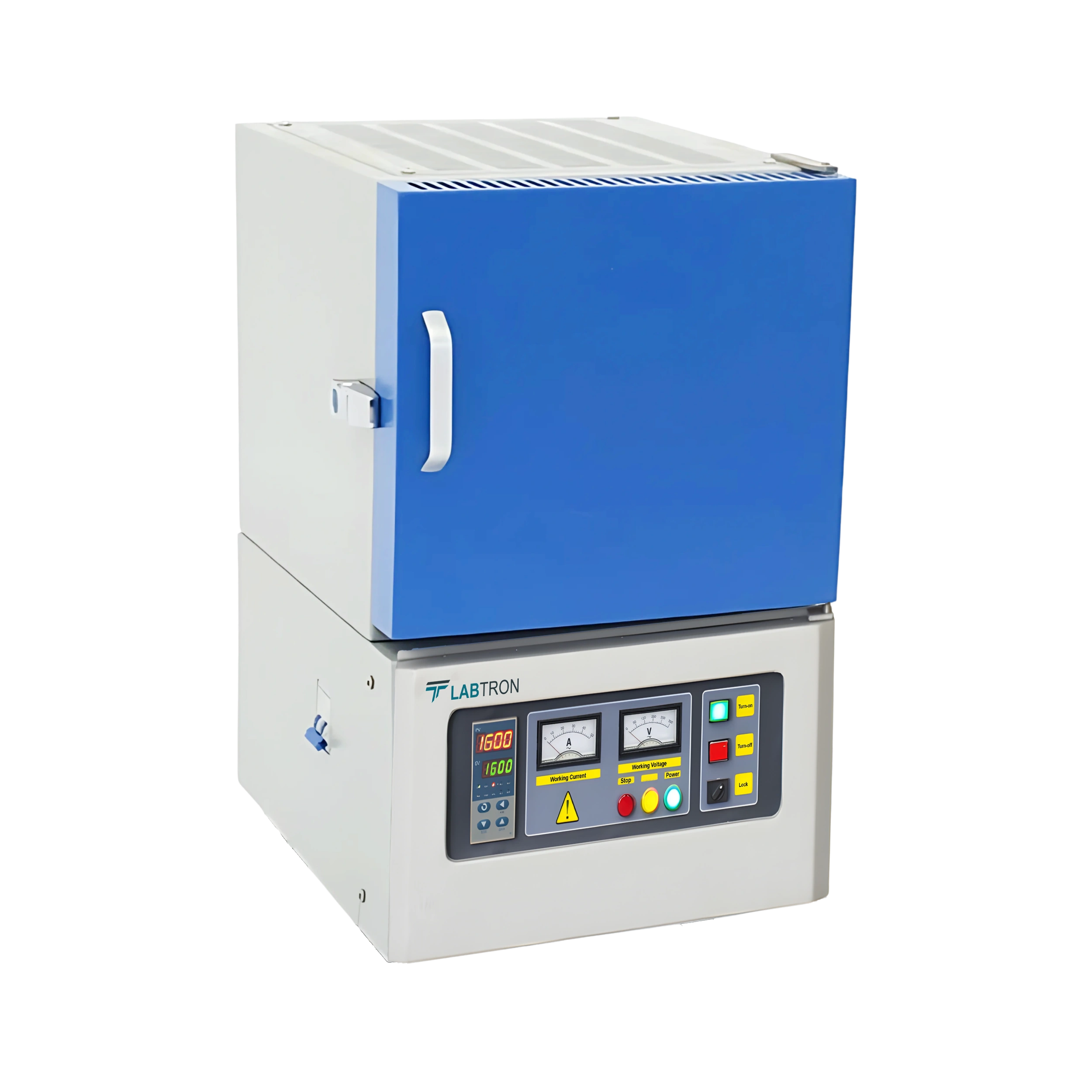

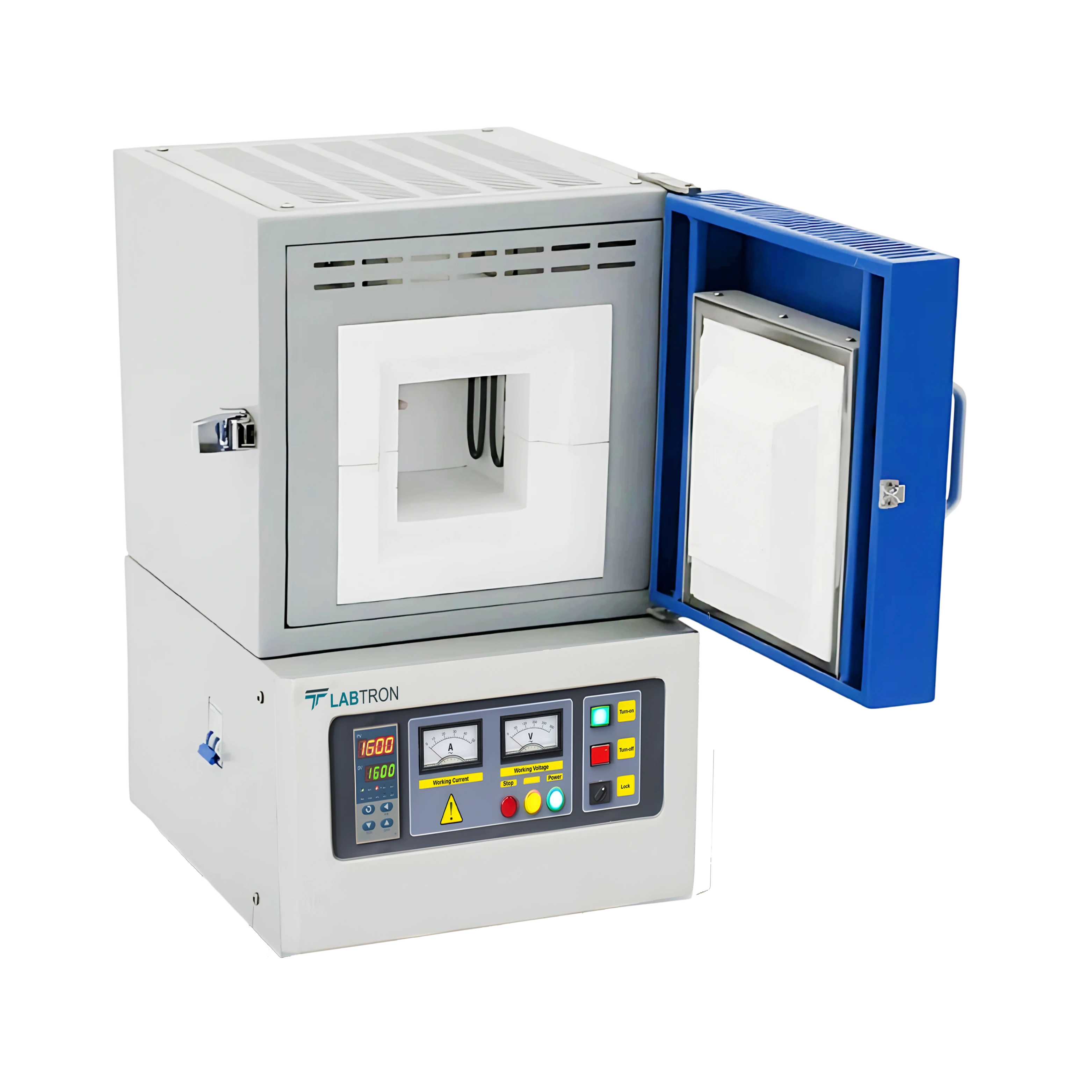

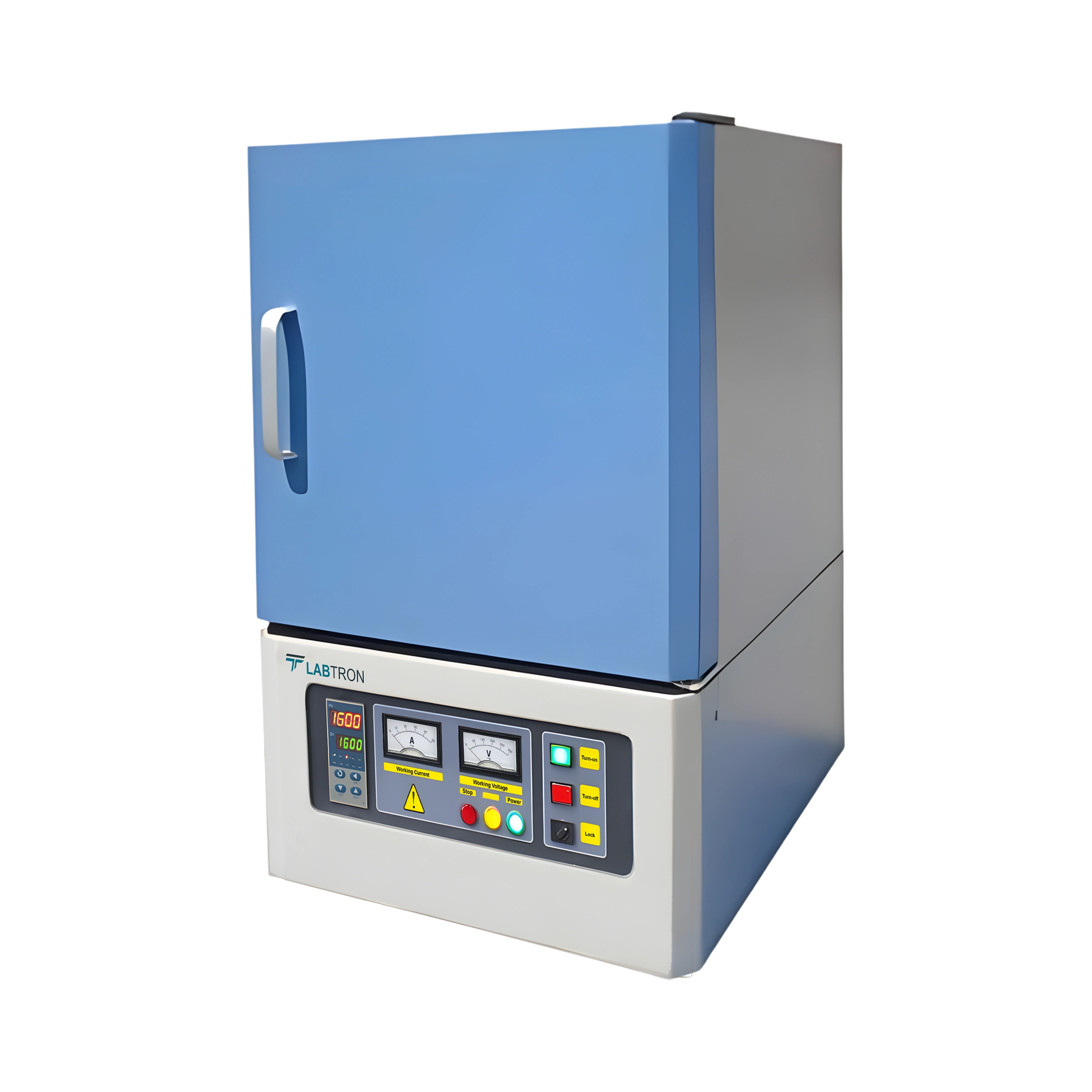

Muffle Furnace LMF-B44

Name: Muffle Furnace LMF-B44
Brand: Labtron
SKU: LMF-B44
Rating: 4.7 (640 reviews)

Muffle Furnace LMF-B44 offers a maximum temperature of 1100 °C, allowing for accurate control of extreme heat. Its PID digital controller enables automated and repeatable temperature control. The pyrometric indicator provides real-time temperature monitoring for accurate process control. It features rear ventilation, ensuring stable airflow and protecting internal components. Our muffle furnace is ideal for material testing, ceramics, heat treatment, and laboratory thermal processes.

Request Quote

Maximum Temperature	1100 °C
Working Temperature	1050 °C
Capacity	36 L
Heating Program	30 steps
Heating Rate	0.1 to 30 °C/min (adjustable)
Heating Method	Three-sided resistive heating
Heating Elements	Resistance Wire
Heating Element Protection	Quartz-glass tube
Warm-Up Time	40 min
Temperature Control Accuracy	±1 °C
Temperature Uniformity	±5 °C at greater than or equal to 800 °C
Control System	PID digital controller
Gas Compatibility	Nitrogen inlet
Temperature Zone	Single zone
Outer Housing	Stainless steel with RAL 9003 coating
Chamber Material	Ceramic silicon carbide
Power Consumption	8000 W
Power Supply	220 V, 50 Hz
Internal Dimensions (W×D×H)	400 × 300 × 300 mm

Fast heating rate
Overload protection system
Calibrated temperature sensor
Quick warm-up time
Accurate temperature control

Muffle Furnace LMF-B44 provides precise, high-temperature heating in a controlled environment. It is suitable for material testing, ceramics, heat treatment, sintering, annealing, ash determination, and other laboratory or industrial thermal processes.

Name	Quantity
Thermocouple (S-Type)	1 Piece
Hight Temperature Gloves	1 Piece
Crucible Tongs	1 Piece
Furnace Door Plug Brick	1 Piece
Spare Rods Standard	2 Piece
Specialised Tool	1 Set

Download catalog for
Muffle Furnace LMF-B44 Catalog

Available Range :

Muffle Furnace LMF-B10 : 1100 °C Muffle Furnace LMF-B44 : 1100 °C

Models of Muffle Furnace 1100°C

Labtron Muffle Furnace 1100℃ provide high temperature heating in controlled environment with capacity of 5 L to 100 L. They feature sealed chambers isolating heating elements from material, ensuring even temperature distribution and minimizing contamination. Their digital control system provides detailed analysis of data. They include ventilation options to manage heat and fumes effectively. Our Muffle Furnace is applicable for ceramics firing, ashing of samples and sintering of powder.
