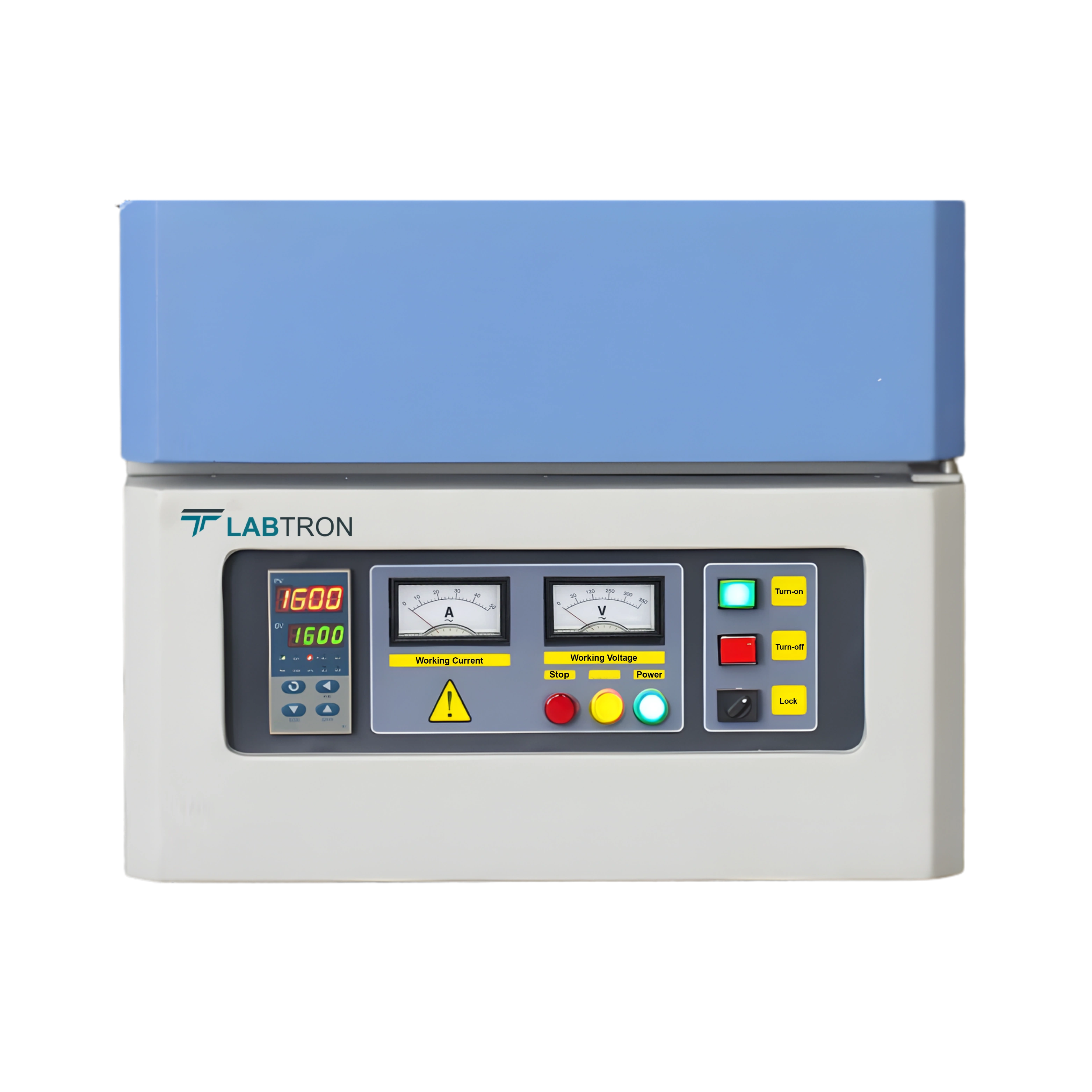

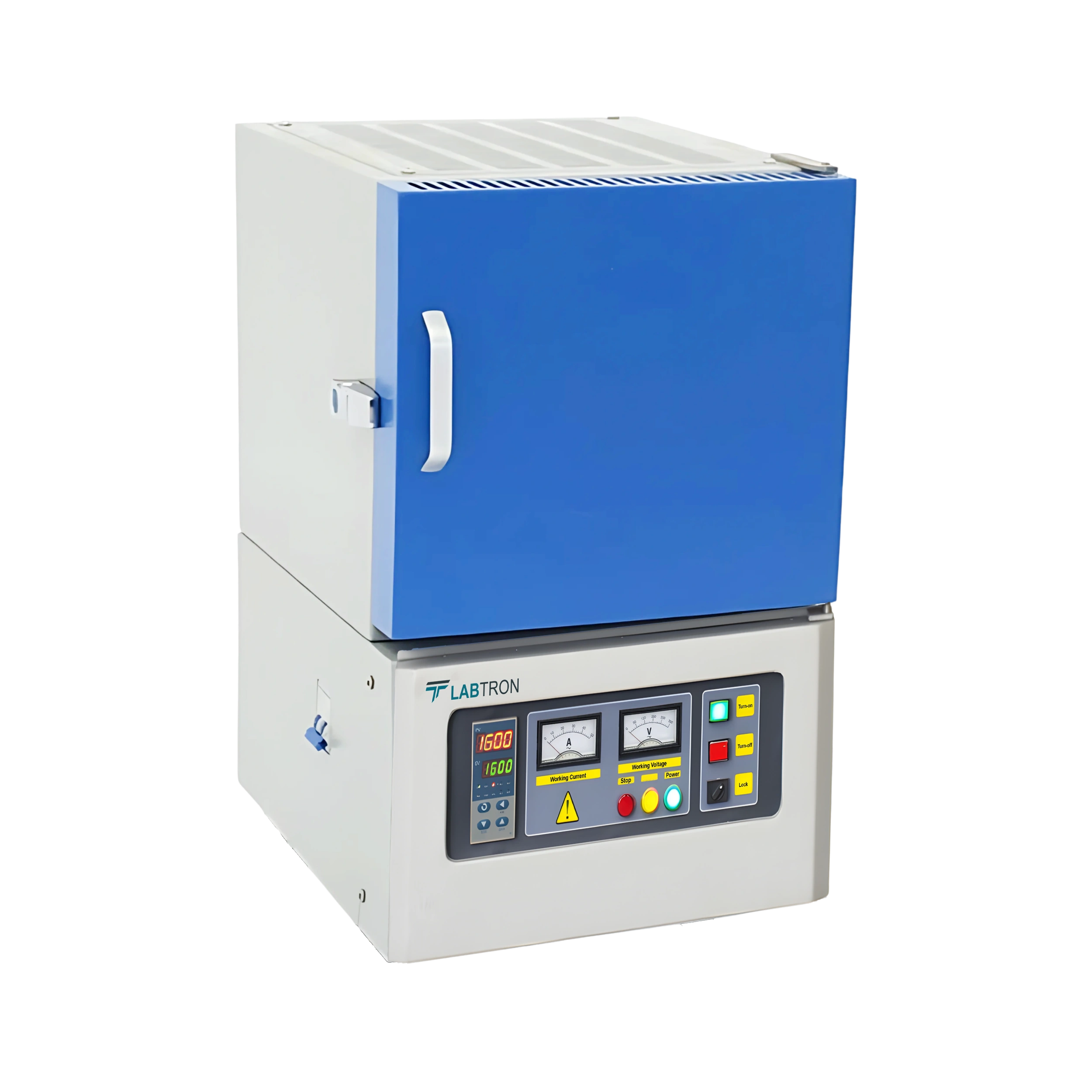

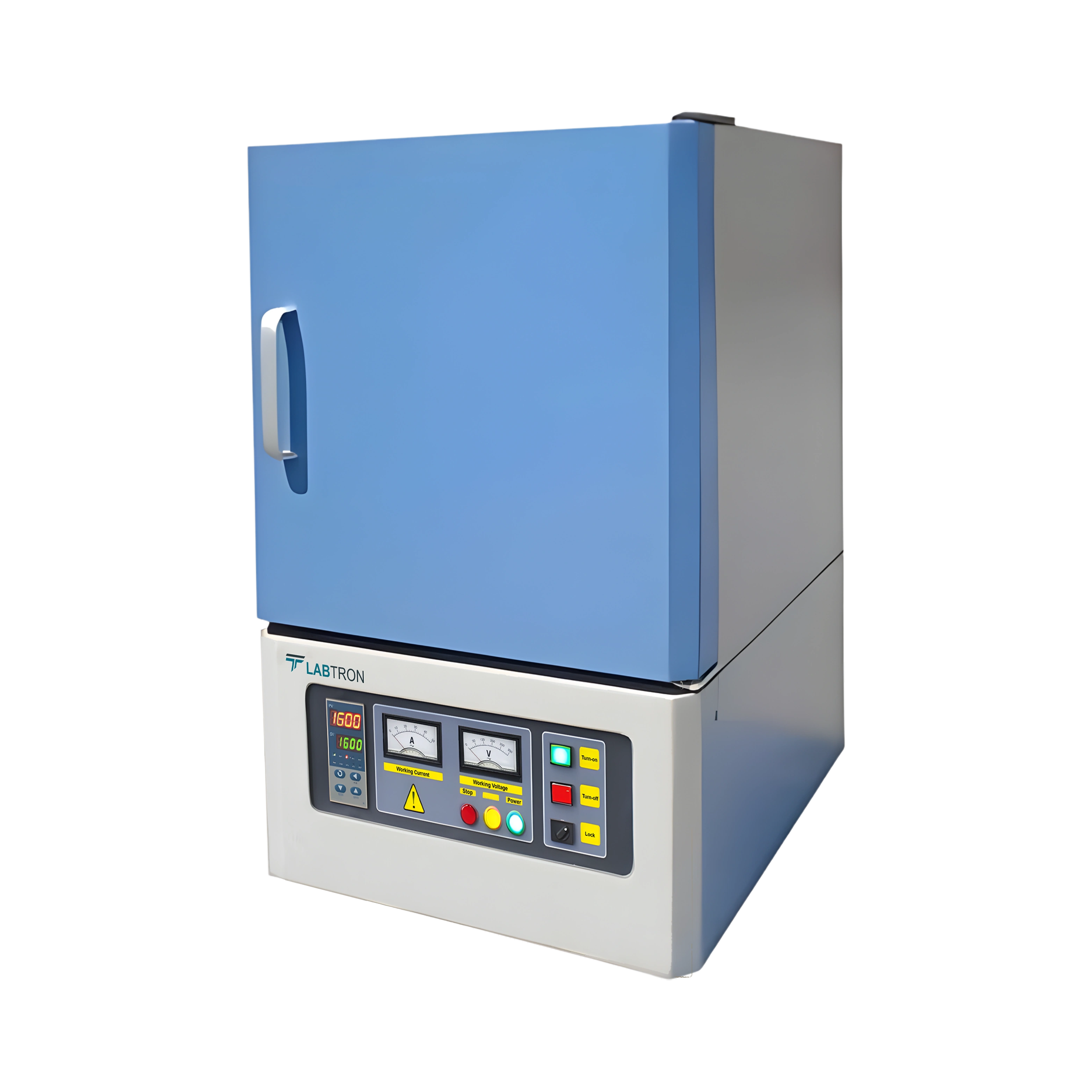

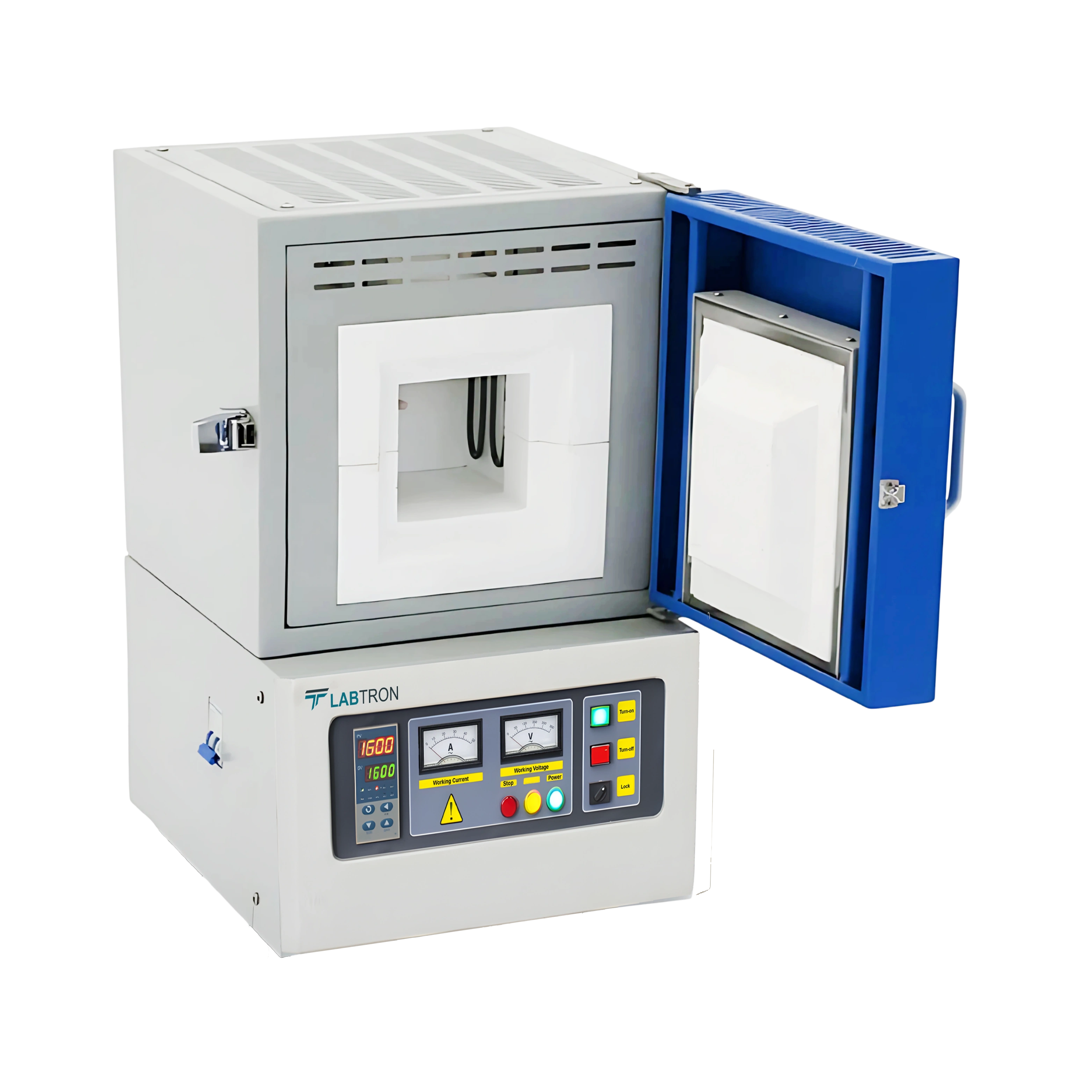

Muffle Furnace LMF-B22

Name: Muffle Furnace LMF-B22
Brand: Labtron
SKU: LMF-B22
Rating: 4.9 (787 reviews)

Muffle Furnace LMF-B22 supports a maximum temperature of 1100°C with an 8-step heating program. It maintains accurate temperature readings with an instantaneous energy consumption indicator. This furnace features Fe-Cr-Al heating elements embedded in bricks for uniform heat distribution. Its safety features include automatic power cut-off and an audio warning system. The insulation includes fire bricks and a ceramic fiber board for optimal heat retention. Our furnace is ideal for precise and efficient high-temperature processes.

Request Quote

Capacity	7 L
Maximum Temperature	1100 °C
Heating Program	8 steps
Thermal Rate	3 °C to 20 °C
Thermocouple	K type
Program Memories	6
Housing Material	Steel Sheet
Housing Coating	Epoxy powder coating
Element Heating Protection	Heating element protection by resistance wires
Lockable Door Handle	Sidewards
Temperature Control Accuracy	± 1 °C (can vary at low temperatures)
Measurement Accuracy	±1°C
Inner Volume Temperature Homogeneity	± 10 °C
Power Supply	11A
Power Consumption	2.600 W
Inner Chamber Dimension (W × H × D)	180 × 160 × 260 mm
Product Outer Dimension (W × H × D)	476 × 628 × 655 mm
Gross Dimension (W × H × D)	536 × 815 × 688 mm
Net Weight	48 kg
Gross weight	63 kg

Dual-shell housing
Audio warning system
LCD display
Standard Chimney
Microprocessor-controlled
Descriptive error indicator

Muffle Furnace LMF-B22 is ideal for high-temperature processes like glass fusing, enamel coating, and ceramic production. It supports metallurgical applications, including soldering, brazing, and ash content determination.

Sr. No.	Accessory
1	High Temperature Gloves
2	Tongs
3	Alumina Crucibles
4	Metal Crucibles
5	Alumina Combustion Boats
6	Ceramic pipes
7	Extra Thermocouples

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20 / 220 V fan
Chimney Fan: 40 x 40 x 10 / 5V fan

Download catalog for
Muffle Furnace LMF-B22 Catalog

Available Range :

Muffle Furnace LMF-B30 : 10 L Muffle Furnace LMF-B70 : 100 L Muffle Furnace LMF-B40 : 20 L Muffle Furnace LMF-B44 : 36 L Muffle Furnace LMF-B50 : 40 L Muffle Furnace LMF-B10 : 5 L Muffle Furnace LMF-B60 : 60 L Muffle Furnace LMF-B20 : 7 L

Models of Muffle Furnace 1100°C

Labtron Muffle Furnace 1100℃ provide high temperature heating in controlled environment with capacity of 5 L to 100 L. They feature sealed chambers isolating heating elements from material, ensuring even temperature distribution and minimizing contamination. Their digital control system provides detailed analysis of data. They include ventilation options to manage heat and fumes effectively. Our Muffle Furnace is applicable for ceramics firing, ashing of samples and sintering of powder.
