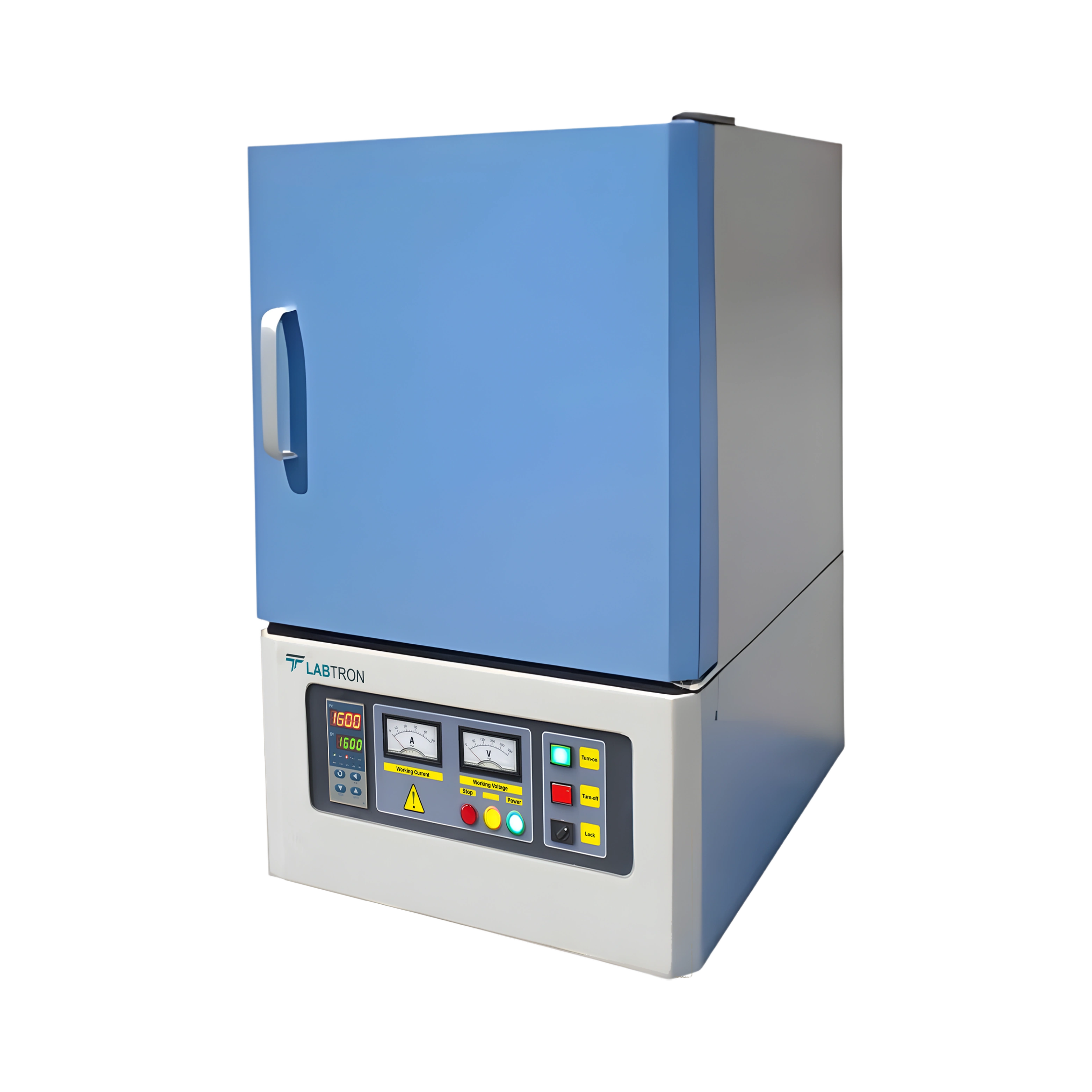

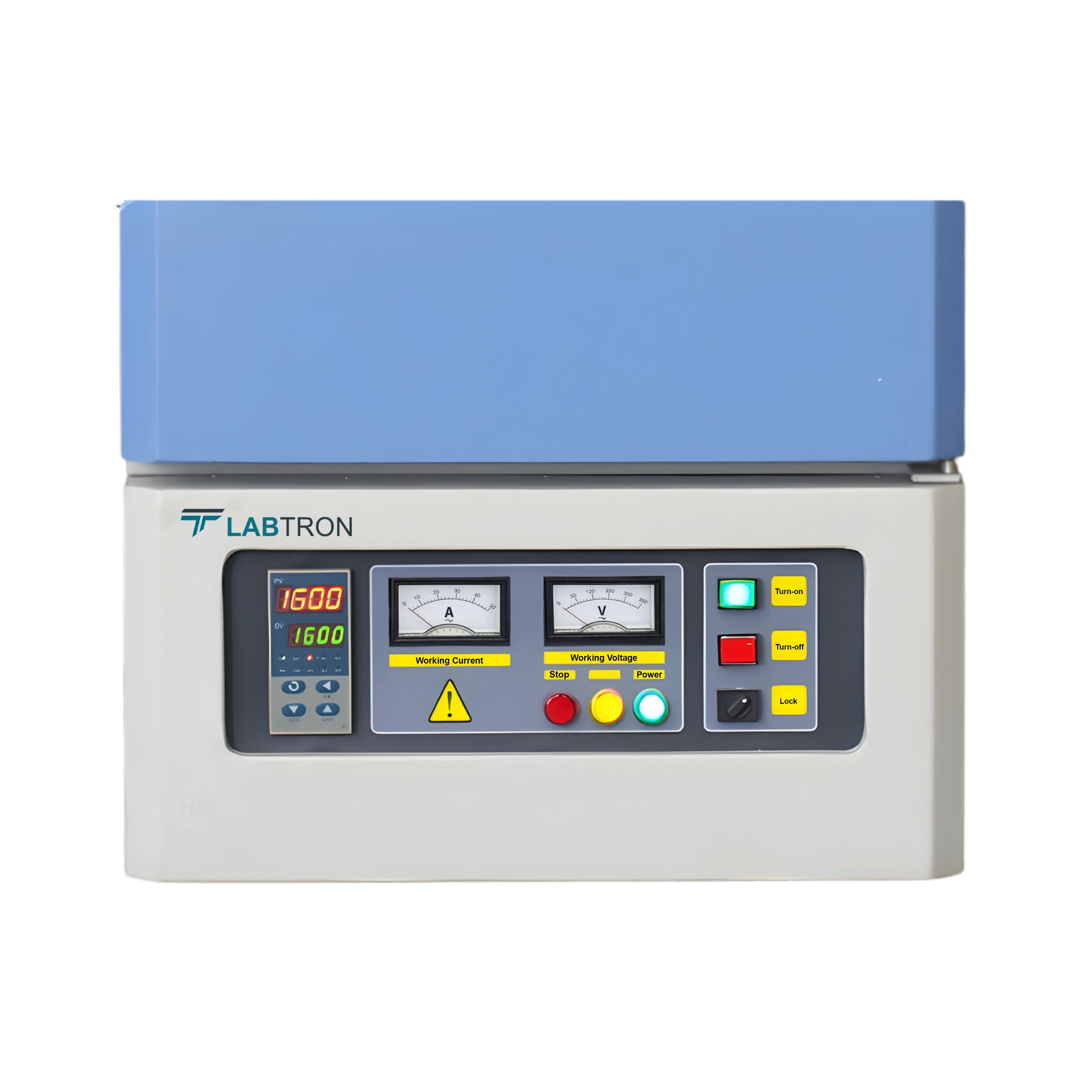

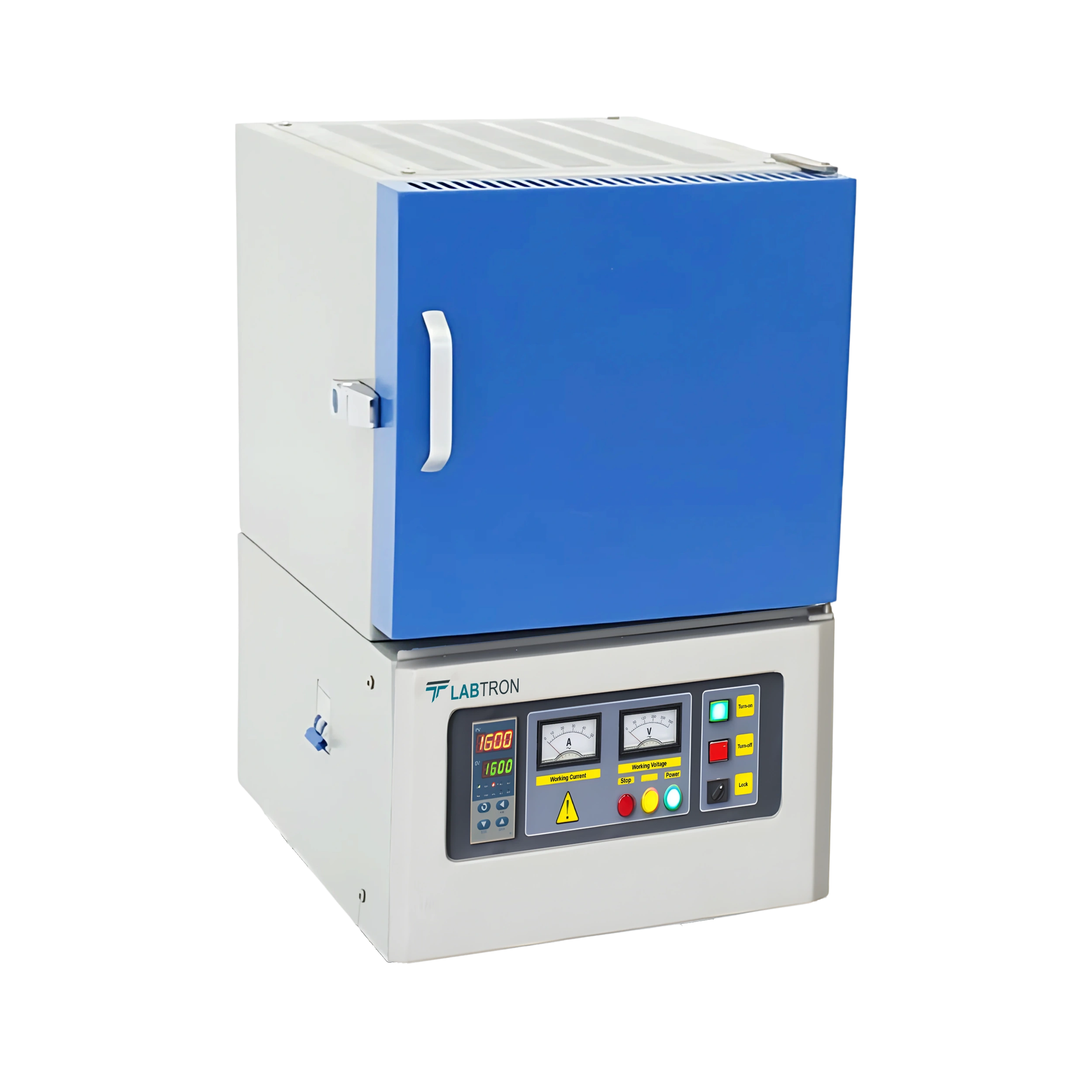

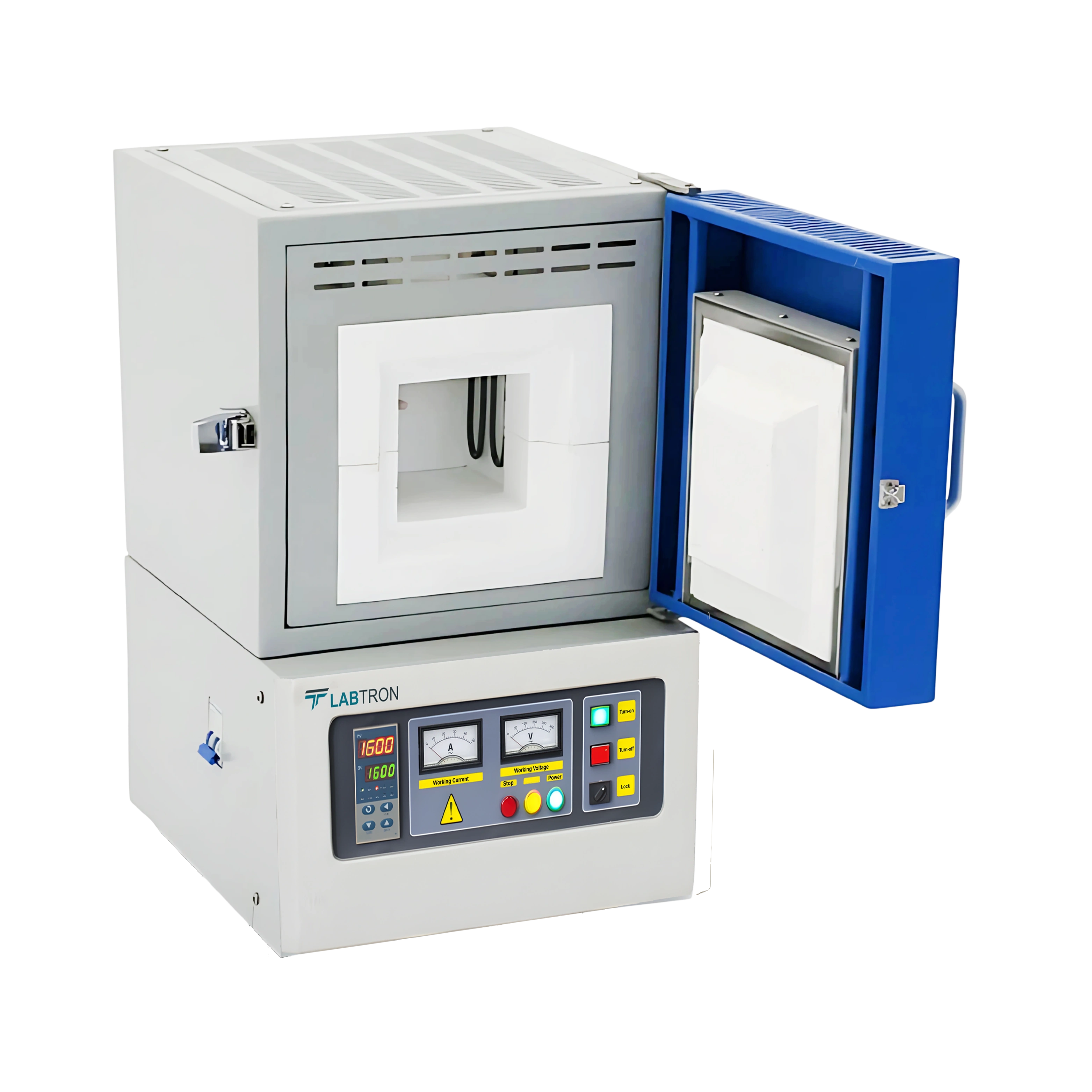

Muffle Furnace LMF-B52

Name: Muffle Furnace LMF-B52
Brand: Labtron
SKU: LMF-B52
Rating: 4.7 (691 reviews)

Muffle Furnace LMF-B52 has a capacity of 40 L and supports a maximum temperature of 1100 °C. Its heating elements are embedded in brick walls for uniform heat distribution. This device features automatic power cut-off and provides alerts in case of overheating. It offers instant energy consumption display and calculates the average working temperature. Our muffle furnace is an ideal solution for laboratories requiring reliable and efficient high-temperature performance.

Request Quote

Capacity	40 L
Maximum Temperature	1100 °C
Heating Program	8 steps
Thermal Rate	3 °C to 20 °C
Heating element	Fe-Cr-Al
Program Memories	6
Thermocouple Type	K type
Inner Insulation Material	Insulating Fire Brick
Front Face Insulation Material	Insulating Fire Brick
Door Insulation Material	Ceramic Fiber Board
Housing Material	Steel Sheet
Housing Coating	Epoxy powder coating
Element Heating Protection	Heating element protection by resistance wires
Lockable Door Handle	Sidewards
Temperature Control Accuracy	± 1 °C (can vary at low temperatures)
Measurement Accuracy	±1°C
Inner Volume Temperature Homogeneity	± 10 °C
Power Supply	13A
Power Consumption	7.500 W
Inner Chamber Dimension (W × H × D)	300 × 300 × 445 mm
Product Outer Dimension (W × H × D)	630 × 785 × 840 mm
Gross Dimension (W × H × D)	690 × 1000 × 845 mm
Net Weight	112 kg
Gross weight	136 kg

Audio alerts
Standard chimney
LCD display
Microprocessor-controlled system
Dual shell housing

Muffle Furnace LMF-B52 is used for various laboratory and industrial processes such as fusing glass, creating enamel coatings, and ceramic work. It is ideal for brazing, soldering, and processing rubbers and polymers.

Sr. No.	Accessory
1	High Temperature Gloves
2	Tongs
3	Alumina Crucibles
4	Metal Crucibles
5	Alumina Combustion Boats
6	Ceramic pipes
7	Extra Thermocouples

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20 / 220 V fan
Chimney Fan: 40 x 40 x 10 / 5V fan

Download catalog for
Muffle Furnace LMF-B52 Catalog

Download manual for
Muffle Furnace LMF-B52 Manual

Available Range :

Muffle Furnace LMF-B30 : 10 L Muffle Furnace LMF-B70 : 100 L Muffle Furnace LMF-B40 : 20 L Muffle Furnace LMF-B44 : 36 L Muffle Furnace LMF-B50 : 40 L Muffle Furnace LMF-B10 : 5 L Muffle Furnace LMF-B60 : 60 L Muffle Furnace LMF-B20 : 7 L

Models of Muffle Furnace 1100°C

Labtron Muffle Furnace 1100℃ provide high temperature heating in controlled environment with capacity of 5 L to 100 L. They feature sealed chambers isolating heating elements from material, ensuring even temperature distribution and minimizing contamination. Their digital control system provides detailed analysis of data. They include ventilation options to manage heat and fumes effectively. Our Muffle Furnace is applicable for ceramics firing, ashing of samples and sintering of powder.
