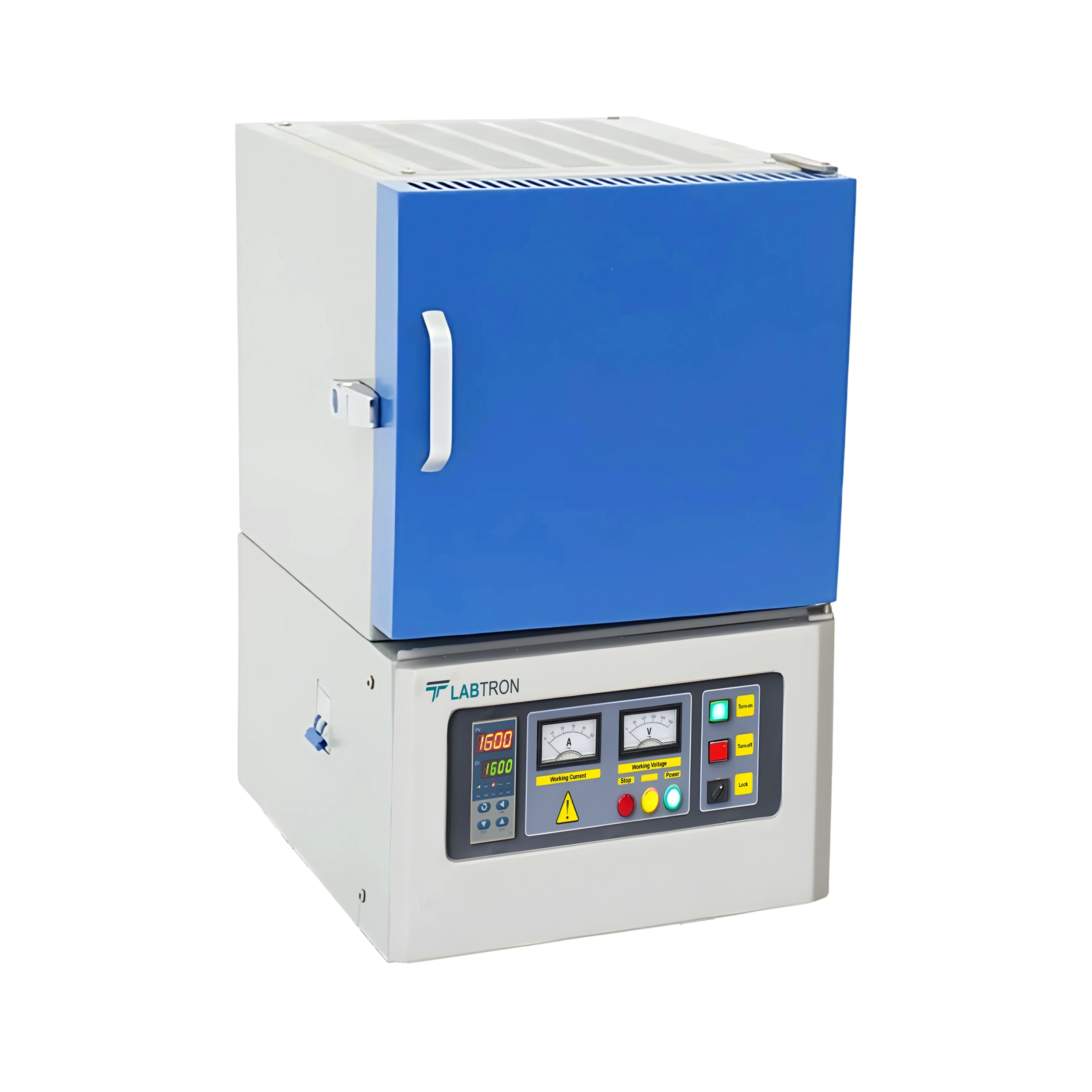

Muffle Furnace LMF-B31

Name: Muffle Furnace LMF-B31
Brand: Labtron
SKU: LMF-B31
Rating: 4.8 (933 reviews)

Muffle Furnace LMF-B31 supports a four-step heating program with a maximum temperature of 1100°C. It automatically cuts power and alarms in case of overheating. This device is equipped with an energy consumption indicator and average temperature calculator. The insulation includes fire bricks inside and front, with a ceramic fiber board on the door. Its dual shell housing ensures a low outer surface temperature. Our muffle furnace is ideal for precision heating in demanding laboratory environments.

Request Quote

Max. Temperature	1100 °C
Capacity	10 L
Heating Program	4 step
Thermal Rate	3 °C - 20 °C
Heating element	Fe-Cr-Al
Program Memories	4
Thermocouple Type	K Type
Heating Element Placement	Embedded into brick walls
Inner Insulation Material	Insulating Fire Brick
Front Face Insulation Material	Insulating Fire Brick
Door Insulation Material	Ceramic Fibre Board
Housing Material	Steel Sheet
Housing Coating	Epoxy powder coating
Chimney	Standard
Element Heating Protection	Heating element protection by resistance wires
Lockable Door Handle	Sidewards
Temperature Control Accuracy	± 1 °C (can vary at low temperatures)
Measurement Accuracy	± 1 °C
Inner Volume Temperature Homogenity	± 10 °C
Max. Current	13 A
Power	3.000 W
Inner Chamber Dimension (W x H x D)	200 x 180 x 300 mm
Product Outer Dimension (W x H x D)	496 x 648 x 695 mm
Gross Dimension (W x H x D)	556 x 855 x 708 mm
Net Weight	50 kg
Gross weight	67 kg

Audio alert system
Descriptive error
Microprocessor-based PID control
LCD display
Standard chimney

Muffle Furnace LMF-B31 is used for fusing glass, creating enamel coatings, ceramics, soldering, and brazing. It is used in metallurgical labs for ash content analysis and in research or medical laboratories to determine volatile and non-combustible components of samples.

Sr. No.	Accessory
1	High Temperature Gloves
2	Tongs
3	Alumina Crucibles
4	Metal Crucibles
5	Alumina Combustion Boats
6	Ceramic pipes
7	Extra Thermocouples

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20 / 220 V fan
Chimney Fan: 40 x 40 x 10 / 5V fan

Download catalog for
Muffle Furnace LMF-B31 Catalog

Available Range :

Muffle Furnace LMF-B31 : 1100 °C Muffle Furnace LMF-B30 : 1200 °C

Models of Muffle Furnace 1100°C

Labtron Muffle Furnace 1100℃ provide high temperature heating in controlled environment with capacity of 5 L to 100 L. They feature sealed chambers isolating heating elements from material, ensuring even temperature distribution and minimizing contamination. Their digital control system provides detailed analysis of data. They include ventilation options to manage heat and fumes effectively. Our Muffle Furnace is applicable for ceramics firing, ashing of samples and sintering of powder.
