| Capacity | 10 L |
| Maximum Temperature | 1100 °C |
| Heating Program | 50 steps |
| Thermal Rate | 3 °C to 20 °C |
| Heating element | Fe-Cr-Al |
| Program Memories | 50 |
| Heating Element Placement | Embedded into brick walls |
| Housing Material | Steel Sheet |
| Housing Coating | Epoxy powder coating |
| Element Heating Protection | Embedded into brick walls |
| Lockable Door Handle | Sidewards |
| Temperature Control Accuracy | ± 1 °C (can vary at low temperatures) |
| Measurement Accuracy | ±1°C |
| Inner Volume Temperature Homogeneity | ± 10 °C |
| Power Supply | 20 A |
| Power Consumption | 5000 W |
| Inner Chamber Dimension (W × H × D) | 200 × 200 ×300 mm |
| Product Outer Dimension (W × H × D) | 700 × 1200 × 800 mm |
| Gross Dimension (W × H × D) | 700 × 1200 × 800 mm |
| Net Weight | 100 kg |
| Gross weight | 120 kg |
LCD display
Dual shell housing
Descriptive error
Microprocessor controlled system
Standard chimney

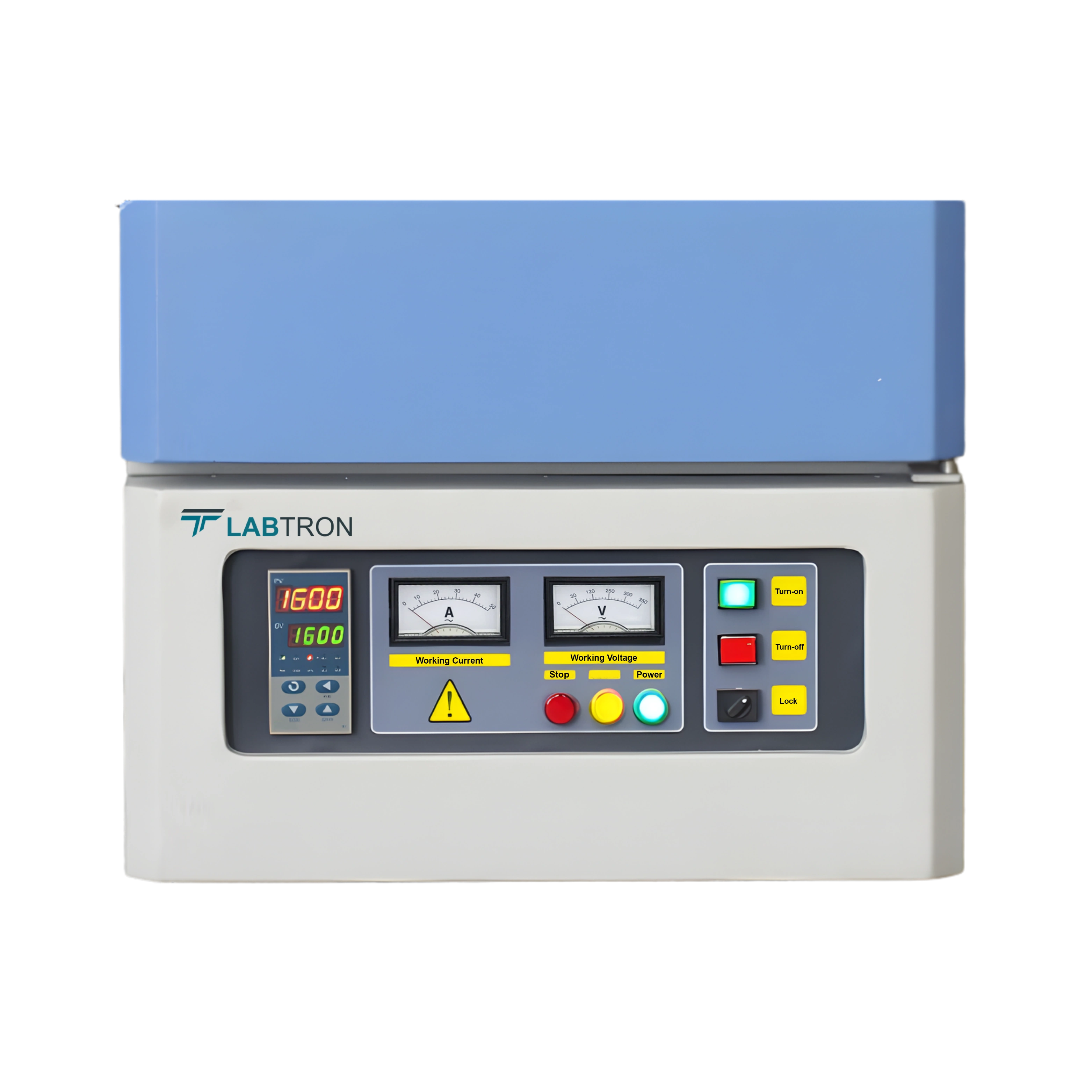

Muffle Furnace LMF-B33 is widely used for high-temperature laboratory and industrial processes. It is suitable for fusing glass, creating enamel coatings, ceramics, brazing, soldering, and processing rubbers and polymers.
| Name | Quantity |
| High Temperature Gloves | 1 Set |
| Tongs | 1 Set |
| Name | Quantity |
| Alumina Crucible (140 × 140 mm) | 1 Piece |
| Alumina Coumbustion Boat (140 × 140 × 40 mm) | 1 Piece |
| Ceramic Pipes | 1 Set |
| Extra Thermocouple | 1 Piece |
Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply
Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20 / 220 V fan
Chimney Fan: 40 x 40 x 10 / 5V fan
Download catalog for
Muffle Furnace LMF-B33 Catalog
Download manual for
Muffle Furnace LMF-B33 Manual
Labtron Muffle Furnace 1100℃ provide high temperature heating in controlled environment with capacity of 5 L to 100 L. They feature sealed chambers isolating heating elements from material, ensuring even temperature distribution and minimizing contamination. Their digital control system provides detailed analysis of data. They include ventilation options to manage heat and fumes effectively. Our Muffle Furnace is applicable for ceramics firing, ashing of samples and sintering of powder.
