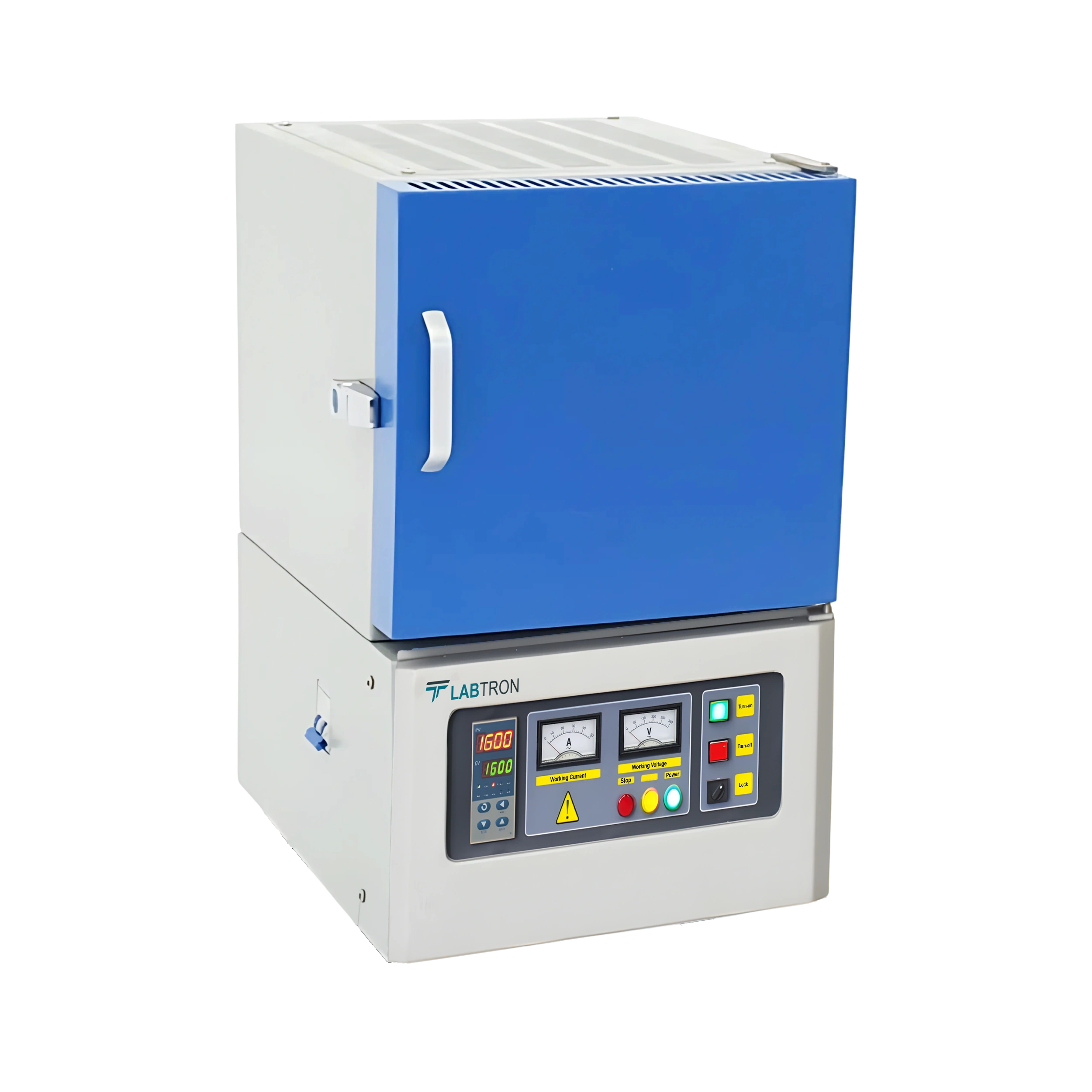

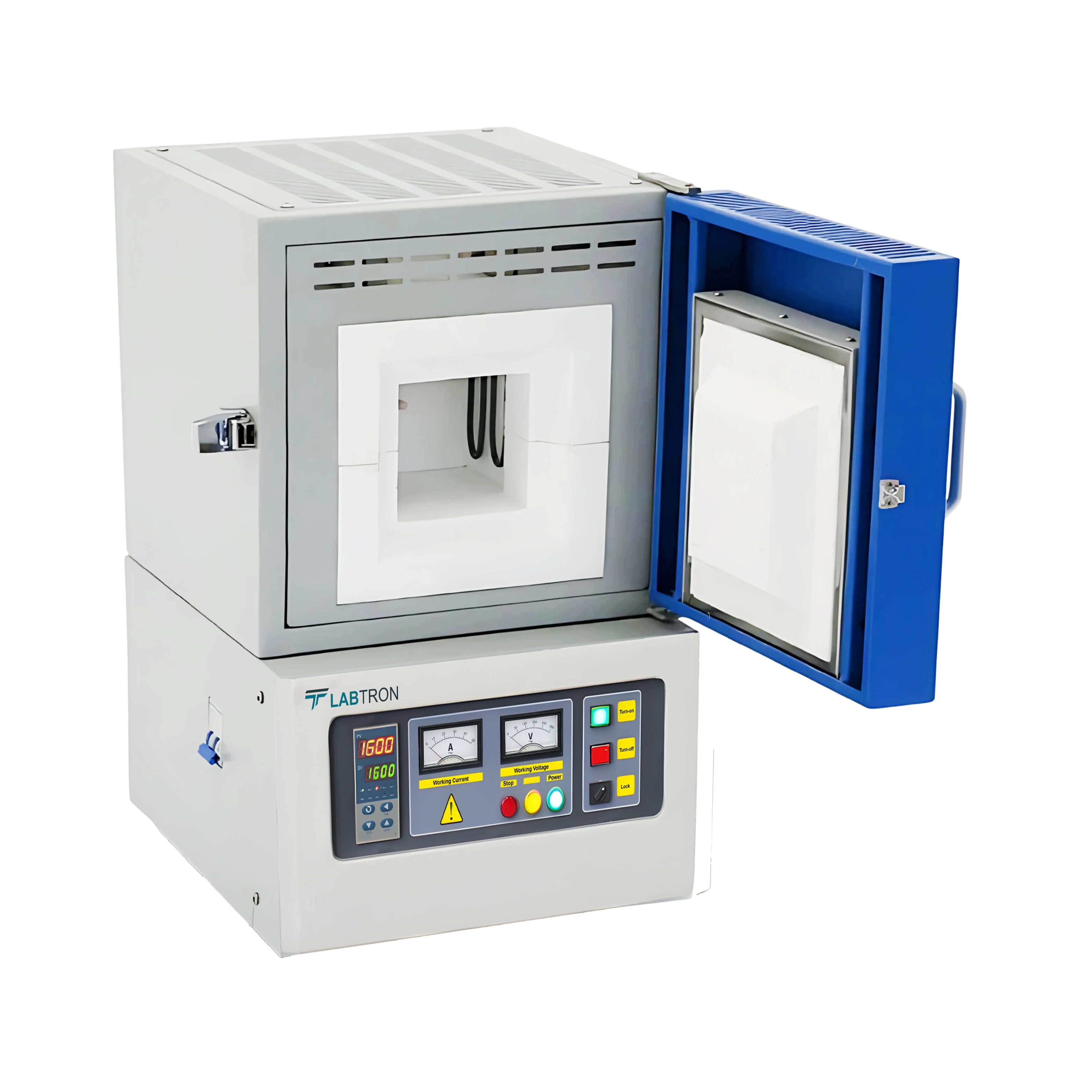

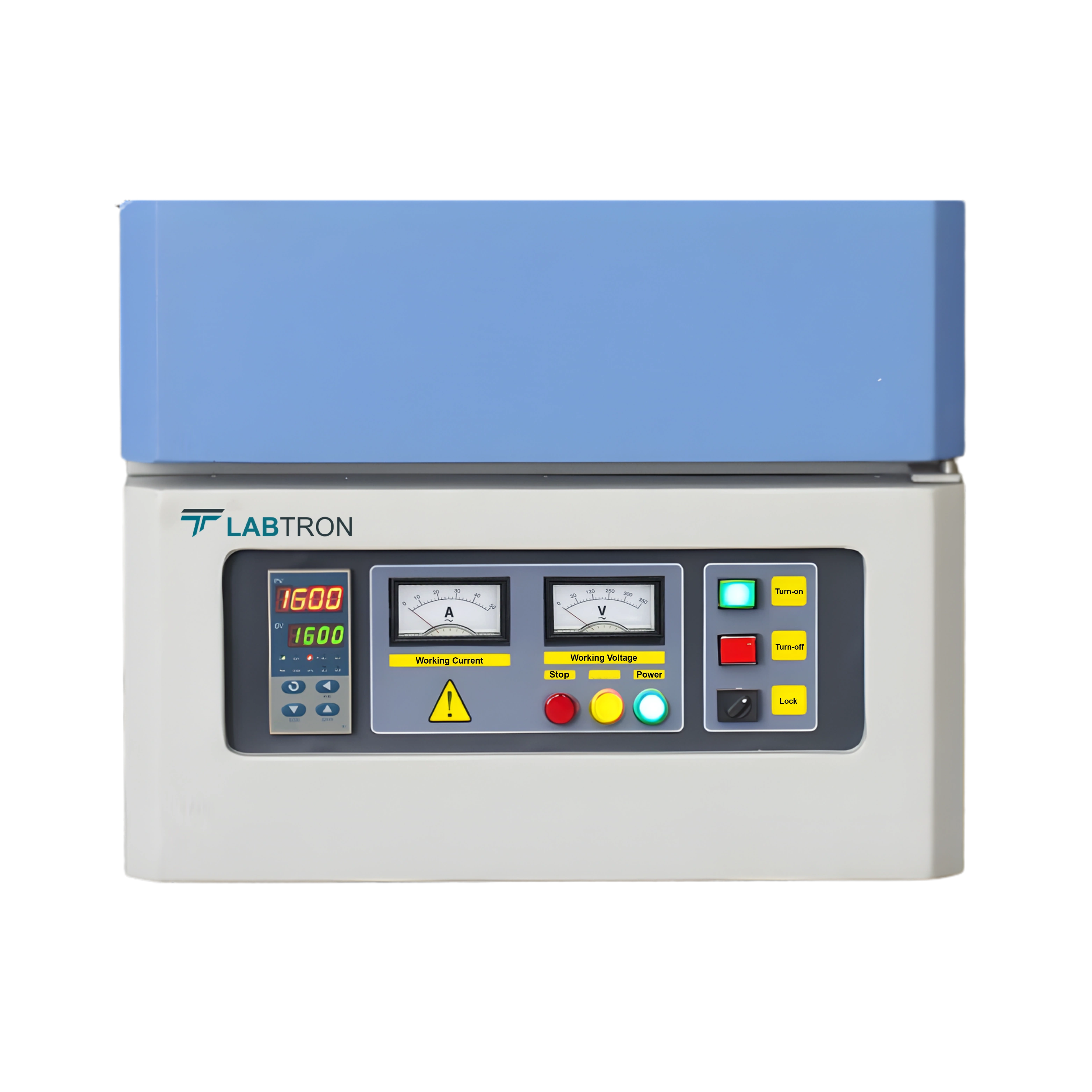

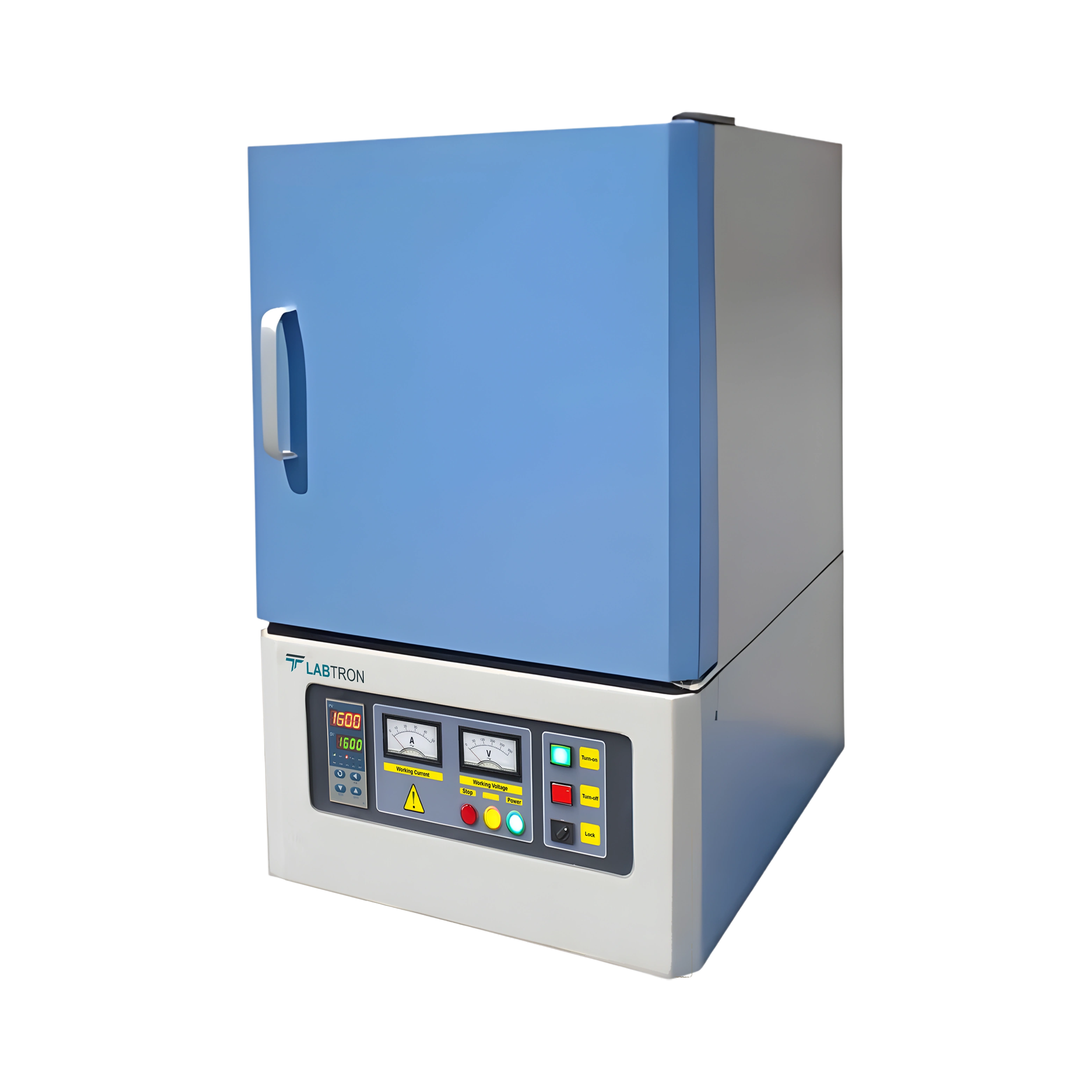

Muffle Furnace LMF-B30

Muffle Furnace LMF-B30

LMF-B30 model of Muffle Furnace is a microprocessor controlled furnace with steel sheet housing material and is efficiently designed for minimal space requirement in the laboratory. With heating elements such as Fe-Cr-Al embedded into bricks, K and S type thermocouple and optimum insulation properties, it is ideal for maximum or continuous working temperature of 1100°C. It is accurate in measuring and controlling the temperature and is equipped with instantaneous energy consumption indicator, calculator for average working temperature and descriptive error indicator.

Request Quote
Max. Temperature 1100 °C
Capacity 10 L
Heating Program 2 step
Thermal Rate 3 °C - 20 °C
Heating element Fe-Cr-Al
Program Memories 2
Thermocouple Type K Type
Heating Element Placement Embedded into brick walls
Inner Insulation Material Insulating Fire Brick
Front Face Insulation Material Insulating Fire Brick
Door Insulation Material Ceramic Fibre Board
Housing Material Steel Sheet
Housing Coating Epoxy powder coating
Chimney Standard
Element Heating Element Protection Quartz Tube
Lockable Door Handle Sidewards
Temperature Control Accuracy ± 1 °C (can vary at low temperatures)
Measurement Accuracy ± 1 °C
Inner Volume Temperature Homogenity ± 10 °C
Max. Current 13 A
Power 3.000 W
Inner Chamber Dimension (W x H x D) 200 x 180 x 300 mm
Product Outer Dimension (W x H x D) 496 x 648 x 695 mm
Gross Dimension (W x H x D) 556 x 855 x 708 mm
Net Weight 50 kg
Gross weight 67 kg
  • PID controller
  • LCD display that shows current and target temperature
  • Optimum insulation properties
  • 2, 4, 8 and 16 step heating programs available
  • Fe-Cr-Al heating element embedded in brick walls
  • Accurate measurement and control of temperature using K and S type thermocouple
  • Second thermocouple for different adjustable purposes
  • Durable inside lining made of light insulating bricks
  • Dual shell housing for low outer surface temperature
  • Steel sheet housing material
  • Insulating fire brick as inner and front face insulation material
  • Ceramic fibre board as door insulation material
  • Quartz tube used to protect heating element
  • Provision of audio warning as the step changes and at the end of the program
  • Provision of automatic power cut-off to the heating elements and alert if the control unit/control card is over heated
  • Instantaneous energy consumption indicator
  • Calculator for average working temperature
  • Descriptive error indicator
  • User friendly menu

It is used for applications such as: Fusing glass, Creating enamel coatings, Ceramics, Soldering, Brazing, Rubbers & Polymers. It is also used for metallurgical applications, for ash content determination and in research centers and medical laboratories to determine the volatile & non-combustible proportion of the sample.

Sr. No. Accessory
1 High Temperature Gloves
2 Tongs
3 Alumina Crucibles
4 Metal Crucibles
5 Alumina Combustion Boats
6 Ceramic pipes
7 Extra Thermocouples

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20 / 220 V fan
Chimney Fan: 40 x 40 x 10 / 5V fan
