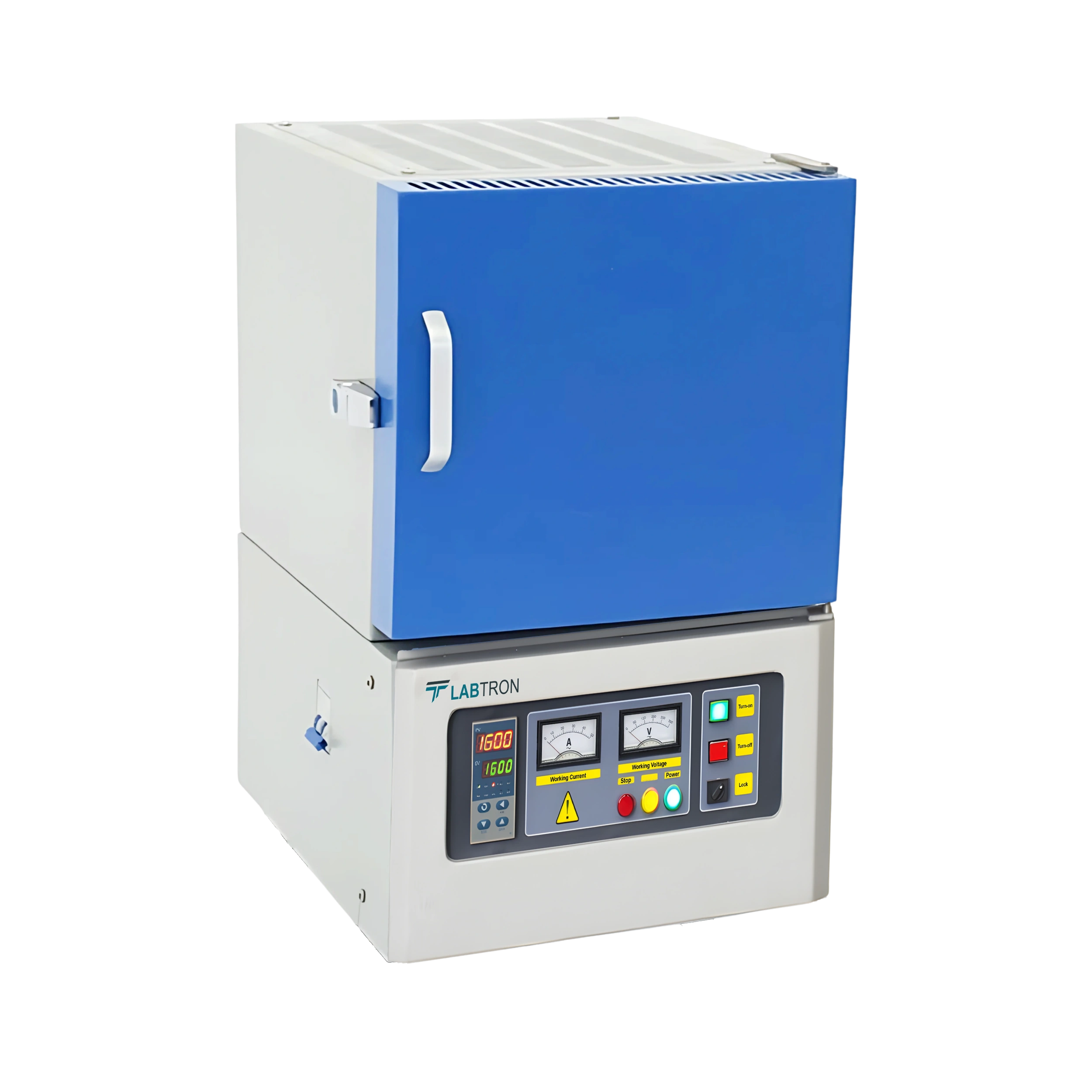

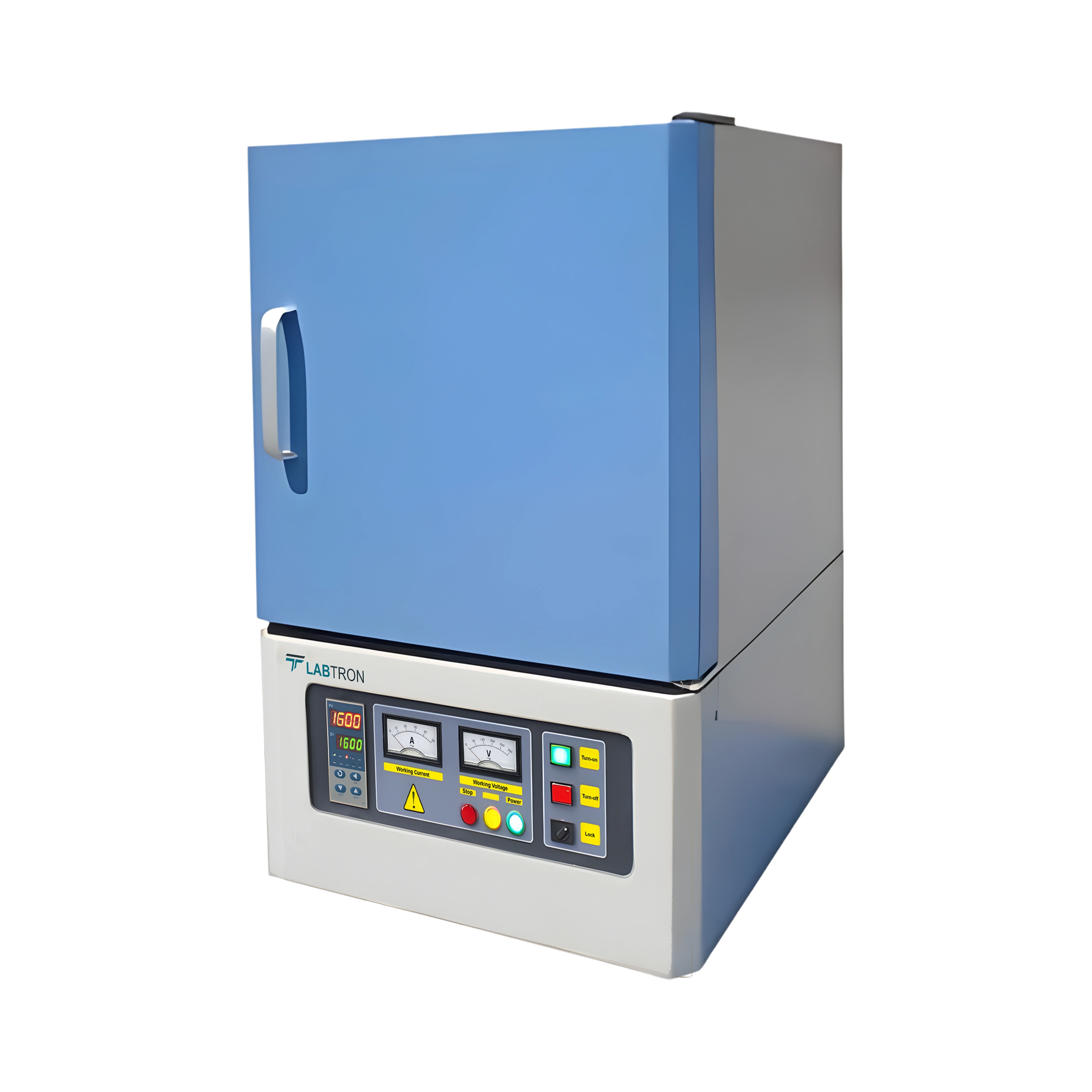

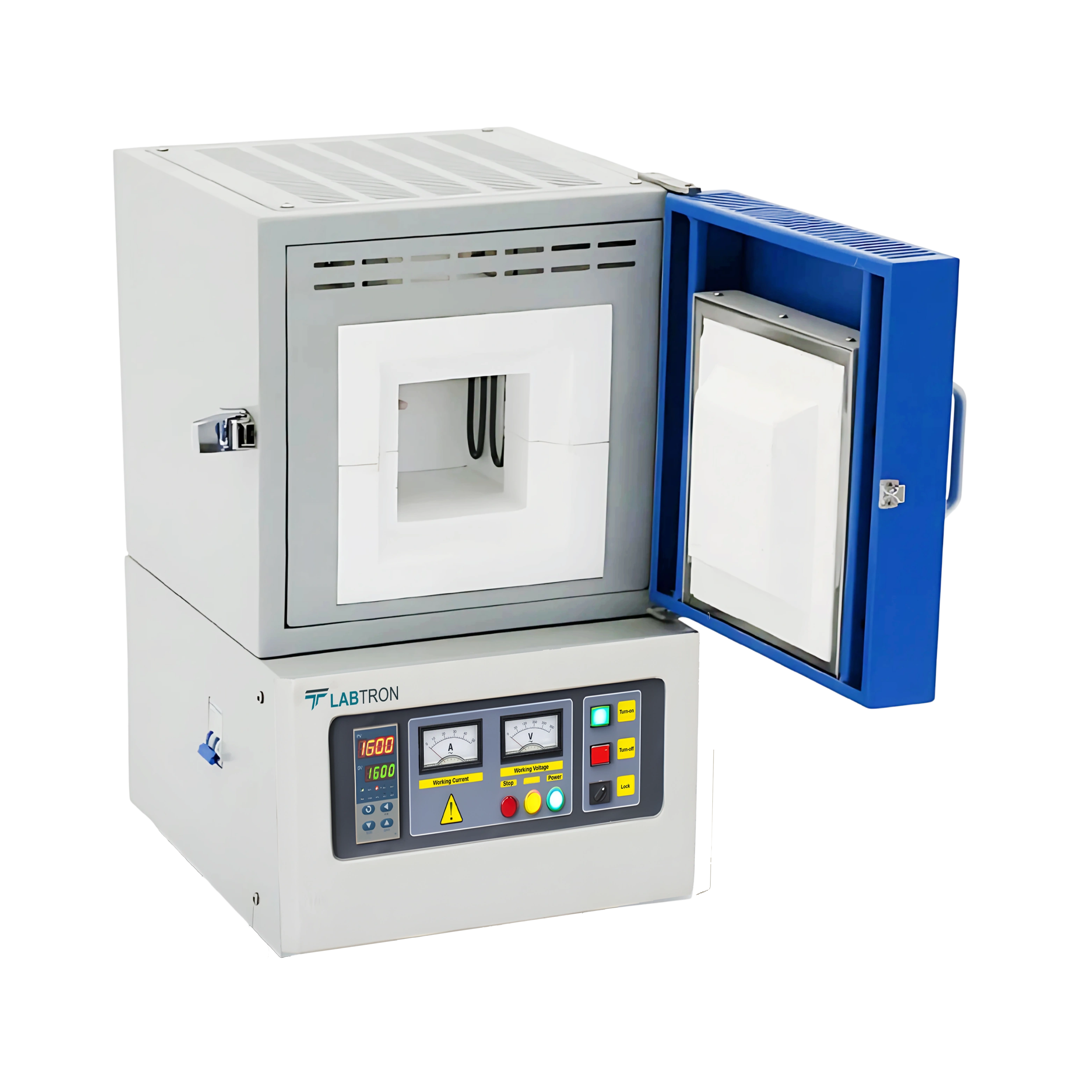

Muffle Furnace LMF-B12 has a maximum temperature of 1100°C and features an 8-step heating program. The built-in safety features protect the control unit from overheating. Its steel sheet housing ensures durability and stability. It features insulating fire bricks for the inner and front face, with a ceramic fiber board for door insulation. This device has an auto power cut-off, an energy consumption indicator, and an audio warning system. Our muffle furnace offers reliable performance for various industrial and laboratory needs.
| Capacity | 5 L |
| Maximum Temperature | 1100 °C |
| Heating Program | 8 steps |
| Thermal Rate | 3 °C to 20 °C |
| Heating element | Fe-Cr-Al |
| Thermocouple | K type |
| Program Memories | 6 |
| Heating Element Placement | Embedded into brick walls |
| Housing Material | Steel Sheet |
| Housing Coating | Epoxy powder coating |
| Element Heating Protection | Quartz tube |
| Lockable Door Handle | Sidewards |
| Temperature Control Accuracy | ± 1 °C (can vary at low temperatures) |
| Measurement Accuracy | ±1°C |
| Inner Volume Temperature Homogeneity | ± 10 °C |
| Power Supply | 9A |
| Power Consumption | 2.000 W |
| Inner Chamber Dimension (W × H × D) | 152 × 150 × 225 mm |
| Product Outer Dimension (W × H × D) | 448 × 618 × 620 mm |
| Gross Dimension (W × H × D) | 508 × 780 × 678 mm |
| Net Weight | 43 kg |
| Gross weight | 57 kg |
PID controller
Microprocessor-controlled
Standard chimney
Dual-shell housing
Descriptive error indicator
LCD display
Muffle Furnace LMF-B12 is widely used in laboratories and industrial settings for high-temperature applications. This furnace is ideal for fusing glass, enamel coating, ceramics, and metallurgical processes.
| Sr. No. | Accessory |
| 1 | High Temperature Gloves |
| 2 | Tongs |
| 3 | Alumina Crucibles |
| 4 | Metal Crucibles |
| 5 | Alumina Combustion Boats |
| 6 | Ceramic pipes |
| 7 | Extra Thermocouples |
Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply
Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace

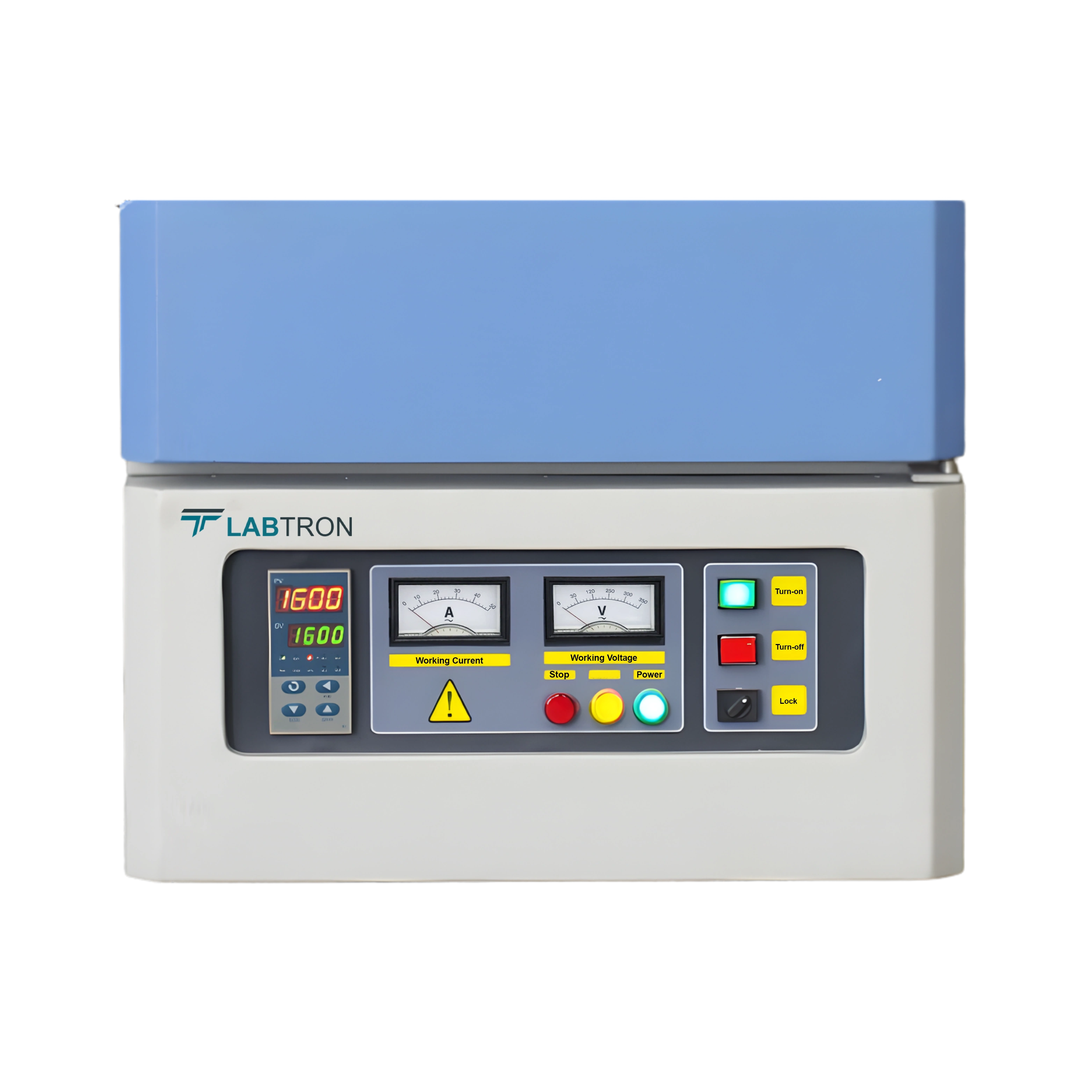

Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20 / 220 V fan
Chimney Fan: 40 x 40 x 10 / 5V fan
Download catalog for
Muffle Furnace LMF-B12 Catalog
Download manual for
Muffle Furnace LMF-B12 Manual
Labtron Muffle Furnace 1100℃ provide high temperature heating in controlled environment with capacity of 5 L to 100 L. They feature sealed chambers isolating heating elements from material, ensuring even temperature distribution and minimizing contamination. Their digital control system provides detailed analysis of data. They include ventilation options to manage heat and fumes effectively. Our Muffle Furnace is applicable for ceramics firing, ashing of samples and sintering of powder.
