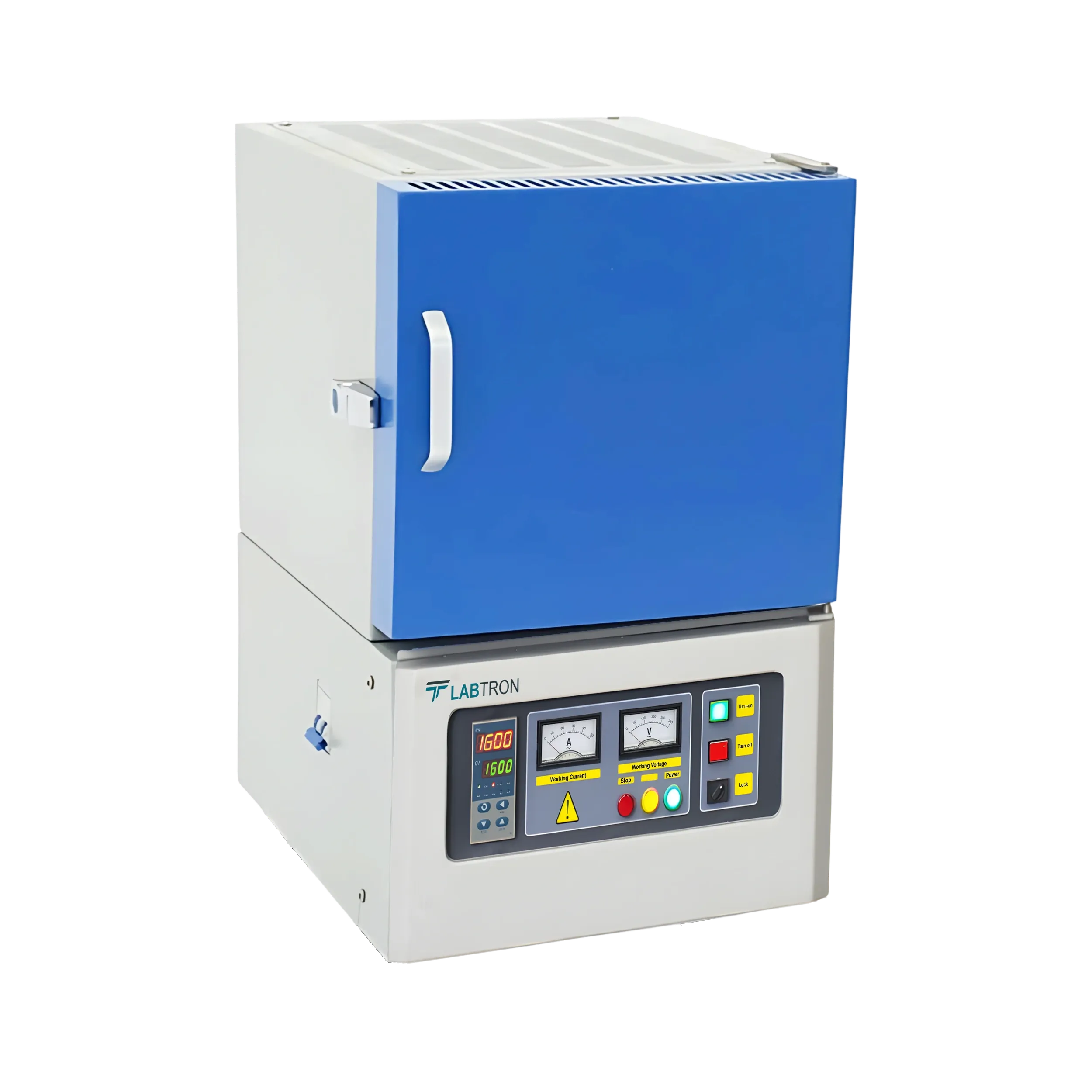

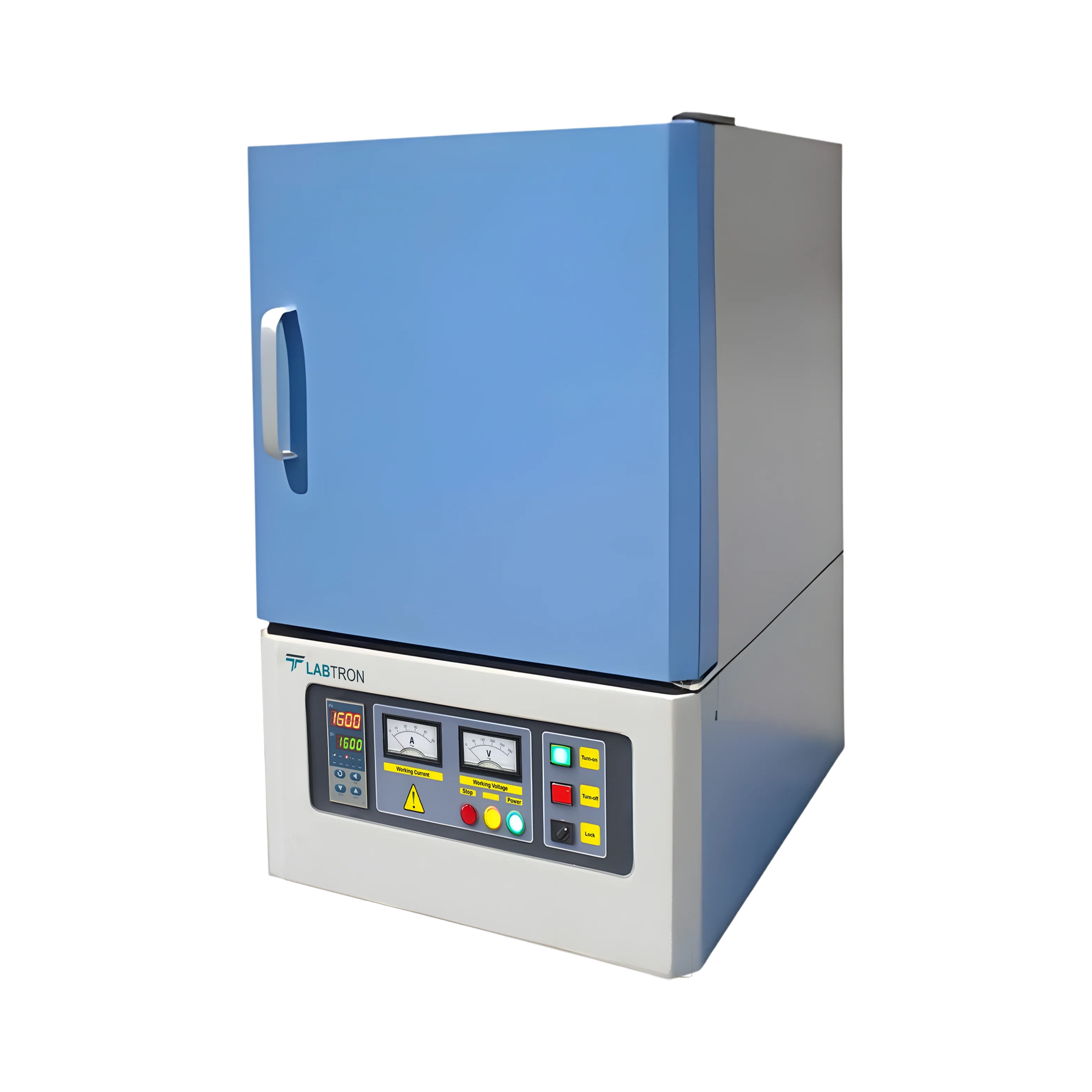

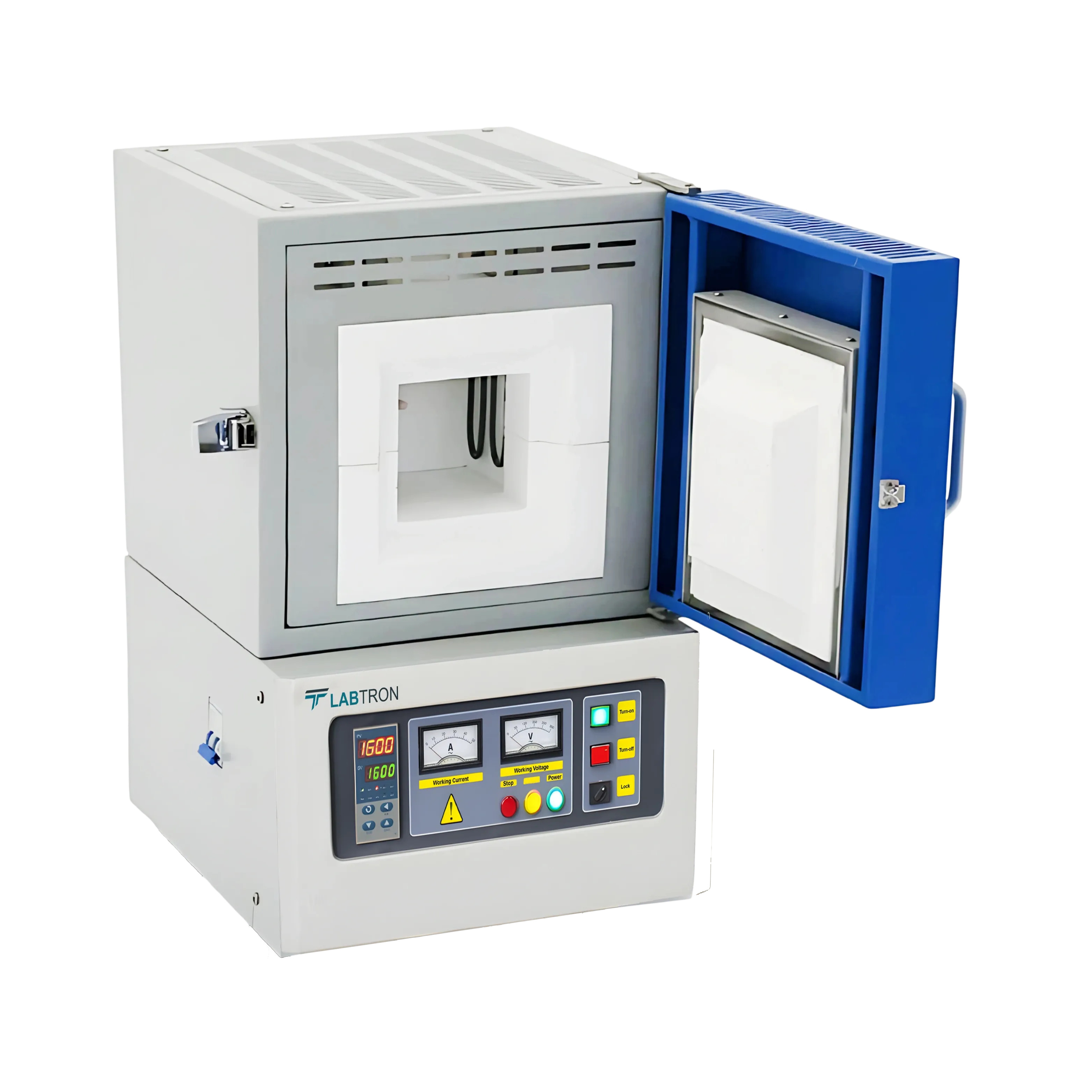

Muffle Furnace LMF-C41

Muffle Furnace LMF-C41

Muffle Furnace LMF-C41 has a 20L capacity and reaches up to 1200°C. It's microprocessor-controlled, with straightforward controls and excellent insulation. Equipped with K and S type thermocouples in a dual-shell enclosure, it maintains low outside temperatures. Audio alerts signal the end of the program and step changes. Additionally, it includes automatic power cutoff for heating elements and alerts for overheating control units.
Request Quote
Max. Temperature 1200 °C
Capacity 20 L
Heating Program 4 steps
Thermal Rate 3 °C - 20 °C
Heating element Fe-Cr-Al
Program Memories 4
Thermocouple Type K Type
Heating Element Placement Embedded into brick walls
Front Face, Inner Insulation Material Insulating Fire Brick
Door Insulation Material Ceramic Fiber Board
Housing Material Steel Sheet
Housing Coating Epoxy powder coating
Chimney Standard
Heating Element Protection Quartz Tube
Lockable Door Handle Sidewards
Temperature Control Accuracy ± 1 °C (can vary at low temperatures)
Measurement Accuracy ± 1 °C
Inner Volume Temperature Homogeneity ± 10 °C
Max. Current 2 × 9 A
Power 4.200 W
Inner Chamber Dimension (W × H × D) 250 × 200 × 395 mm
Product Outer Dimension (W × H × D) 546 × 668 × 790 mm
Gross Dimension (W × H × D) 606 × 950 × 728 mm
Net Weight 65 kg
Gross weight 85 kg

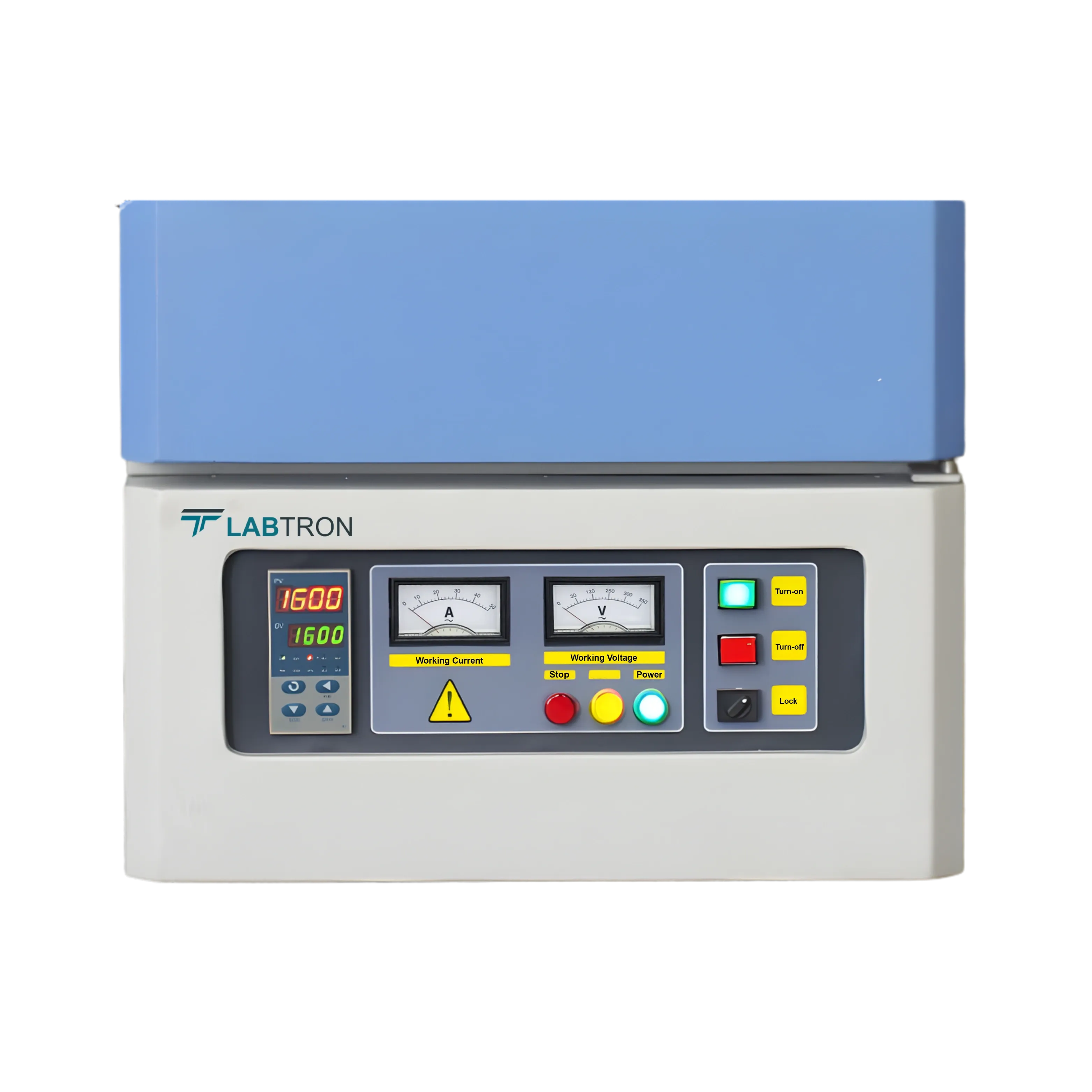

  • LCD display shows current and target temperature
  • Heating programs are available in 2, 4, 8, and 16 steps
  • Instantaneous energy consumption indicator
  • Calculator for average working temperature
  • Total working hour counter and error indicator included
Our muffle furnace is utilized across diverse industries such as glass, textile, rubber, plastic, biomedical, paint, and metallurgical applications for various heating and processing needs.
High Temperature Gloves
Tongs
Alumina Crucibles
Metal Crucibles
Alumina Combustion Boats
Ceramic pipes
Extra Thermocouples
Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply
Inner Module: Changing inner module renews your furnace close to a brand-new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 × 20 LCD display
Cooling Fan: 80 × 80 × 20 / 220 V fan
Chimney Fan: 40 × 40 × 10 / 5V fan

Download catalog for
Muffle Furnace LMF-C41 Catalog

Download manual for
Muffle Furnace LMF-C41 Manual

Similar Products

Related Sub-Category


Muffle Furnace 1200°C : Labtron Muffle Furnace 1200°C features accurate measurement and control of the temperature of K- and S-type thermocouples, providing precise readings. These durable inside linings, made of light-insulating bricks, enhance heat retention and efficiency. Their insulating fire brick material is used for inner and front face insulation, further optimizing heat containment. They use a quartz tube to protect the heating element, ensuring safety. Our furnace has an automatic power cut-off to the heating elements and an alert system if the control unit/control card is overheated, ensuring performance and safety.
Muffle Furnace LMF-C13, Muffle Furnace LMF-C40, Muffle Furnace LMF-C20, Muffle Furnace LMF-C11, Muffle Furnace LMF-C22, Muffle Furnace LMF-C33, Muffle Furnace LMF-C70, Muffle Furnace LMF-C53, Muffle Furnace LMF-C21, Muffle Furnace LMF-C51, Muffle Furnace LMF-C61, Muffle Furnace LMF-C42, Muffle Furnace LMF-C50, Muffle Furnace LMF-C10, Muffle Furnace LMF-C72, and more.
