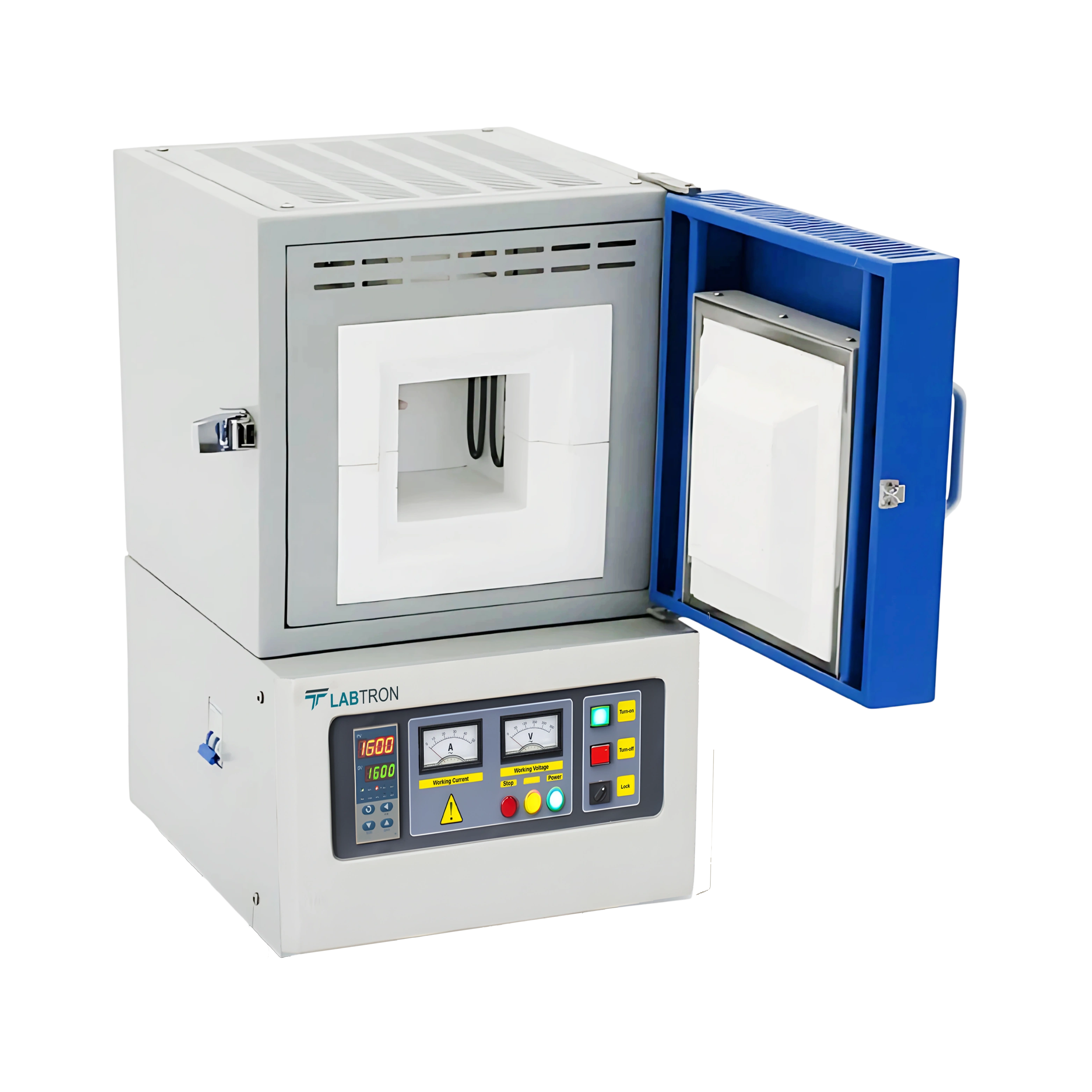

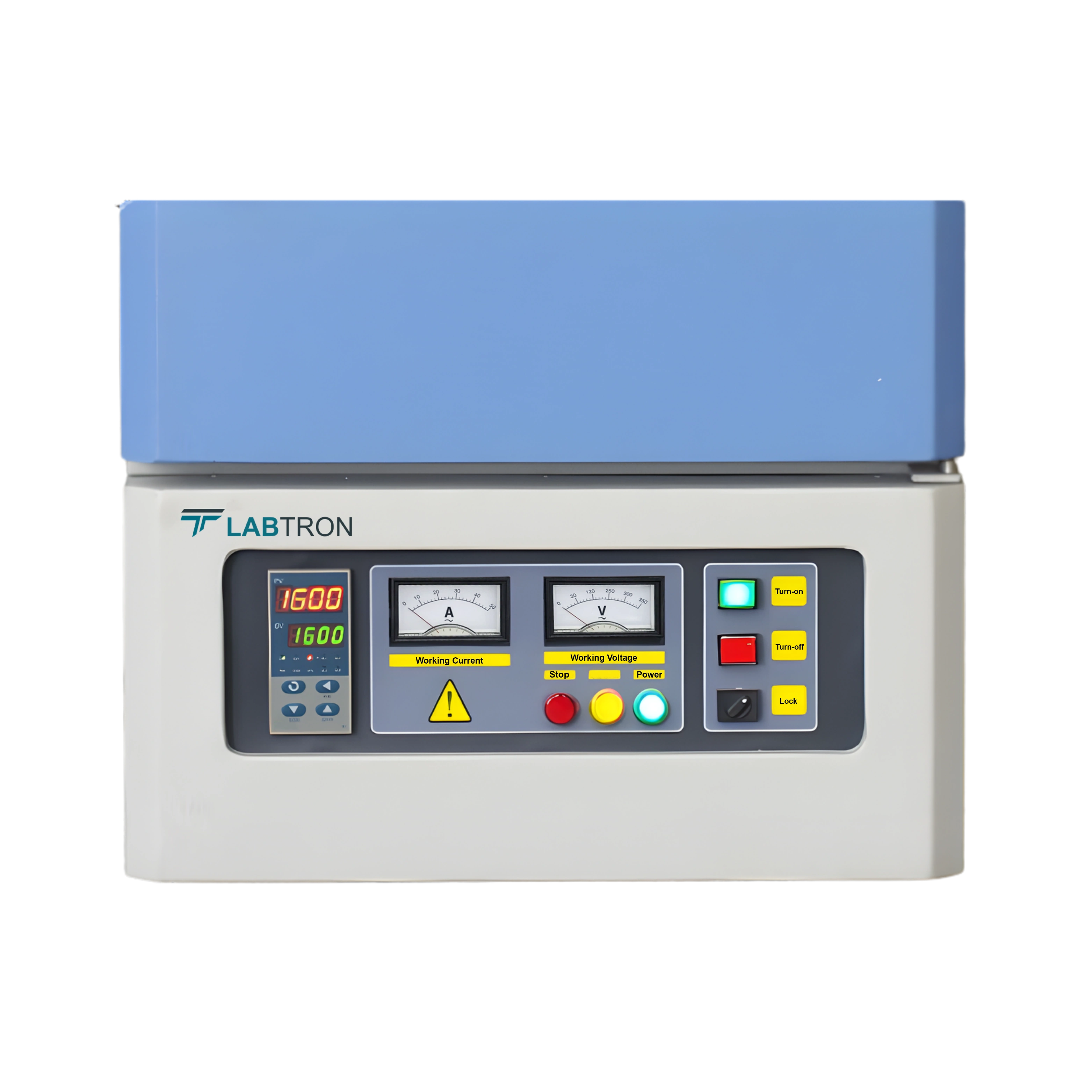

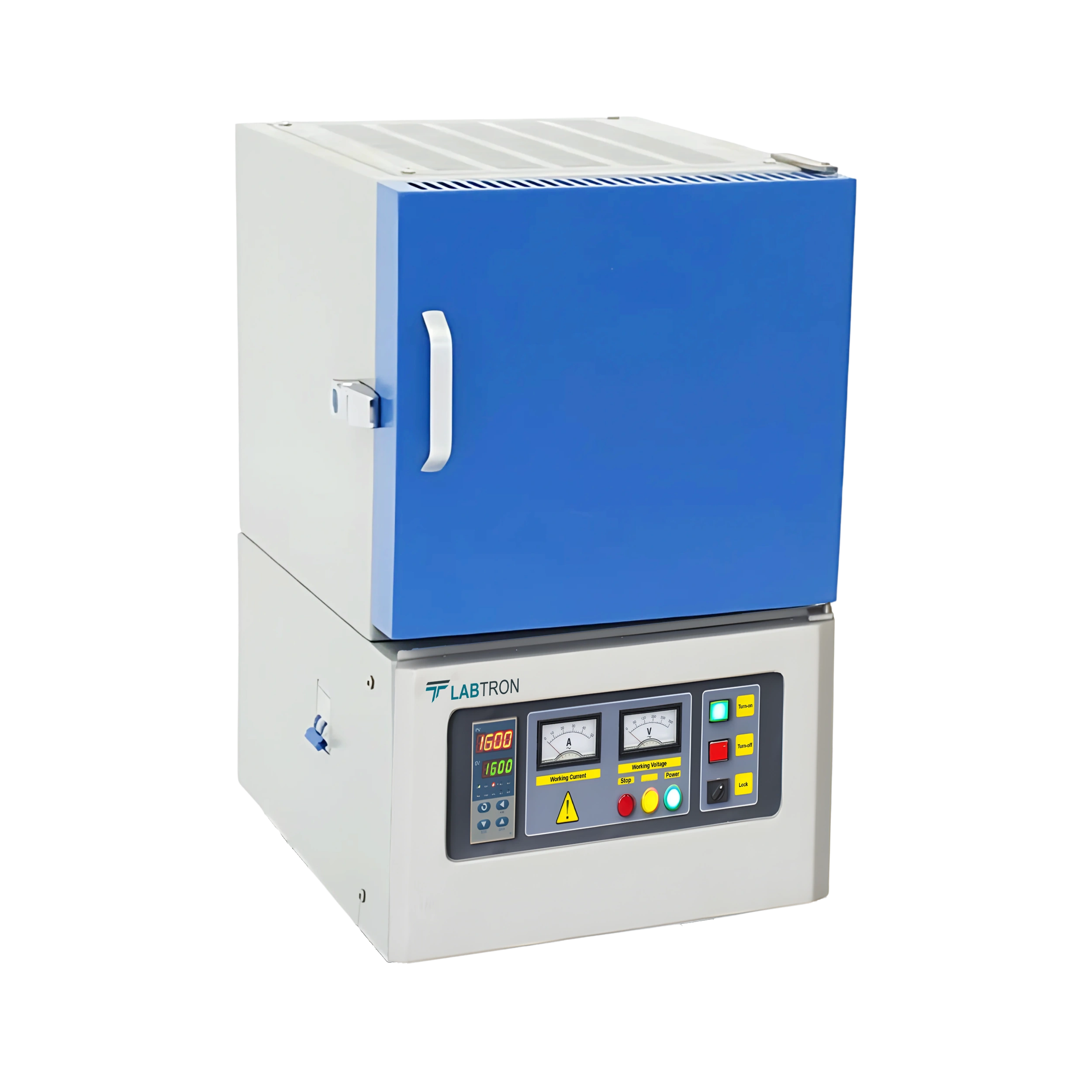

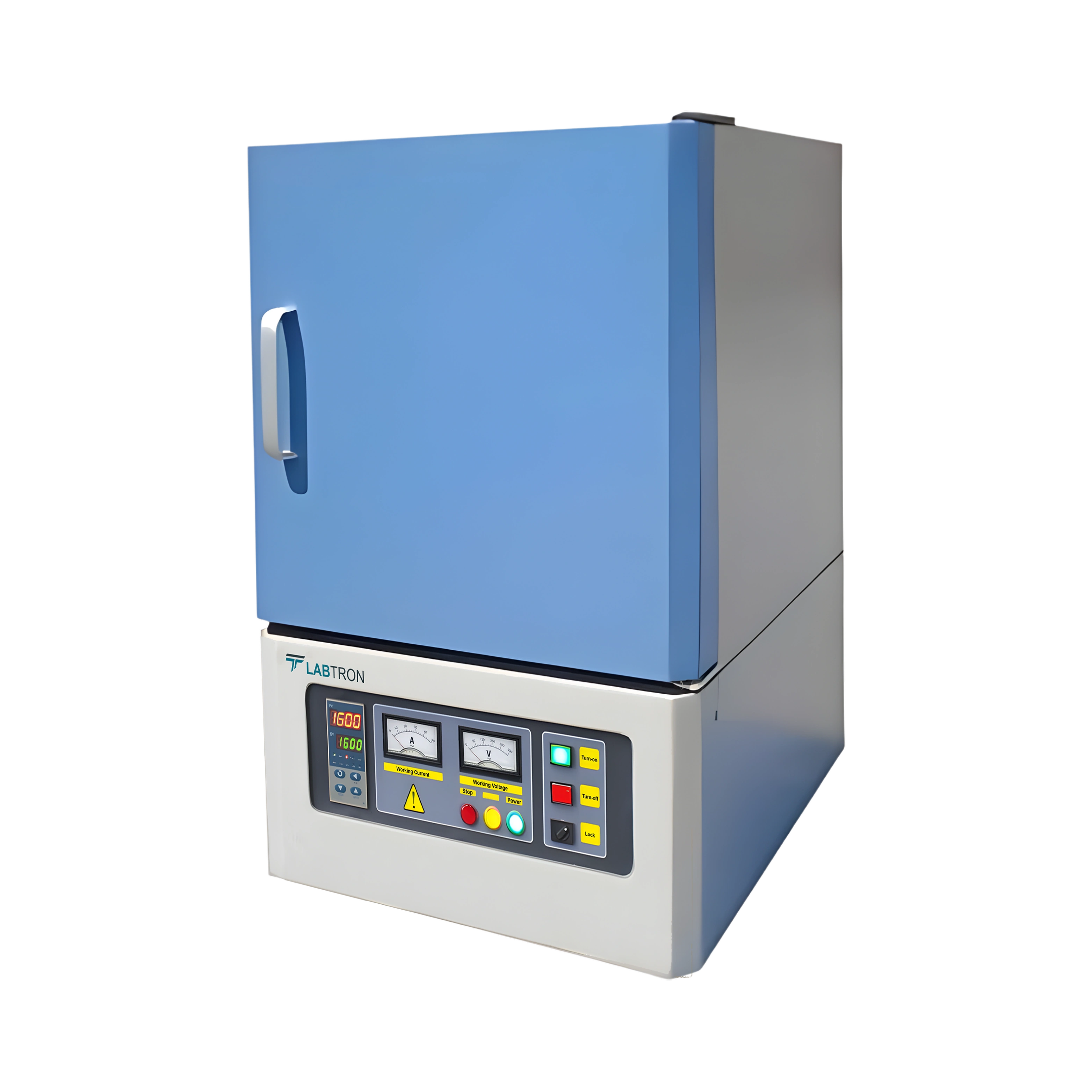

Muffle Furnace LMF-A11

Name: Muffle Furnace LMF-A11
Brand: Labtron
SKU: LMF-A11
Rating: 4.9 (684 reviews)

LMF-A11 model of Muffle Furnace is uniquely designed with optimum insulation properties and is ideal for ashing of food, plastic and other organic materials. With heating elements Fe-Cr-Al embedded into the brick walls, K type thermocouple and dual shell housing for low outer surface temperature, it is perfect for continuous working process at 950 °C.

Request Quote

Max. Temperature	950 °C
Capacity	3 L
Heating Program	Two step
Thermal Rate	5 °C - 25 °C / min
Heating Element	Fe-Cr-Al
Program Memories	2
Thermocouple Type	K Type
Heating Element Placement	Embedded into brick walls
Inner Insulation Material	Insulating Fire Brick
Front Face Insulation Material	Ceramic Fibre Board
Door Insulation Material	Ceramic Fibre Board
Housing Material	Steel Sheet
Housing Coating	Epoxy powder coating
Chimney	Standard
Element Heating Element Protection	Quartz Tube
Lockable Door Handle	Sidewards
Temperature Control Accuracy	± 1 °C
Measurement Accuracy	± 1 °C
Power	1501 W
Max. Current	7A
Inner Volume Temperature Homogenity	± 10 °C
Inner Chamber Dimension (W x H x D)	130 x 105 x 230 mm
Product Outer Dimension (W x H x D)	336 x 434 x 533 mm
Gross Dimension (W x H x D)	420 x 620 x 620 mm
Net Weight	25 kg
Gross weight	35 kg

PID controller
New mono block body design
7 segment display
Optimum insulation properties
Direct/ 2 step heating program
Fe-Cr-Al heating element embedded in brick walls
K-type thermocouple
Dual shell housing for low outer surface temperature
Ceramic fibre board as front face and door insulation material
Audio warnings as the step changes and at the end of the program
Provision of automatic power cut-off to the heating elements and alert if the control unit/ control card is over heated
User friendly

Sr. no.	Accessory
1	High Temperature Gloves
2	Tongs
3	Alumina Crucibles
4	Metal Crucibles
5	Alumina Combustion Boats
6	Ceramic Pipes
7	Extra Thermocouple

Over Temperature Limiter
Gas Supply Connection
Observation Hole
PC connection
110 V power supply

Inner module: changing inner module renews your furnace close to a brand new furnace
Door Insulation: with sheet metal holder vessel
PCB: Easy to replace. Pre-programmed
Display card: 7 segment, 3 digit
Chimney Fan: 4 x 40 x 10 / 5 V fan

Download catalog for
Muffle Furnace LMF-A11

Available Range :

Muffle Furnace LMF-A10 : 950 °C
