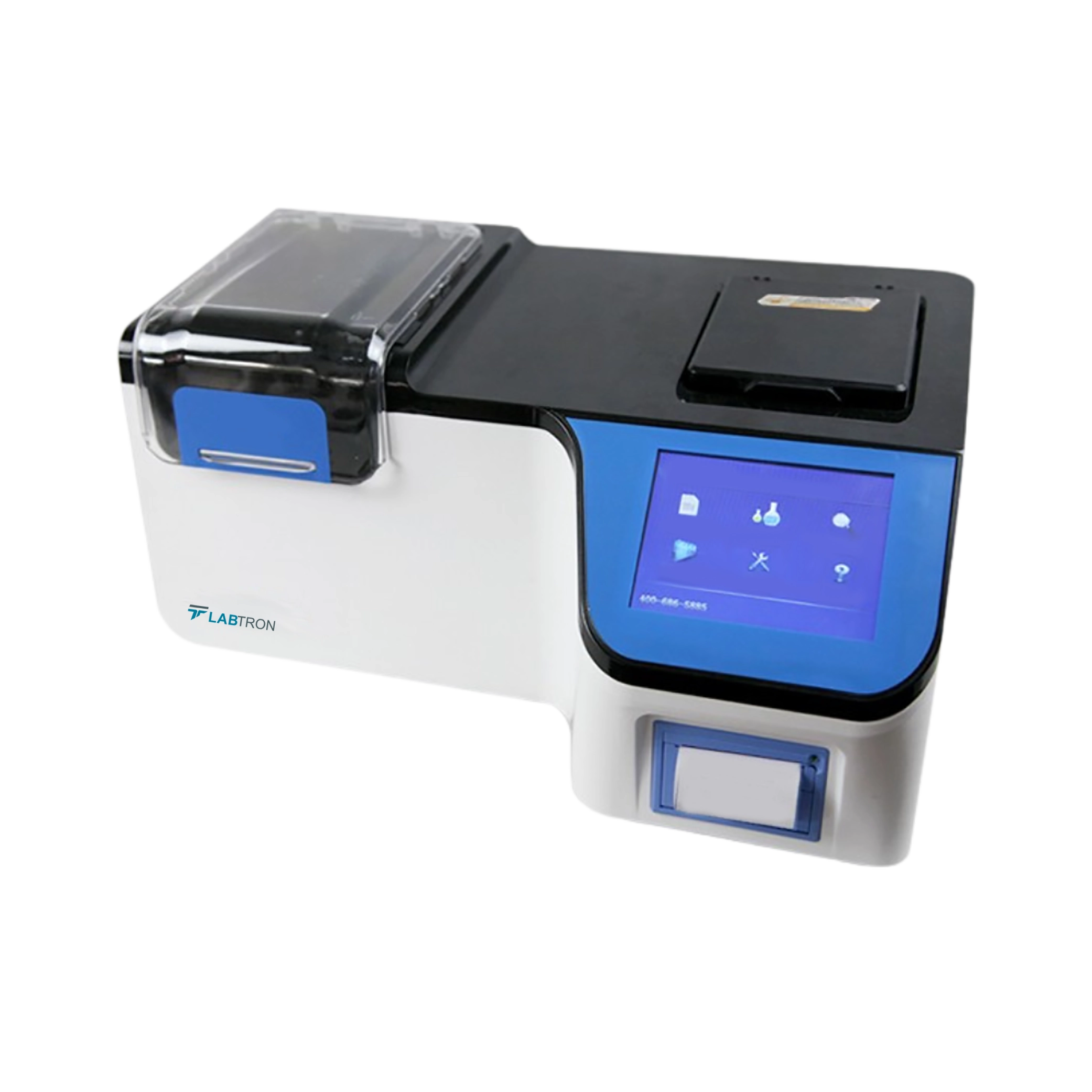

Multi Parameter Water Quality Analyzer LMWA-A11

Multi Parameter Water Quality Analyzer LMWA-A11

Multi parameter water quality analyzer LMWA-A11 is a high quality analyzer with benchtop design, simultaneously measures turbidity, chemical oxygen demand, ammonia and total phosphorous content of water sample. The aviation insulation protective layer present above digestion hole, effectively prevents scalds. The imported heat resistant protective cover ensures the safety and reliability of the experiment.

Request Quote
COD Measurement Range 5 to 5000 mg/ L
COD Measurement Accuracy < 50 mg/ L, ≤ ± 10%
> 50 mg/ L, ≤ ± 5%
COD Minimum Detection Limit 0.1 mg/ L
COD Measurement Time 20 minutes
COD Repeatability ≤ ± 5 %
Processing Sample Number Per Batch 12 pcs
COD Reactor Digestion Temperature 165 ± 0.5°C
COD Reactor Digestion Time 10 min
COD Reactor Time Setting Switches 3 pcs
Anti-Chlorine Interference (Cl) < 1000 mg/ L No effect
Ammonia Nitrogen Determination Range 0.02 to 30 mg/ L
Ammonia Nitrogen Measurement Accuracy ≤ ± 10 %
Ammonia Nitrogen Minimum Detection Limit 0.01 mg/ L
Ammonia Nitrogen Measurement Time 10 to 15 minutes
Ammonia Nitrogen Repeatability ≤ ± 5 %
Ammonia Nitrogen Reactor Time Setting Switches 20 pcs
Phosphorous Determination Range 3 pcs
Phosphorous Measurement Accuracy 0.002 to 10 mg/ L
Phosphorous minimum detection limit ≤ ± 5 %
Phosphorous measurement time 0.001 mg/ L
Phosphorous Repeatability 35 to 50 minutes
Phosphorous Reactor Temperature ≤ ± 5 %
Phosphorous Reactor Digestion Time 12 pcs
Phosphorous Reactor Time Setting Switches 120 ± 0.5°C
Turbidity Determination Range 30 min
Turbidity Measurement Accuracy 3 pcs
Turbidity Minimum Detection limit 0.5 to 400 NTU
Turbidity Measurement Time ≤ ± 5 %
Turbidity Repeatability 0.1 NTU
Consumables for Colorimetric Measurement 1 minute
Light Source Life ≤ ± 5 %
Optical Stability Colorimetric tubes and Cuvette
No. of Curves 100000 hours
Data Storage ≤ 0.001 A/ 10 min
Display 56
Interface 12000
Power Supply LCD (320 × 240)
Dimension (W×D×H) USB
Weight AC 200 V
  • Benchtop design
  • High definition LCD screen with detailed user interface
  • Includes colorimetric, digestive system, timing system functions
  • Intelligent data analysis
  • USB infrared data communication
  • Built-in mini printer
  • High accuracy measurement readings
  • User-friendly operation

Multi Parameter Water Quality Analyzer is used in water quality testing based on COD, ammonia nitrogen, total phosphorous, and turbidity parameters across plants, laboratories, and industries.

Protective cover


Cooling rack
Cuvette rack
Tube rack
Reagent proportional
Printing paper

Compare Models

Model COD Measurement Range COD Measurement Accuracy COD Minimum Detection Limit COD Measurement Time COD Repeatability Processing Sample Number Per Batch COD Reactor Digestion Temperature COD Reactor Digestion Time COD Reactor Time Setting Switches Anti-Chlorine Interference Ammonia Nitrogen Determination Range Ammonia Nitrogen Measurement Accuracy Ammonia Nitrogen Minimum Detection Limit Ammonia Nitrogen Measurement Time Ammonia Nitrogen Repeatability Ammonia Nitrogen Reactor Time Setting Switches Phosphorous Determination Range Phosphorous Measurement Accuracy Phosphorous minimum detection limit Phosphorous measurement time Phosphorous Repeatability Phosphorous Reactor Temperature Phosphorous Reactor Digestion Time Phosphorous Reactor Time Setting Switches Turbidity Determination Range Turbidity Measurement Accuracy Turbidity Minimum Detection limit Turbidity Measurement Time Turbidity Repeatability Consumables for Colorimetric Measurement Light Source Life Optical Stability No. of Curves Data Storage Display Interface Power Supply Dimension (W×D×H) Weight
LMWA-A10 2 to 10000 mg/ L < 50 mg/ L, ≤ ± 10%
> 50 mg/ L, ≤ ± 5%
0.1 mg/ L 20 minutes ≤ ± 5 % - 165 ± 0.5°C 10 min 3 pcs (Cl) < 1000 mg/ L No effect 0.02 to 60 mg/ L ≤ ± 10 % 0.01 mg/ L 10 to 15 minutes ≤ ± 5 % - 3 pcs 0.002 to 20 mg/ L ≤ ± 5 % 0.001 mg/ L 35 to 50 minutes ≤ ± 5 % - 120 ± 0.5°C 30 min 3 pcs 0.5 to 400 NTU ≤ ± 5 % 0.1 NTU 1 minute ≤ ± 5 % Colorimetric tubes and Cuvette 100000 hours ≤ 0.001 A/ 10 min 166 12000 LCD (320 × 240) USB AC 200 V
LMWA-A11 5 to 5000 mg/ L < 50 mg/ L, ≤ ± 10%
> 50 mg/ L, ≤ ± 5%
0.1 mg/ L 20 minutes ≤ ± 5 % 12 pcs 165 ± 0.5°C 10 min 3 pcs (Cl) < 1000 mg/ L No effect 0.02 to 30 mg/ L ≤ ± 10 % 0.01 mg/ L 10 to 15 minutes ≤ ± 5 % 20 pcs 3 pcs 0.002 to 10 mg/ L ≤ ± 5 % 0.001 mg/ L 35 to 50 minutes ≤ ± 5 % 12 pcs 120 ± 0.5°C 30 min 3 pcs 0.5 to 400 NTU ≤ ± 5 % 0.1 NTU 1 minute ≤ ± 5 % Colorimetric tubes and Cuvette 100000 hours ≤ 0.001 A/ 10 min 56 12000 LCD (320 × 240) USB AC 200 V
