Portable Vibration Calibrator LPVC-A10

Portable Vibration Calibrator LPVC-A10

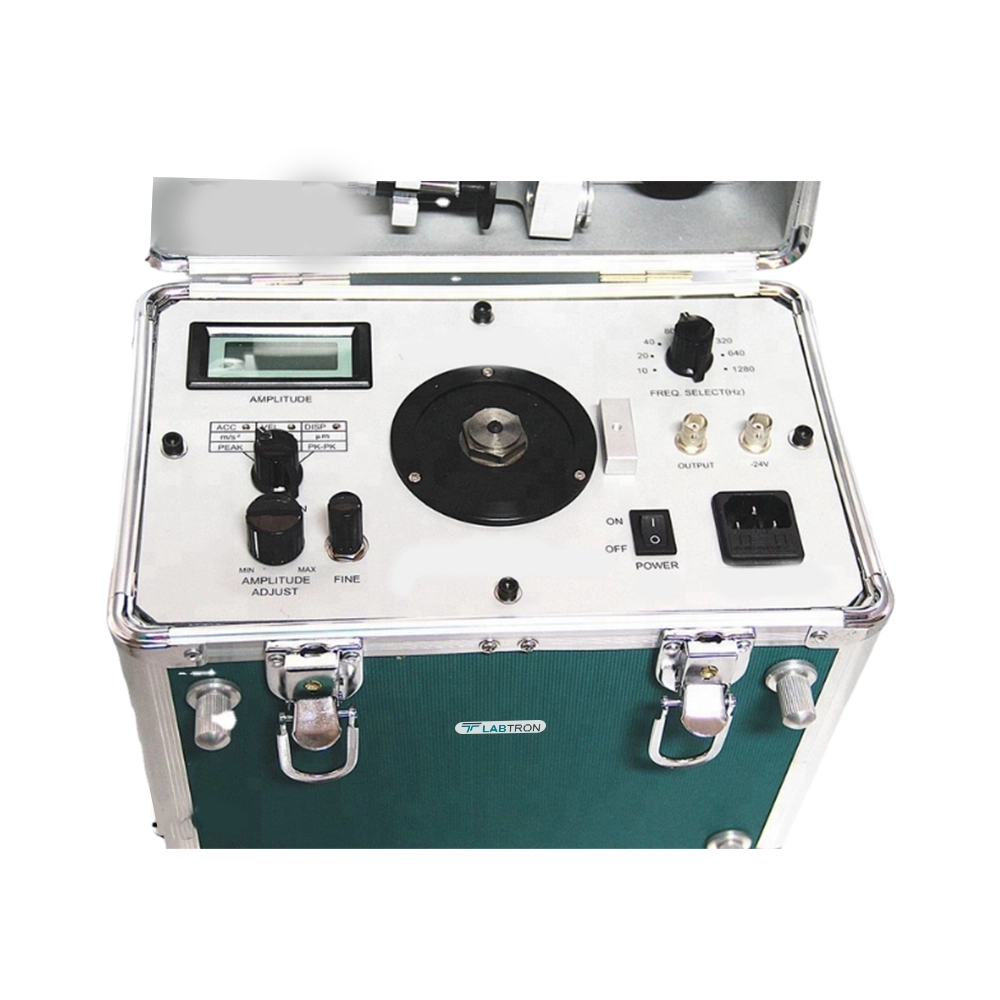

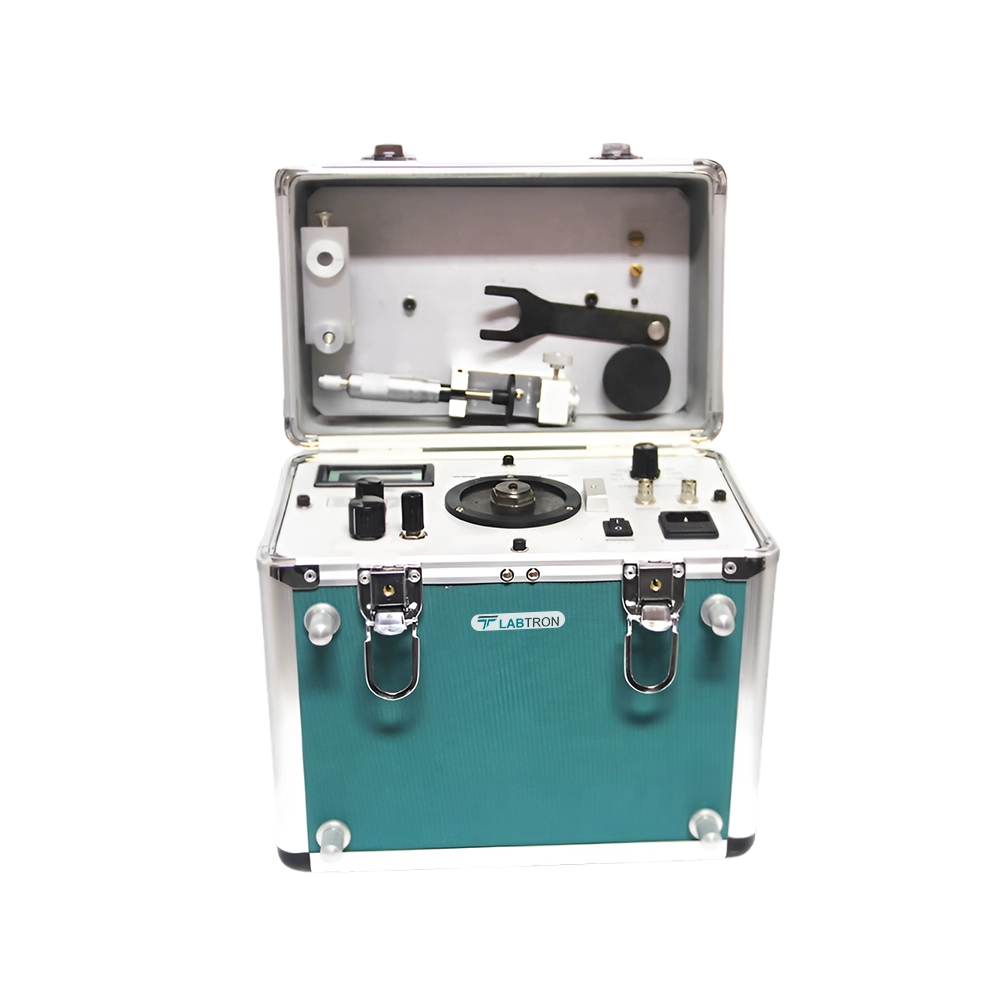

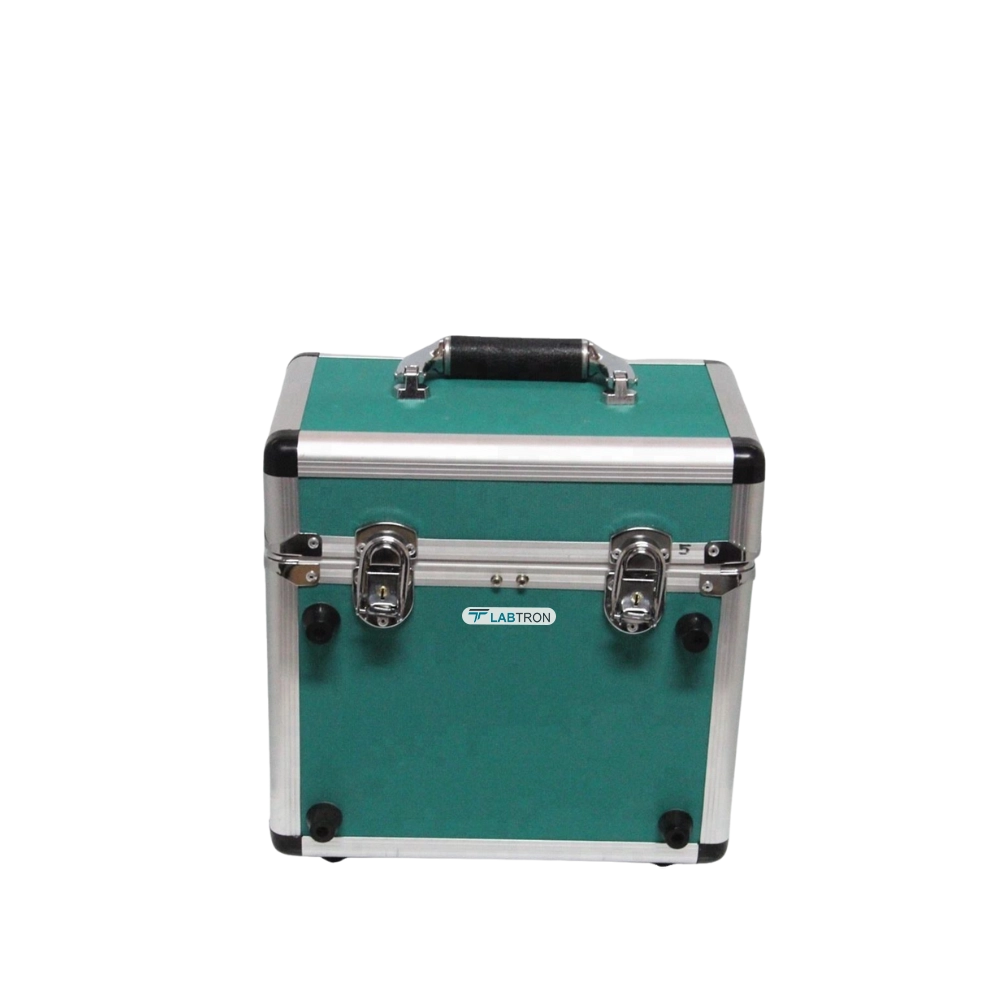

Portable Vibration Calibrator LPVC-A10 is a tabletop unit with standard sine signals at continually varying frequency from 10 Hz to 1280 Hz. LCD digital panel displays defined amplitude of the acceleration, velocity and displacement. Either horizontal or vertical vibration can be generated. It is an all in one unit combining sine signal generator, power amplifier, standard transducer and a shaker.

Request Quote
Frequency (continually adjustable) 10 Hz to1280 Hz + 0.01 %
Amplitude acceleration ( at 30m/s2 pk ) 40 Hz to 320 Hz + 0.3 dB + 1 digit
Amplitude velocity ( at 25mm / sec pk ) 40 Hz to 320 Hz + 0.5dB +1 digit
Amplitude displacement ( at 50 μm pk-pk ) 40 Hz to 320 Hz + 0.5 dB + 1 digit
Probe 5 mm , 8 mm and 11mm probe
Probe range 0 ~ 2.0 mm
Display 3 ½ digit display
Storage -20 °C to 70 °C
Operational temperature 0 °C to 50 °C
Humidity 90 % non-condensing
Dimensions 280 x 180 x 250 mm
Weight 9 kgs
  • Measures acceleration, velocity and displacement
  • Continuous varying frequency
  • Horizontal or vertical vibrational modes

Used to calibrate vibration monitoring / measuring instruments or data acquisition / data collector devices

Compare Models

Model Frequency (continually adjustable) Amplitude acceleration ( at 30m/s2 pk ) Amplitude velocity ( at 25mm / sec pk ) Amplitude displacement ( at 50 μm pk-pk ) Probe Probe range Display Storage Operational temperature Humidity Dimensions Weight
TRHM-A10 - - - - - - - - - - - 85 kg
TRHM-A11 - - - - - - - - - - - 85 kg
TRHM-B10 - - - - - - - - - - - 90 kg
TDVH-A10 - - - - - - - - - - - -
TDBH-A10 - - - - - - - - - - - -
LPVC-A10 10 Hz to1280 Hz + 0.01 % 40 Hz to 320 Hz + 0.3 dB + 1 digit 40 Hz to 320 Hz + 0.5dB +1 digit 40 Hz to 320 Hz + 0.5 dB + 1 digit 5 mm , 8 mm and 11mm probe 0 ~ 2.0 mm 3 ½ digit display -20 °C to 70 °C 0 °C to 50 °C 90 % non-condensing 280 x 180 x 250 mm 9 kgs
LDVH-B10 - - - - - - - - - - 585 × 200 × 630 mm 42 Kg
