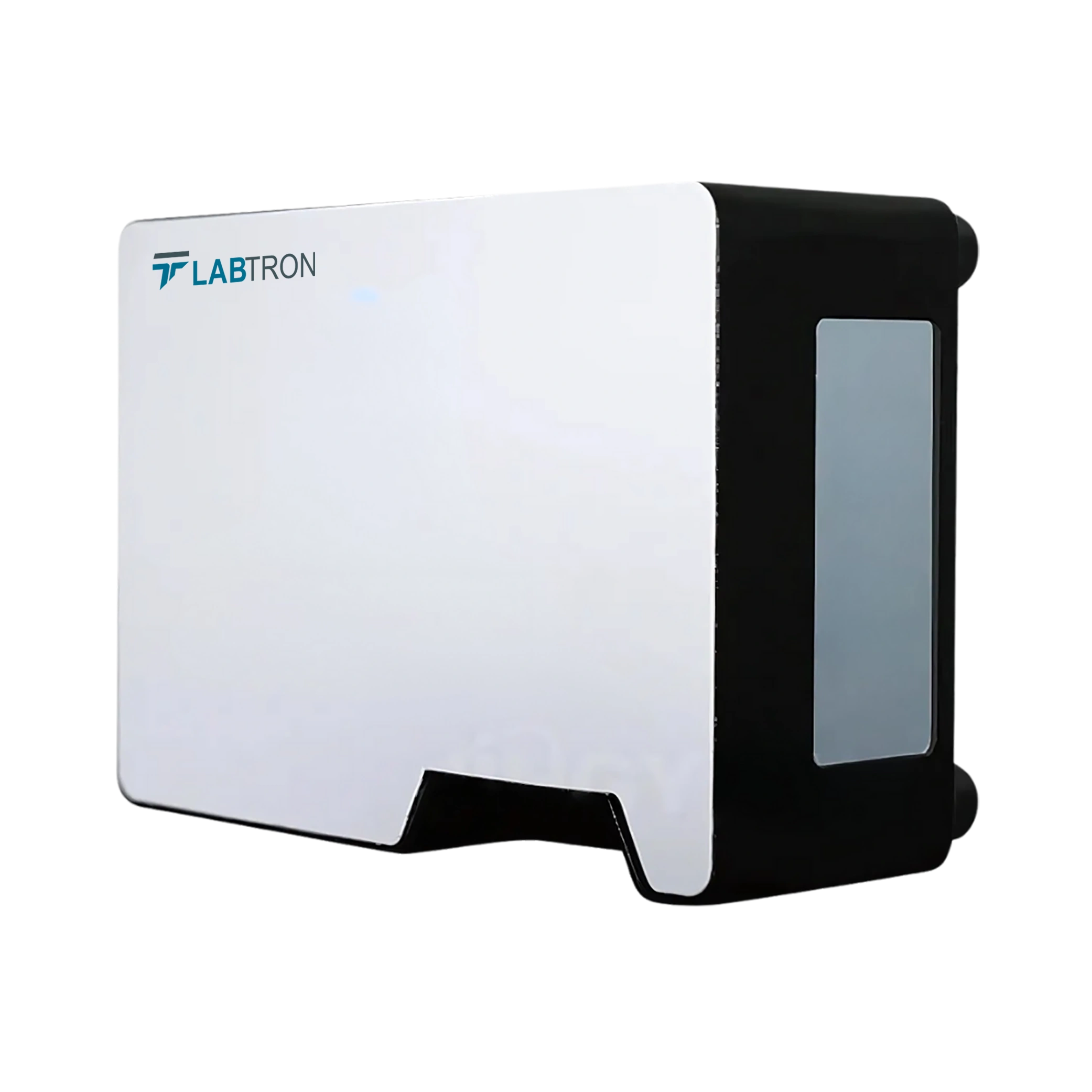

NIR Spectrometer LNSM-A11

Name: NIR Spectrometer LNSM-A11
Brand: Labtron
SKU: LNSM-A11
Rating: 4.9 (695 reviews)

NIR Spectrometer LNSM-A11 is a compact benchtop design that offers a spectral bandwidth of 755 to 1100 nm. It has an SMA905 optical fiber interface for efficient light signal transmission. The linear silicon-based CCD detectors ensure reliable and consistent data collection. Its customizable silt option that supports 10, 25, 50, 100 and 200 µm slit, offering excellent resolution for detailed spectral measurements. Our NIR Spectrometer is widely used for phosphor detection, fabric measurement and biological measurement.

Request Quote

Wavelength Range of the Spectroscope	755 to 1100 nm
Detector Type	Linear silicon-based CCD detector
Detector Dynamic Pixel	3648
Light Source Size	8 µm × 200 µm
Working Temperature	-20℃ to -60℃
Slit	200 µm (customizable)
Optical Resolution of the Spectroscope	1.25 nm FWHM (different resolution for slits)
Spectral Splitter Fiber Optic Connector	SMA905
Stray Light	Up to 0.1%
Correction of Linearity	99.80%
Data Interface	USB 2.0
A/D Conversion	16-bit high-precision height AD
Power Consumption	160 mA at 5V
Power Supply	Computer USB power supply or external 5V power supply

High-resolution optical platform
Shortest integration time
Fixed grating
Miniature design

Our NIR Spectrometer LNSM-A11 is widely used across a variety of scientific and industrial applications. It plays a vital role in LED light source color analysis, concentration measurement, color measurement and analysis, as well as fabric testing. It is extensively applied in phosphor detection, solar panel inspection, and biochemical process monitoring. Additionally, it is also ideal for light analysis, chemical analysis and identification, biological measurement, and serves as an effective tool for evaluating optical component transmittance and reflectance.

Slit No.	Spectral range (nm)	Pixel Spacing (nm)	Slit width (μ_m)	Resolution
Slit 01	755 to 1100 nm	0.09	10	0.41
Slit 02	755 to 1100 nm	0.09	25	0.41
Slit 03	755 to 1100 nm	0.09	50	0.46
Slit 04	755 to 1100 nm	0.09	100	0.66
Slit 05	755 to 1100 nm	0.09	200	1.25

Download catalog for
NIR Spectrometer LNSM-A11 Catalog

Available Range :

NIR Spectrometer LNSM-A11 : 755 to 1100 nm NIR Spectrometer LNSM-A12 : 900 to 1700 nm

NIR Spectrometer LNSM-A11 | Detector Dynamic Pixel 3648 | Light Source Size 8 µm × 200 µm | Working Temperature -20℃ to -60℃

NIR Spectrometer LNSM-A11 | High-resolution optical platform | Shortest integration time | Fixed grating | Miniature design

Models of NIR Spectrometer

Labtron NIR Spectrometer offers a spectral detection range from near-infrared to far-infrared wavelengths ensuring accurate and versatile analysis across various applications. They feature ultra-low power consumption, making them energy-efficient and ideal for remote applications. Their long battery life enables extended use in field operations without frequent recharging. These include automatic data logging, allowing for smooth and continuous recording of measurement data for easy analysis. Our NIR Spectrometer incorporates fast integration time, enabling quick and efficient data collection for real-time evaluations.
