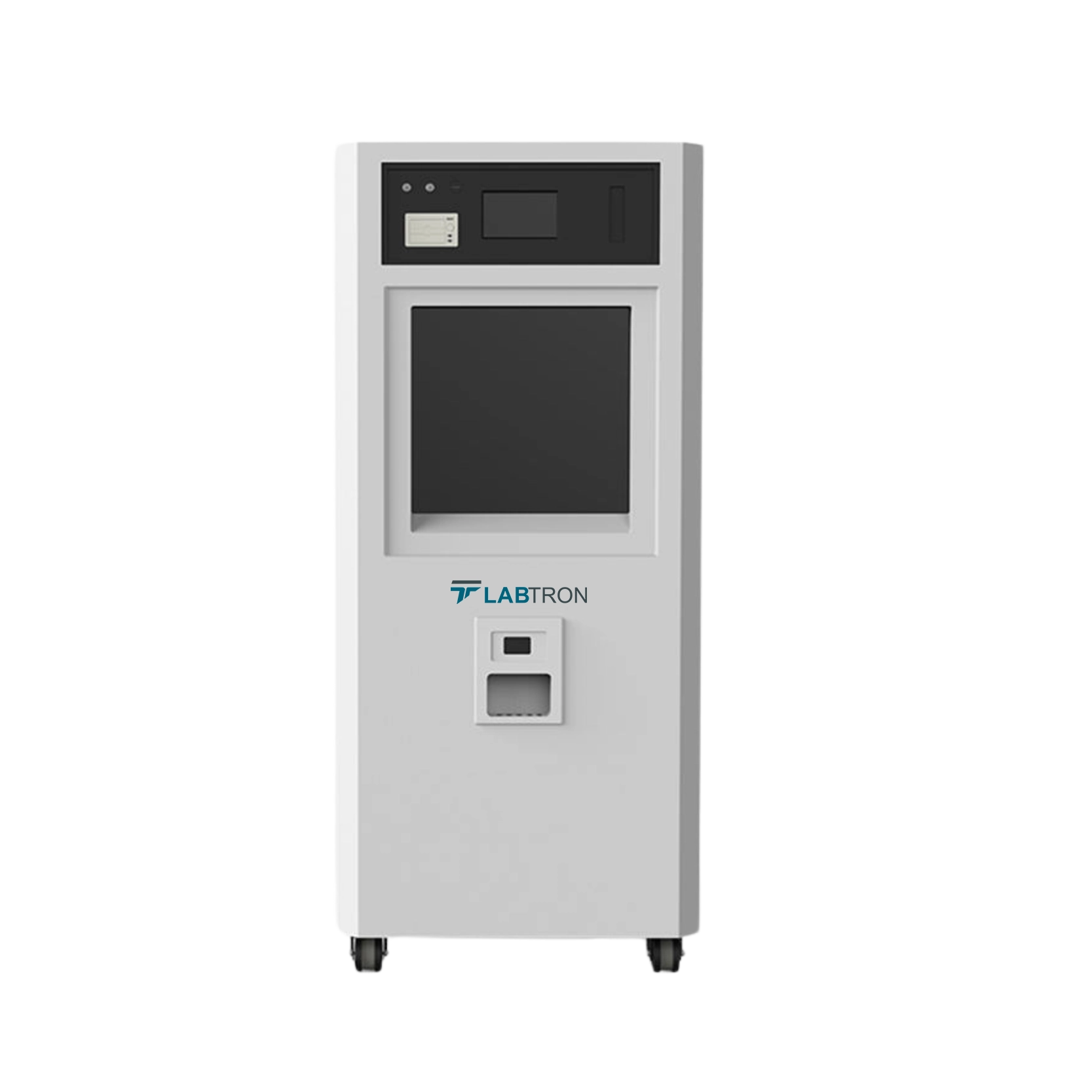

Plasma Autoclave LPA-A10

Plasma Autoclave LPA-A10

Plasma Autoclave LPA-A10 is a fully automatic system with an 80L capacity. It operates at a low sterilization temperature of 50°C ± 5°C. It employs a cassette system with 12 vials of 60% H2O2, offering automatic delivery and ejection. This features an alloy chamber with excellent thermal conductivity and independent temperature control. The system has an electric lifting door with a double-layer seal and an anti-pinch design for enhanced safety. Our Plasma autoclave is safe and eco-friendly, with a high-efficiency H2O2 filter to prevent pollution.

Plasma Autoclave LPA-A10
Plasma Autoclave LPA-A10
Plasma Autoclave LPA-A10
Request Quote
Capacity 80 L
Type Fully automatic
Low Temperature Sterilization 50°C ± 5°C
Sterilization cycle Fast sterilization ≤25min
Standard sterilization ≤35min
Enhanced sterilization ≤55min
H2O2 Filling Method Cassette system: 12 vials of H2O2 per cassette
New cassette: automatic delivery
Used cassette: automatic ejection
Sterilization Agent High-purity H2O2 (60%)
Temperature control accuracy ≤ ± 0.3°C
Master Controller PLC control
Display 7-inch color touchscreen
Optional Double door
Test methods Biological monitoring of Bacillus subtilis and Bacillus stearothermophilus
Door type Automatic vertical sliding door
Chamber material Rectangular alloy chamber with good thermal conductivity
Working temperature 50±5°C
Standard sterilization time 35 min
Vacuum 60 Kpa
Power supply 110/220V, 50/60Hz
Packaging Dimension 800 × 940 × 1780mm
Chamber Size 500 × 480 × 380 mm
Outer Size 790 × 780 × 1550 mm
Net Weight 260 Kg
Gross weight 298 Kg
  • PLC control system
  • Printer
  • Biological indicator cultivator
  • Power failure memory
  • Vacuum pump system
  • Alarm system
  • Oil mist filtration system
  • Advanced configuration
  • Imported pressure sensor
  • Convenient Installation
  • Electromagnetic Valve

Plasma Autoclave is widely used in CSSD and medical institutes for sterilizing electric wires, cables, optical glasses, power equipment, endoscopes, catheters, and other heat-sensitive instruments.

Cassette Bottle

Cassette Bottle

Plasma Autoclave LPA-A10 Banner
Plasma Autoclave LPA-A10 Banner

Models of Plasma Autoclave

Labtron Plasma Autoclave is specialized to work under low temperatures using ionized gas. They maintain strict thermal control for consistent sterilization. Their customizable cycles and real-time monitoring ensure versatile and energy-efficient decontamination. They operate in dual stages, combining plasma and steam for thorough disinfection. Our sterilizer is ideal for medical instruments, electronics, and laboratory equipment requiring reliable eco-friendly purification.

Plasma Autoclave LPA-B12

Plasma Autoclave LPA-B12

  • Chamber Volume : 200 L
  • Sterilization Temperature : 50 ± 5°C
  • Sterilizing Agent : 60% hydrogen peroxide
  • Sterilizing Time : Fast sterilization ≤ 25minStandard sterilization ≤ 35minEnhanced sterilization ≤ 55min
Plasma Autoclave LPA-B10

Plasma Autoclave LPA-B10

  • Chamber Volume : 110 L
  • Chamber material : Stainless steel 304
  • Sterilization Agent : 60% hydrogen peroxide
  • Sterilization Cycle : Fast sterilization: ≤25minStandard sterilization: ≤35minEnhanced sterilization: ≤55min
Plasma Autoclave LPA-B11

Plasma Autoclave LPA-B11

  • Capacity : 135 L
  • Operating Temperature : 40°C to 60°C
  • Heating Method : Electric Heating
  • Sterilization Agent : 58% to 60% Hydrogen Peroxide
Plasma Autoclave LPA-A13
Plasma Autoclave LPA-A13
  • Chamber Volume : 80L
  • Sterilization Temperature : 50±5℃
  • Sterilizing Agent : 60% Hydrogen Peroxide
  • Type : Automatic
Plasma Autoclave LPA-A12
Plasma Autoclave LPA-A12
  • Chamber Volume : 300 L
  • Sterilization Temperature : 50 ± 5°C
  • Sterilizing Agent : 60% hydrogen peroxide
  • Sterilizing Time : Fast sterilization ≤ 25minStandard sterilization ≤ 35minEnhanced sterilization ≤ 55min
Plasma Autoclave LPA-C10

Plasma Autoclave LPA-C10

  • Type : Fully automatic
  • Capacity : 128L
  • Sterilization Temperature : 50 ± 5℃
  • Sterilization Agent : 60% hydrogen peroxide
Plasma Autoclave LPA-A11

Plasma Autoclave LPA-A11

  • Capacity : 120 L
  • Door type : Rectangular, single door
  • Chamber material : Anti rust aluminum alloy
  • Power supply : 3 kW / 220 V, Single phase
Plasma Autoclave LPA-C11

Plasma Autoclave LPA-C11

  • Chamber Volume : 180 L
  • Sterilization Temperature : 50 ± 5°C
  • Sterilizing Agent : 60% hydrogen peroxide
  • Sterilizing Time : Fast sterilization ≤ 25minStandard sterilization ≤ 35minEnhanced sterilization ≤ 55min

Plasma Autoclave:
Plasma Autoclave LPA-B12, Plasma Autoclave LPA-B10, Plasma Autoclave LPA-B11, Plasma Autoclave LPA-A13, Plasma Autoclave LPA-A12, Plasma Autoclave LPA-C10, Plasma Autoclave LPA-A11, Plasma Autoclave LPA-C11, and more.
