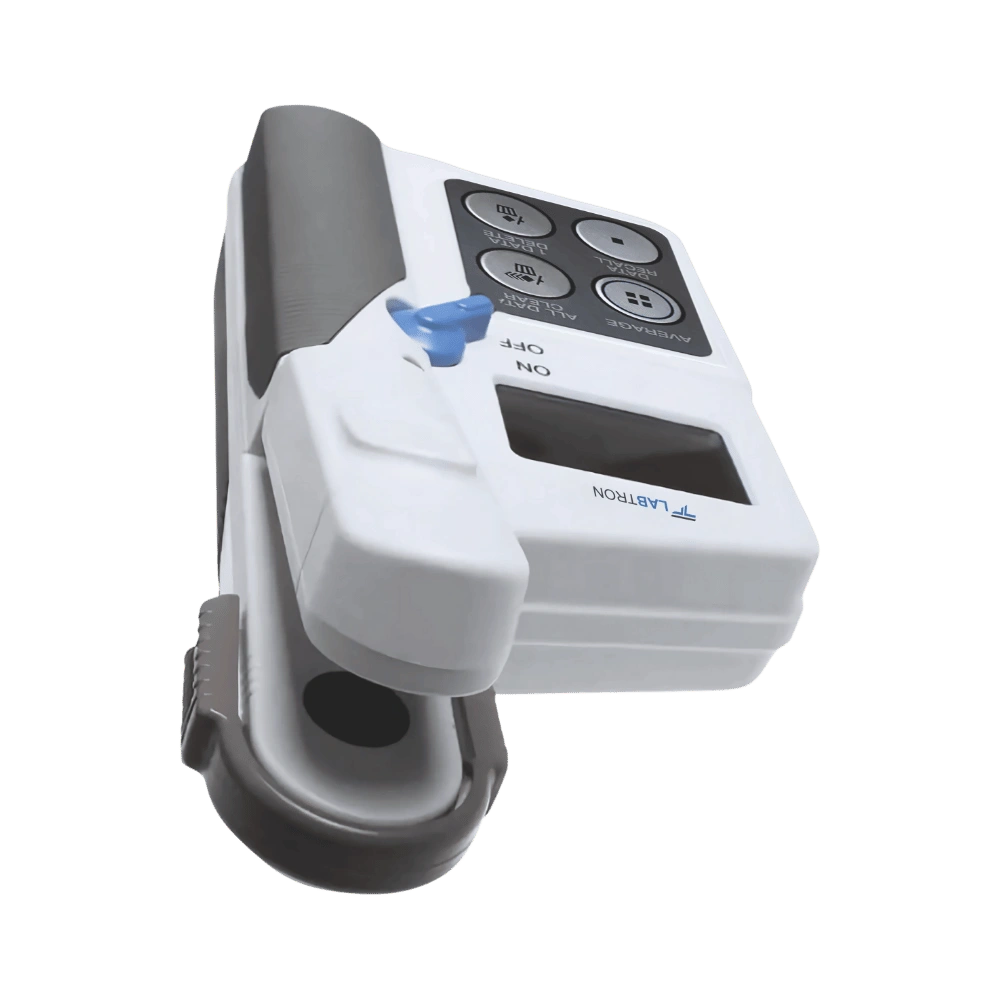

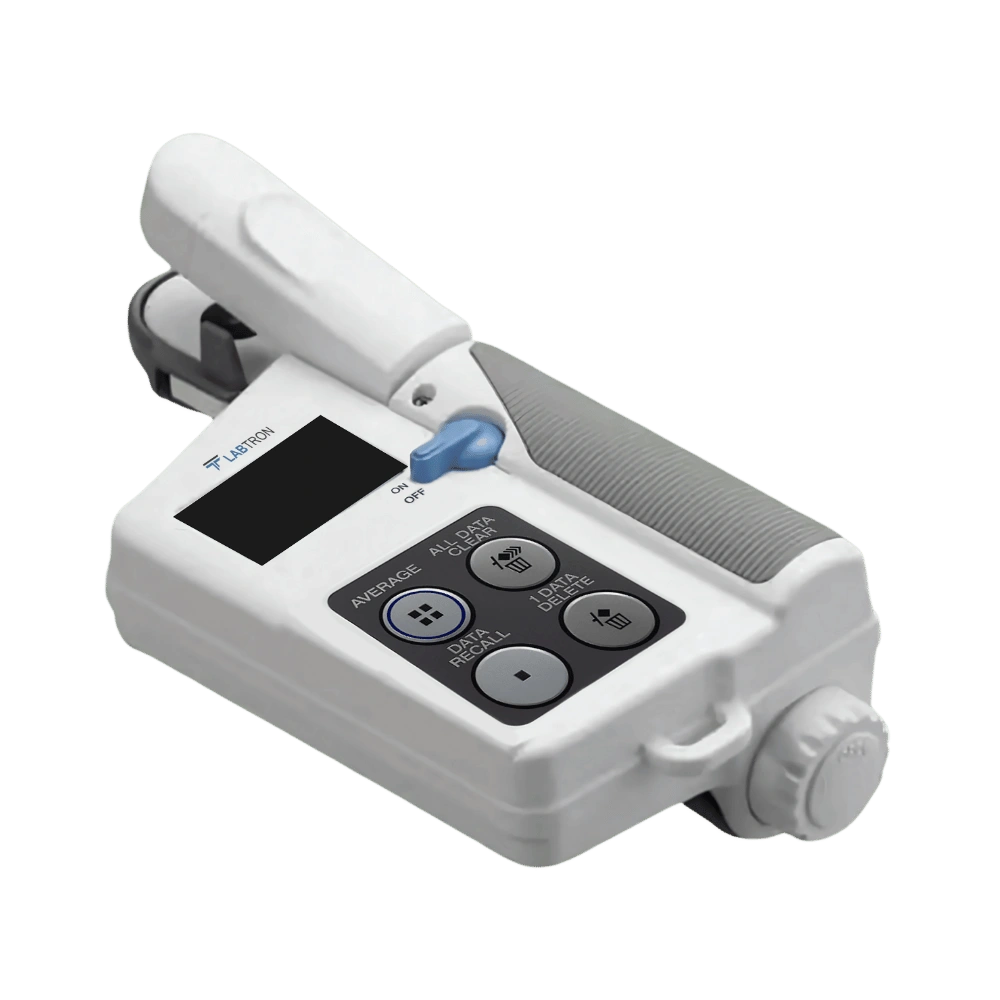

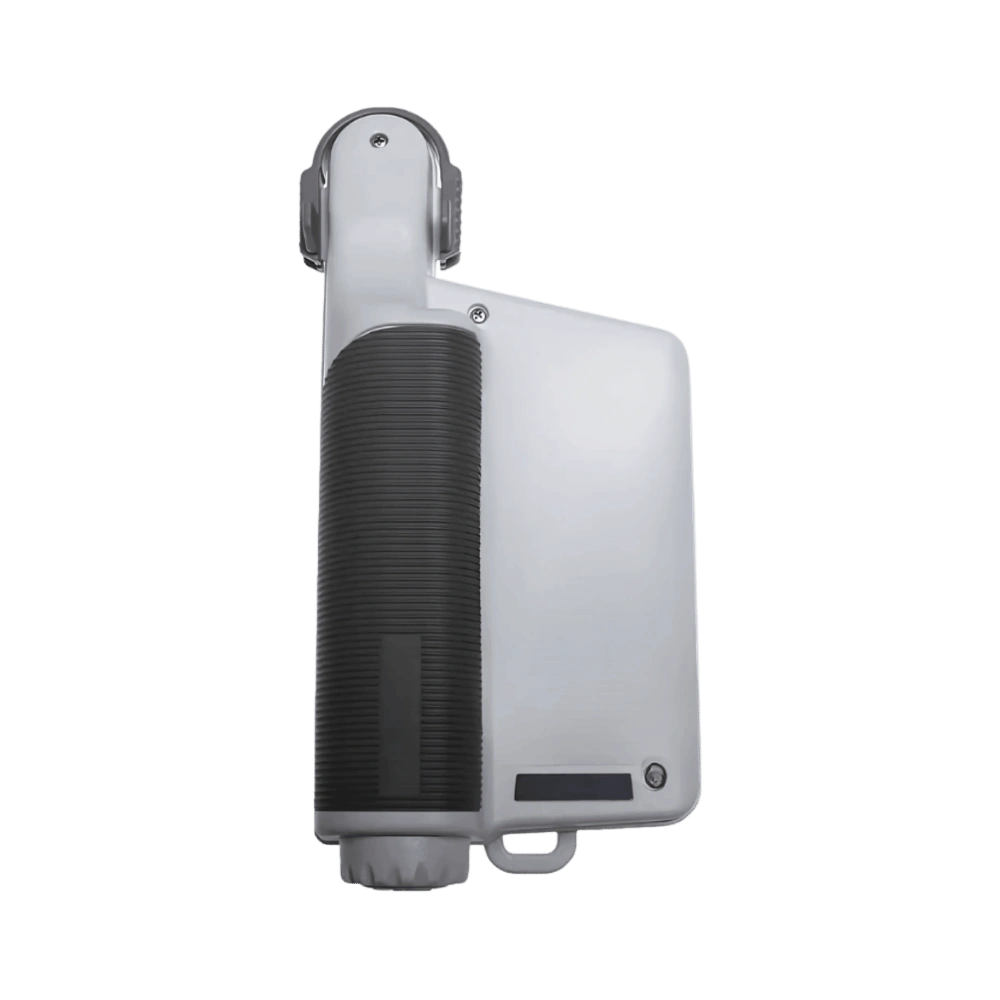

Chlorophyll Meter LCPM-A11 can indicate the chlorophyll content by measuring just a 2 × 3 mm area of the leaf. It utilizes the optical density difference method for chlorophyll measurement. Two LEDs are fitted inside the meter that work as a light source for accurate analysis. Equipped with an LCD that shows a 4-digit measurement value. Our chlorophyll meter is a compact and handheld unit that is easy to carry for onsite analysis.
Request Quote| Measurement Method | Optical density difference at two wavelengths |
| Measurement Area | 2 × 3 mm |
| Maximum Sample Thickness | 1.2 mm |
| Sample Insertion Depth | 12 mm |
| Accuracy | ± 1.0 SPAD units |
| Repeatability | ± 0.3 SPAD units |
| Reproducibility | ± 0.5 SPAD units |
| Temperature Drift | ± 0.04 SPAD units/ ℃ |
| Minimum Measurement Interval | 2 seconds |
| Working Temperature | 0 ℃ to 50 ℃ |
| Working Humidity | 0.85 |
| Storage Temperature | -20 ℃ to 55 ℃ |
| Storage Humidity | 0.85 |
| Light Source | 2 LED elements |
| Sensor | Silicon photodiode |
| Display Range | -9.9 to 199.9 SPAD units |
| Display | LCD screen, 4 decimal places, trend chart |
| Data | 30 sets |
| Power Supply | 2 No. 5 batteries |
| Dimension (W× L × H) | 78 × 164 × 49 mm |
| Weight | 200 g |
Our Chlorophyll Meter is suitable for measuring the chlorophyll content of crop leaves to check crop quality and improve crop yield.
Depth Strap
Download catalog for
Chlorophyll Meter LCPM-A11
Available Range :
Chlorophyll Meter LCPM-A10 : 0.0 to 99.9 SPAD and -10 to 99.9°CSimilar Products
