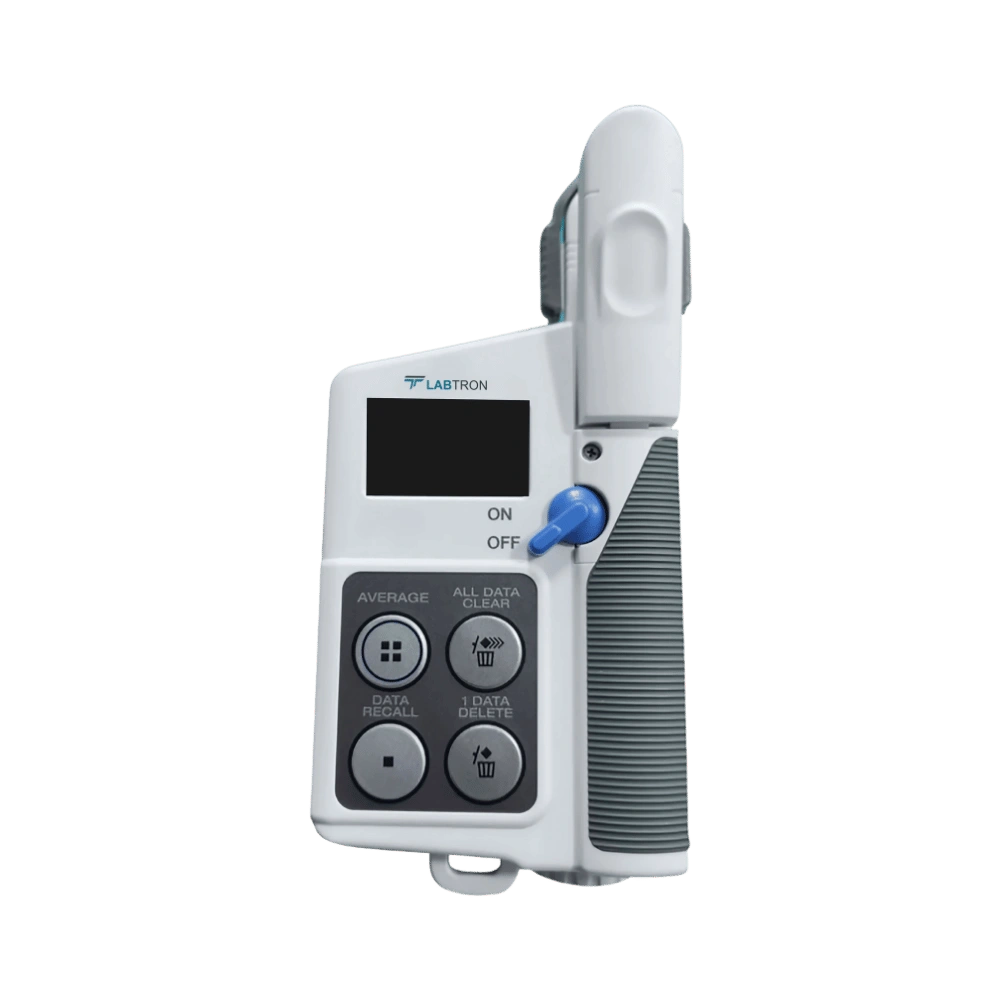

Chlorophyll Meter LCPM-A11 Catalog

Overview

Chlorophyll Meter LCPM-A11 can indicate the chlorophyll content by measuring just a 2 × 3 mm area of the leaf. It utilizes the optical density difference method for chlorophyll measurement. Two LEDs are fitted inside the meter that work as a light source for accurate analysis. Equipped with an LCD that shows a 4-digit measurement value. Our chlorophyll meter is a compact and handheld unit that is easy to carry for onsite analysis.

Features :

  • Warning buzzer function
  • A minimal setup process requires
  • IPX-4 waterproof rating
  • Reading detection feature
  • Quick and easy analysis
  • Low power consumption
  • Stores up to 30 measurements
Specifications :
Measurement Method Optical density difference at two wavelengths
Measurement Area 2 × 3 mm
Maximum Sample Thickness 1.2 mm
Sample Insertion Depth 12 mm
Accuracy ± 1.0 SPAD units
Repeatability ± 0.3 SPAD units
Reproducibility ± 0.5 SPAD units
Temperature Drift ± 0.04 SPAD units/ ℃
Minimum Measurement Interval 2 seconds
Working Temperature 0 ℃ to 50 ℃
Working Humidity 0.85
Storage Temperature -20 ℃ to 55 ℃
Storage Humidity 0.85
Light Source 2 LED elements
Sensor Silicon photodiode
Display Range -9.9 to 199.9 SPAD units
Display LCD screen, 4 decimal places, trend chart
Data 30 sets
Power Supply 2 No. 5 batteries
Dimension (W× L × H) 78 × 164 × 49 mm
Weight 200 g
Applications :

Our Chlorophyll Meter is suitable for measuring the chlorophyll content of crop leaves to check crop quality and improve crop yield.

Standard Accessories :

Depth Strap


2 AA-Size alkaline batteries
Soft case
Reading Checker
