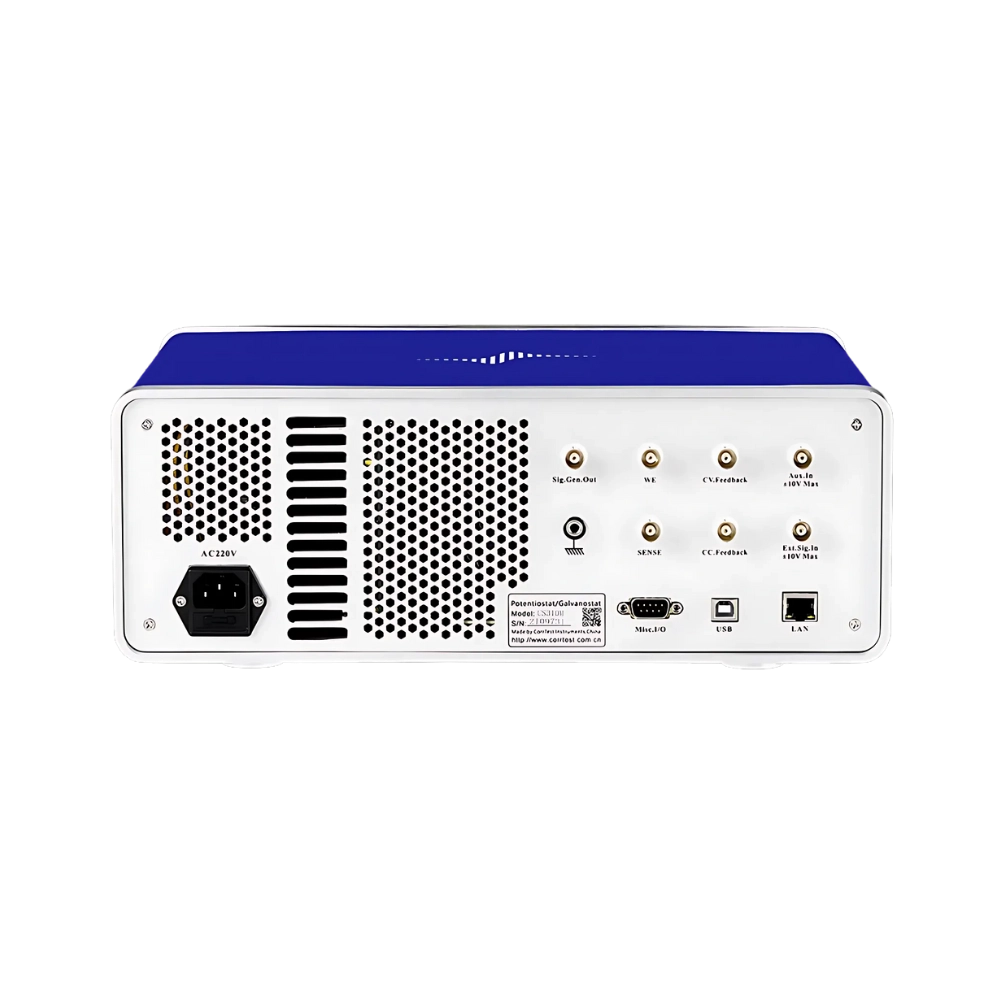

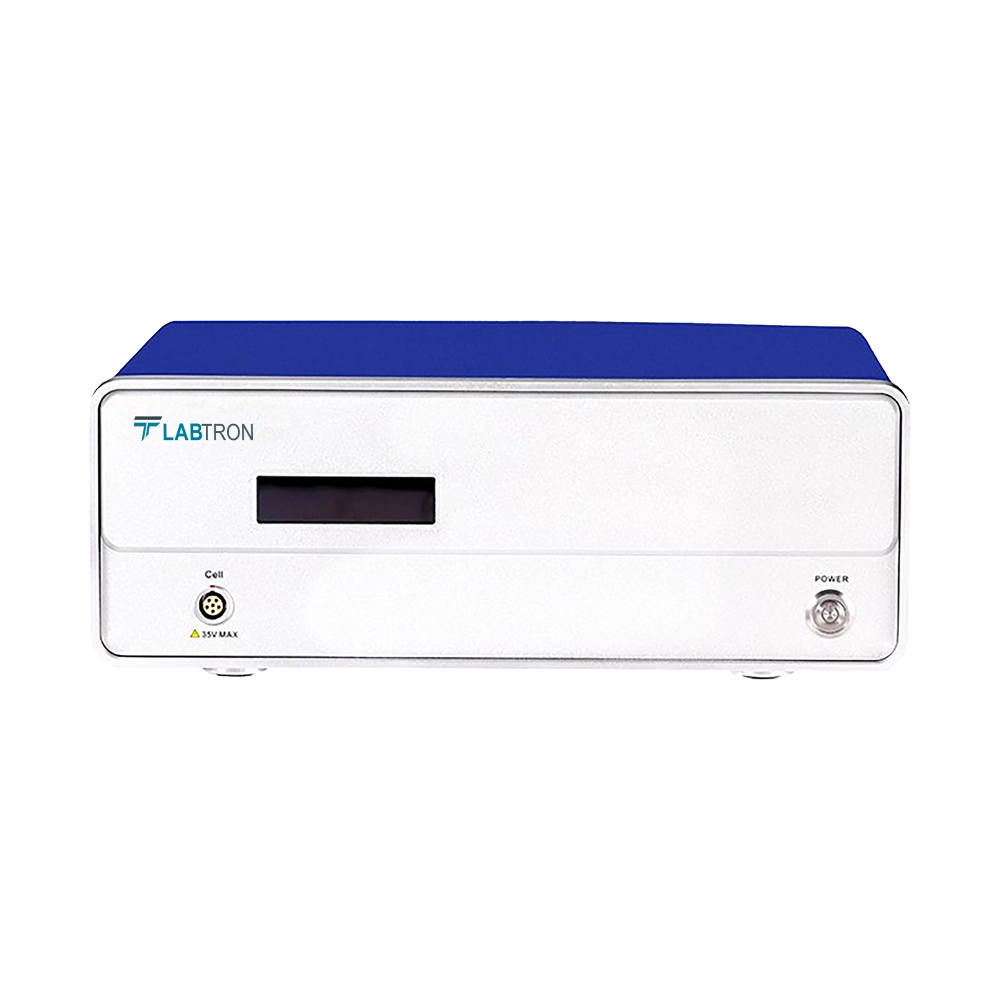

Potentiostat LPT-A11

Name: Potentiostat LPT-A11
Brand: Labtron
SKU: LPT-A11
Rating: 4.9 (677 reviews)

Potentiostat LPT-A11 supports up to 2A current output for electrochemical measurements. Its dual-channel functionality allows simultaneous measurement for enhanced productivity. Feature advanced software interface to simplify user control and data analysis procedures. Offers high-frequency impedance measurement capability improving electrolytic system characterization. Calibration-free operation saves time and ensures consistent measurement results efficiently.

Request Quote

System Support	2-, 3-, or 4-electrode system
Potential Control Range	±10V
Current Control Range	±2A
Potential Control Accuracy	0.1%×full range ±1mV
Current Control Accuracy	0.1%×full range
Potential Resolution	10μV (>100Hz), 3μV (<10Hz)
Current Sensitivity	1pA
Rise Time	<1μs (<10mA), <10μs (<2A)
Reference Electrode Input Impedance	10¹²Ω
Current Range	2nA to 2A, 10 ranges
Compliance Voltage	±21V
Maximum Current Output	2A
CV and LSV Scan Rate	0.001mV to 10,000V/s
CA and CC Pulse Width	0.0001 to 65,000s
Current Increment During Scan	1mA at 1A/ms
Potential Increment During Scan	0.076mV at 1V/ms
SWV Frequency	0.001 to 100 kHz
DPV and NPV Pulse Width	0.0001 to 1000s
AD Data Acquisition	16-bit at 1 MHz, 20-bit at 1 kHz
DA Resolution	16-bit, setup time: 1μs
Minimum Potential Increment in CV	0.075mV
IMP Frequency	10μHz to 1MHz
Low-Pass Filters	Covering 8-decade
Operating System	Windows 10/11
Interface	USB 2.0
Signal Generator - Frequency Range	10μHz to 1MHz
Signal Generator - AC Amplitude	1mV to 2500mV
Signal Generator - DC Bias	-10 to +10V
Signal Generator - Output Impedance	50Ω
Signal Generator - Waveform	Sine wave, triangular wave, square wave
Signal Generator - Wave Distortion	<1%
Scanning Mode	Logarithmic/linear, increase/decrease
Signal Analyzer - Integral Time	Minimum: 10ms or cycle time, Max: 10⁶ cycles or 10⁵s
Signal Analyzer - Measurement Delay	0 to 10⁵s
DC Offset Compensation - Potential Range	-10V to +10V
DC Offset Compensation - Current Range	-1A to +1A
Bandwidth	8-decade frequency range, auto/manual setting
Product Dimension	360mm × 340mm × 140mm
Packaging Dimension	550mm × 400mm × 250mm
Net Weight	6.5 kg
Packaging Weight	9 kg

High-precision current control system
Stable voltage monitoring performance
Reliable data acquisition technology
Compact and lightweight design
Fast response measurement time

Our Potentiostat LPT-A11 ensures accurate electrochemical analysis for research, corrosion testing, energy applications, and material characterization, offering precision and reliability in various laboratory and industrial settings.

CS Studio Software	1
Power Cable	1
USB Cable	1
Electrode Cable	2
Dummy Cell	1

Ag/AgCl Reference Electrode	Only Ag/AgCl
Platinum Wire Counter Electrode	Only Pt wire
Glassy Carbon Working Electrode	3mm
Electrochemical cell (Non-Sealed)	250 ml
