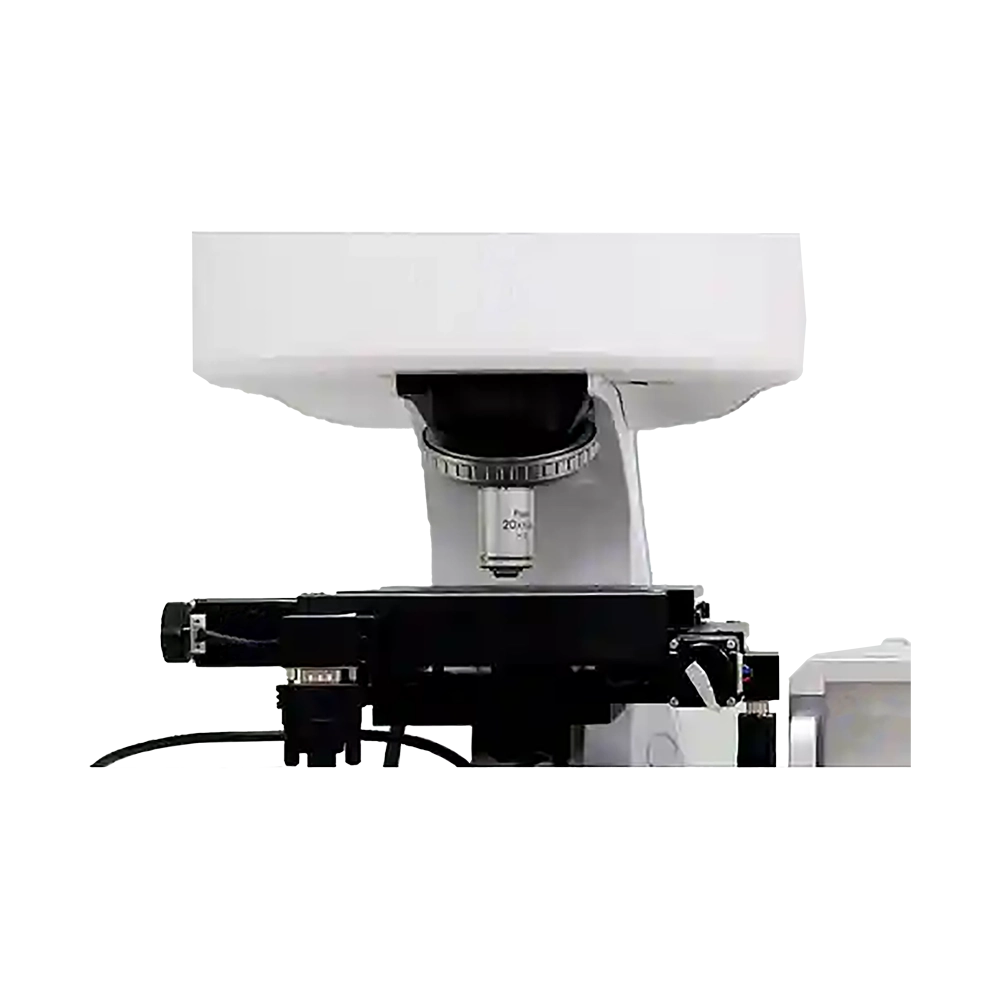

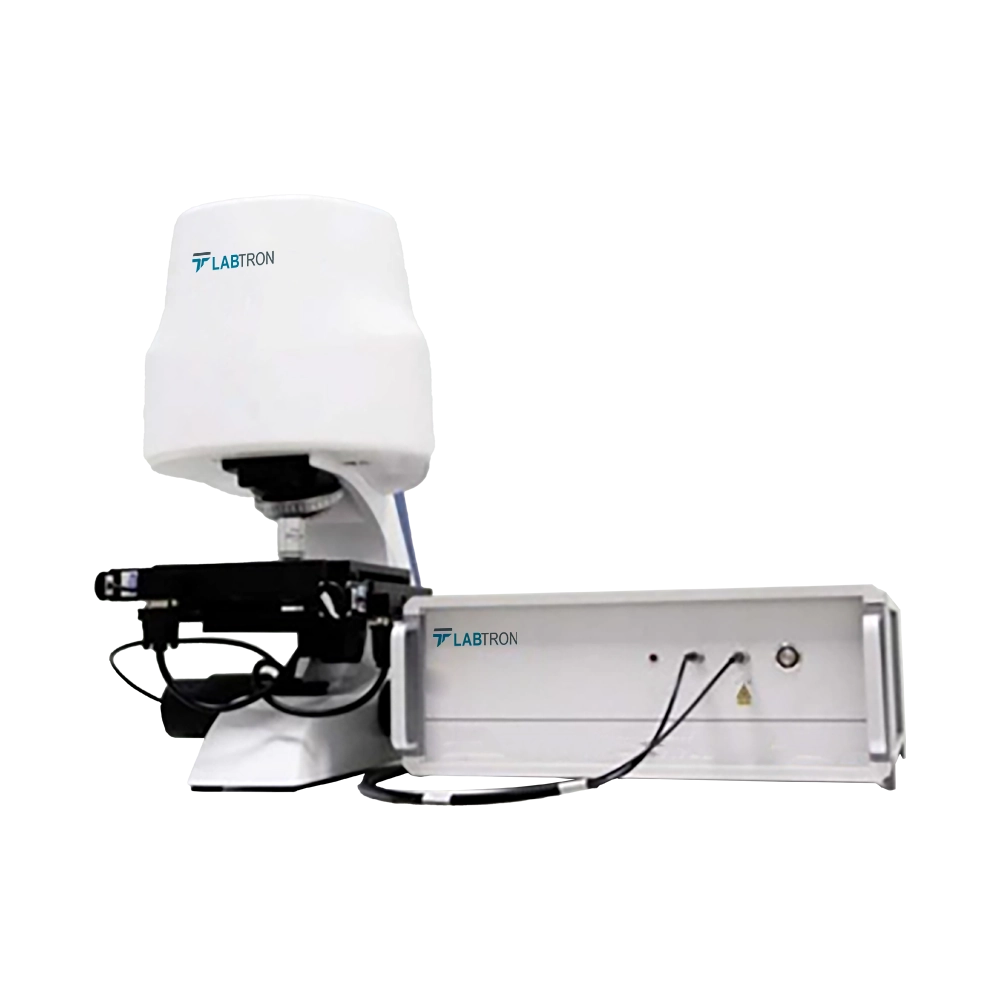

Raman Spectrometer LRSM-A10

Name: Raman Spectrometer LRSM-A10
Brand: Labtron
SKU: LRSM-A10
Rating: 4.7 (878 reviews)

Raman Spectrometer LRSM-A10 operates with an excitation wavelength of 785 nm, achieving a spectral resolution of 5 cm⁻¹. It covers a wide spectral range from 250 to 2700 cm⁻¹. Achieves ultra-high resolution from the laser spot on samples for precise measurements. Our Raman Spectrometer utilizes an advanced CCD detector for improved spectroscopic detection. It is compatible with a wide range of excitation wavelengths for diverse applications.

Request Quote

Excitation Wavelength	785 nm
Spectral Resolution	5 cm⁻¹
Spectral Range	250 to 2700 cm⁻¹
Maximum Laser Power	500 mW (532 nm: 100 mW)
Stability Spectra	σ/μ < 0.5%
Temperature Stability	Spectral shift ≤ 1 cm⁻¹ (10 to 40℃)
Signal-to-Noise Ratio	> 6000:1
Detector	TE Cooled, semiconductor laser, 2048 × 64 pixels, back-thinned, IR enhanced CCD; Ingas cooled for 1064 nm
Range of Wavelength	200 to 1100 nm
Scanning Speed	20 mm/s
Pixel Size	14 µm × 14 µm
Dynamic Range	13000:1
Central Laser Wavelength	785 nm (± 0.5 nm)
Microscope Camera	3-megapixel / 5-mega pixel camera
Focus Adjustment	True confocal
Laser Power	> 550 mW (software adjustable)
Diameter of Laser Spot	> 1 µm
Laser Stability	σ/μ < ± 0.2%
Width of Laser Line	0.08 nm
Connectivity	USB 2.0
XY Axis 2D Platform	Moving range: 5 × 5 cm Moving resolution: 0.1 µm Position Accuracy: 1 µm Scan speed: 20 mm/s
Z Axis (Automated Focusing)	Focusing Accuracy: ≤ ± 0.2 µm Maximum range: 20 mm Focusing speed: < 10 s
Packaging Dimension	770 × 470 × 650 mm
Gross Weight	16 kg

Advanced Integrated System
Premium Optics
Clear, crisp images
USB Connectivity

Raman Spectrometer LRSM-A10 is widely used in nanoparticles and new materials research, bioscience, forensic identification, material science, medical immunology, agriculture, food testing, and gemstone analysis.

Laser Wavelength 532, 633, 785, 830, 1064 nm

Raman control box

Printer interface

Data line D port

LED power line

Objective lenses 4X, 10X, 20X

Download catalog for
Raman Spectrometer LRSM-A10 Catalog
