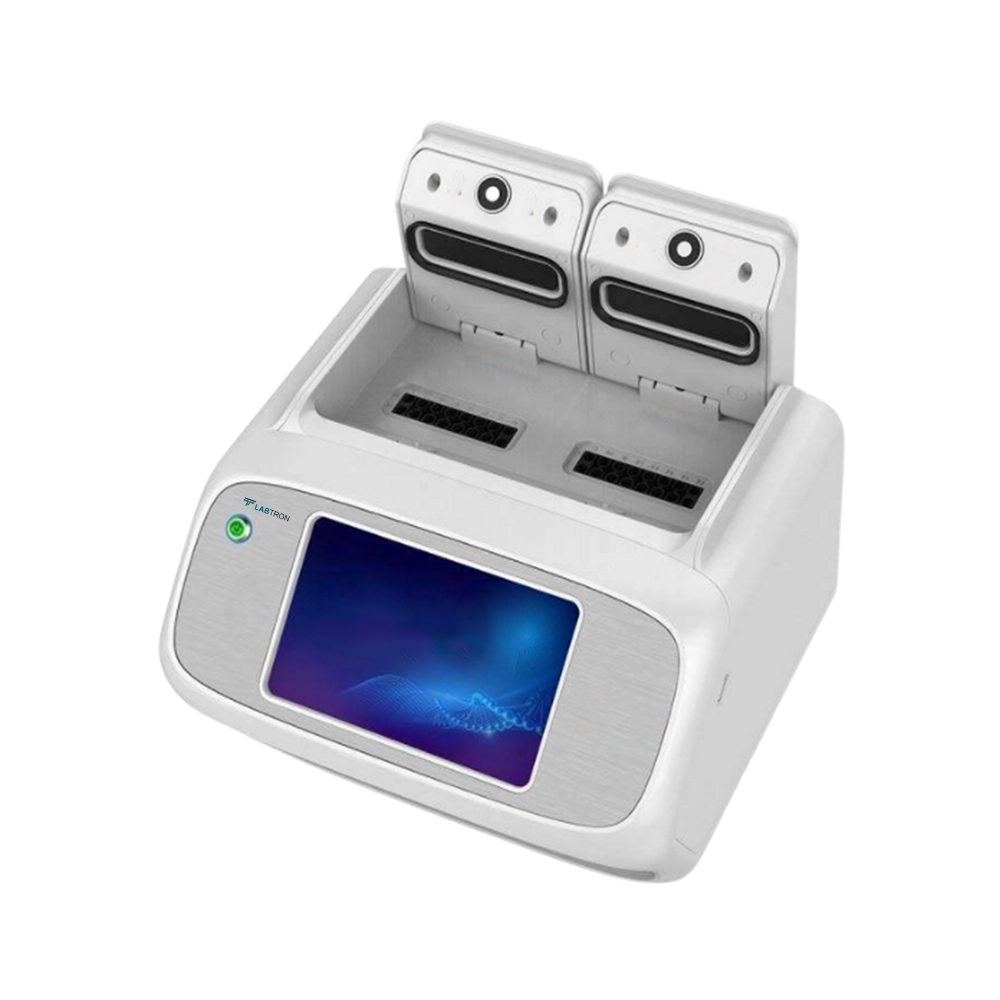

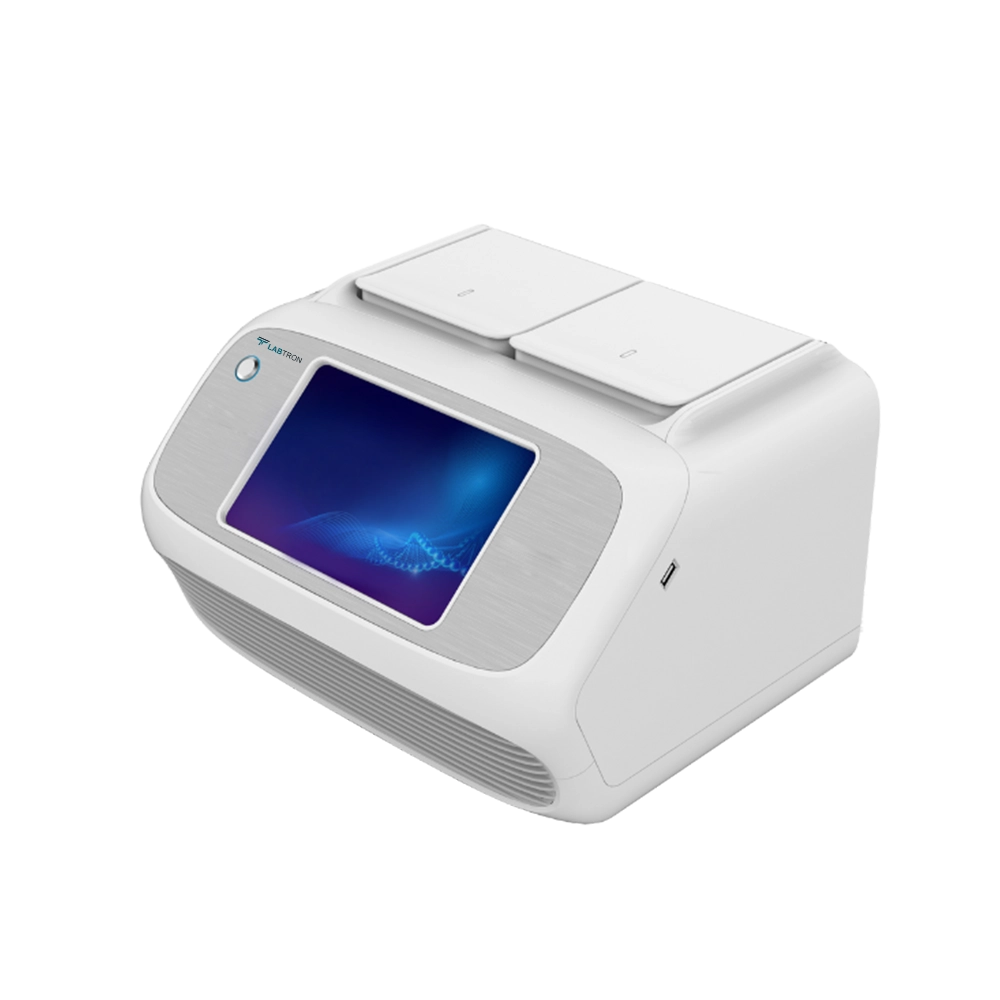

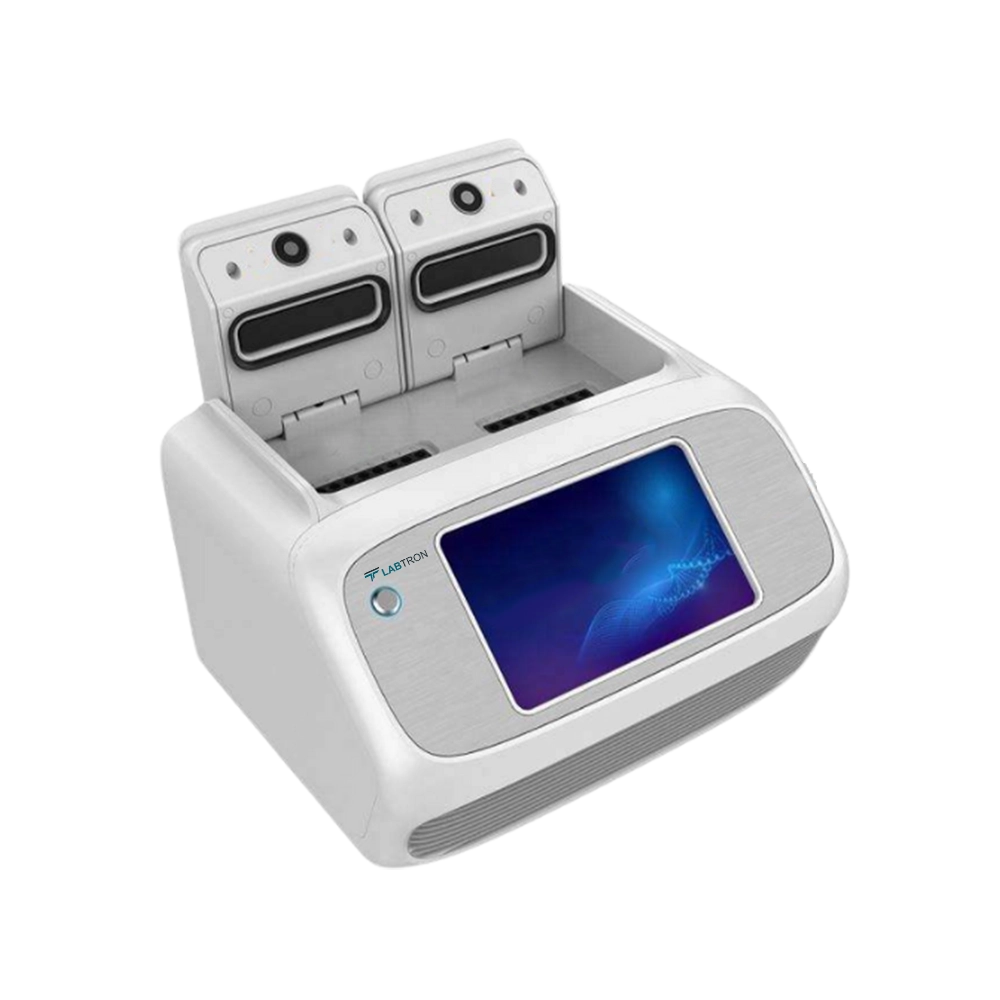

info@labtron.com.webp "Real Time PCR LRTP-A30")
| Sample Capacity | 16×0.2 ml (2×8 well, double block) |
| Consumable | Clear 0.2 ml PCR tube/ 8-tube strips |
| Reaction Volume | 10 to 100 µl |
| Excitation Wavelength | 460 to 550 nm |
| Emission Wavelength | F1: 520 to 540 nm |
| Display | 7 inch color TFT touch screen , 1280×800 pixels |
| Temperature Control Technology | Marlow customized Peltier allow 1.000.000 cycles |
| Temperature Range | 0 to 100°C (Resolution: 0.1°C) |
| Maximum Ramp Rate | 6°C/s |
| Temperature fluctuation | ± 0.1°C |
| Uniformity | ± 0.25°C |
| Accuracy | ± 0.25°C |
| Hot Lid Temperature | 30 to 115°C (Adjustable, default 105°C) |
| Temperature Control | Block/Tube |
| Factory Calibrated Dyes | F1: FAM/SYBR Green l |
| Excitation | Long life LED |
| Detection | High sensitivity photoelectric detector |
| Dynamic Range | 1 to 1010 copies |
| Sensitivity | 1 Copy |
| Feature Function | Absolute /Relative Quantification, melting curve, genotyping |
| Date Export Formats | Excel, CSV, txt |
| Printing | Report can be printed (Optional USB thermal printer) |
| Communication Parts | WIFI /USB 2.0 |
| Power | DC 15 V, 250 W |
| Dimension (L×W×H) | 300×267×198 mm |
| Net Weight | 5.5 kg |
Download catalog for
Real Time PCR LRTP-A30 Catalog
Available Range :
Real Time PCR LRTP-A30 : 16×0.2 ml (2×8 well, double block) Real Time PCR LRTP-A60 : 48 × 0.2 ml Real Time PCR LRTP-A43 : 96 well, 12 ×8 strip, 96 × 0.2ml single tube Real Time PCR LRTP-B10 : 96 wells × 0.1 ml Real-Time PCR LRTP-A50 : 96-well Plate,12×8 tube strip,96×0.2 mL single tubeLabtron Real-Time PCR offers a variable selection of portable and benchtop units featuring 1 to 6 fluorescence detection channels. They have sample capacities ranging from 16 to 96 wells, supporting a wide range of reaction volumes. The PCR features long-life LED light sources and low noise operation. They are integrated with Peltier-based temperature control technology. Our Real-Time PCR comes with connectivity options like USB, Wi-Fi, and LAN, enabling seamless data export and remote monitoring.
.webp "Real Time PCR LRTP-A31")
Labtron’s Real Time PCR is controlled via user-friendly PC software that provides an intuitive interface for experiment setup, monitoring, and data analysis. The software allows users to define thermal cycling protocols, manage multiple fluorescence channels, and visualize amplification curves in real-time. Post-run analysis features include quantification, melting curve analysis, and data export for further processing. The software supports repeatable analysis and rapid data collection, ensuring that even complex datasets are easy to interpret.
